Home > Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
1/1
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
Share:

Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.

SKU: D-1247T
$15.99 $15.99
Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $15.99 = $15.99
save $0.00
Add to Favorites
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
1/1
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.
  • Description

Slim DIN Rail Mount 16A/300V 1x13 Position Screw Terminal Block Distribution Module.

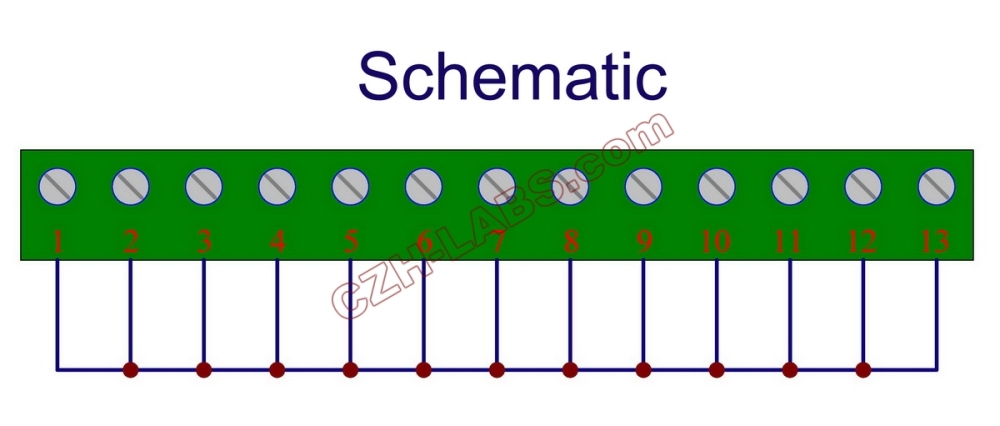

13 Position all connected together.
PCB mount Terminal Block: 1x 13 Position PCB mount screw terminal block, pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 16Amp(per position).

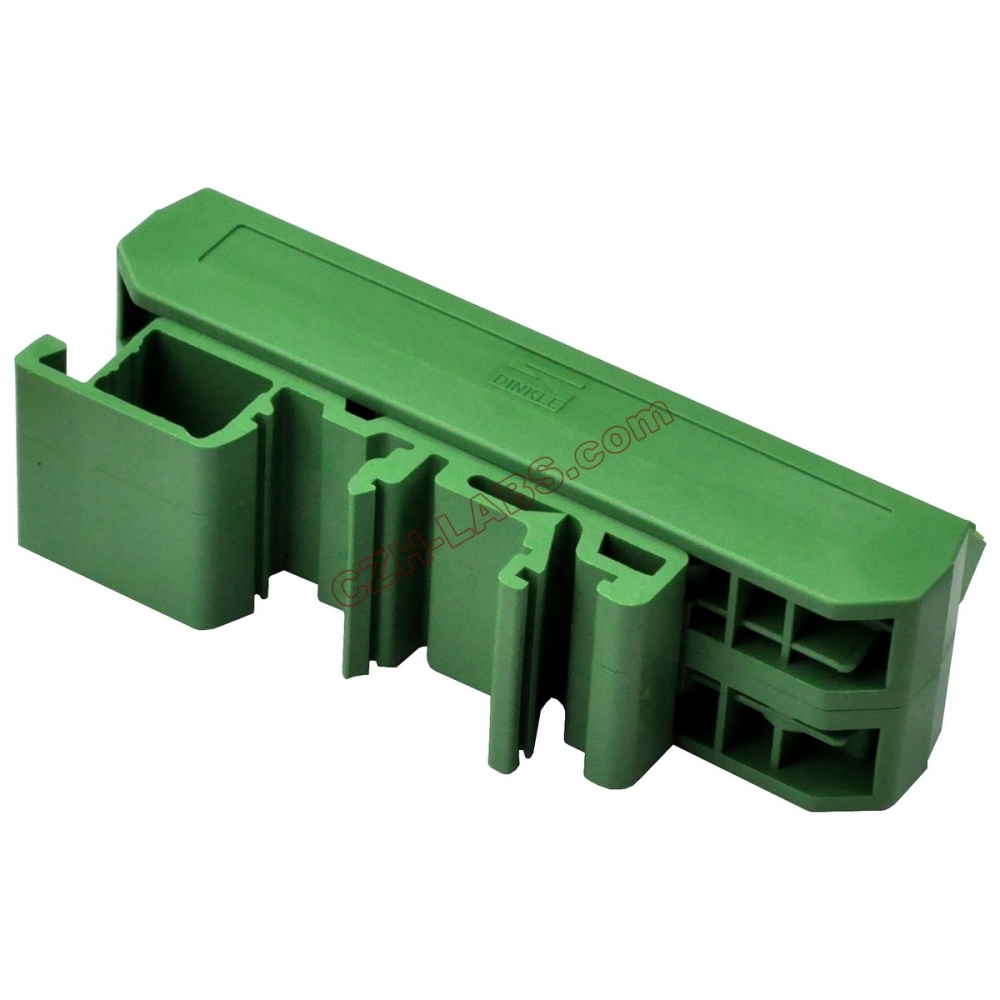

High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm, 25mm or 15mm rail.
