Home > Power Distribution Module > DIN Rail Mount - Screw Terminal Block Distribution Module > 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
1/1
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
Share:

52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP

SKU: D-1664GP
$17.00 $17.00
52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $17 = $17
save $0.00
Add to Favorites
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
1/1
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • 52Amp 600V 2x4 Position Terminal Block Distribution Module. OONO D-1664GP
  • Description

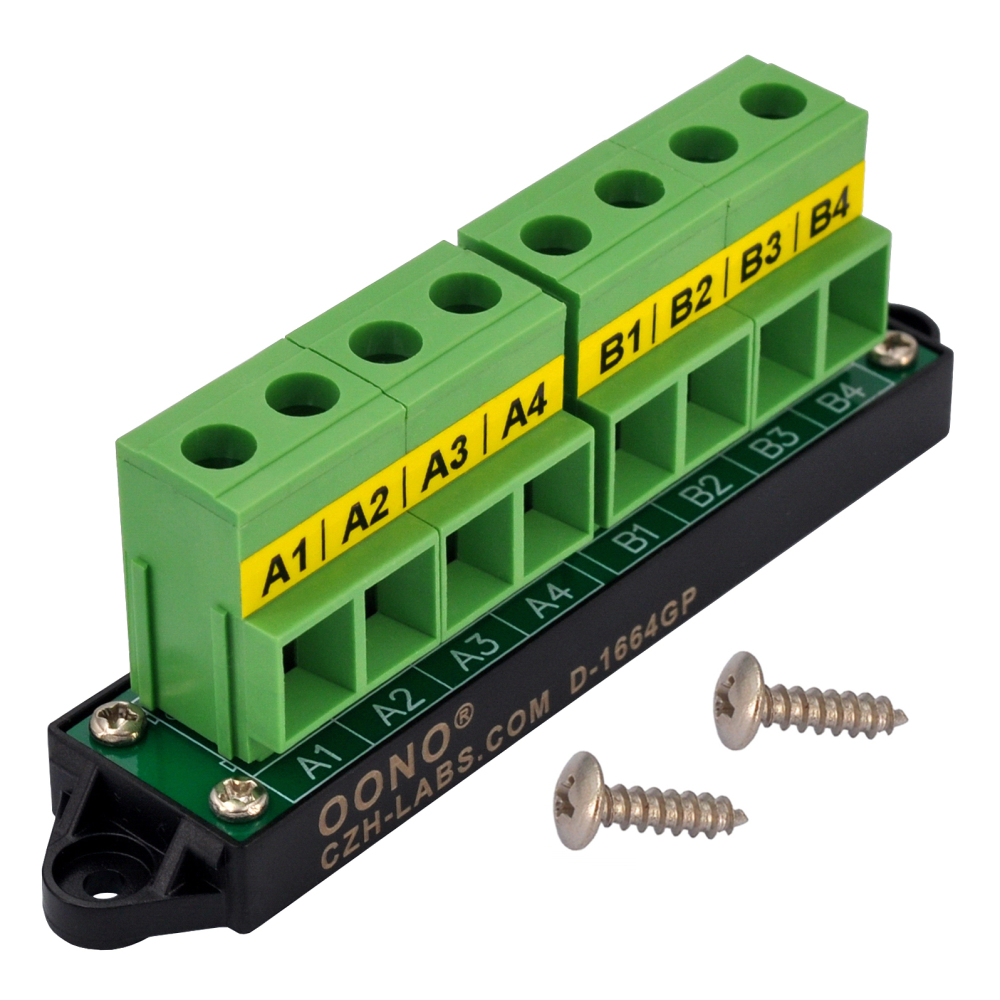

1, 52 Amp 600V 2x4 position screw terminal block distribution module.
2, Rated current 52 Amp(per pole total input or output), Maximum voltage 600V.
3, Screw terminal blocks, Pitch 10.16mm/0.4", Wire range 20AWG ~ 6AWG / 10mm square. Rated current 52 Amp. Strip length 10mm. Screws - M4,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
4, UL CE CQC certified terminal blocks, FR-4 glass fiber PCB. Mounting base: PC (Polycarbonate plastic). Screw: 304 stainless steel.

Other, if you can purchase more than 100 pieces, we can provide special customization services and print the content you want on the mounting base, such as your logo and product number, etc.
