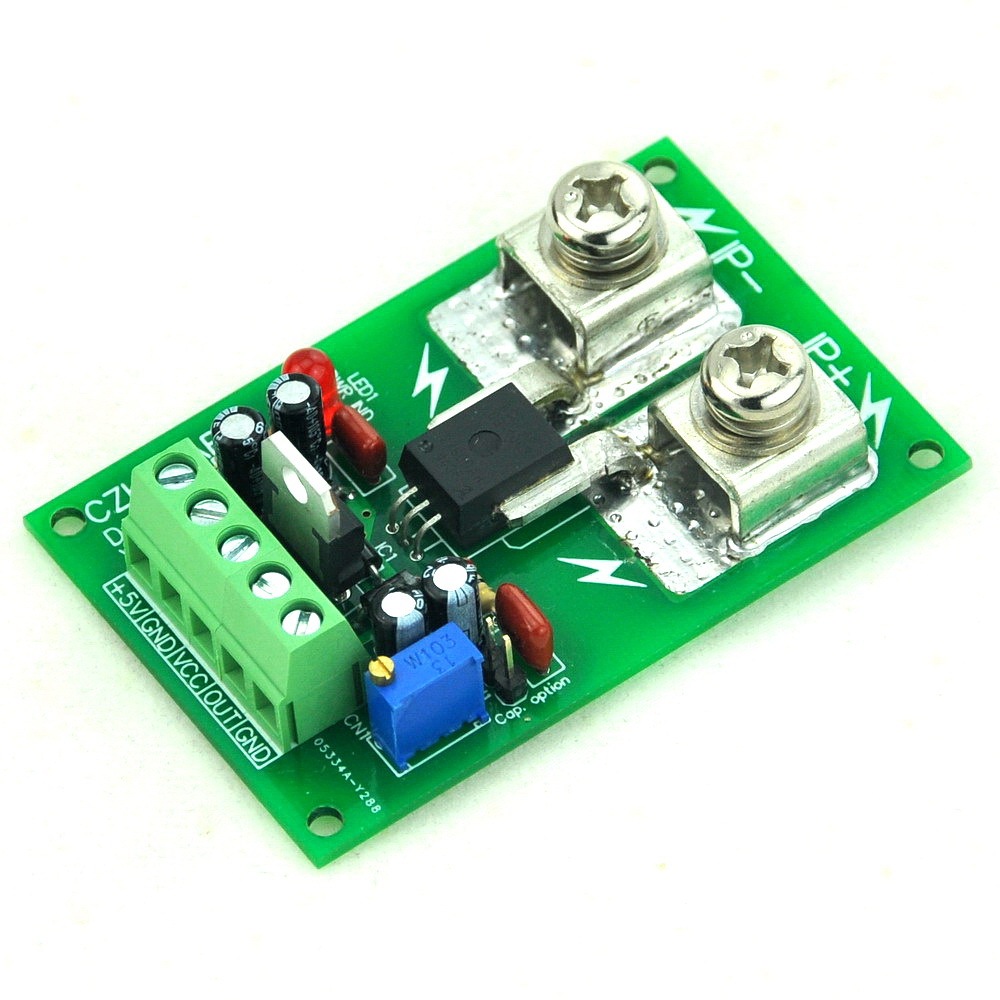

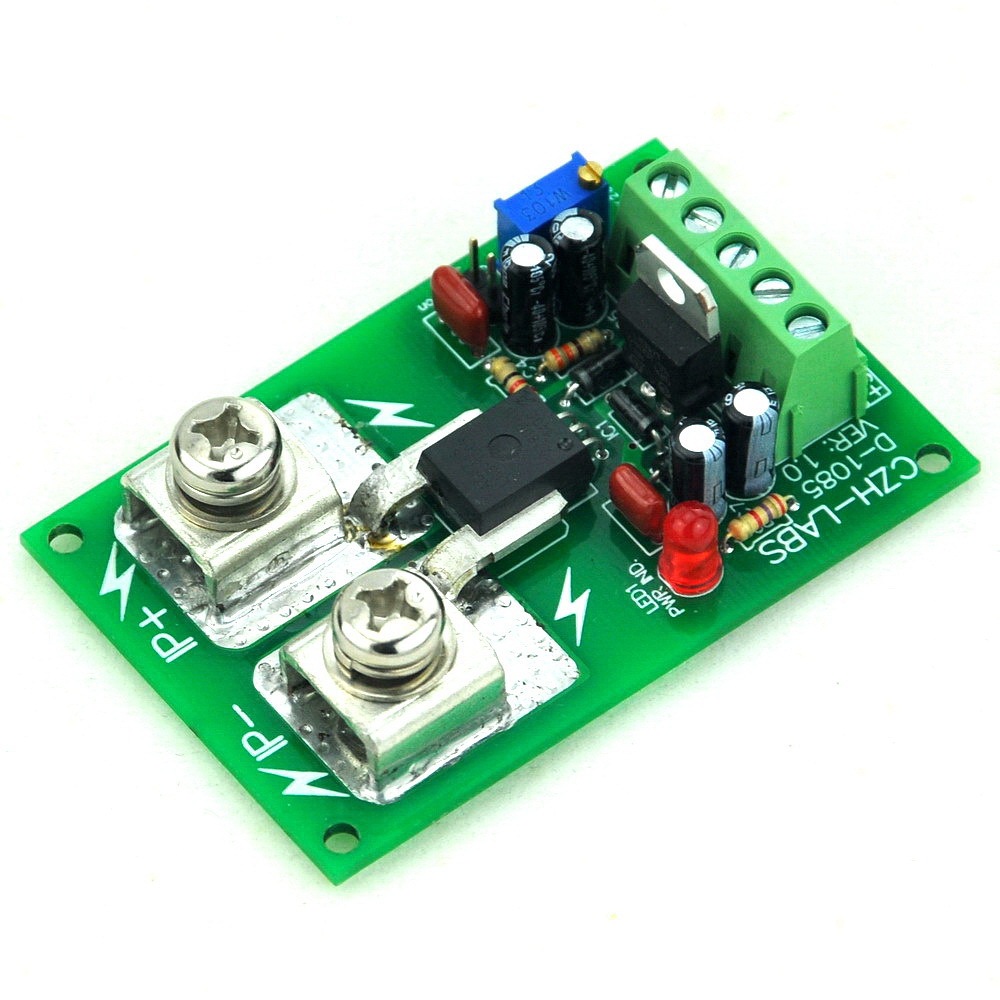

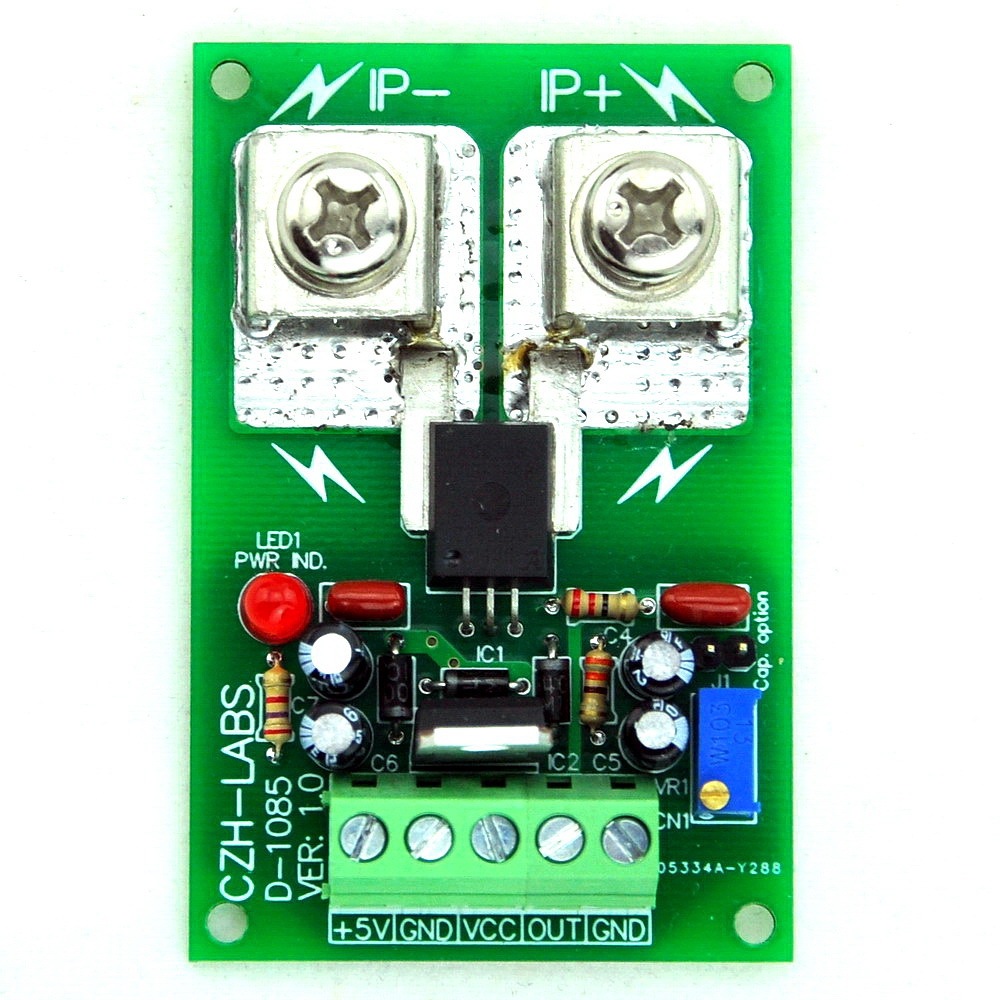

Panel Mount +/-100Amp AC/DC Current Sensor Module Board, based on ACS758.

Name: Panel Mount +/-100Amp AC/DC Current Sensor Module Board, based on ACS758.
Brand: Xiken Tech
SKU: D-1085/100A
Price: 28 USD
Availability: InStock

SKU: D-1085/100A

$28.00 ~~$28.00~~

CZH-LABS Panel Mount +/-100Amp AC/DC Current Sensor Module Board, based on ACS758.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

Current Sensor Module Board, +/-100 Amp, Panel Mount Version.

Features：
The item of current sensor module provides economical and precise solutions for AC or DC current sensing. Typical applications include motor control, load detection and management, power supply and DC-to-DC converter control, inverter control, and overcurrent fault detection.
Output voltage proportional to AC or DC currents.
FR-4 fiber glass PCB, dual copper layers.
100% new, never used.

Electrical Parameters:
Load Maximum Current: ±100A.
Load Frequency Bandwidth: DC ~ 120 kHz.
Isolation Voltage: 4800V AC.
Sensitivity: 20mV/A.
Operating Voltage: Regulated 5VDC, or 8 ~ 35VDC.
Operating Current: 20mA(max).
