Electrical Parameters:
Operating Voltage: DC 3V - 5.5V
Operating Current: 20mA (max)
Minimum Isolation Voltage: 4800Vrms
Load Frequency Bandwidth: DC to 120 kHz
Load Side Rated Voltage: AC/Vrms 475V, or DC/Vpk 672V
Load Side Maximum Current: +/- 50 Amp
Current Direction: Bidirectional (support AC and DC)
Features：
1, The item provides economical and precise solutions for AC or DC current sensing in industrial, commercial, and communications systems. Typical applications include motor control, load detection and management, switched-mode power supplies, and overcurrent fault protection. The device is not intended for automotive applications.

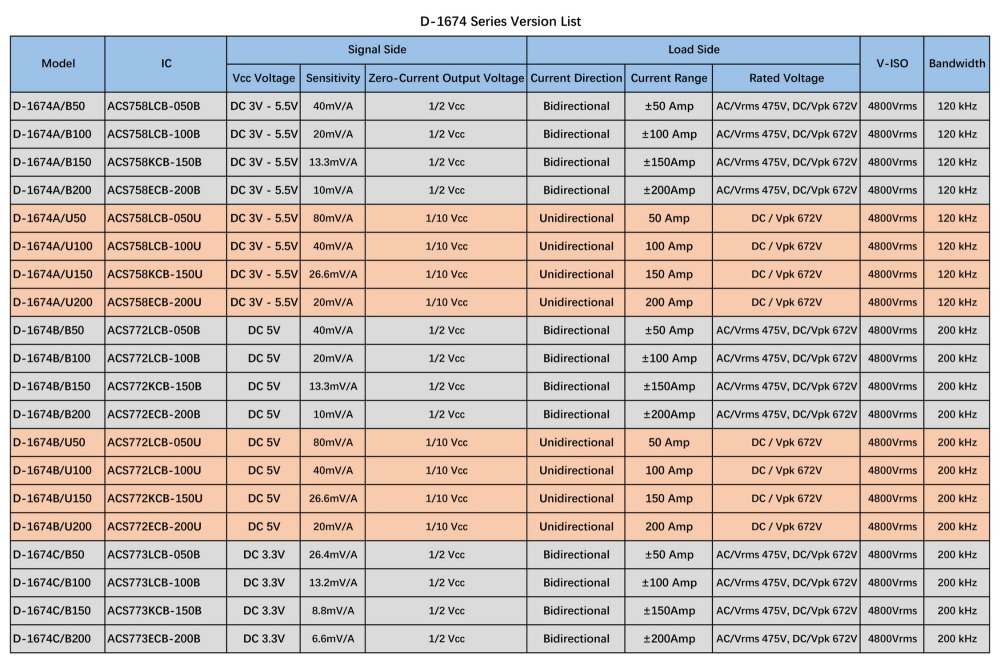

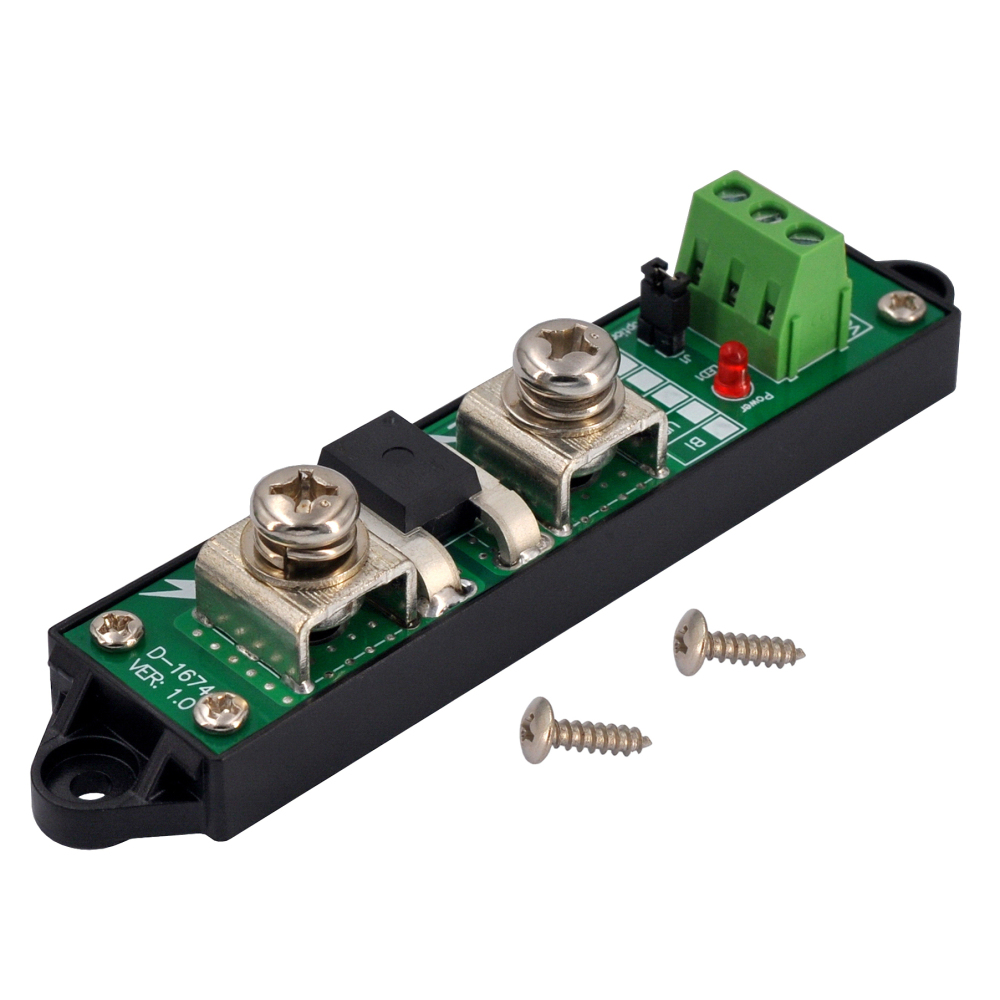

2, This series of products are designed based on Hall-Effect-Based IC ACS758, ACS772 or ACS773. Available in unidirectional and bidirectional versions and from 50 - 200 Amps.

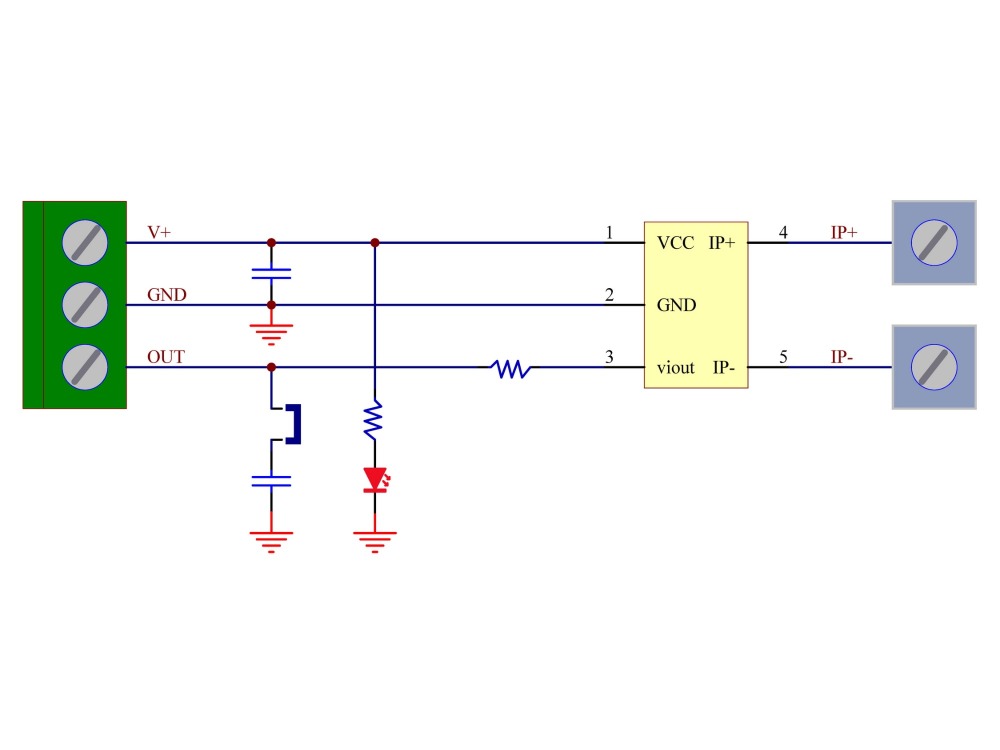

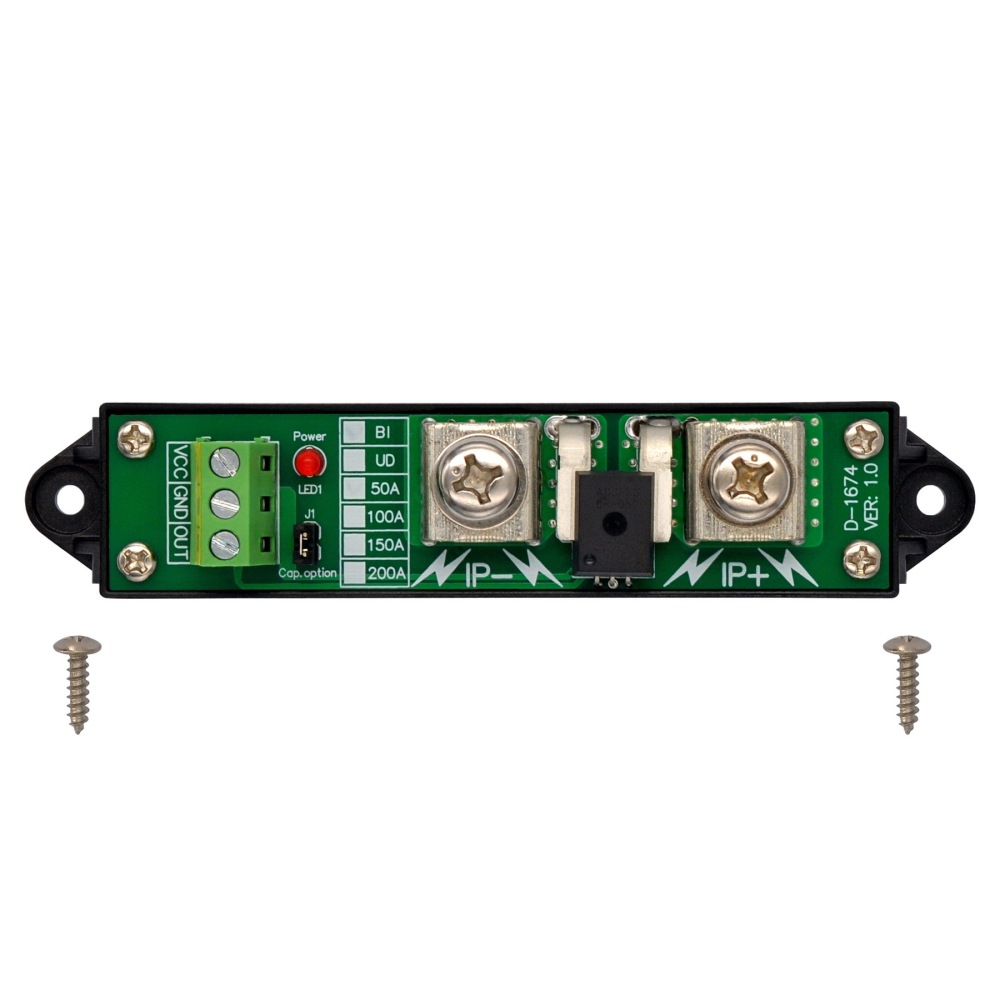

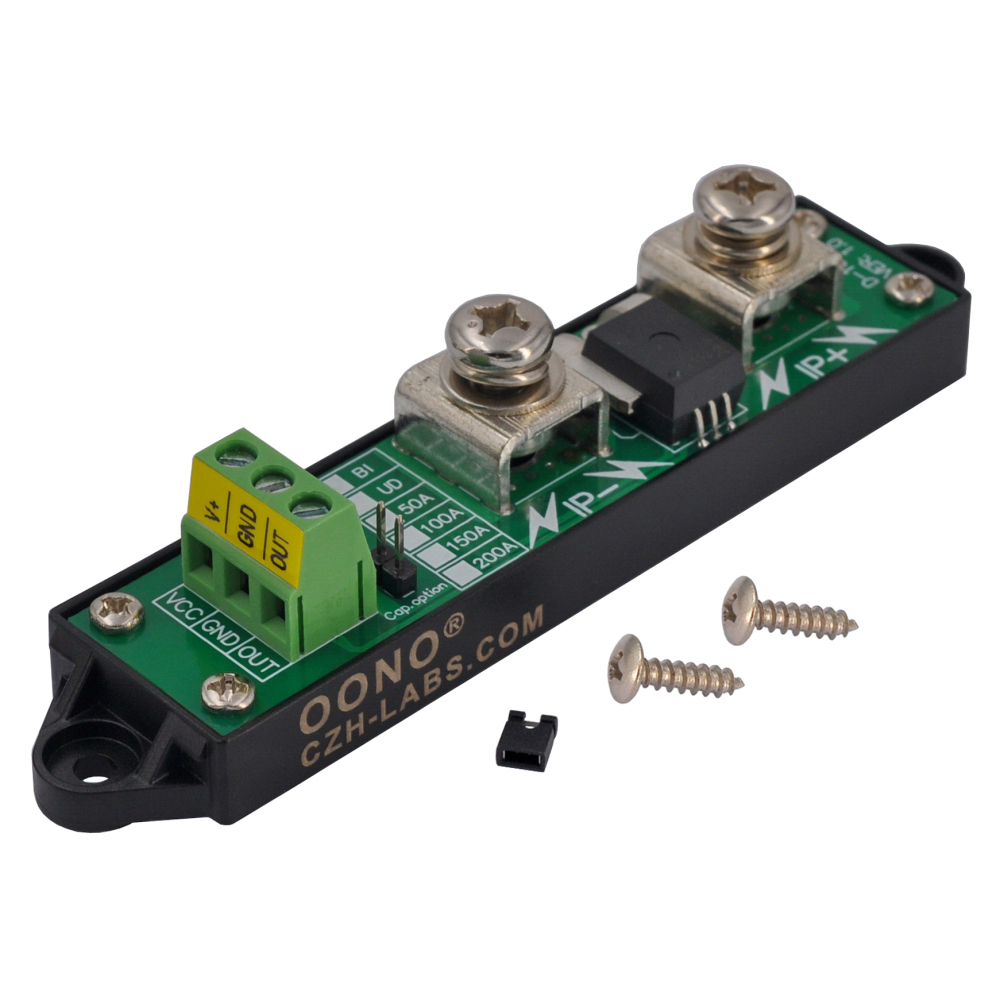

3, Operating voltage VCC 3.3V and 5V versions are available. The red LED is used as an indicator of the operating voltage. The output signal terminal is connected to a load capacitor via a pin jumper, you can short-circuit or unplug it according to actual needs.

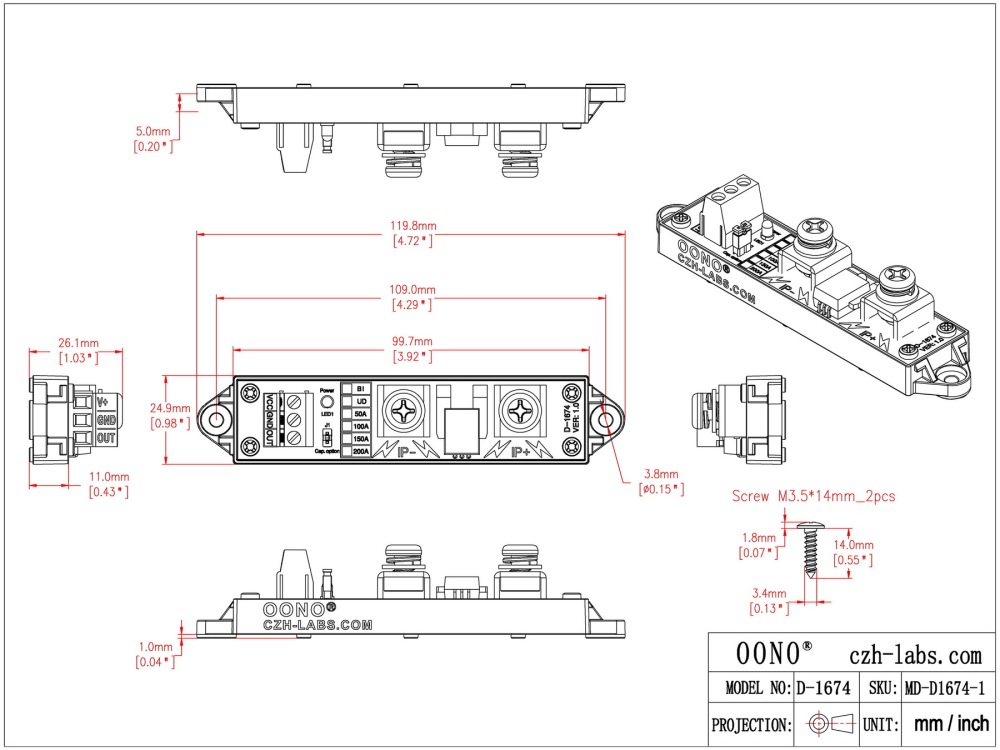

4, Signal side terminal: Pitch 5.0mm/0.197", Wire range 26 - 12AWG / 2.5mm square, Strip length 7mm, Screws - M3.

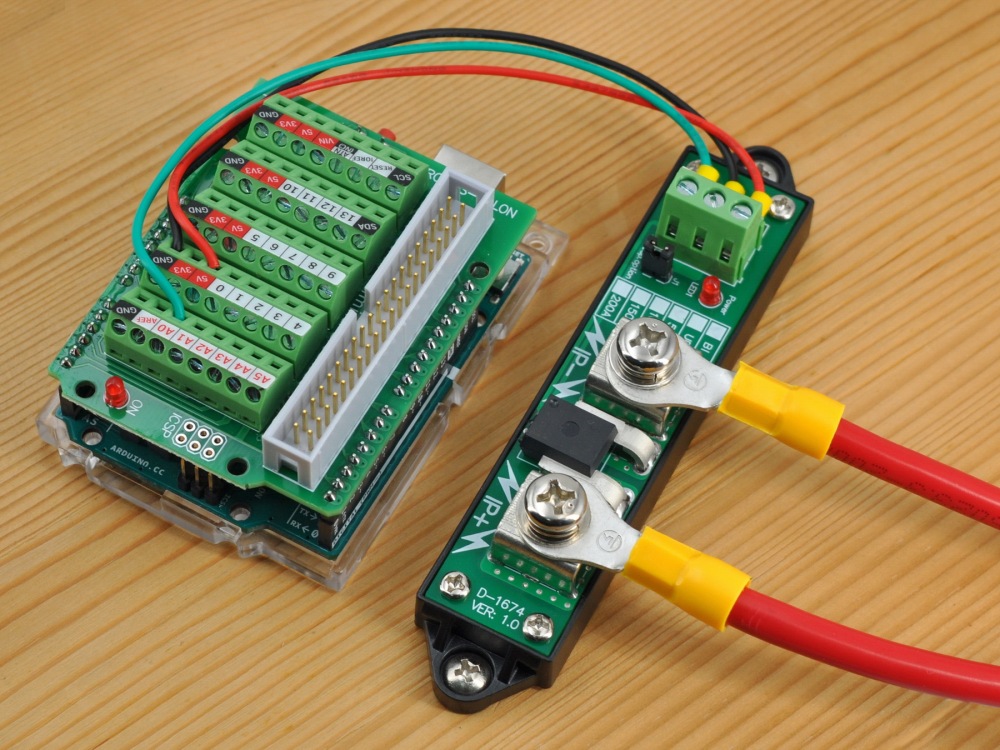

5, Load side terminal: M6 copper terminals, for M6 (US 1/4) ring or fork connectors.
