DIN Rail Mount Screw Terminal Block Breakout Board Module for STM32 Nucleo-32

Name: DIN Rail Mount Screw Terminal Block Breakout Board Module for STM32 Nucleo-32
Brand: Xiken Tech
SKU: D-1688T
Price: 27 USD
Availability: InStock

SKU: D-1688T

$27.00 ~~$27.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

Screw terminal breakout board designed for the full STM32 Nucleo-32 series modules.
With the breakout board, you can easily extend ESP32-DevKitC projects to industrial control applications.
PCB mount Terminal Block: pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG / 2.5mm square.
High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail.
UL CE certified nylon material mount carrier. FR-4 fiberglass material PCB, UL 94-V0 certified PCB. UL CE CQC certified terminal blocks.
Note: the item not include STM32 Nucleo-32 module.

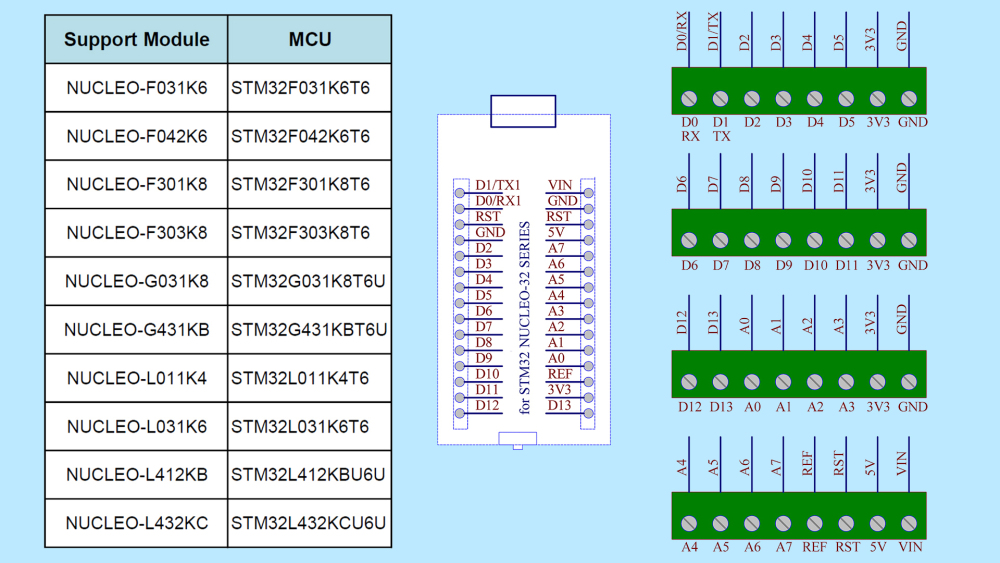

The following STM32 Nucleo-32 modules are supported:
NUCLEO-F031K6
NUCLEO-F042K6
NUCLEO-F301K8
NUCLEO-F303K8
NUCLEO-G031K8
NUCLEO-G431KB
NUCLEO-L011K4
NUCLEO-L031K6
NUCLEO-L412KB
NUCLEO-L432KC
