Bottom-mount Screw Terminal Block Breakout Board Module for STM32 Nucleo-144

Name: Bottom-mount Screw Terminal Block Breakout Board Module for STM32 Nucleo-144
Brand: Xiken Tech
SKU: D-1691
Price: 90 USD
Availability: InStock

SKU: D-1691

$90.00 ~~$90.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

Features:

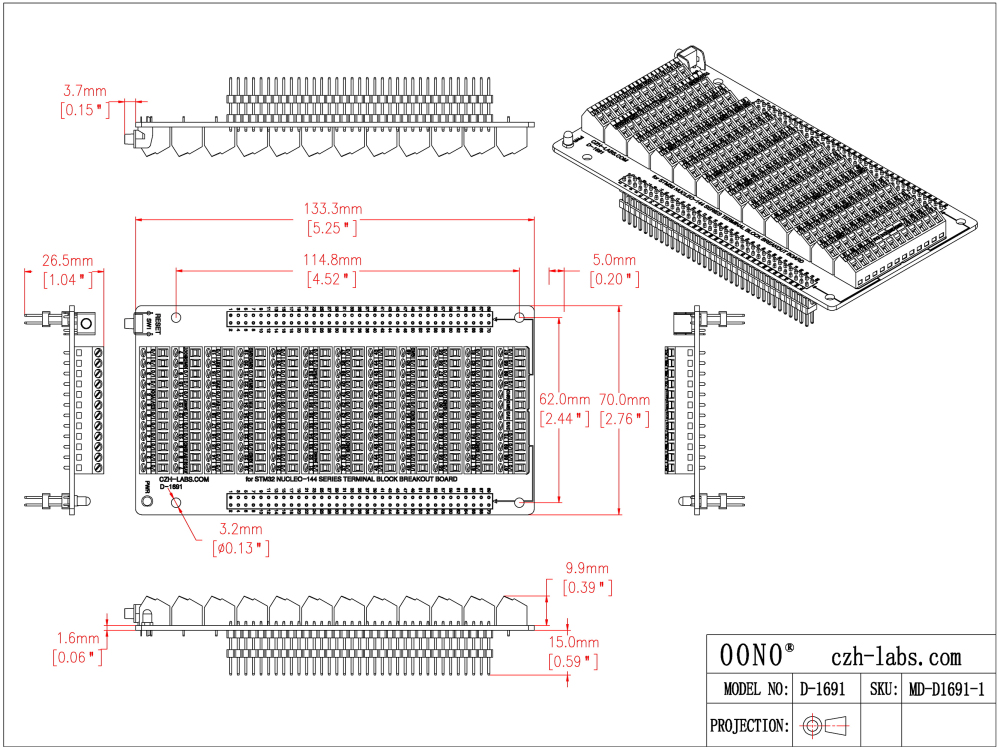

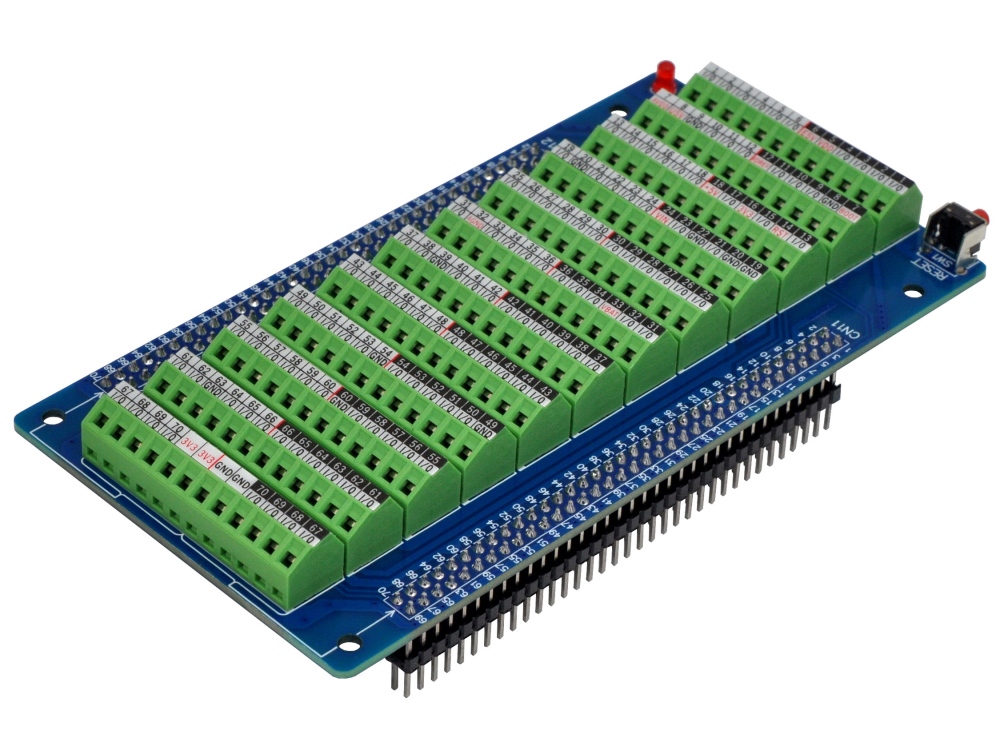

1, Screw Terminal Block Breakout Shield Module - for the full STM32 Nucleo-144 series modules. the item has been soldered and assembled. Bottom-mount version. If you need Top-mount version, please search SKU D-1690.
2, Terminal block pitch 3.5mm/0.138", wire size range 26AWG to 16AWG, strip length 5mm, screw M2 steel, pin header and cage copper.

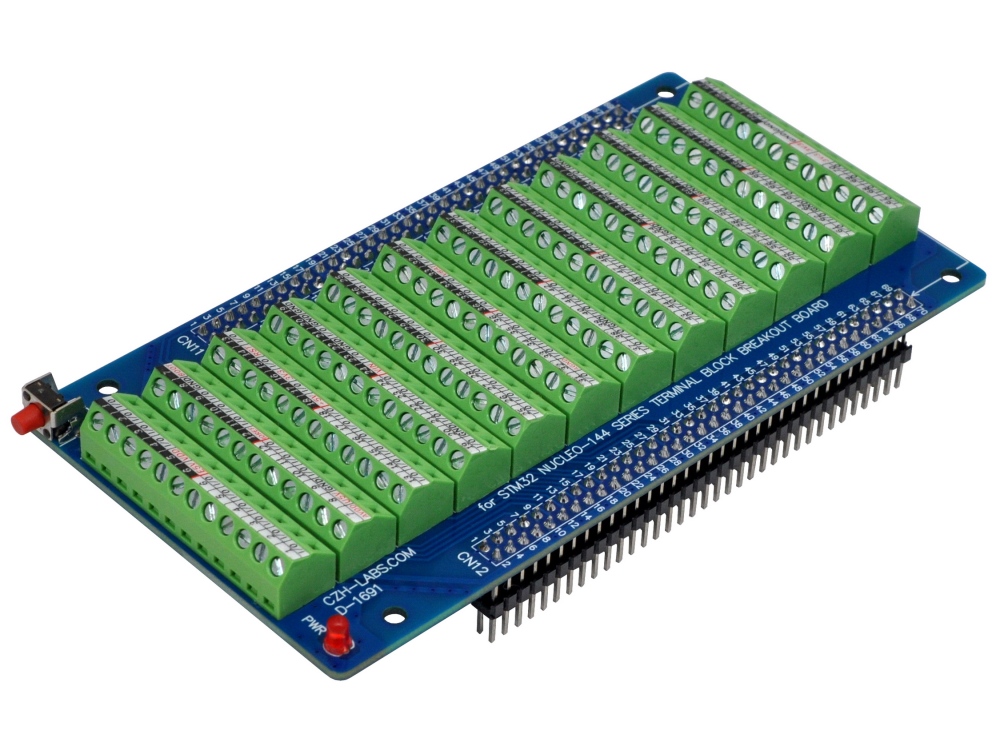

3, With power on LED indicating, with Reset button on the side.

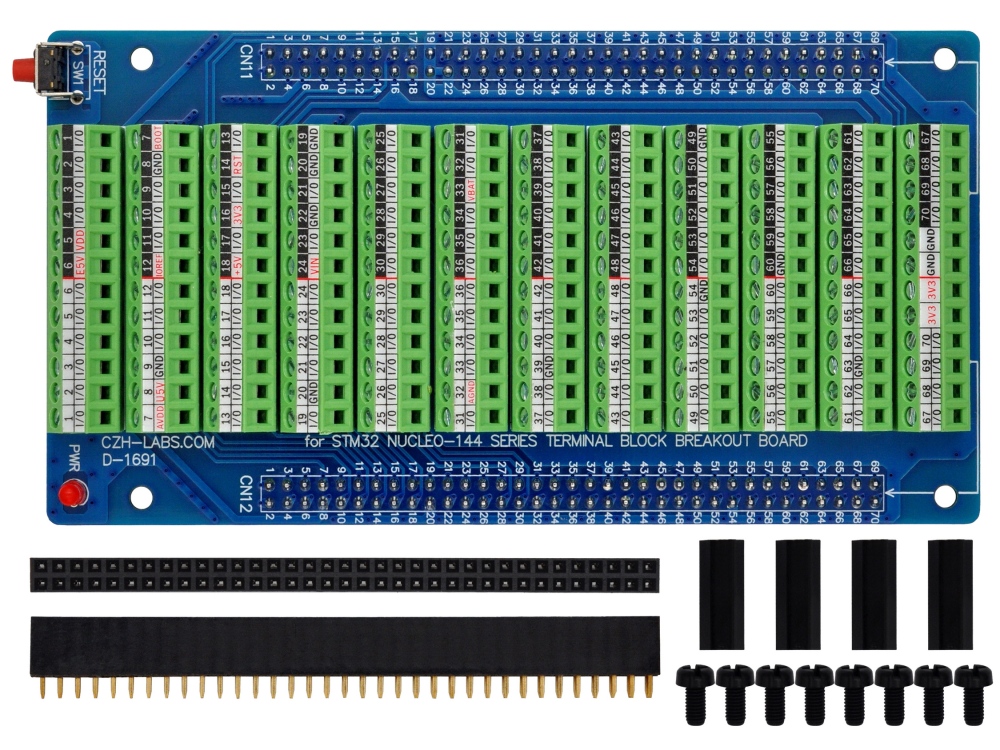

4, Two additional 2x35-pin female headers are included, which the buyer needs to solder onto their own Nucleo-144 module.
5, FR-4 fiberglass material PCB, UL 94-V0 certified PCB. UL CE CQC certified terminal blocks.
Note: the item not include STM32 Nucleo-144 module.

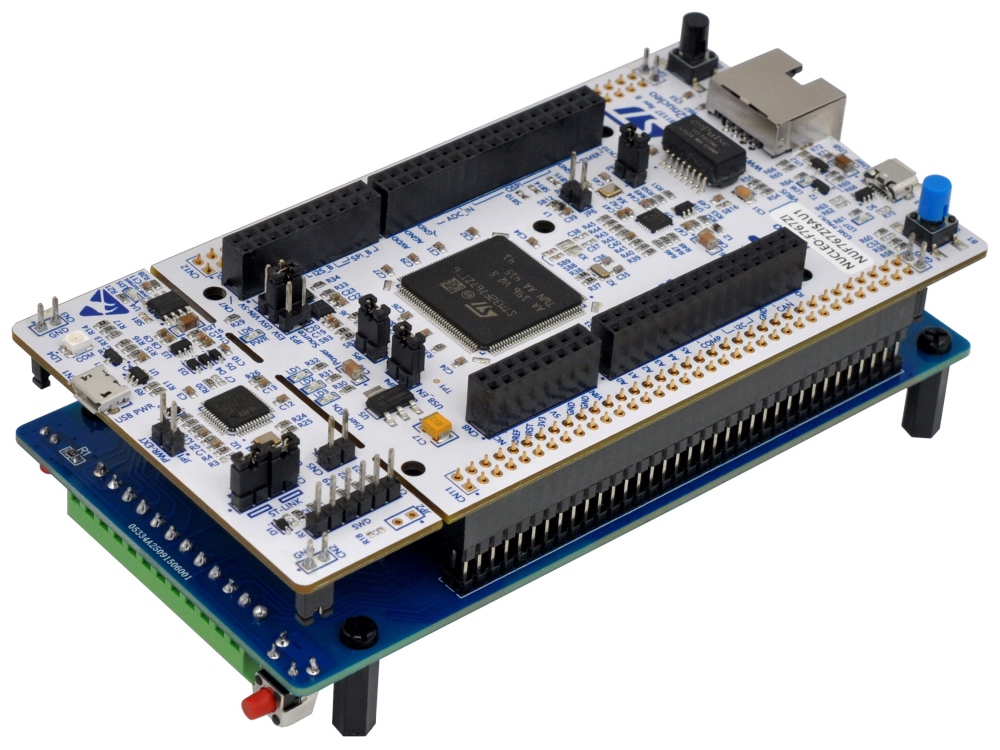

The following STM32 Nucleo-144 modules are supported:
NUCLEO-F207ZG
NUCLEO-F303ZE
NUCLEO-F412ZG
NUCLEO-F413ZH
NUCLEO-F429ZI
NUCLEO-F439ZI
NUCLEO-F446ZE
NUCLEO-F722ZE
NUCLEO-F746ZG
NUCLEO-F756ZG
NUCLEO-F767ZI
NUCLEO-H563ZI
NUCLEO-H723ZG
NUCLEO-H743ZI(1)
NUCLEO-H743ZI(2)
NUCLEO-H745ZI-Q
NUCLEO-H753ZI
NUCLEO-H755ZI-Q
NUCLEO-H7A3ZI-Q
NUCLEO-H7S3L8
NUCLEO-L496ZG
NUCLEO-L496ZG-P
NUCLEO-L4A6ZG
NUCLEO-L4P5ZG
NUCLEO-L4R5ZI
NUCLEO-L4R5ZI-P
NUCLEO-L552ZE-Q
NUCLEO-N657X0-Q
NUCLEO-U575ZI-Q
NUCLEO-U5A5ZJ-Q
