DIN Rail Mount 90Amp 600V 6 Position Screw Terminal Block Distribution Module

SKU: D-1581T
$31.00 $31.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $31 = $31
save $0.00
Add to Favorites
  • DIN Rail Mount 90Amp 600V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 90Amp 600V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 90Amp 600V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 90Amp 600V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 90Amp 600V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 90Amp 600V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 90Amp 600V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 90Amp 600V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 90Amp 600V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 90Amp 600V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 90Amp 600V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 90Amp 600V 6 Position Screw Terminal Block Distribution Module
1/1
  • DIN Rail Mount 90Amp 600V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 90Amp 600V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 90Amp 600V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 90Amp 600V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 90Amp 600V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 90Amp 600V 6 Position Screw Terminal Block Distribution Module
  • Description

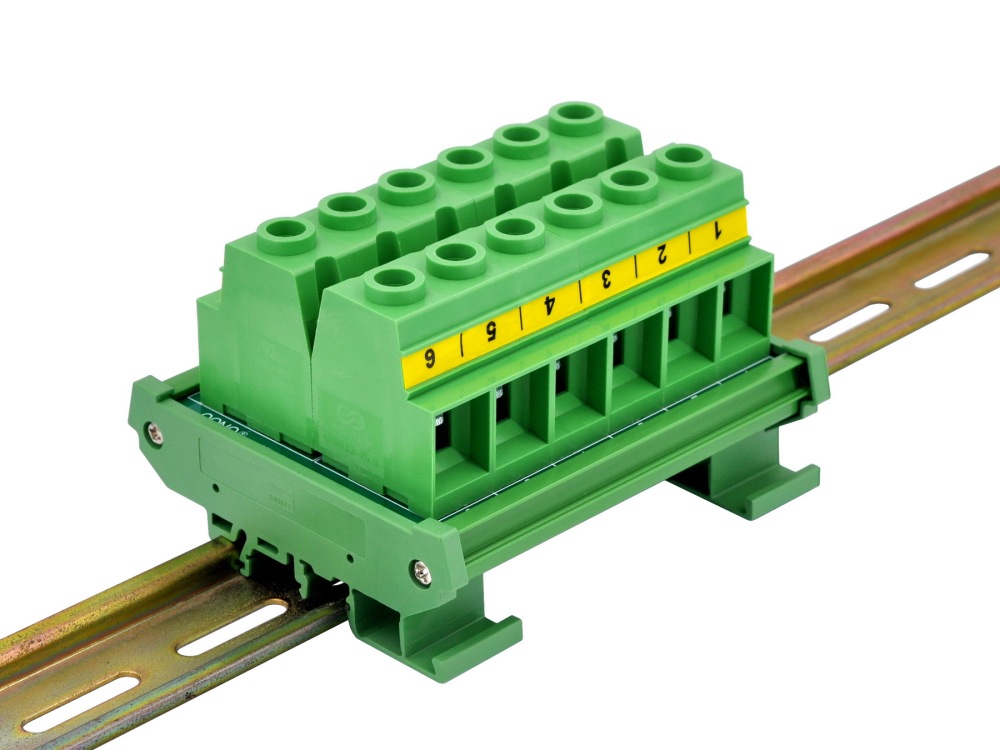

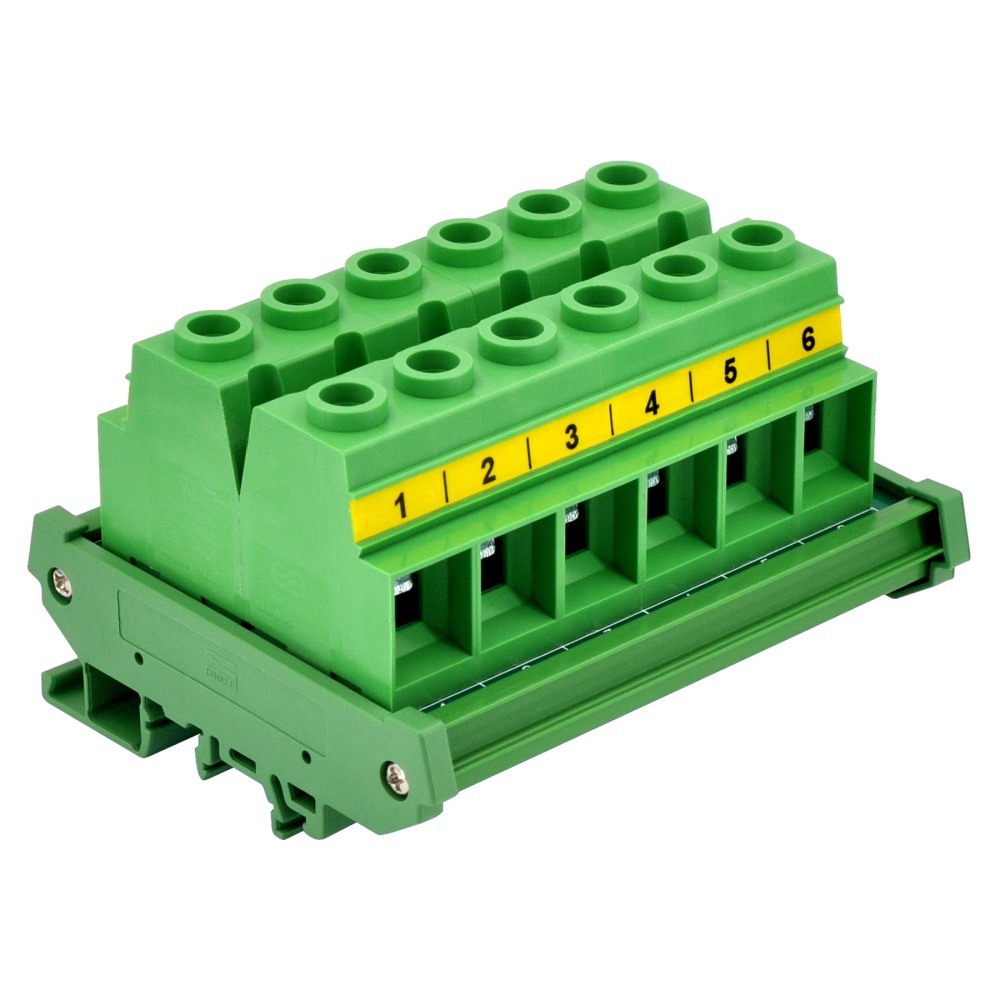

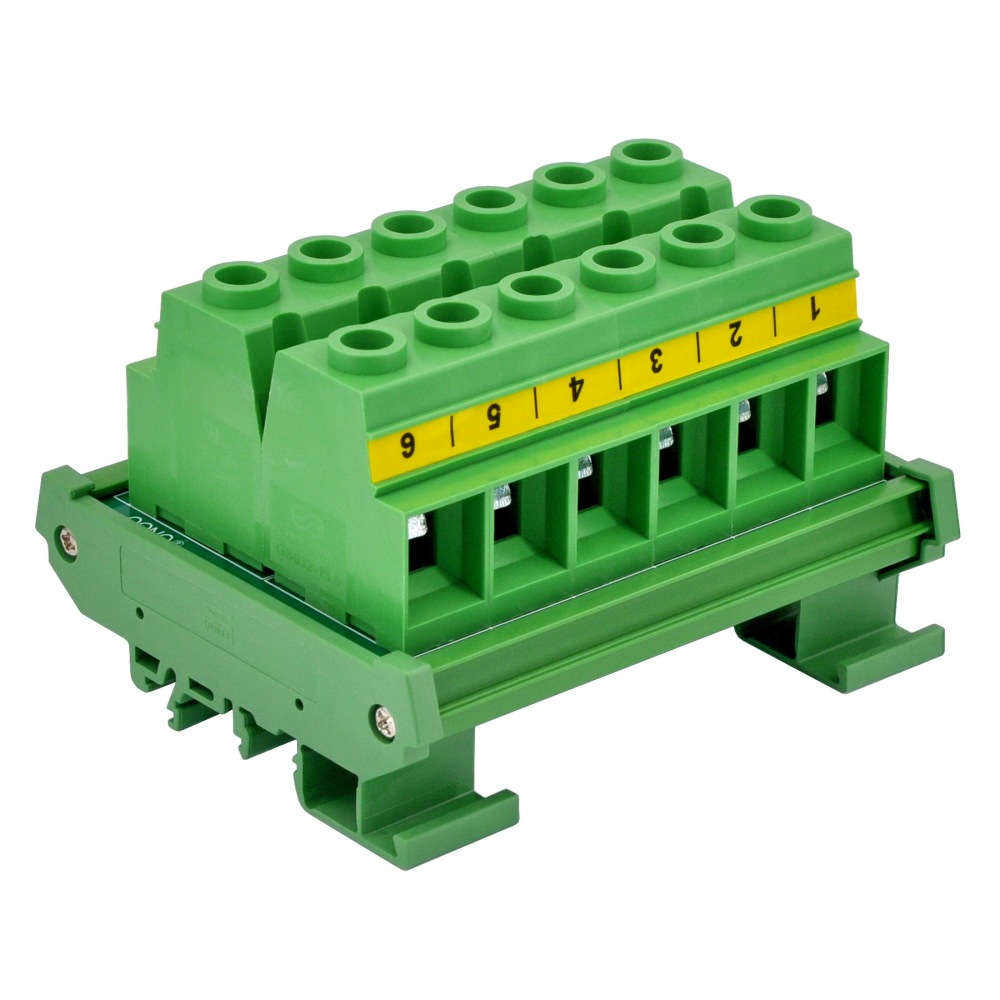

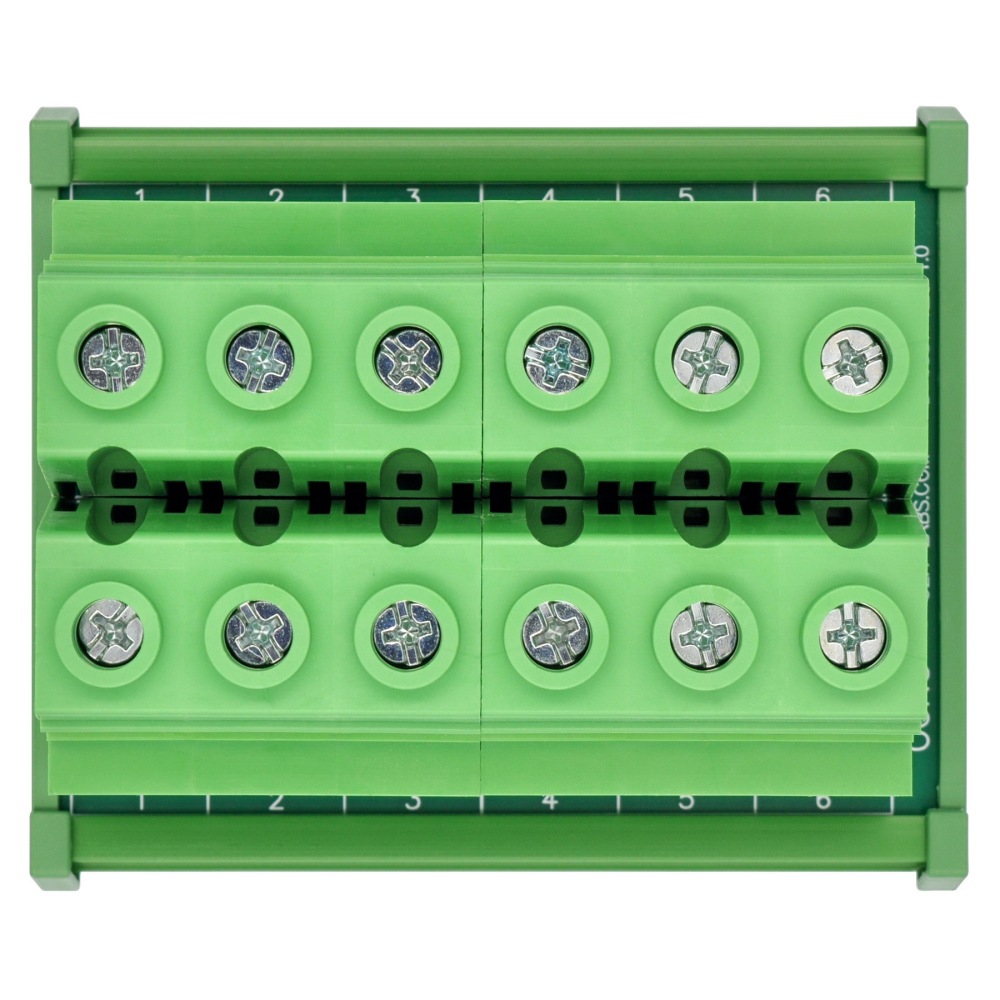

1, DIN Rail Mount 90Amp 600V 6 Position Screw Terminal Block Distribution Module.
2, Terminal Block: Maximum current 90 Amp (each position). Maximum voltage 600V. Pitch 15mm/0.59", Wire range 20AWG ~ 2AWG / 35mm square. Strip length 19mm. Screws - M4.
3, Fireproof nylon material DIN rail mount carrier can support width 35mm 32mm 15mm rail. FR-4 fiberglass dual copper layers PCB.
4, UL CE CQC certified terminal blocks. UL CE certified nylon material mount carrier. UL 94-V0 certified PCB.
5, Operating Temperature Range: -40 to +105C.
