Home > Voltage Regulator Module > CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
1/1
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
Share:

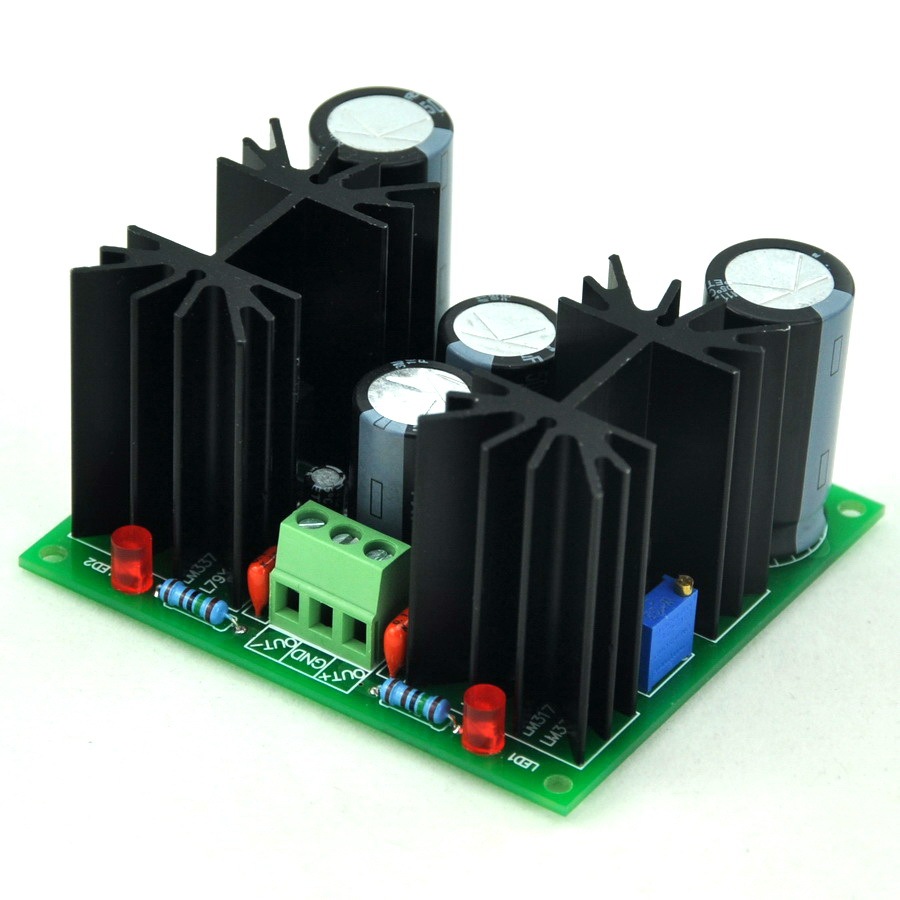

CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.

SKU: D-1002/LM
$23.99 $23.99
CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $23.99 = $23.99
save $0.00
Add to Favorites
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
1/1
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • CZH Positive and Negative +/- 1.25~37V DC Adjustable Voltage Regulator Module.
  • Description
Positive and Negative 1.25 ~ 37V DC adjustable voltage regulator module.
Part number: D1002/LM

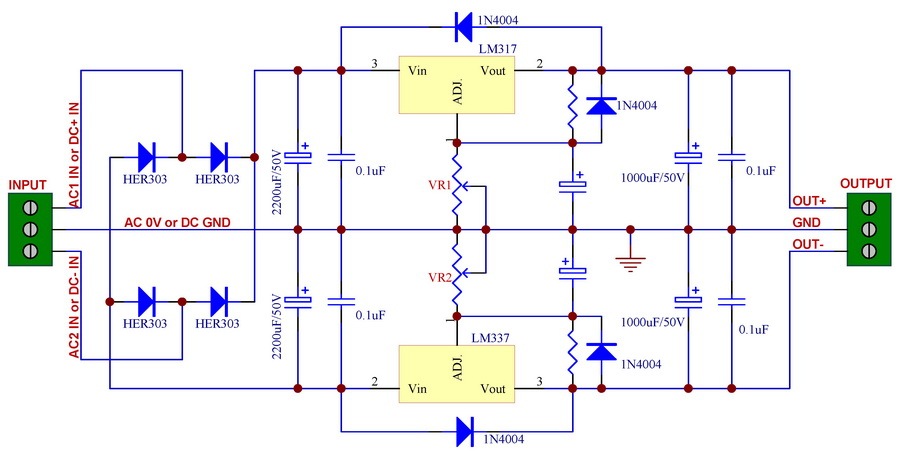

Classic analog voltage regulator circuit, based on LM317/LM337 IC, so do not worry "Electro Magnetic Interference".
Support DC or AC input.
Used high-quality electronic components:
Thickness 1.6mm FR-4 fiber glass PCB (double layer).
HQ terminal blocks easy connection wire.
YXF input/output filter capacitors and metal film capacitors.
HER303 high efficiency rectifier diode.

Input voltage: +/- DC 4 ~ 43V, or AC 4.5 ~ 30V
Output voltage: +/- DC 1.25 ~ 37V adjustable.
Maximum output current: 10/(VinDC - VoutDC) Amp, up to 1.5 Amp.
PCB size: L80mm x W72.5mm / L3.15” x W2.85”
Module size: L80mm x W72.5mm x H43mm / L3.15” x W2.85” x H1.69”
