CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.

SKU: D-1036T/230V
$39.99 $39.99
CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $39.99 = $39.99
save $0.00
Add to Favorites
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
1/1
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount In AC230V Out +/- DC1.25~15.8V Adjustable Voltage Regulator.
  • Description

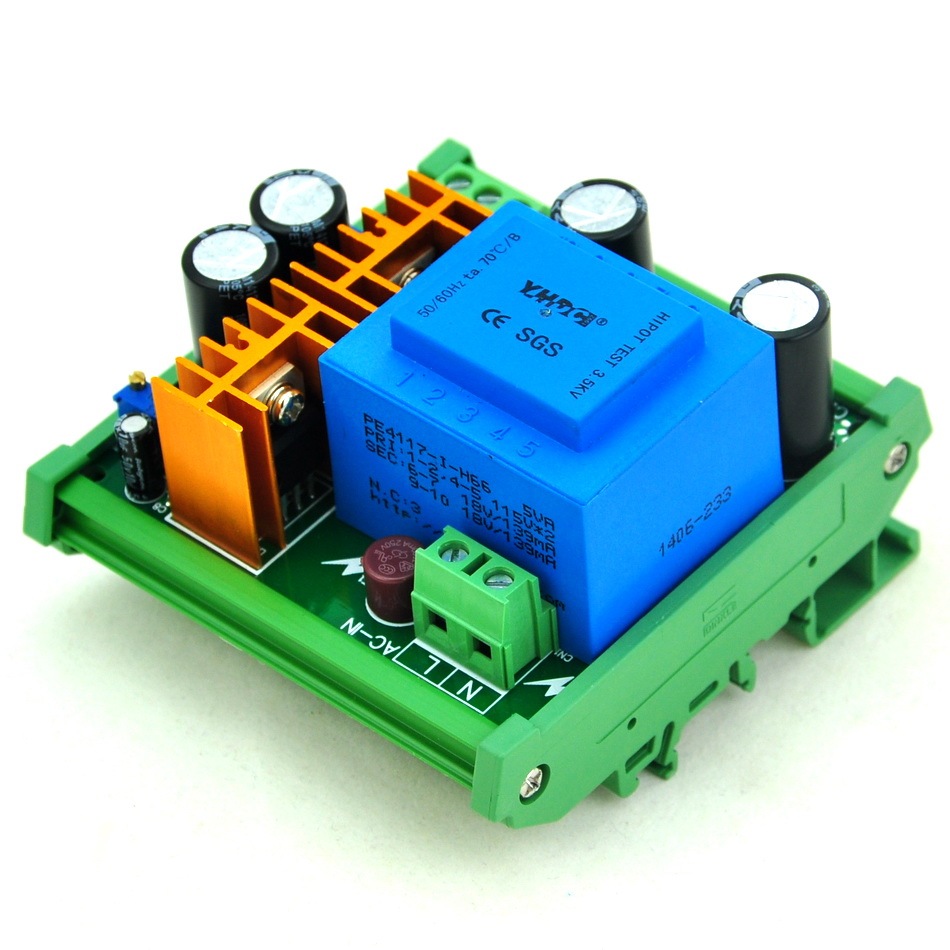

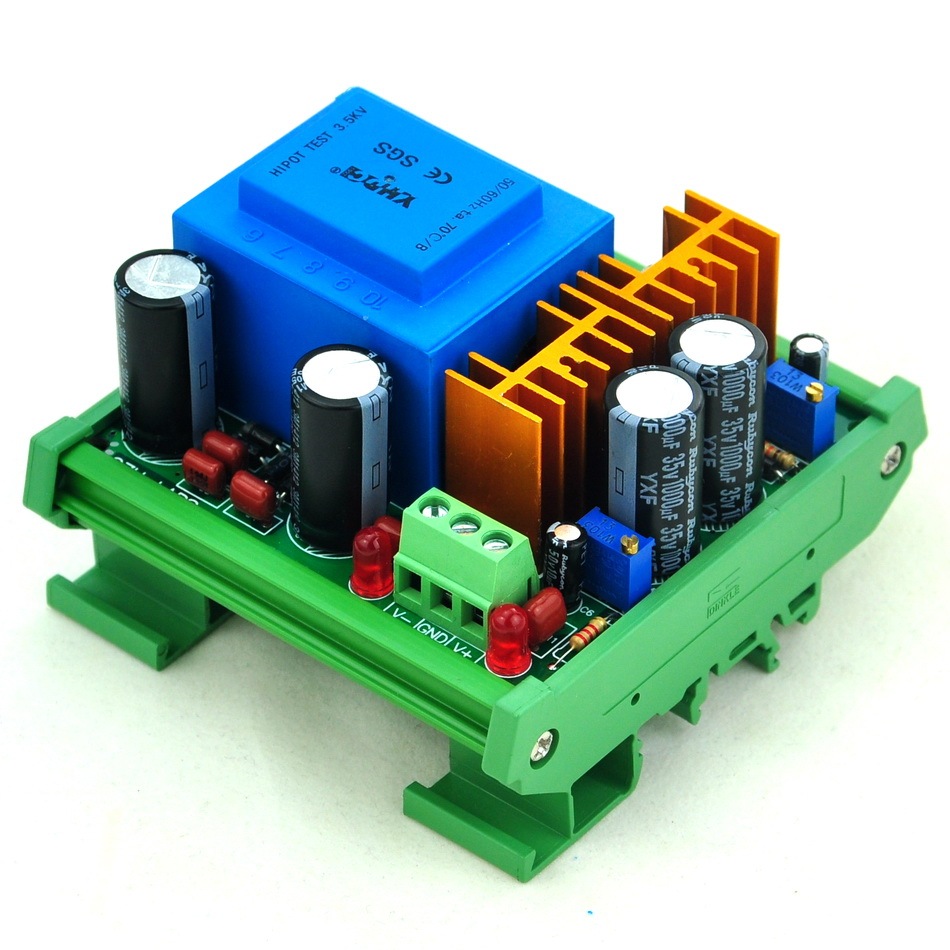

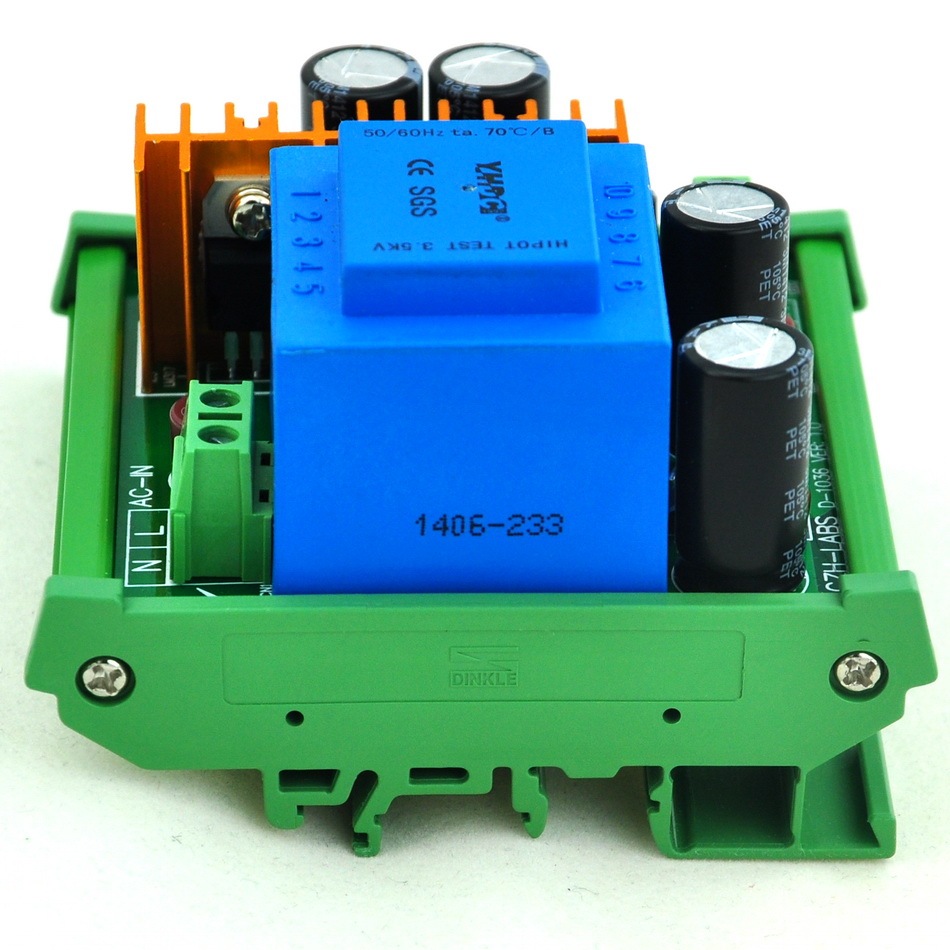

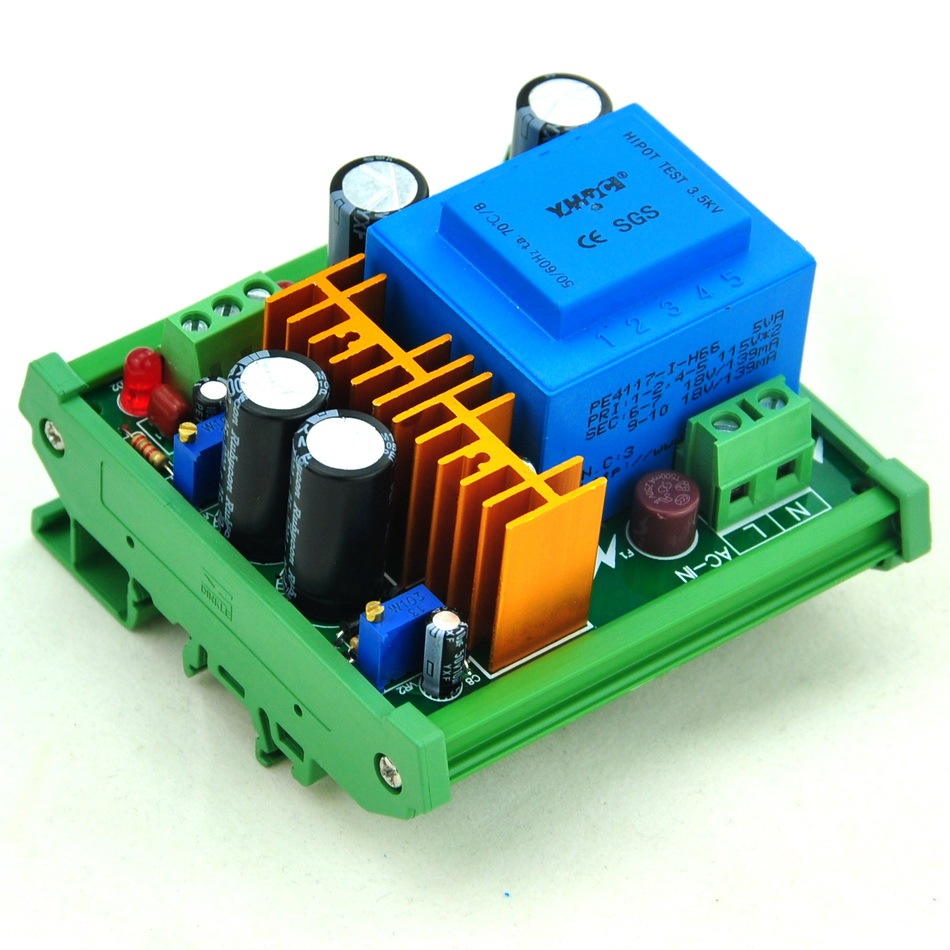

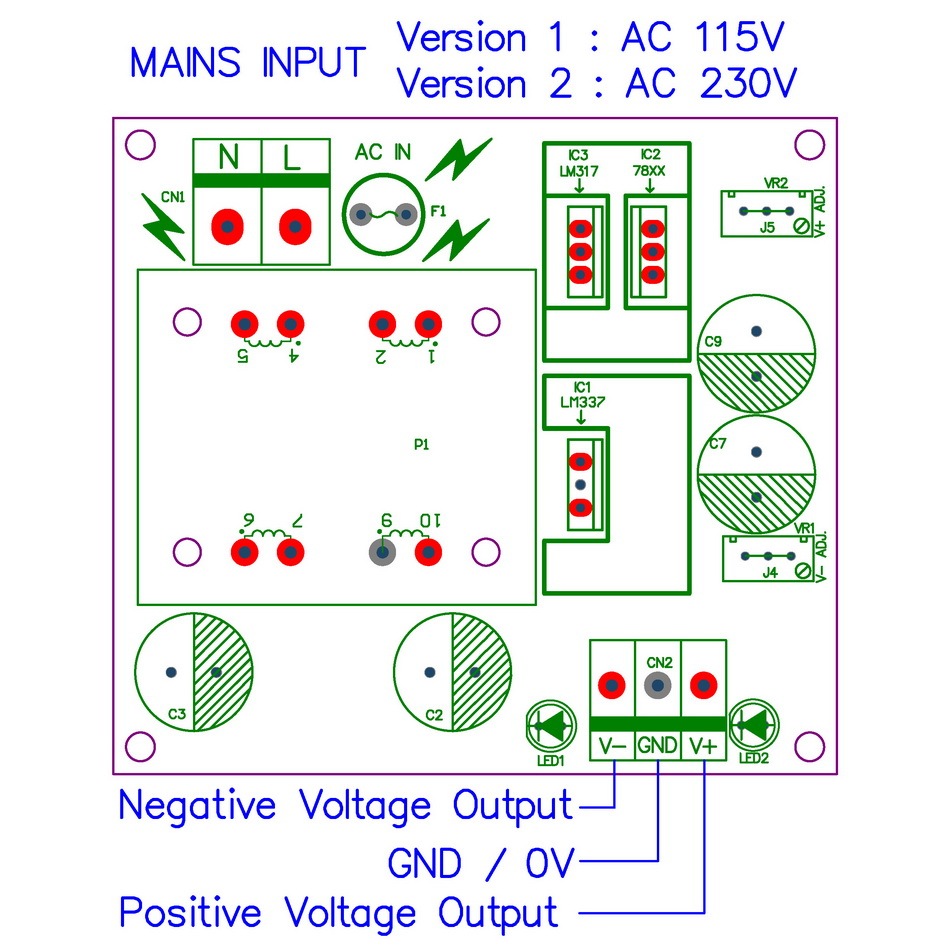

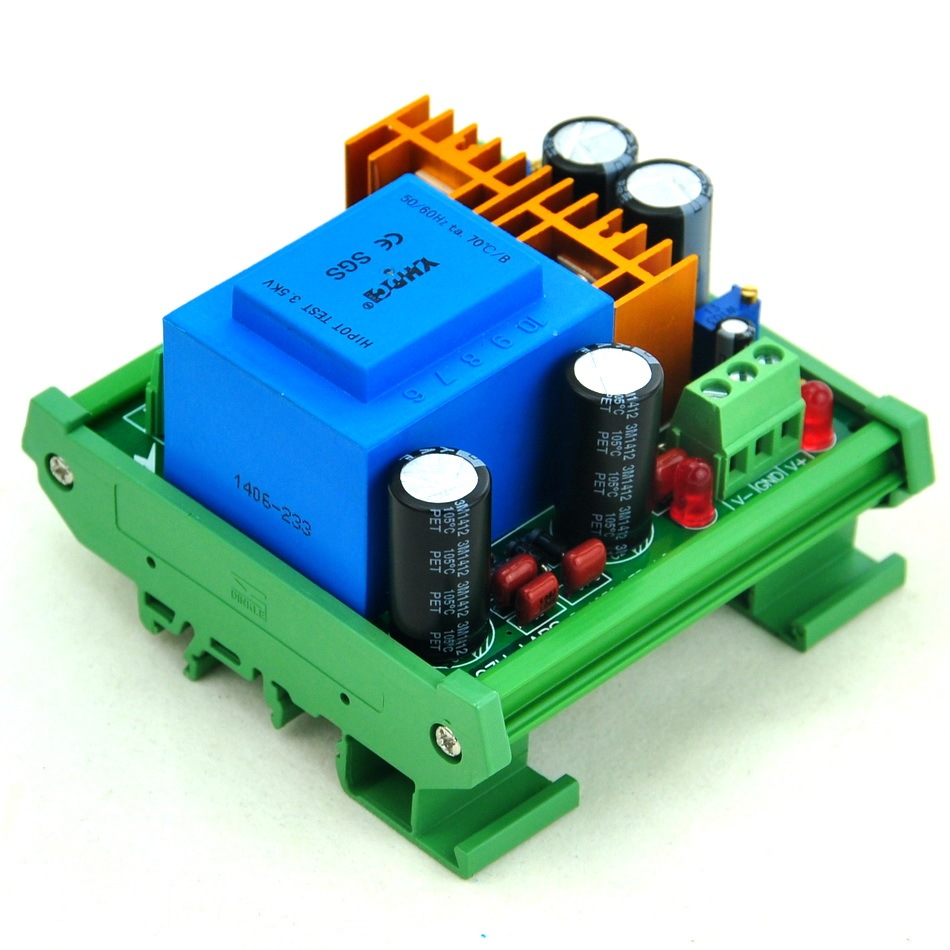

DIN Rail Mount Power Supply Module, with Mains Transformer and Voltage Regulator Circuit.

Part Number: MD-D1036T/230V.
Input Voltage: 230+/-20 VAC mains, 50/60Hz.
Output Voltage: Positive and Negative 1.25 ~ 15.8 VDC, adjustable.
Maximum Output Current: Positive 125mA and Negative 125mA.
Module Size: 82 x 87 x 60 mm (W x L x H).

This item has been assembled, and electrical test passed.

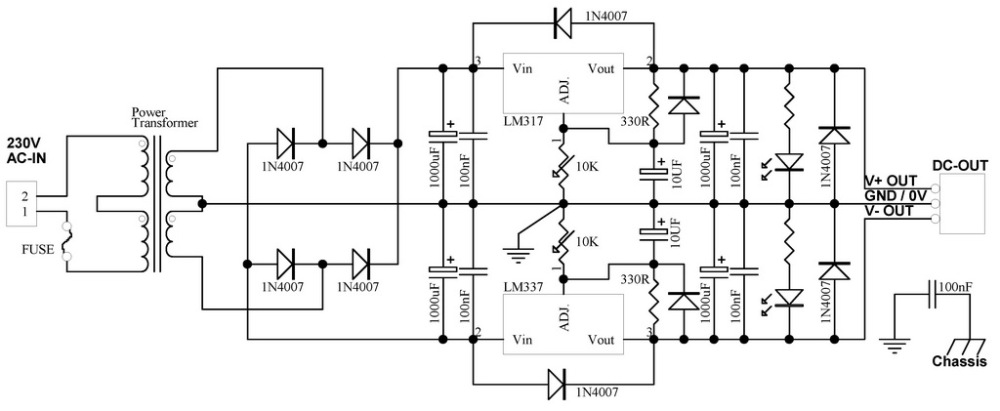

Fully encapsulated 5VA power transformer, FR-4 fiber glass PCB. HQ terminal blocks, easy connection wires. YXF 105C long life and low impedance electrolytic capacitors. output voltage LED indicator. regulator circuit based on LM317 / LM337 IC design.

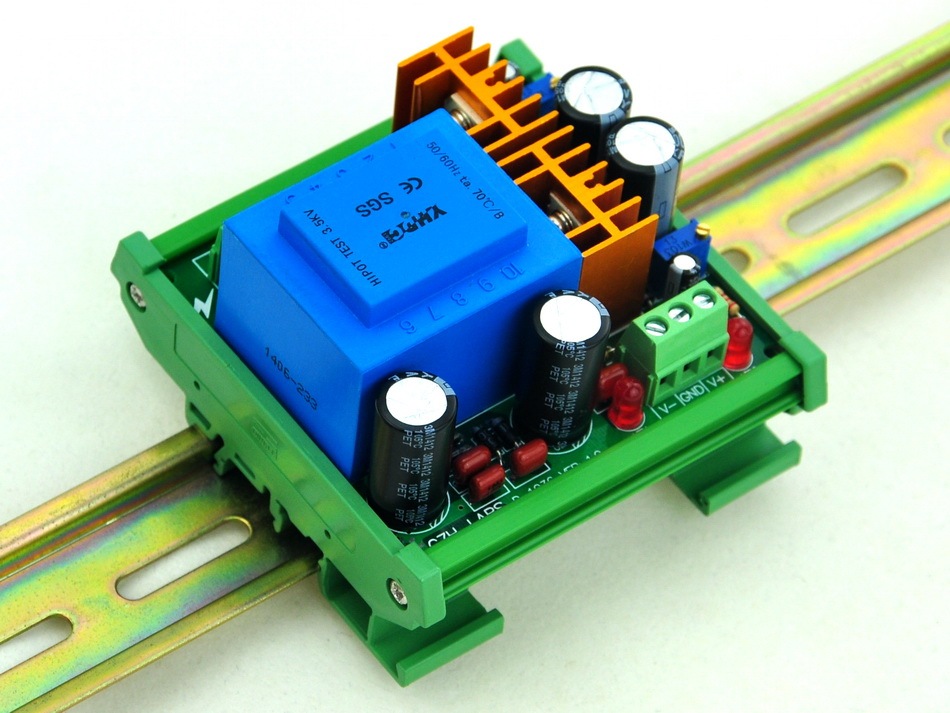

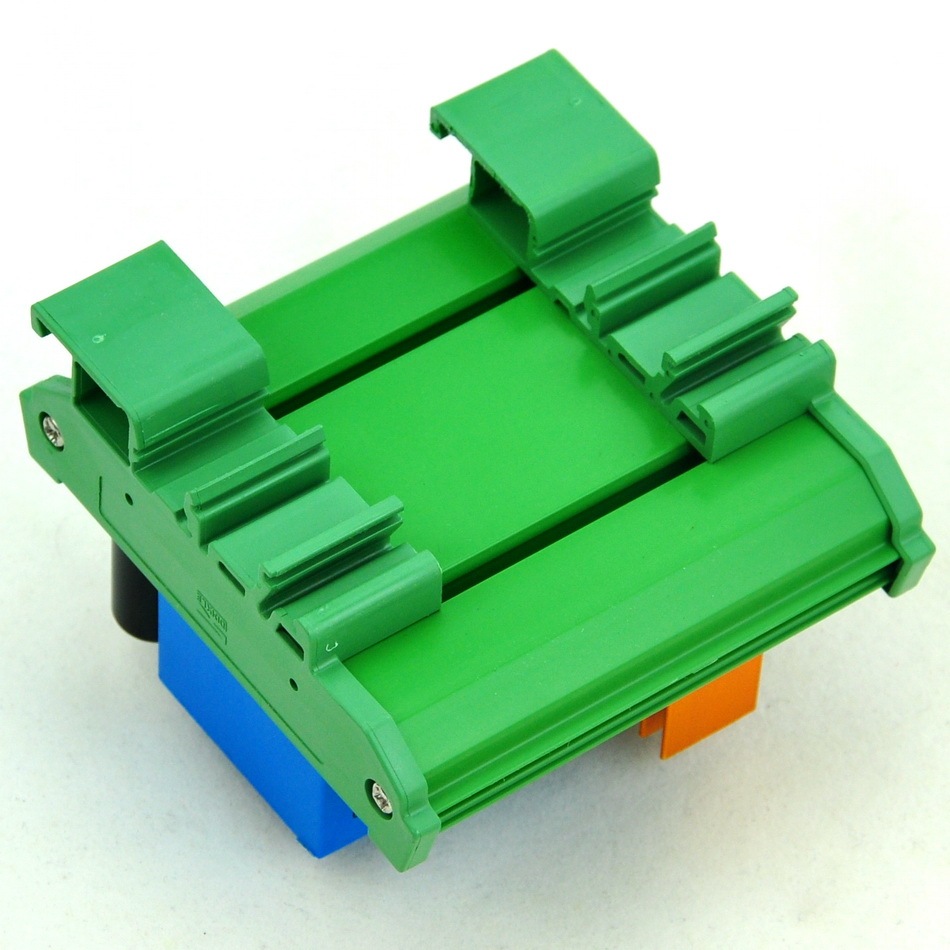

High quality PCB housing/carrier, DIN rail mountable - for width 35 / 32 / 15mm rails, the carrier can be taken apart for panel mount use.
