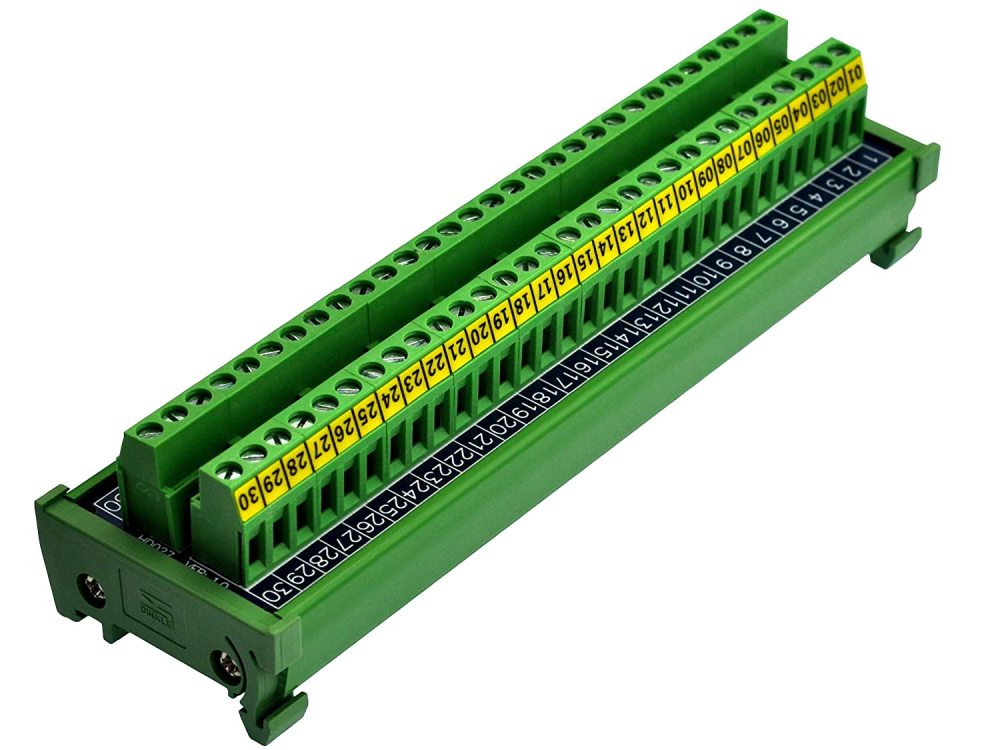

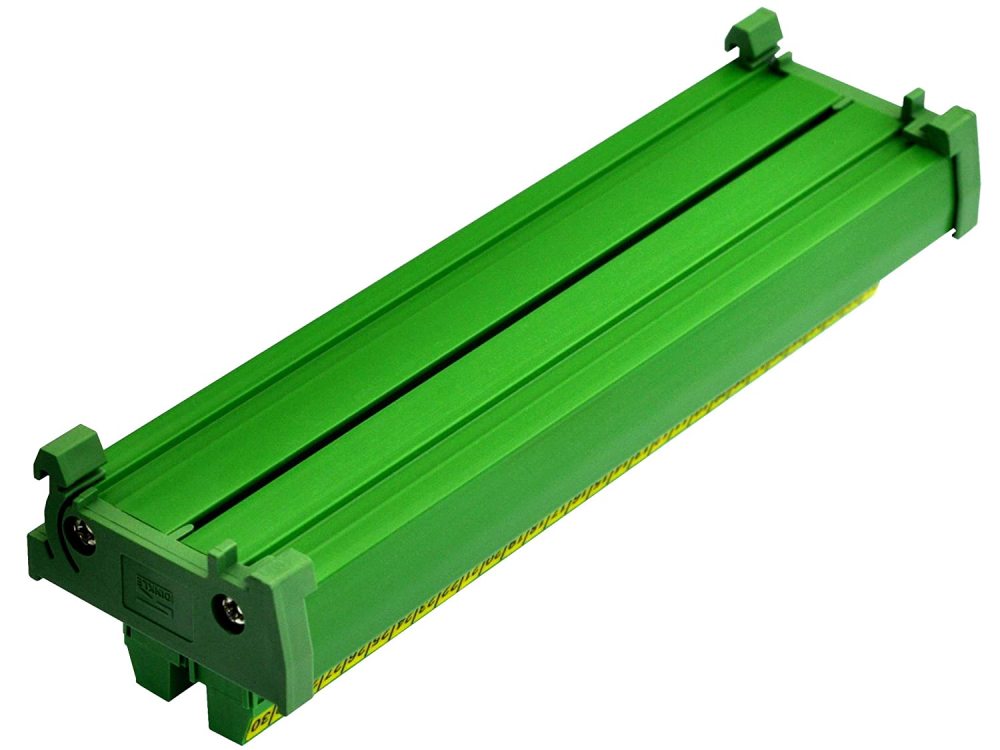

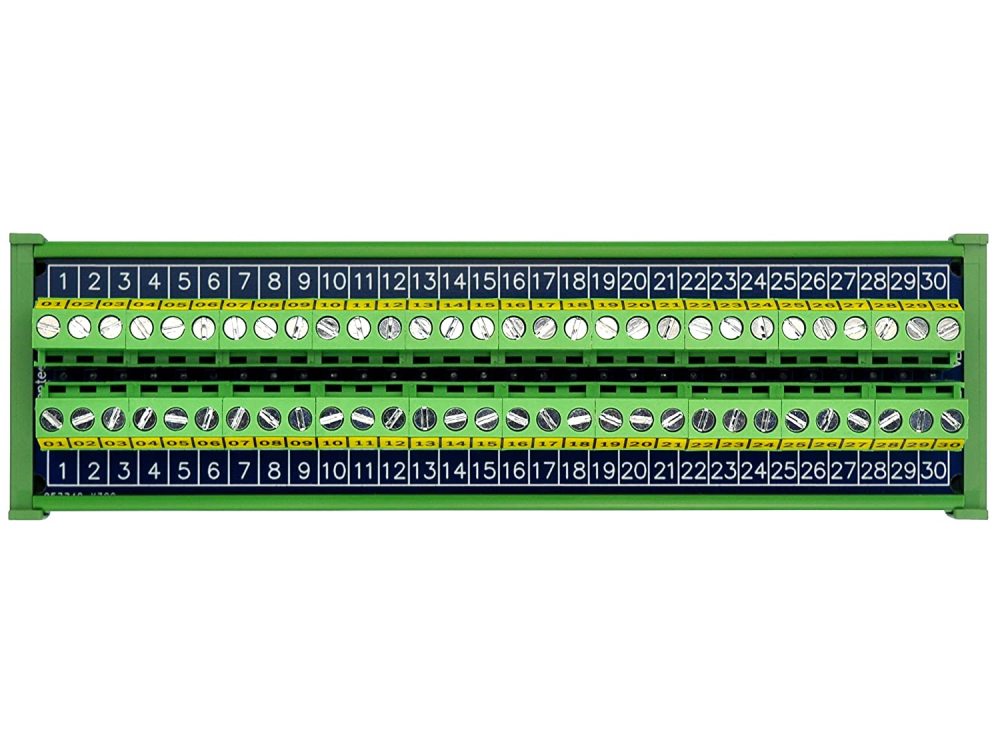

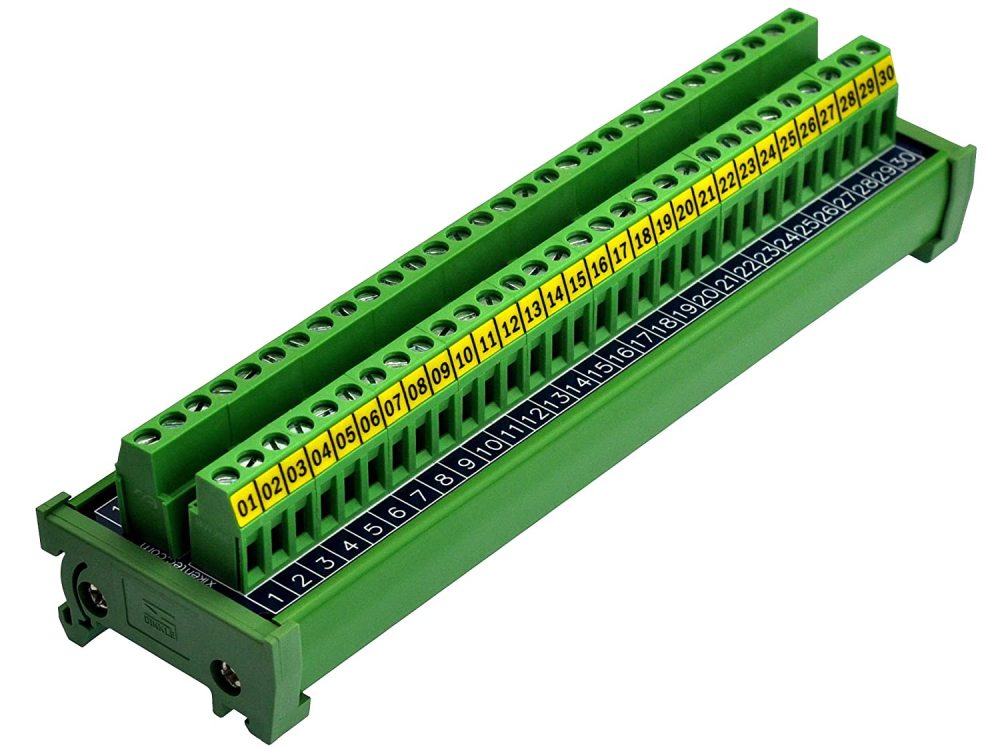

30 Position 24Amp/400V Screw Terminal Block Distribution Module (DIN Rail Mount)

SKU: HD027T
$22.99 $22.99
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $22.99 = $22.99
save $0.00
Add to Favorites
  • 30 Position 24Amp/400V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 30 Position 24Amp/400V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 30 Position 24Amp/400V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 30 Position 24Amp/400V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 30 Position 24Amp/400V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 30 Position 24Amp/400V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 30 Position 24Amp/400V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 30 Position 24Amp/400V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 30 Position 24Amp/400V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 30 Position 24Amp/400V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 30 Position 24Amp/400V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 30 Position 24Amp/400V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 30 Position 24Amp/400V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 30 Position 24Amp/400V Screw Terminal Block Distribution Module (DIN Rail Mount)
1/1
  • 30 Position 24Amp/400V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 30 Position 24Amp/400V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 30 Position 24Amp/400V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 30 Position 24Amp/400V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 30 Position 24Amp/400V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 30 Position 24Amp/400V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • 30 Position 24Amp/400V Screw Terminal Block Distribution Module (DIN Rail Mount)
  • Description

DIN Rail Mount 24A/400V 30 Position Screw Terminal Block Distribution Module.
Terminal Block: Pitch 5.0mm/0.197", Strip length 7mm. Screws - M3,steel,Cr3+ Zn plated. Pin header and Cage - Brass.
Wire range 26AWG ~ 12AWG / 2.5mm square. Rated voltage 400V, rated current 24Amp(per position).

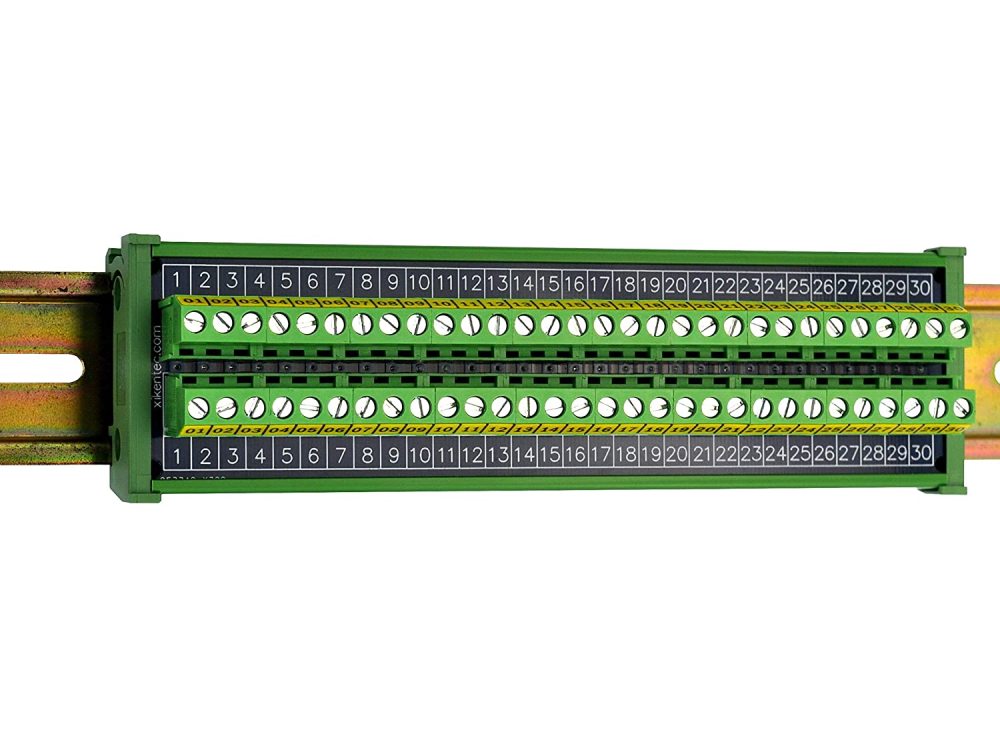

High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.

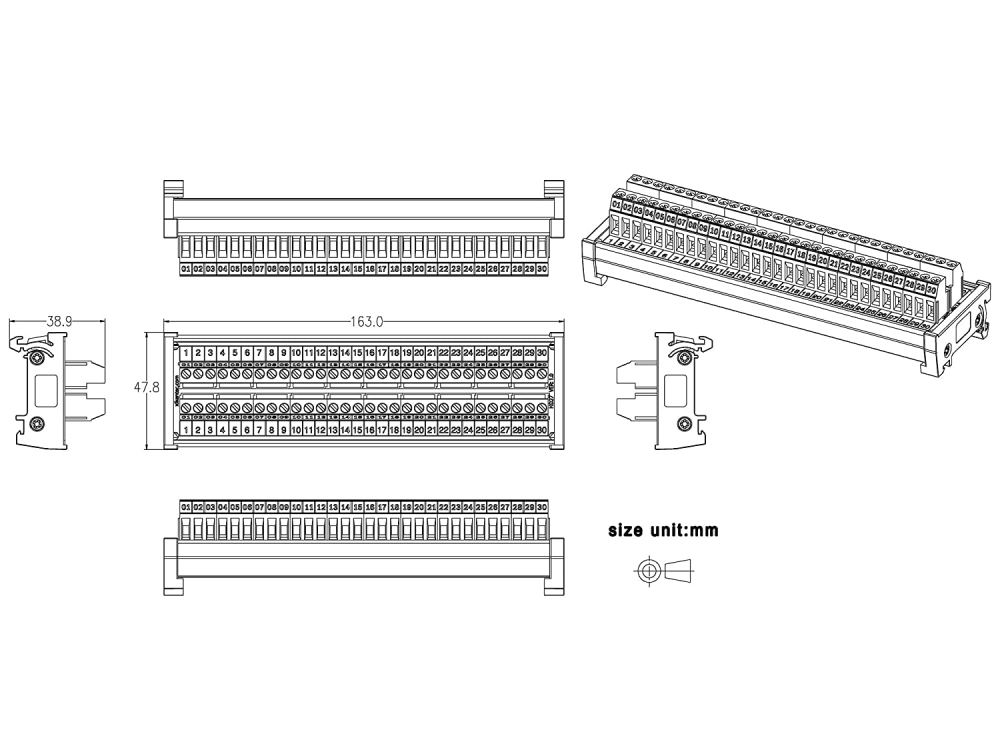

External dimensions: L163mm x W48mm x H39mm / 6.42" x 1.89" x 1.54"
