Home > Breakout Board Module > D-Sub DSUB Breakout Board Module > D-SUB DB62HD Breakout Board > Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
1/1
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
Share:

Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)

SKU: HD019M
$19.00 $19.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $19 = $19
save $0.00
Add to Favorites
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
1/1
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB62HD Male)
  • Description

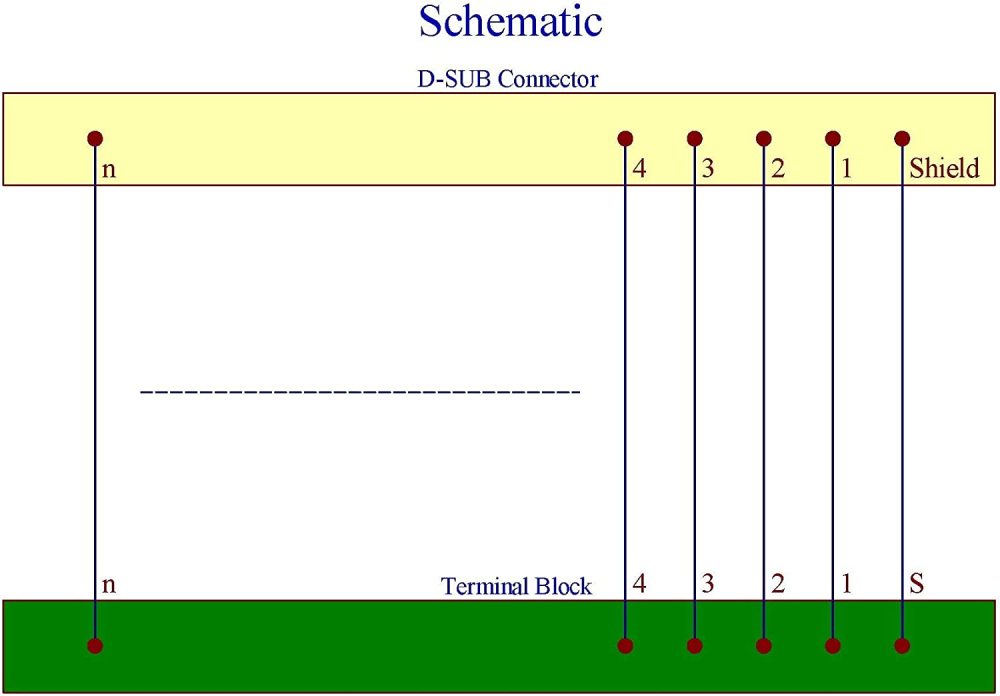

1, Standard D-SUB male or female header connector. Connector to screw terminal 1:1 connects for per line.
2, Rated voltage: 60V. Rated current: 1Amp / per pin. Operating Temperature: -20C to 50C
3, Terminal block: Pitch 3.81mm/0.15" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2, steel, Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
4, FR-4 fiber glass PCB, dual copper layers.
