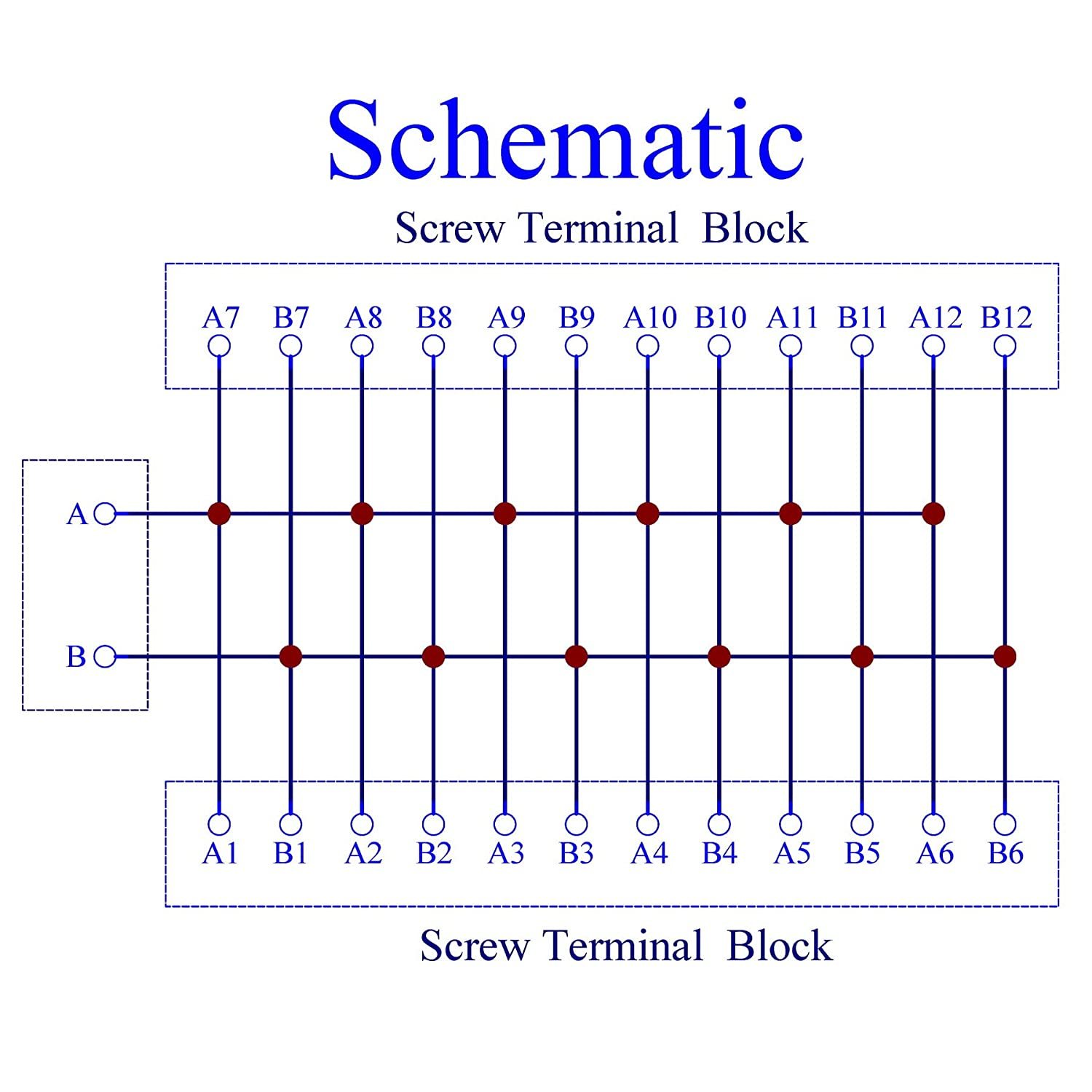

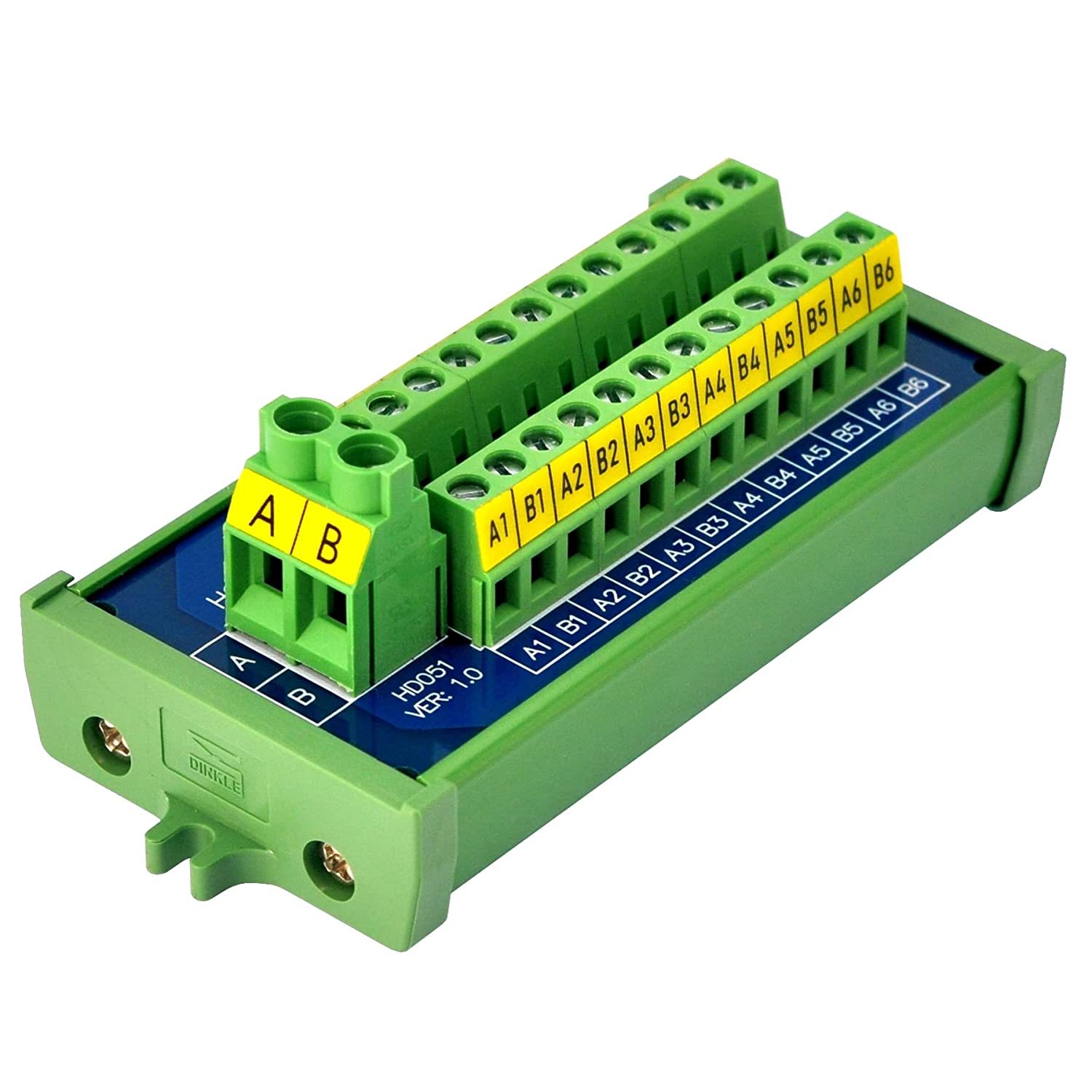

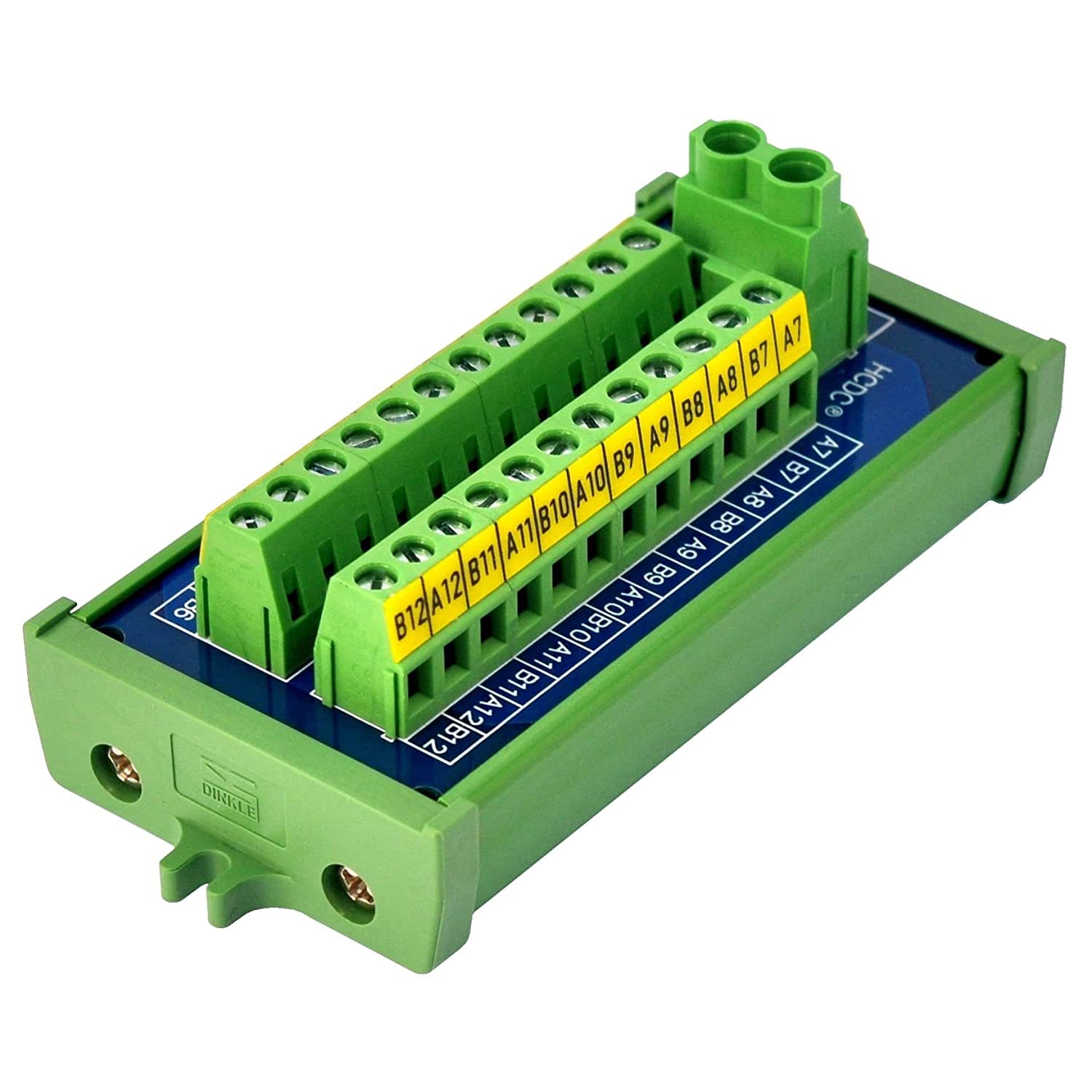

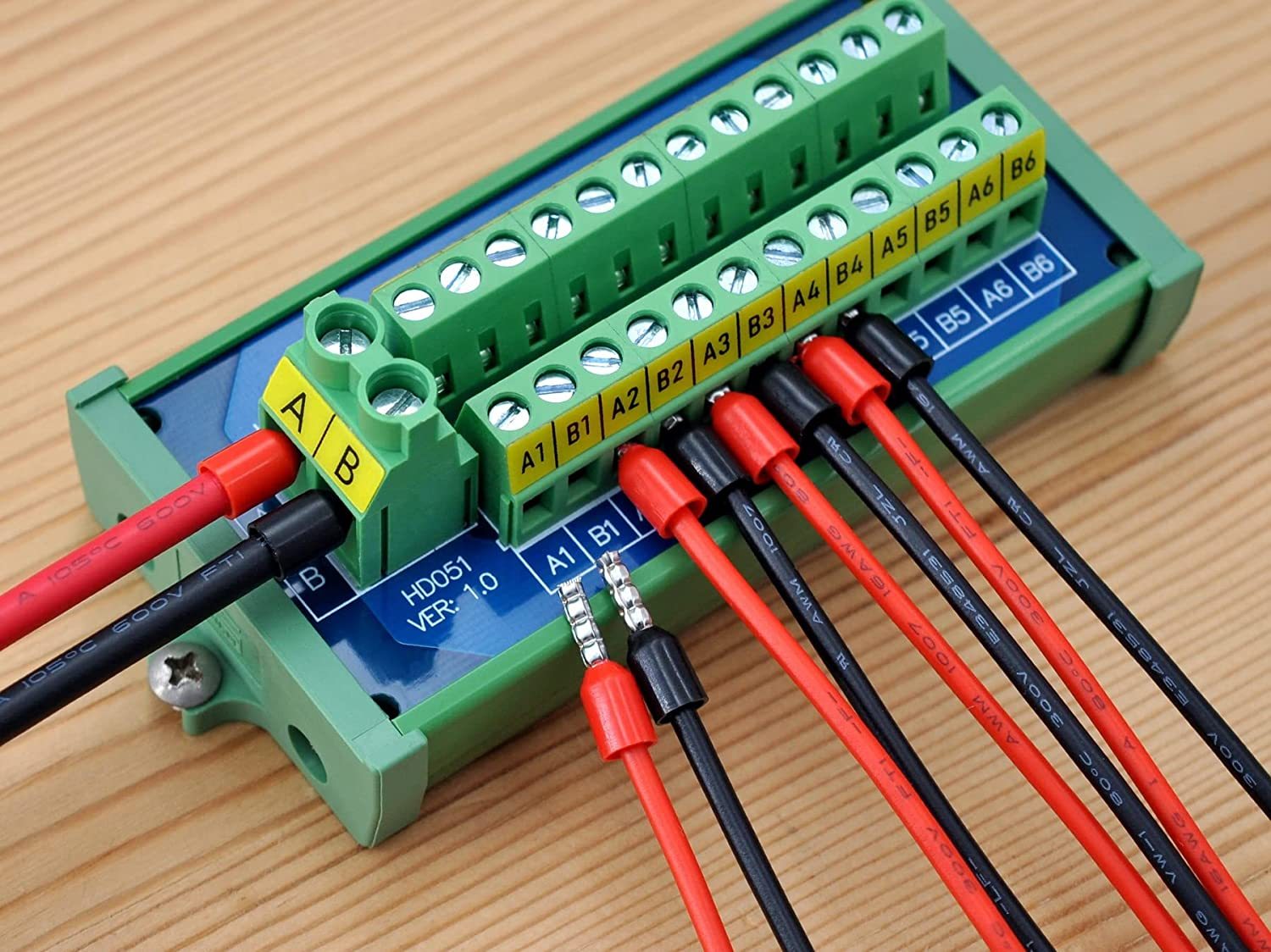

1, Screw mount 30Amp 48V 2x12 position screw terminal block distribution module.
2, Rated current: 30 Amp(total input or output). Maximum voltage: 48V.
3, A / B terminal blocks, Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square, rated current 30Amp. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
4, A1~B6 / A7~B12 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.

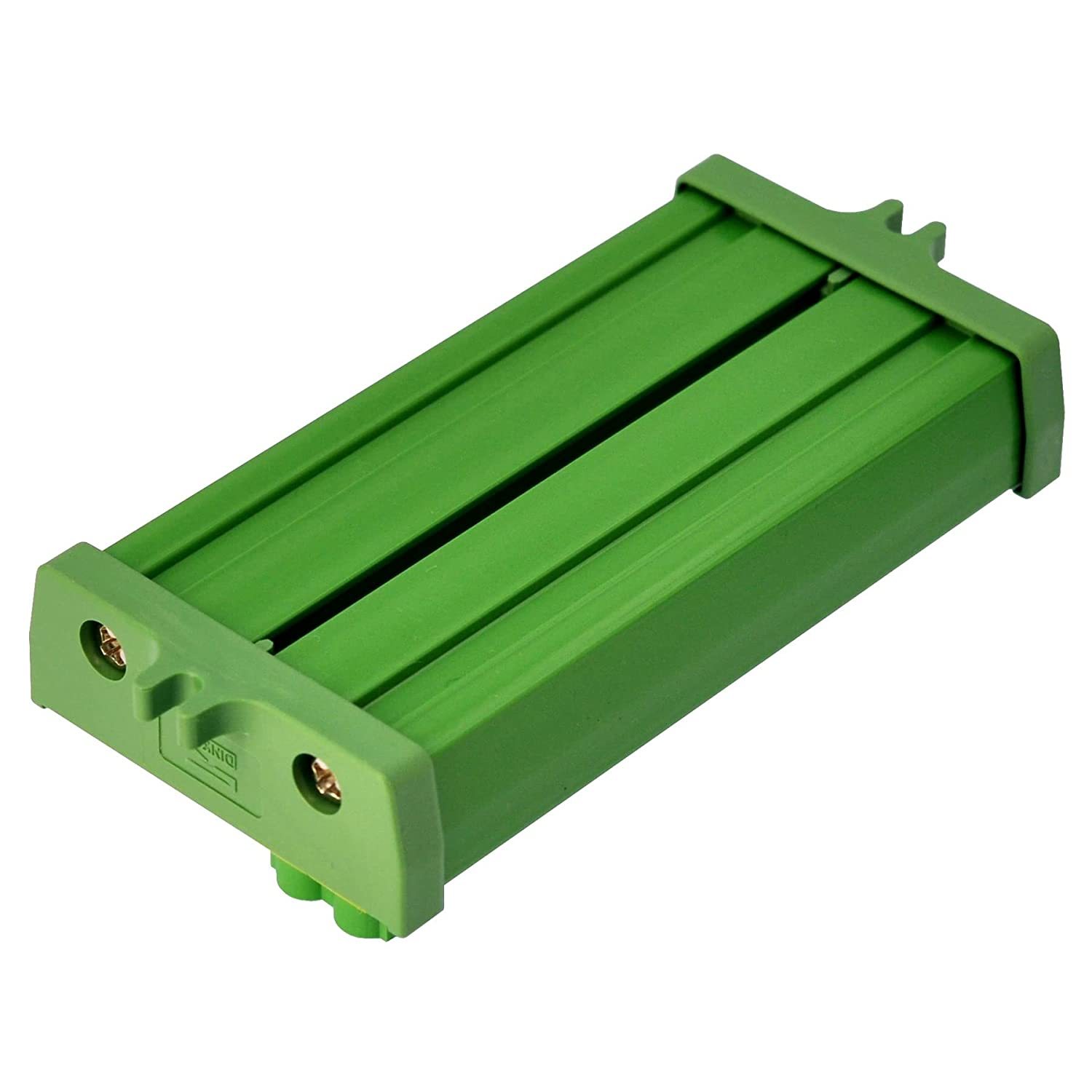

5, High quality fireproof nylon material mount carrier(UL CE certified, not China low quality carrier). UL CE CQC certified terminal blocks. UL CE certified FR-4 glass fiber PCB.

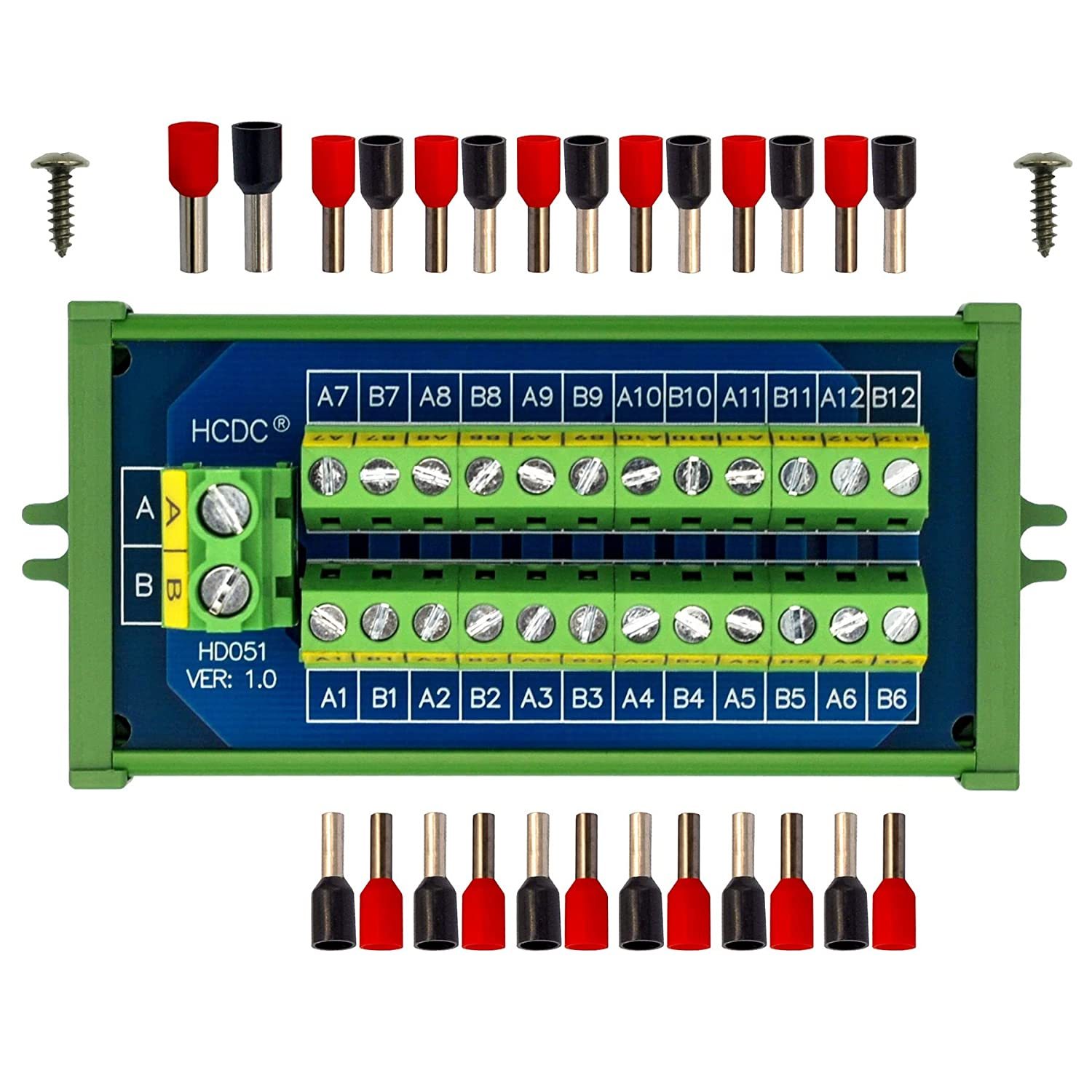

6, Packing list:
1x Terminal block module.

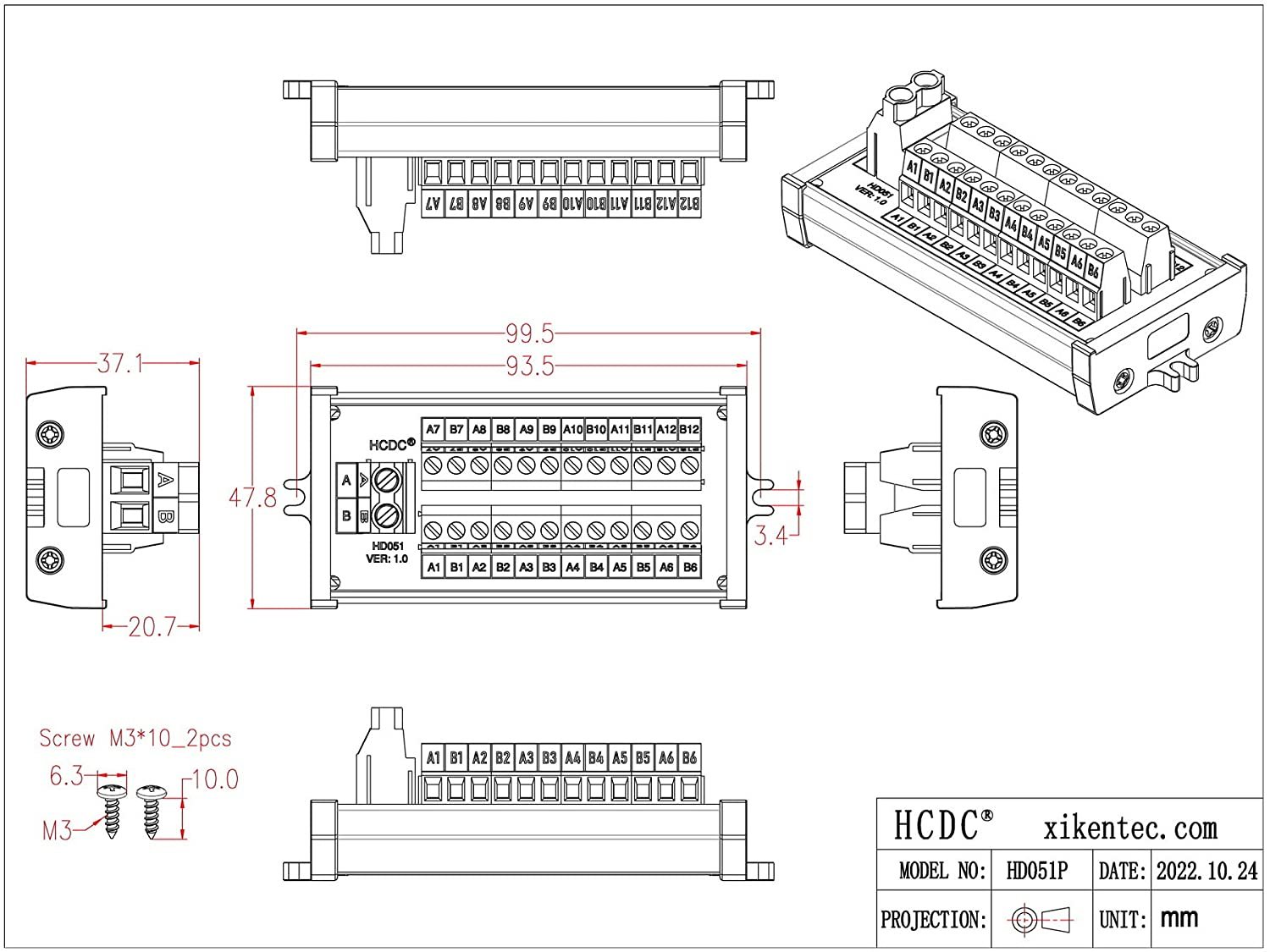

2x Screws.
1x Red Nylon-insulated cord end terminal (support wire conductor 4 square millimeters max.)
1x Black Nylon-insulated cord end terminal (support wire conductor 4 square millimeters max.)
12x Red Nylon-insulated cord end terminal (support wire conductor 2.5 square millimeters max.)
12x Black Nylon-insulated cord end terminal (support wire conductor 2.5 square millimeters max.)
