Home > Thermal Circuit Breaker Module > Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
1/1
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
Share:

Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount

SKU: D-1437T
$20.00 $20.00
Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $20 = $20
save $0.00
Add to Favorites
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
1/1
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount
  • Description

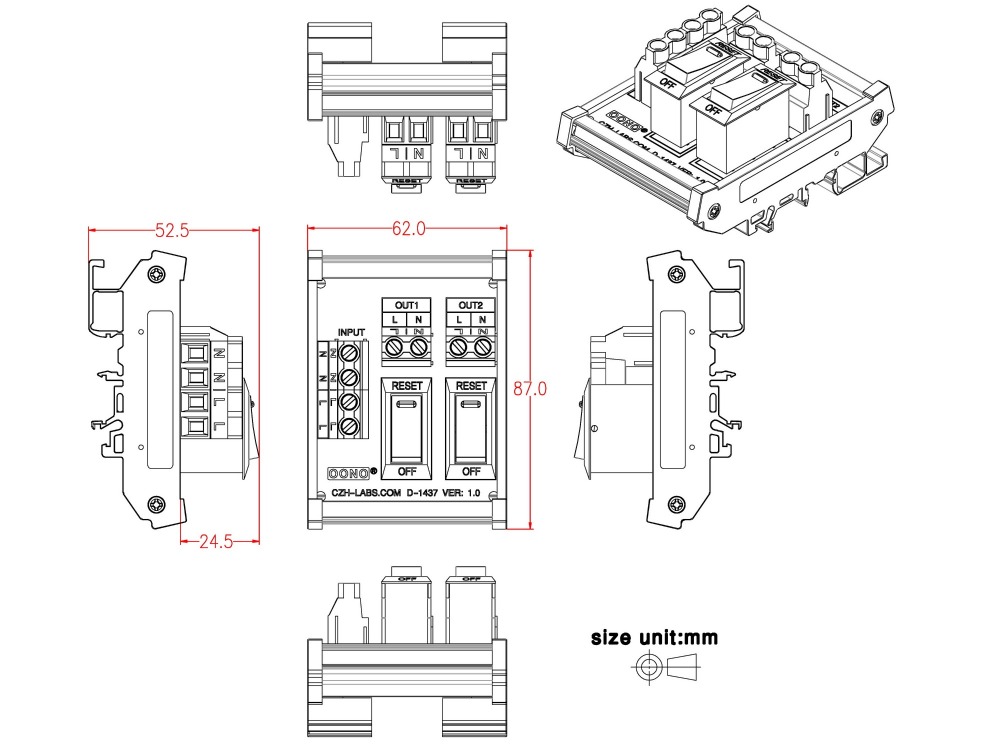

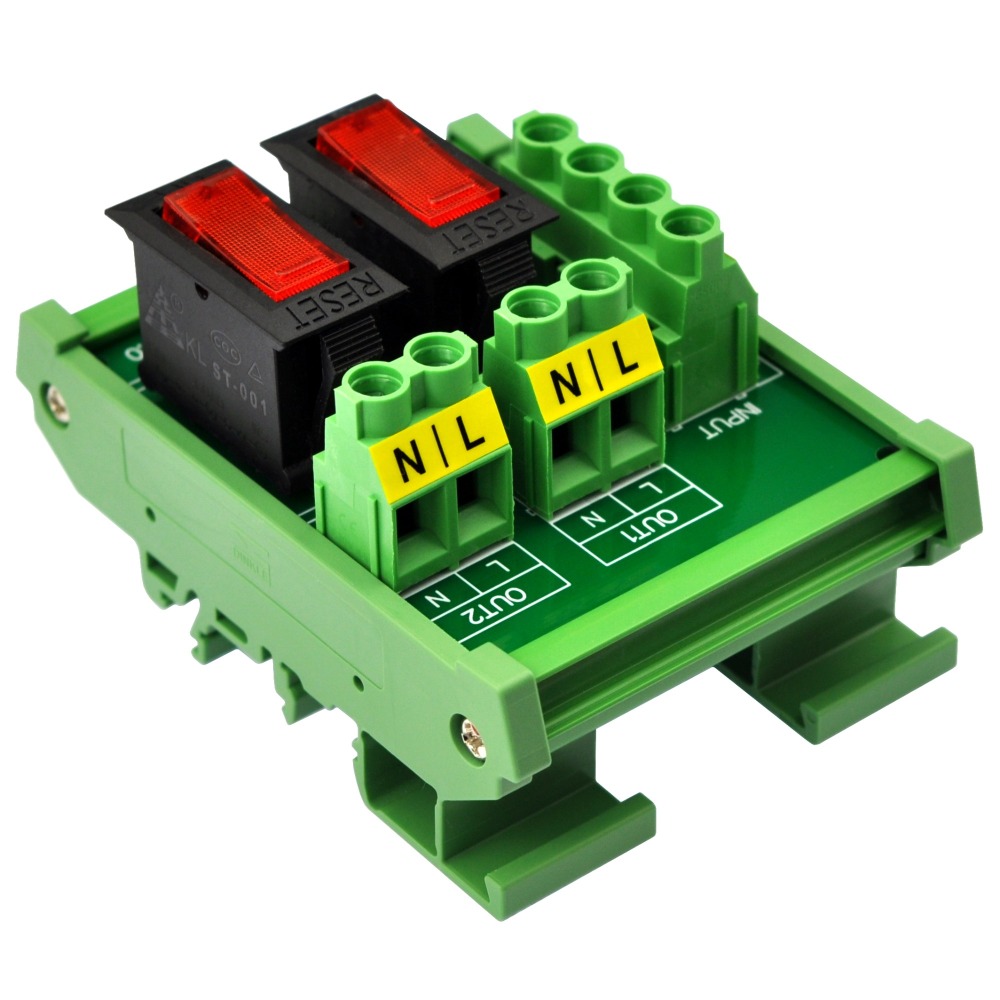

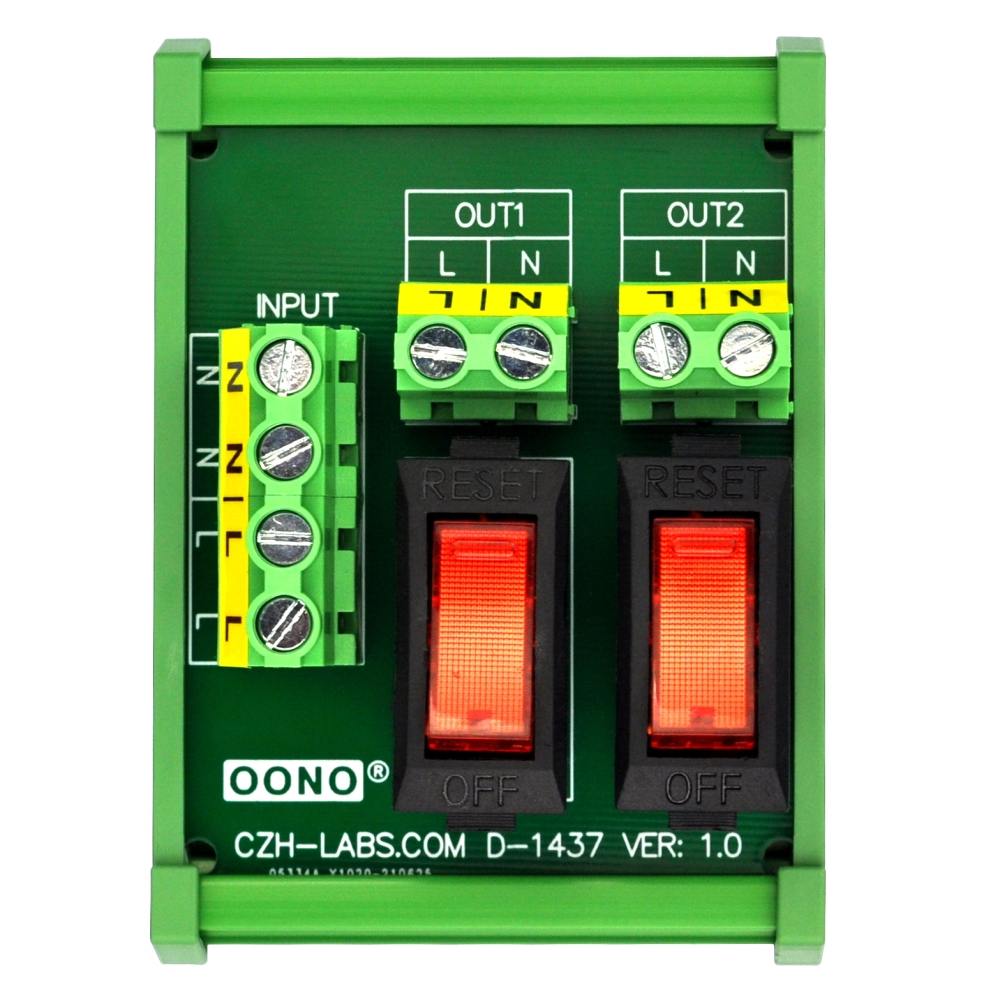

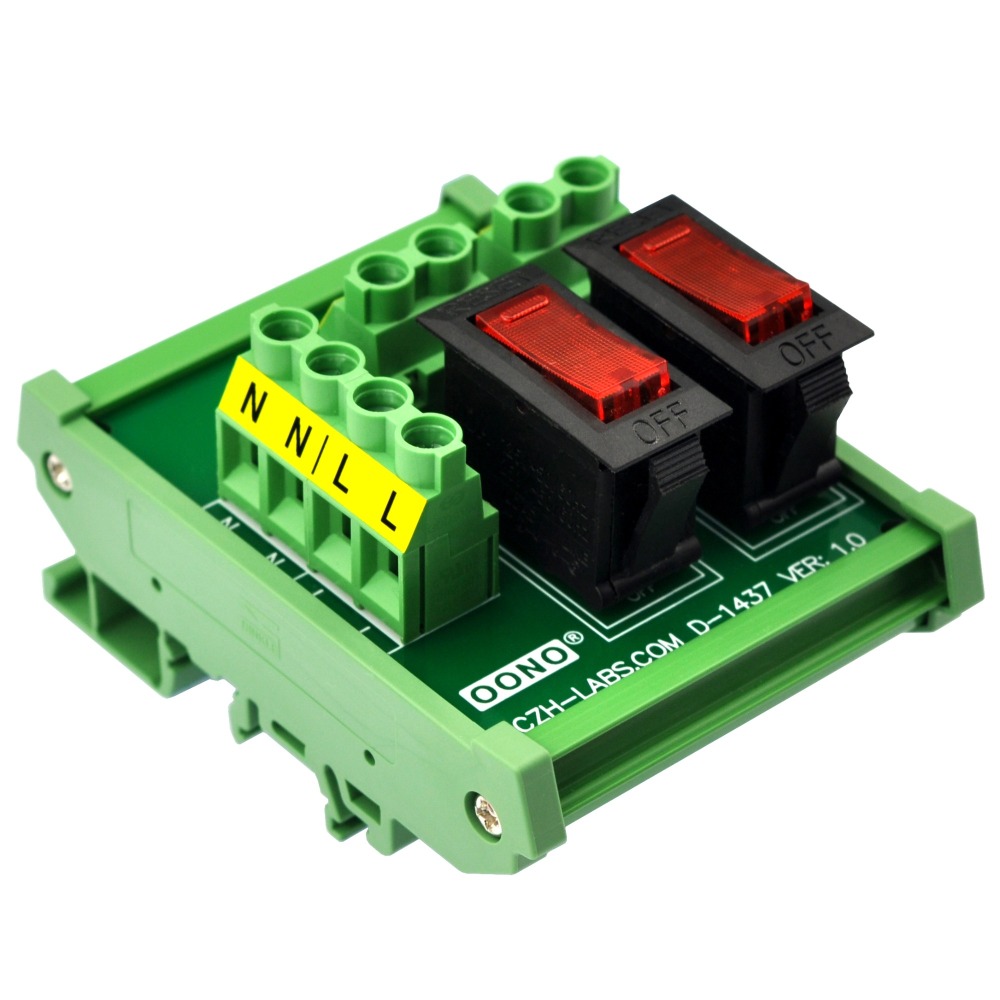

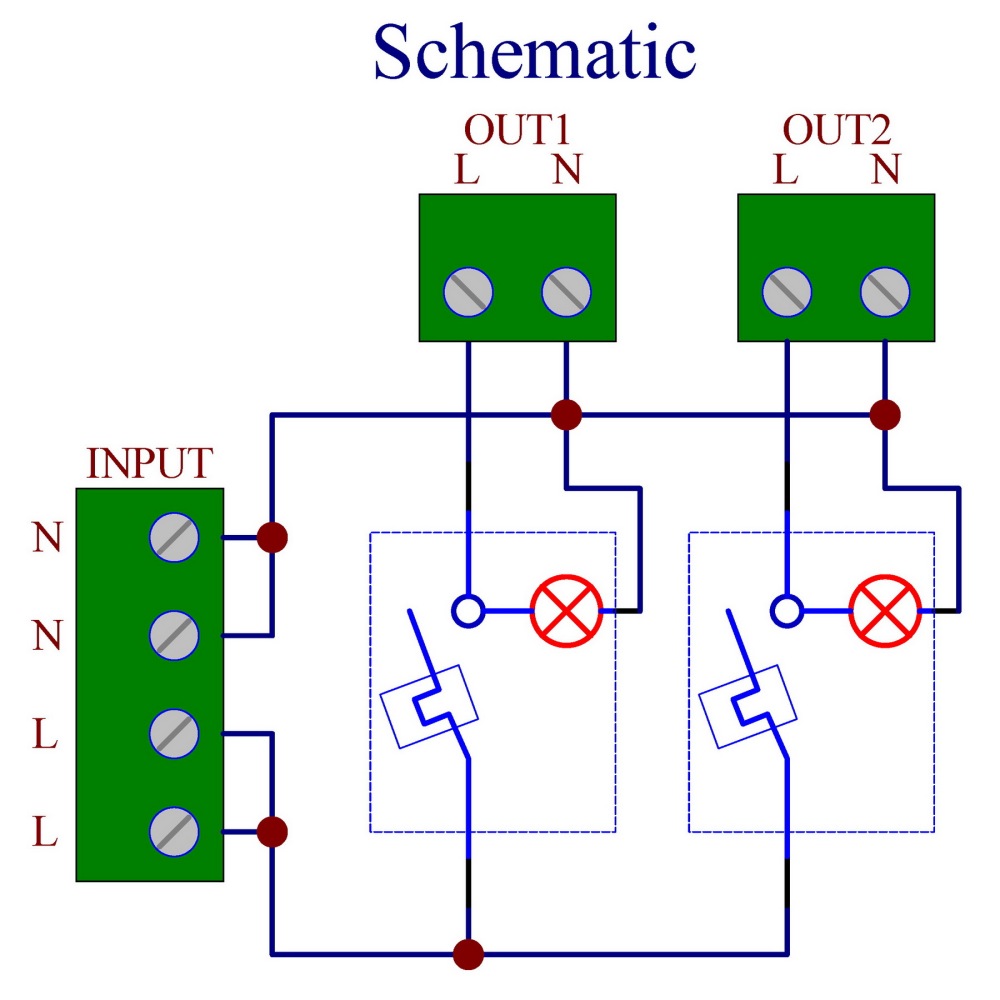

Rocker Switch Thermal Circuit Breaker Overload Protector 2 Channel Power Distribution Module DIN Rail Mount

1, Input voltage AC 125/250V 50/60Hz. Maximum total input current 20A(one position terminal block maximum current 20A).
2, Maximum output current 10A(one channel). Maximum total output current 20A.
3, 10Amp rocker switch thermal circuit breaker overload protectors, you can manually set the switch output state RESET or OFF. The switch has a built-in red indicator light, when the output normal indicator is on, the output disconnect indicator is off.
4, Terminal Blocks: Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square, Strip length 8mm. Screws - M3,steel,Cr3+ Zn plated. Pin header and Cage - Brass.

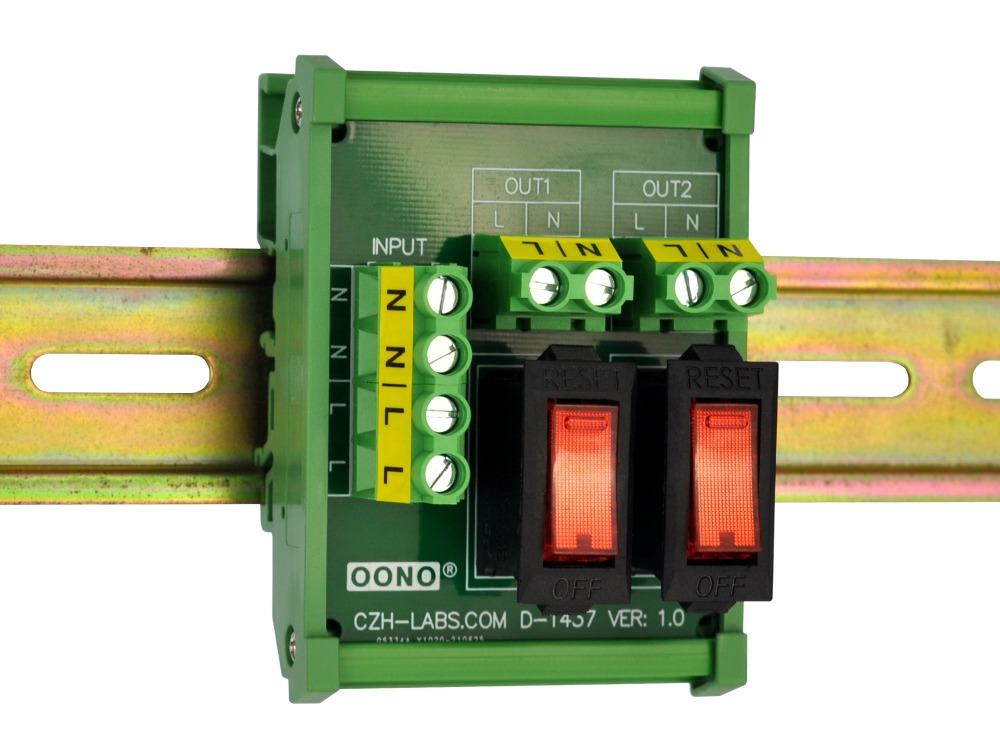

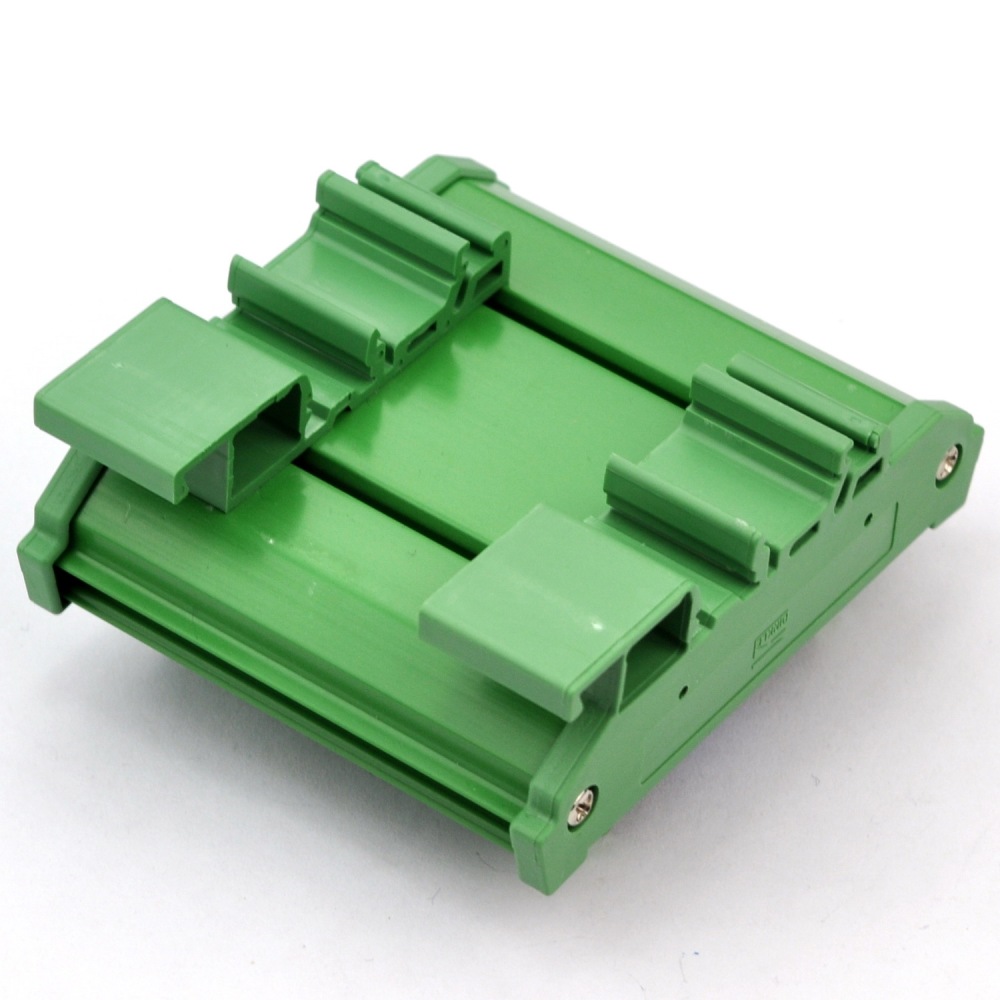

5, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail. FR-4 fiberglass dual copper layers PCB.
