Home > Buss Board Module, Splitter Bus Board Module > RJ45 8P8C Buss Board, RJ45 8P8C Splitter Bus Board Module > ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.
1/1
  • ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.
Share:

ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.

SKU: D-239BT
$15.99 $15.99
ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $15.99 = $15.99
save $0.00
Add to Favorites
  • ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.
1/1
  • ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.
  • ELECTRONICS-SALON RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.
  • Description

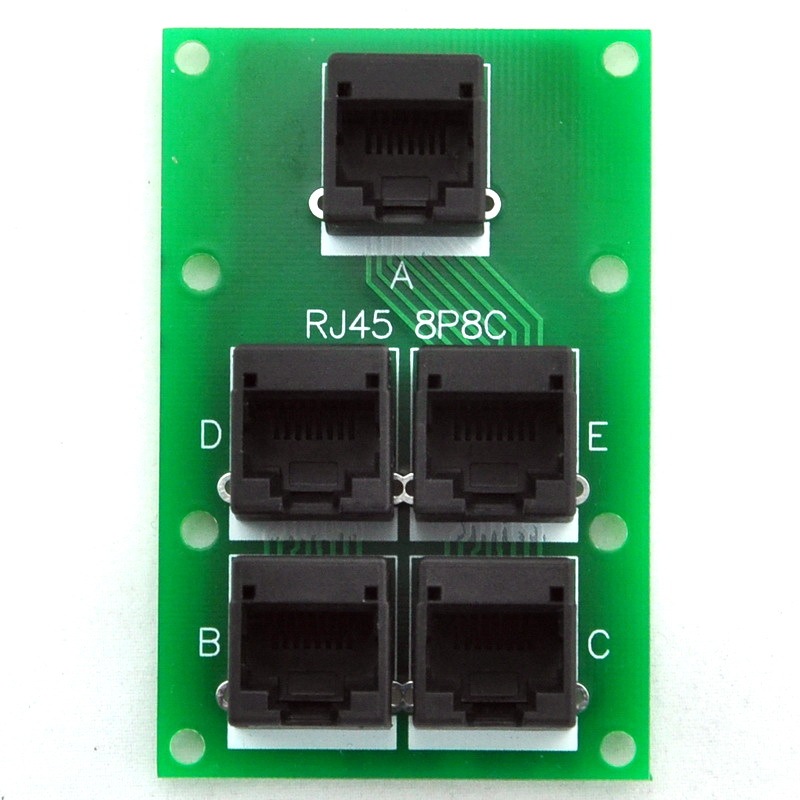

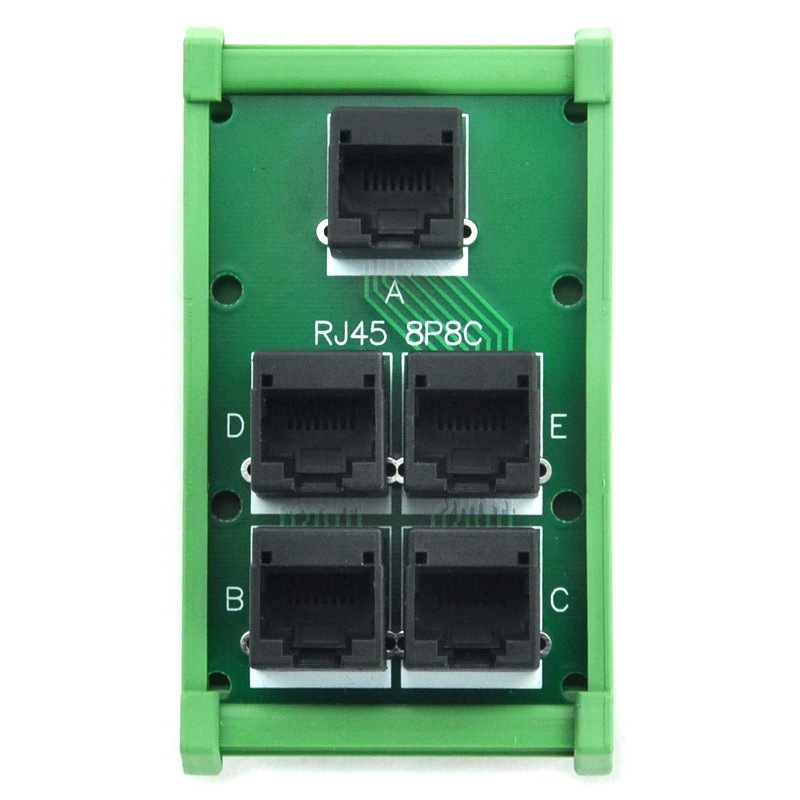

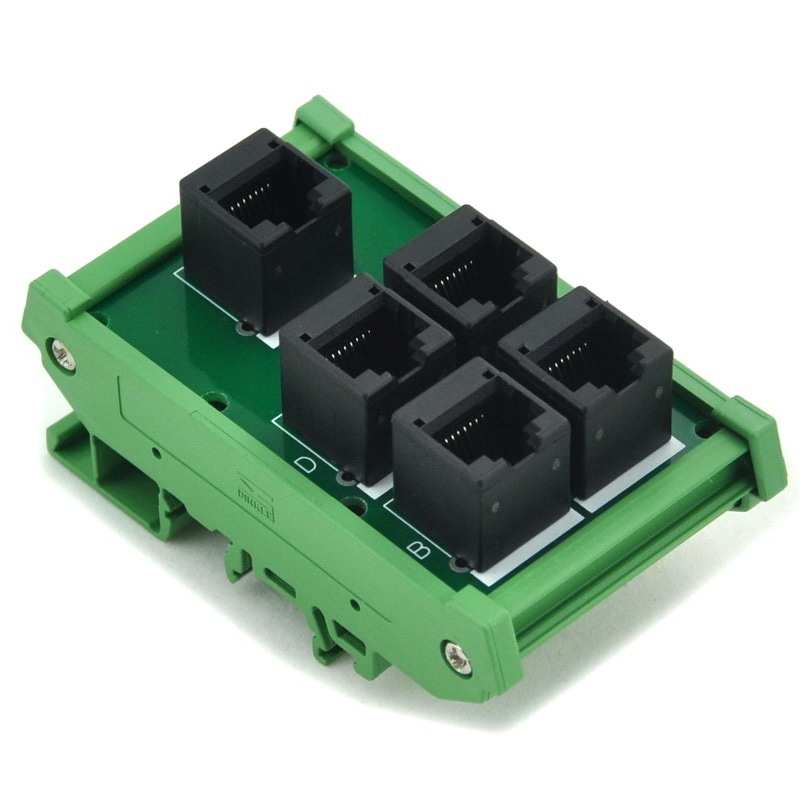

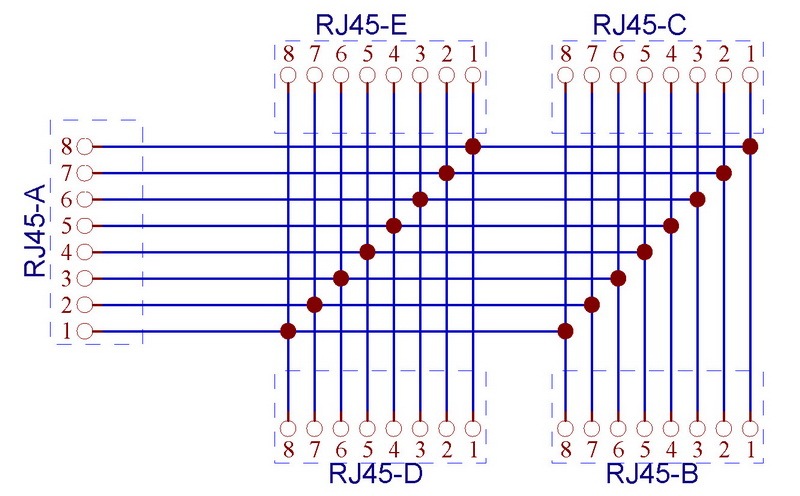

RJ45 8P8C 5 Jacks Splitter DIN Rail Mounted Interface Module.


Part number: MD-D239BT.
RJ45 8P8C jacks.
High quality PCB housing/carrier, DIN rail mountable - for width 35 / 32 / 15mm rails.
DIN mount case can be taken apart for panel mount use.
FR-4 fiber glass PCB, dual copper layers.
External dimensions: 87 x 49.5 x 42mm(W x L x H).
PCB dimensions: 72.5 x 47.35mm(W x L).
100% new, never used.


Rated voltage: 60V.
Rated current: 500mA / per pin.
Operating Temperature: -20ºC to 50ºC
