Home > Relay Module > Latching Relay Module > ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24
  • ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24
  • ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24
  • ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24
  • ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24
1/1
  • ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24
  • ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24
  • ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24
  • ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24
Share:

ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24

SKU: D-263/24V
$27.99 $27.99
ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $27.99 = $27.99
save $0.00
Add to Favorites
  • ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24
  • ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24
  • ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24
  • ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24
  • ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24
  • ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24
  • ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24
  • ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24
1/1
  • ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24
  • ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24
  • ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24
  • ELECTRONICS-SALON Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module, 24V Version, RT424F24
  • Description

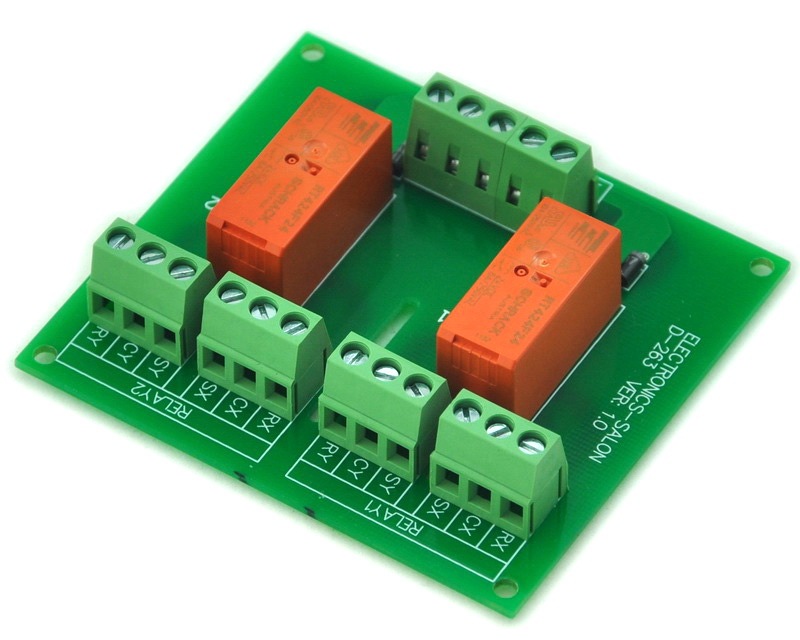

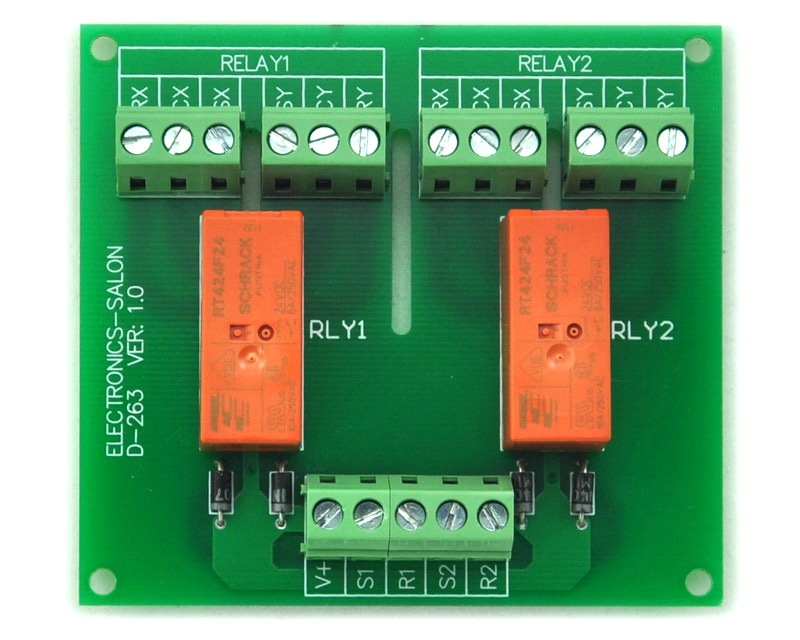

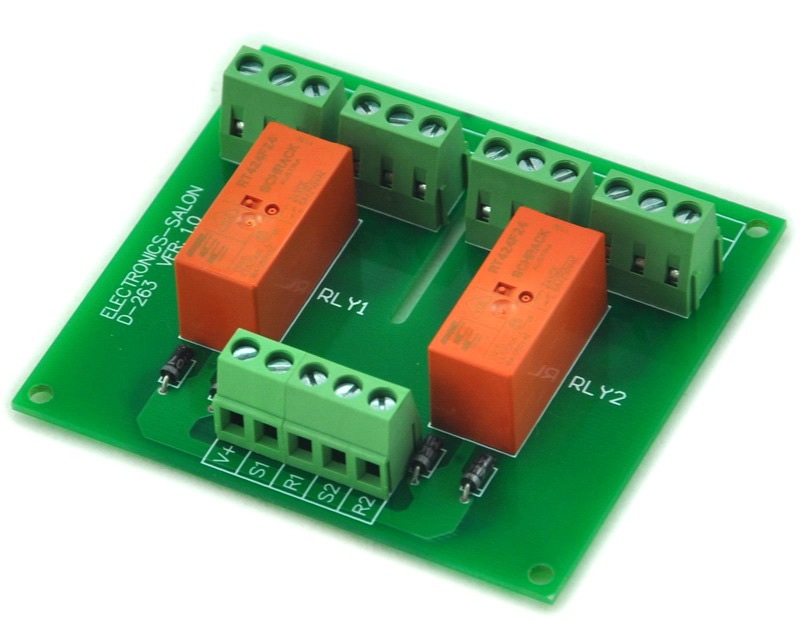

Passive Bistable/Latching 2 DPDT 8 Amp Power Relay Module.

The item has been assembled, and electrical test passed.
RT424F24 high quality bistable relay.

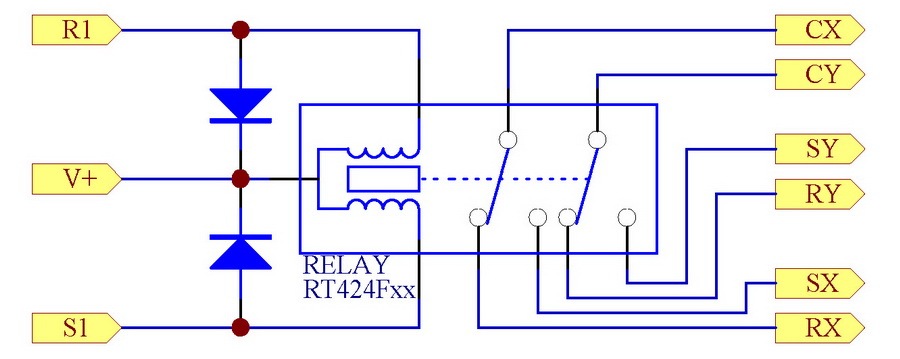

Relay coil protection by means of freewheeling diodes.
High quantity terminal blocks, easy connection wires.
FR-4 Fiber glass PCB.

Terminal block specifications:
Wire range: 24 ~ 12 AWG.
Strip length: 7mm.
Screws - M2.5, steel, Cr3+ Zn plated.
Pin header and Cage - Brass
