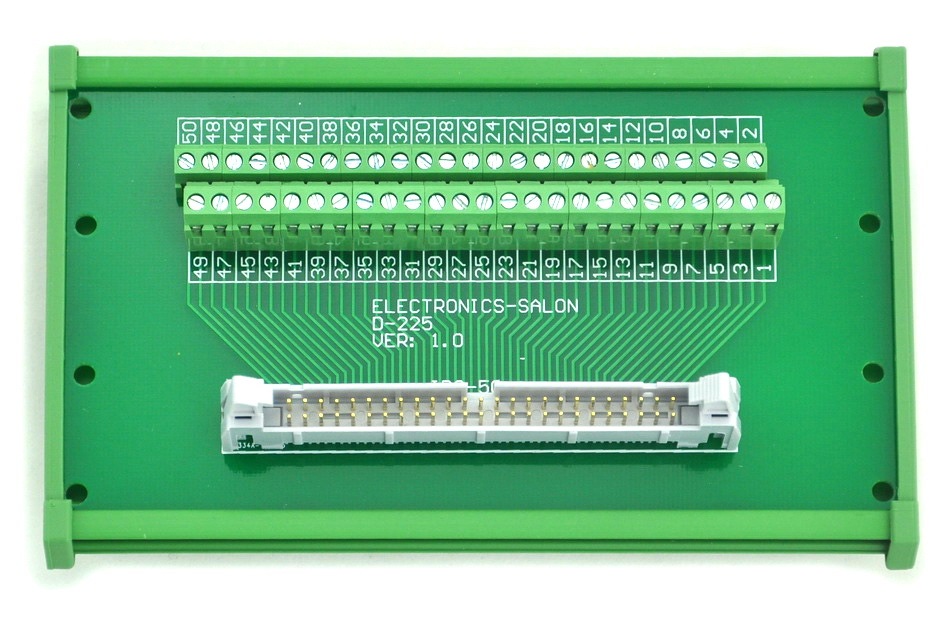

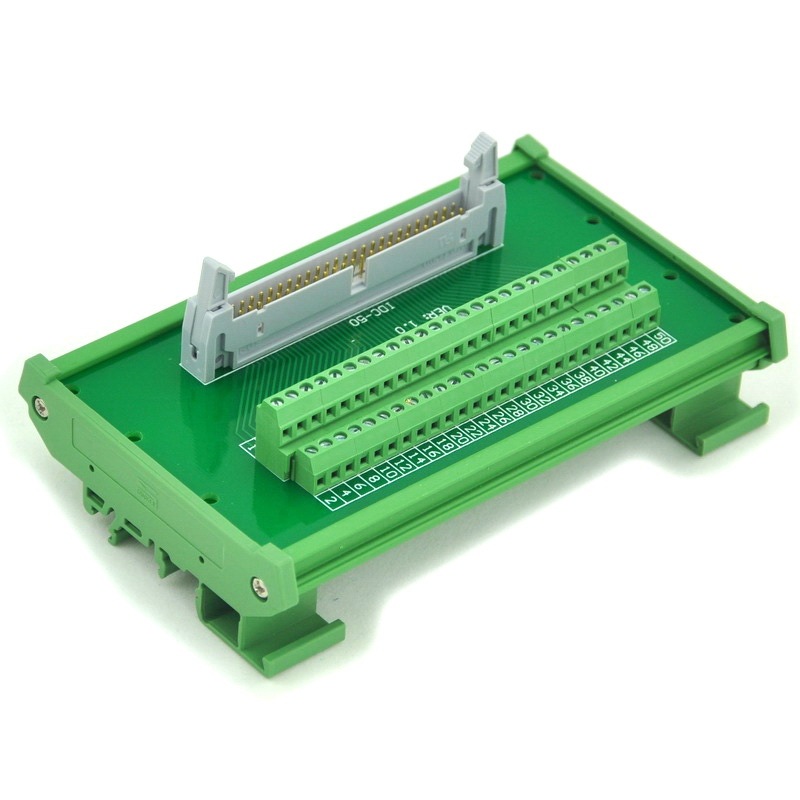

ELECTRONICS-SALON IDC-50 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.

SKU: D-225T
$33.00 $33.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $33 = $33
save $0.00
Add to Favorites
  • ELECTRONICS-SALON IDC-50 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.
  • ELECTRONICS-SALON IDC-50 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.
  • ELECTRONICS-SALON IDC-50 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.
  • ELECTRONICS-SALON IDC-50 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.
  • ELECTRONICS-SALON IDC-50 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.
  • ELECTRONICS-SALON IDC-50 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.
  • ELECTRONICS-SALON IDC-50 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.
  • ELECTRONICS-SALON IDC-50 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.
  • ELECTRONICS-SALON IDC-50 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.
  • ELECTRONICS-SALON IDC-50 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.
  • ELECTRONICS-SALON IDC-50 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.
  • ELECTRONICS-SALON IDC-50 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.
  • ELECTRONICS-SALON IDC-50 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.
  • ELECTRONICS-SALON IDC-50 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.
1/1
  • ELECTRONICS-SALON IDC-50 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.
  • ELECTRONICS-SALON IDC-50 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.
  • ELECTRONICS-SALON IDC-50 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.
  • ELECTRONICS-SALON IDC-50 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.
  • ELECTRONICS-SALON IDC-50 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.
  • ELECTRONICS-SALON IDC-50 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.
  • ELECTRONICS-SALON IDC-50 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.
  • Description

IDC pin pitch 2.54mm/0.1" male header connector.
Pitch 3.81mm/0.15" screw terminal block.

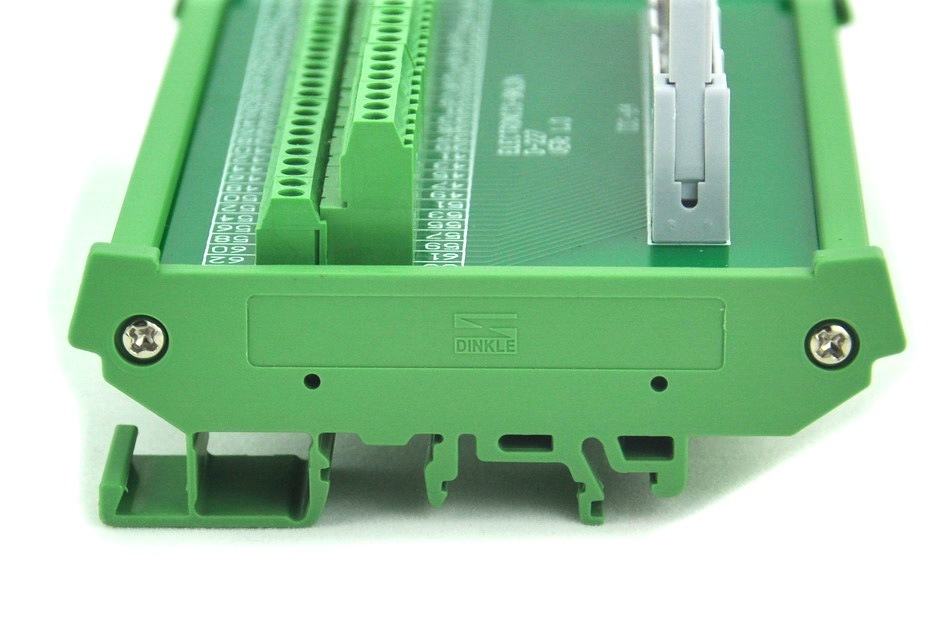

Din rail mountable - for width 35 / 32 / 15mm rails.

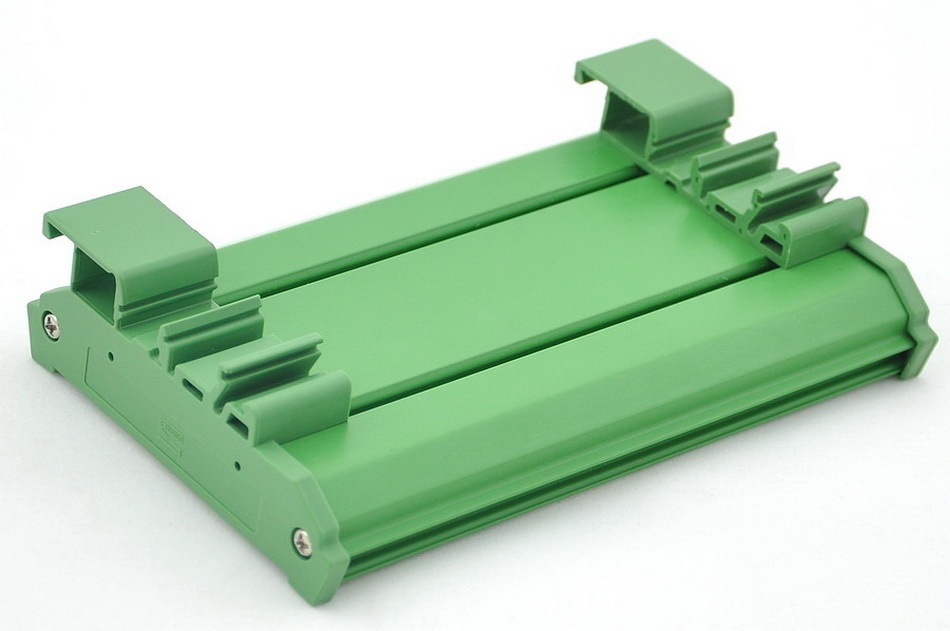

Din mount case can be taken apart for panel mount use.
High quality PCB housing/carrier.
FR-4 fiber glass PCB, dual copper layers.

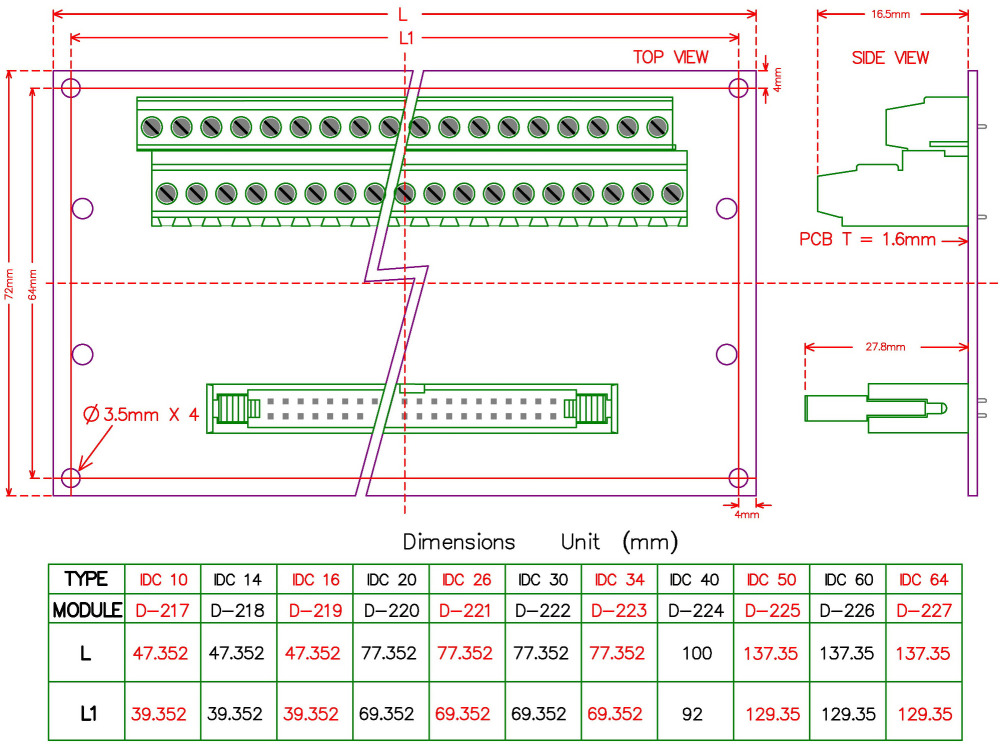

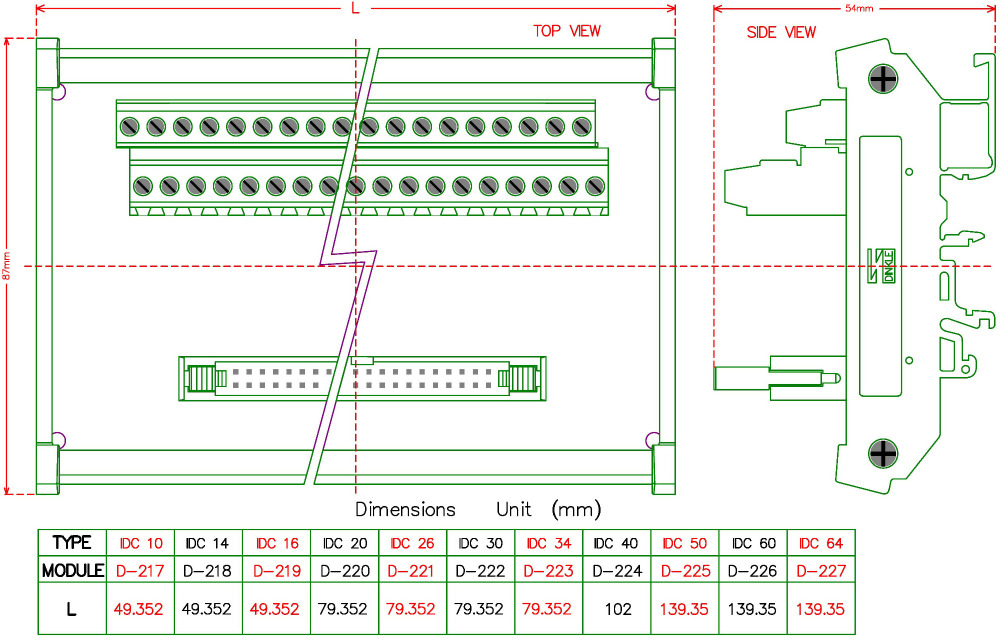

External dimensions: 87 x 139.5 x 54mm(W x L x H).
PCB dimensions: 72 x 137.35mm(W x L).
100% new, never used.

Rated voltage: 60V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC

Terminal block specifications:
Wire range - 26-16AWG.
Strip length - 5mm.
Screws - M2,steel,Cr3+ Zn plated.
Torque - 0.2Nm (1.7Lb-In.).
Pin header and Cage - Brass.
