  • Description

Guitar Distortion Effect Module Board.

This item has been assembled, and electrical test passed.
Based on LM741 OPAMP design.
Suitable battery supply solutions (Single 9V battery).
Germanium diodes 1N270, soft-clipped distortion, similar to the 70s distortion+ effect circuit.
YXF 105°C long life, low impedance electrolytic capacitors.
High-quality terminal blocks easy connection wire.
Thickness 1.6mm FR-4 fiber glass PCB (double layer).
NOTE: the module no Volume pot. and Distortion Enable/Disable switch.

Specifications:
Operating Voltage: 9V DC.
Quiescent Current: <0.5mA.

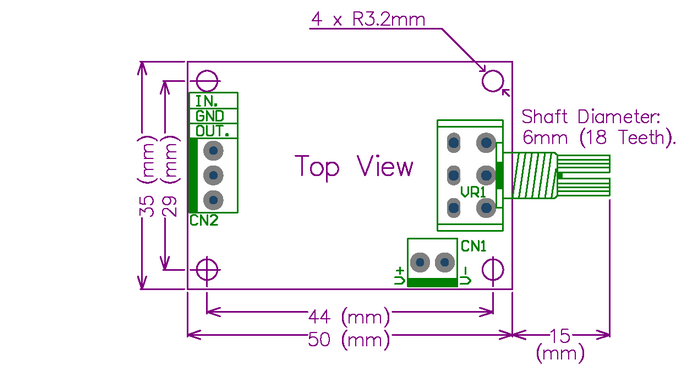

PCB Size: 35 x 50 mm (1.38 x 1.97 inch).
Module Size(W x L x H): 35 x 50 x 25 mm (1.38 x 1.97 x 1 inch)
Potentiometer Shaft Diameter: 6mm (18 Teeth).
Potentiometer Shaft Length: 15mm.

Datasheet:

Download
