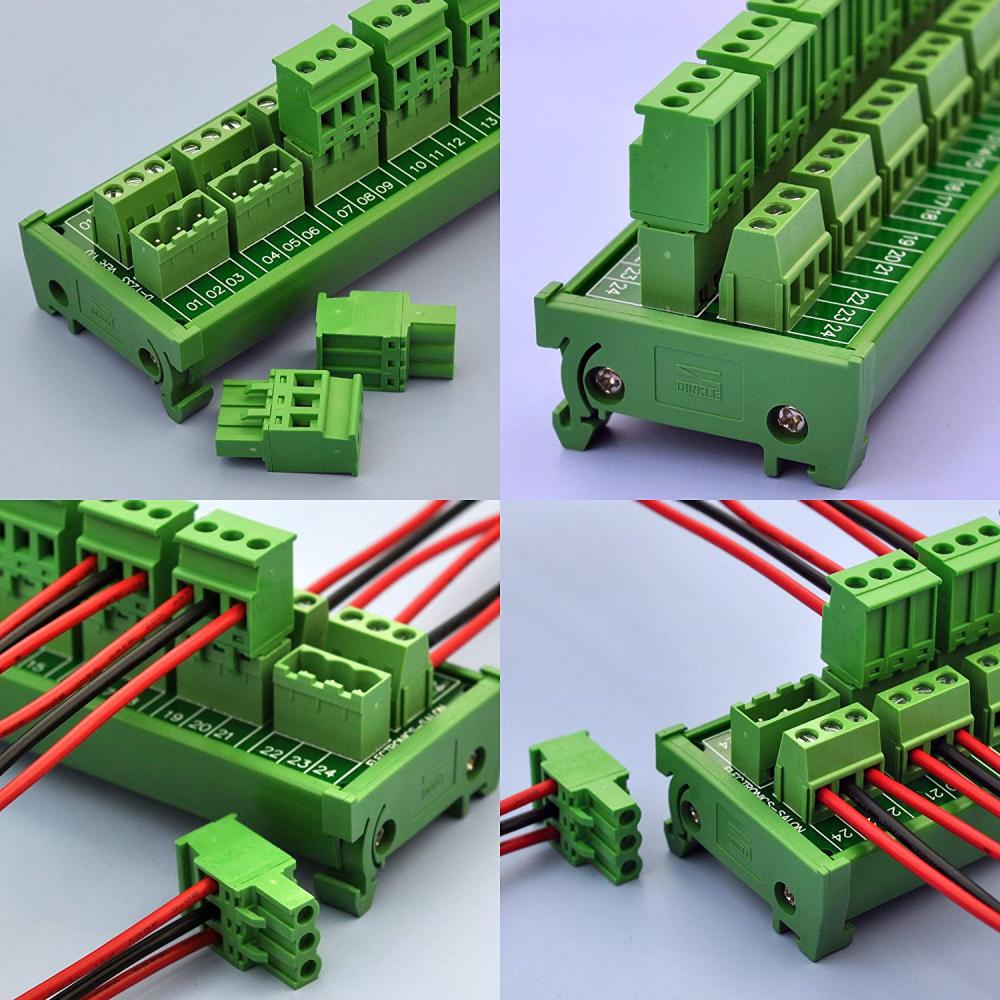

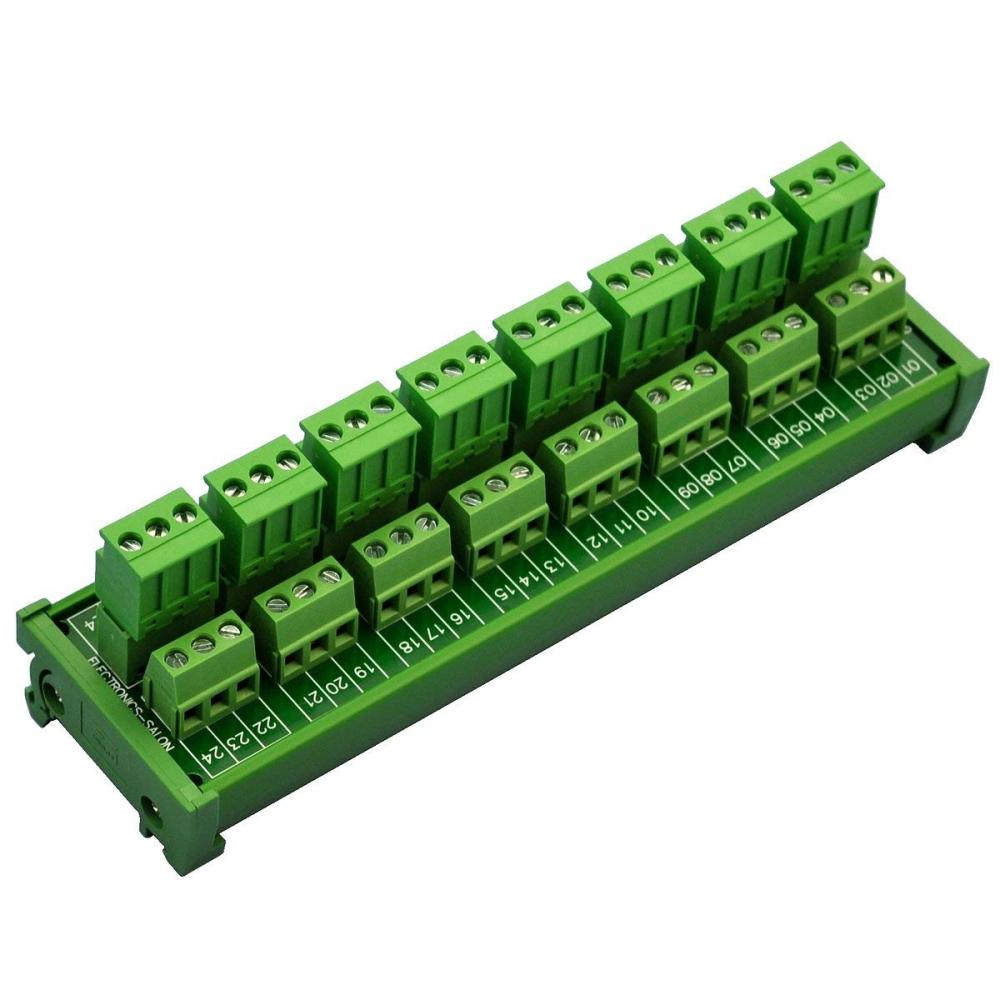

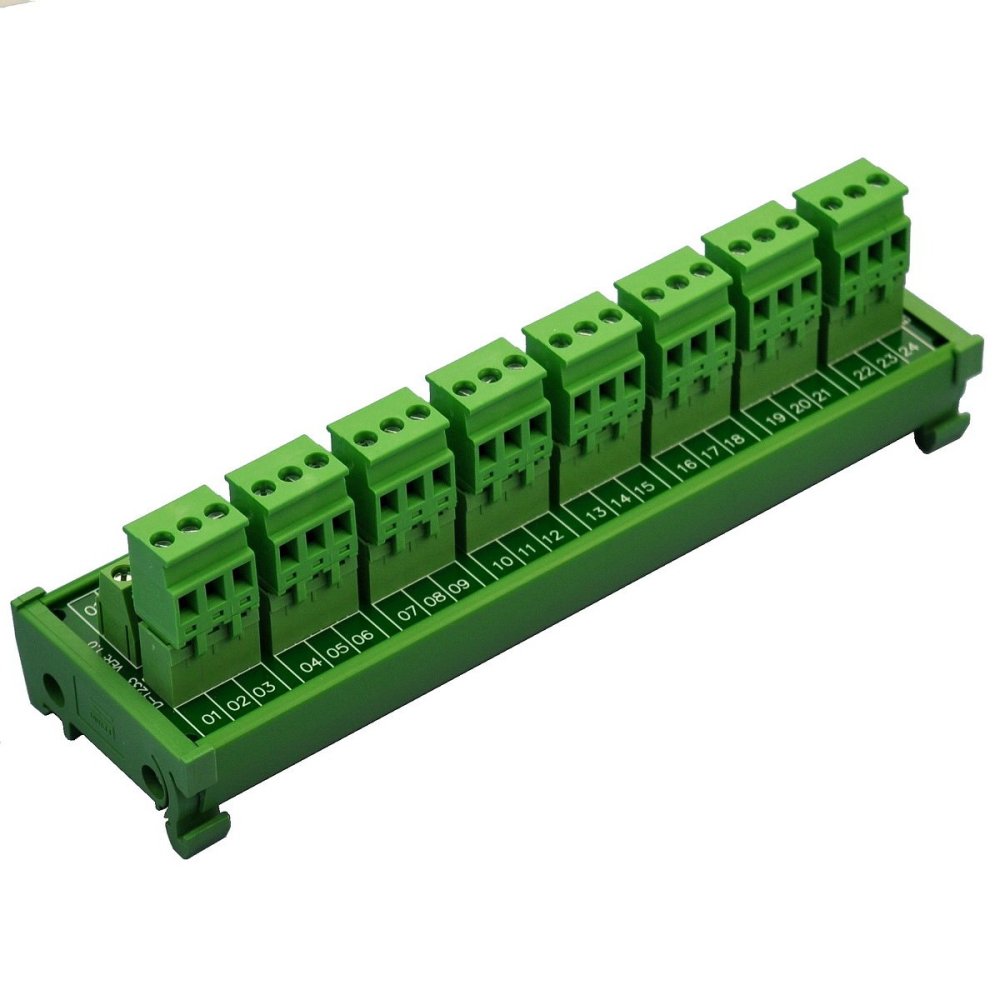

ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.

SKU: D-1233RT
$19.99 $19.99
ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $19.99 = $19.99
save $0.00
Add to Favorites
  • ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.
  • ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.
  • ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.
  • ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.
  • ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.
  • ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.
  • ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.
  • ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.
  • ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.
  • ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.
  • ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.
  • ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.
  • ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.
  • ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.
1/1
  • ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.
  • ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.
  • ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.
  • ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.
  • ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.
  • ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.
  • ELECTRONICS-SALON DIN Rail Mount Pluggable Side Wiring 8x3 Pole 10A/300V Terminal Block Module.
  • Description

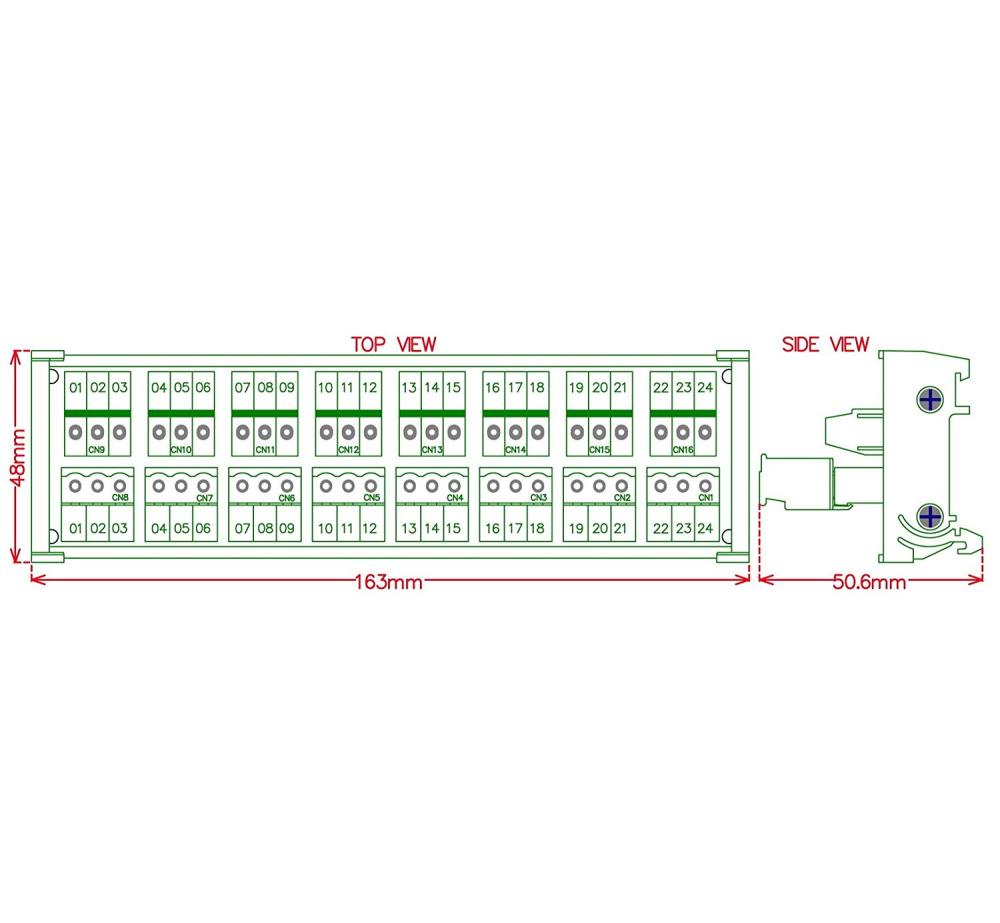

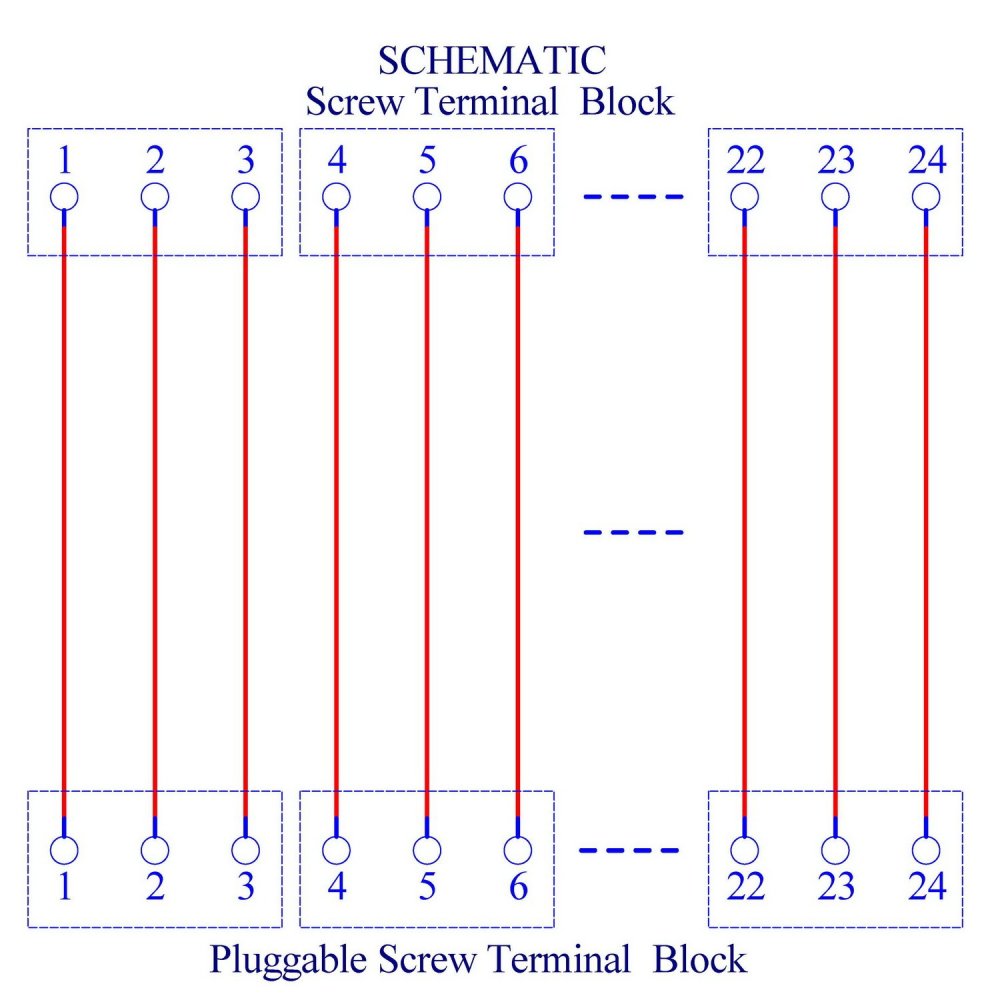

DIN Rail Mount Pluggable 8x3 Position 10A / 300V Screw Terminal Block Distribution Module.

Input terminal: Screw terminal block, pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass.
Output terminal: Pluggable screw terminal block, side wire connects, pitch 5.08mm/0.2", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass.
Wire range 28AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 10Amp(per position).

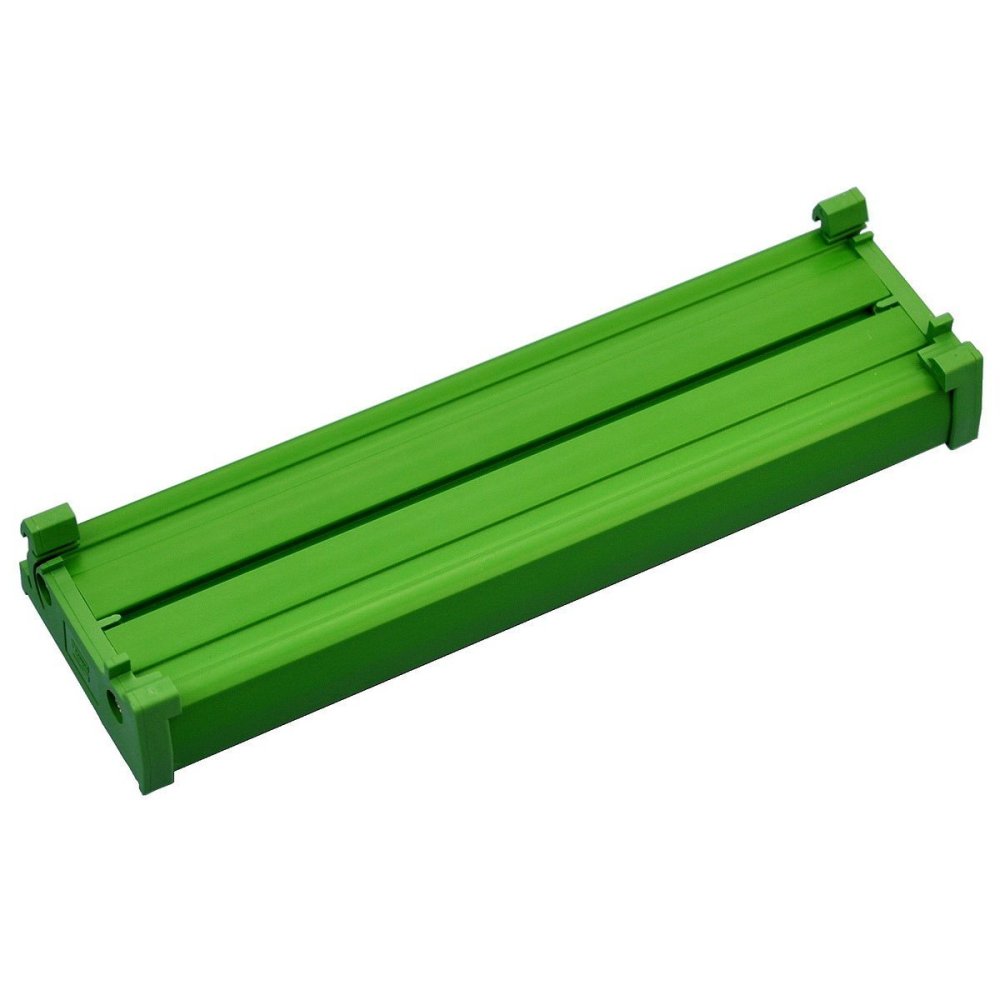

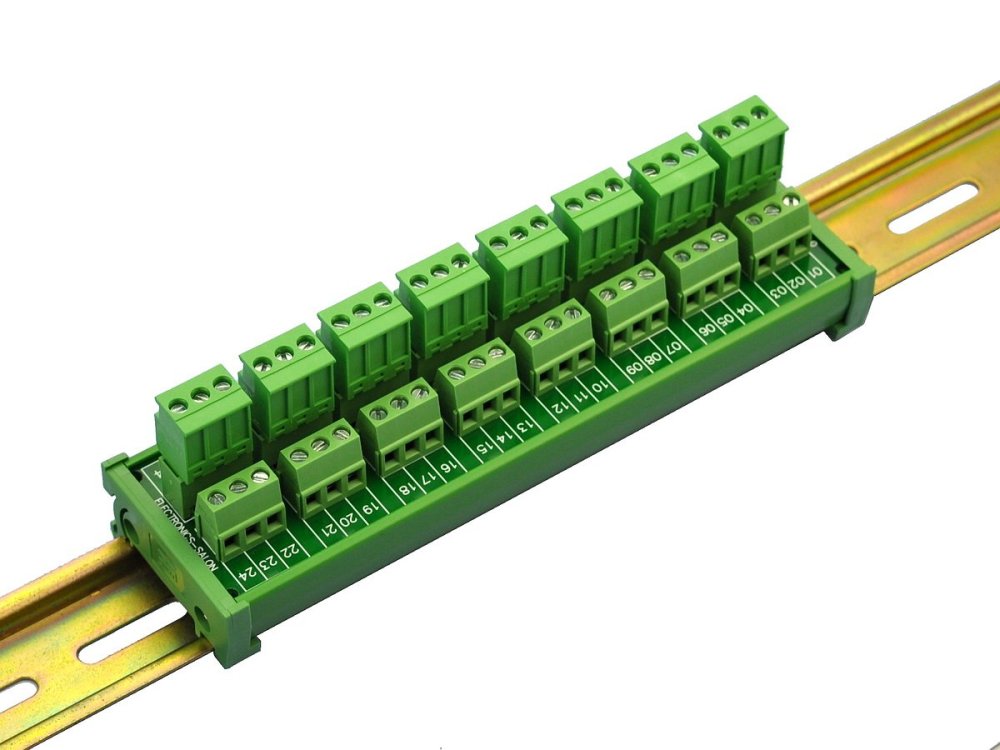

High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.
