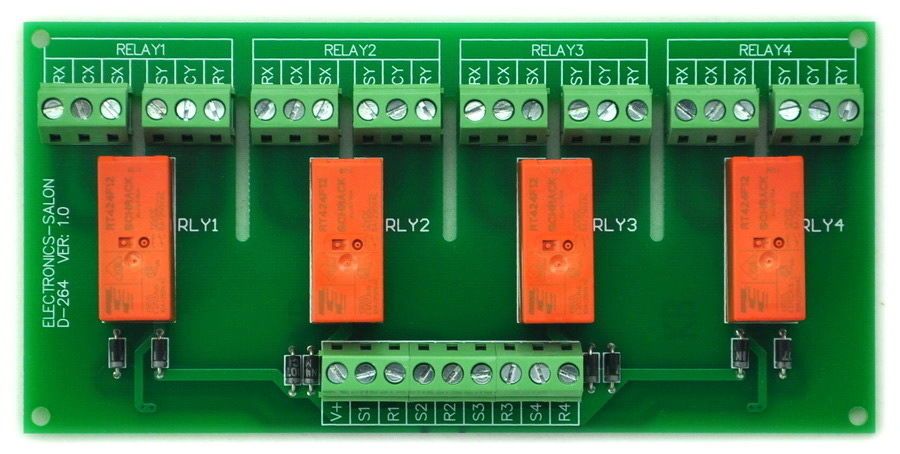

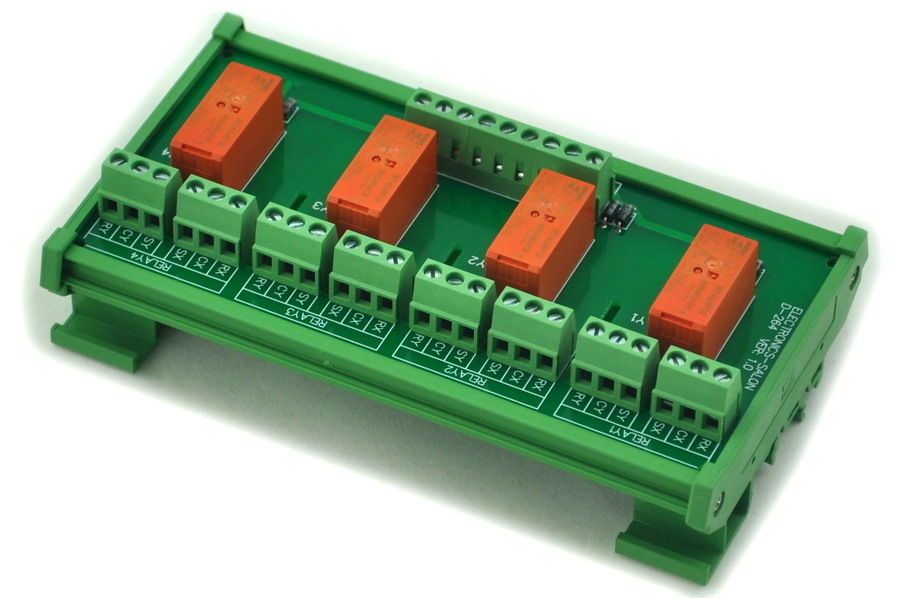

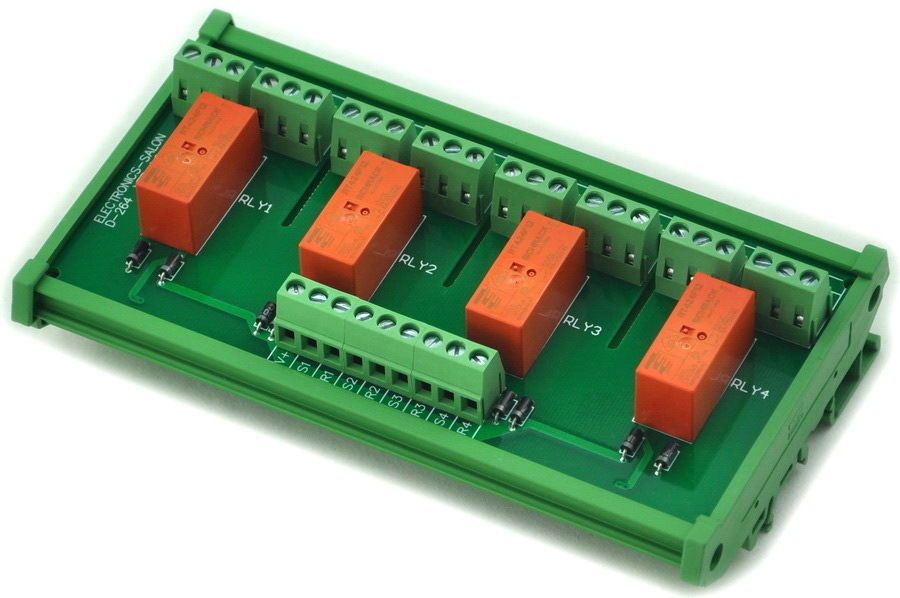

ELECTRONICS-SALON DIN Rail Mount Passive Bistable/Latching 4 DPDT 8A Power Relay Module, 24V Ver.

SKU: D-264T/24V
$68.00 $68.00
ELECTRONICS-SALON DIN Rail Mount Passive Bistable/Latching 4 DPDT 8A Power Relay Module, 24V Ver.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $68 = $68
save $0.00
Add to Favorites
  • ELECTRONICS-SALON DIN Rail Mount Passive Bistable/Latching 4 DPDT 8A Power Relay Module, 24V Ver.
  • ELECTRONICS-SALON DIN Rail Mount Passive Bistable/Latching 4 DPDT 8A Power Relay Module, 24V Ver.
  • ELECTRONICS-SALON DIN Rail Mount Passive Bistable/Latching 4 DPDT 8A Power Relay Module, 24V Ver.
  • ELECTRONICS-SALON DIN Rail Mount Passive Bistable/Latching 4 DPDT 8A Power Relay Module, 24V Ver.
  • ELECTRONICS-SALON DIN Rail Mount Passive Bistable/Latching 4 DPDT 8A Power Relay Module, 24V Ver.
  • ELECTRONICS-SALON DIN Rail Mount Passive Bistable/Latching 4 DPDT 8A Power Relay Module, 24V Ver.
  • ELECTRONICS-SALON DIN Rail Mount Passive Bistable/Latching 4 DPDT 8A Power Relay Module, 24V Ver.
  • ELECTRONICS-SALON DIN Rail Mount Passive Bistable/Latching 4 DPDT 8A Power Relay Module, 24V Ver.
  • ELECTRONICS-SALON DIN Rail Mount Passive Bistable/Latching 4 DPDT 8A Power Relay Module, 24V Ver.
  • ELECTRONICS-SALON DIN Rail Mount Passive Bistable/Latching 4 DPDT 8A Power Relay Module, 24V Ver.
1/1
  • ELECTRONICS-SALON DIN Rail Mount Passive Bistable/Latching 4 DPDT 8A Power Relay Module, 24V Ver.
  • ELECTRONICS-SALON DIN Rail Mount Passive Bistable/Latching 4 DPDT 8A Power Relay Module, 24V Ver.
  • ELECTRONICS-SALON DIN Rail Mount Passive Bistable/Latching 4 DPDT 8A Power Relay Module, 24V Ver.
  • ELECTRONICS-SALON DIN Rail Mount Passive Bistable/Latching 4 DPDT 8A Power Relay Module, 24V Ver.
  • ELECTRONICS-SALON DIN Rail Mount Passive Bistable/Latching 4 DPDT 8A Power Relay Module, 24V Ver.
  • Description
DIN Rail Mount Passive Bistable/Latching 4 DPDT 8 Amp Power Relay Module.

The item has been assembled, and electrical test passed.

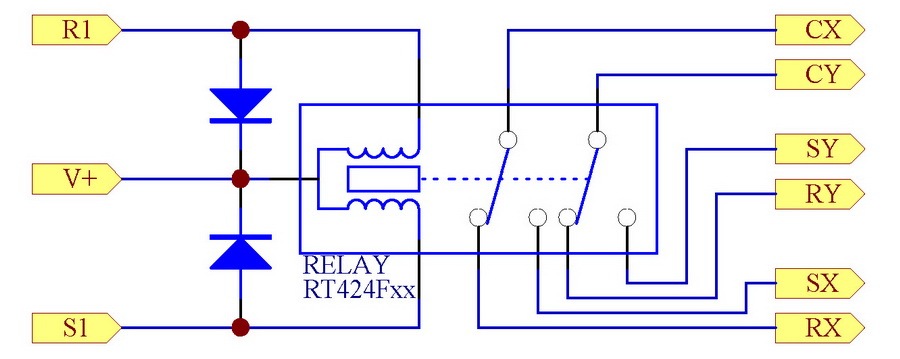

RT424F24 high quality bistable relay.
Relay coil protection by means of freewheeling diodes.
High quantity terminal blocks, easy connection wires.
FR-4 Fiber glass PCB.

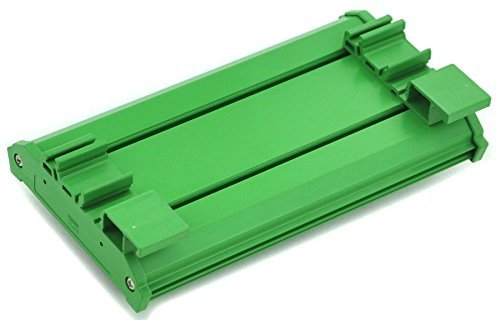

High quality PCB housing/carrier, DIN rail mountable - for width 35 / 32 / 15mm rails.
DIN mount case can be taken apart for panel mount use.

Terminal block specifications:
Wire range: 24 ~ 12 AWG.
Strip length: 7mm.
Screws - M2.5, steel, Cr3+ Zn plated.
Pin header and Cage - Brass
