12V Version, G2R-2 12VDC industrial power relays.
Switching current up to 5A at 250VAC (or 30VDC).
Easy to replace pluggable relays.
Jumper cap options for relays in common negative or common positive configurations.
With fuse for each switch common terminal, fuse holder easy to replace fuse, default fuses slow blow type 250V 6.3 AMP.
LED indicator for each relay.
Relay coil protection by means of a freewheeling diode.
Screw terminal block.

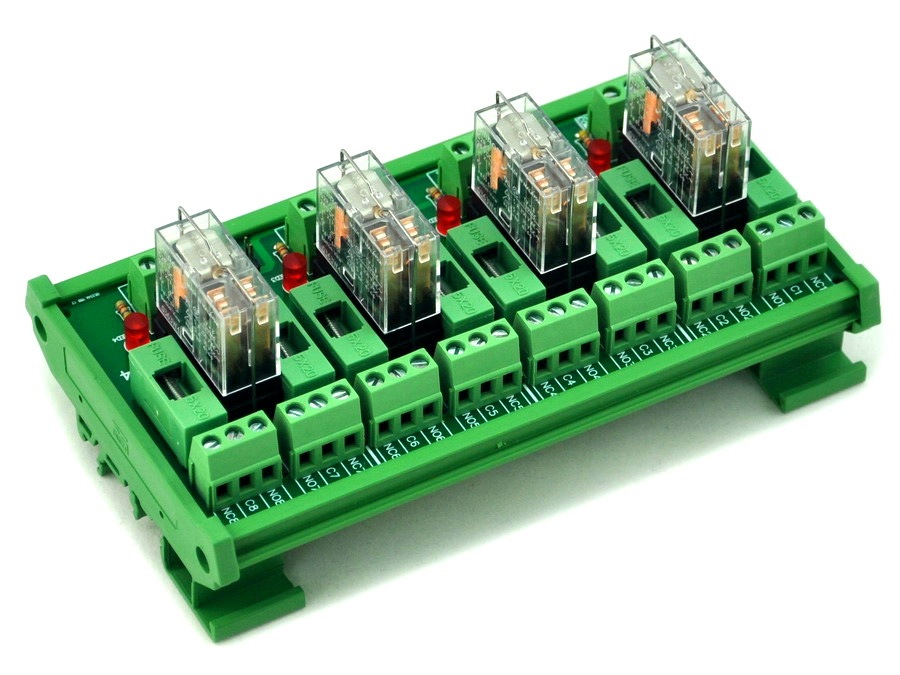

High quality PCB housing/carrier, DIN rail mountable - for width 35 / 32 / 15mm rails.

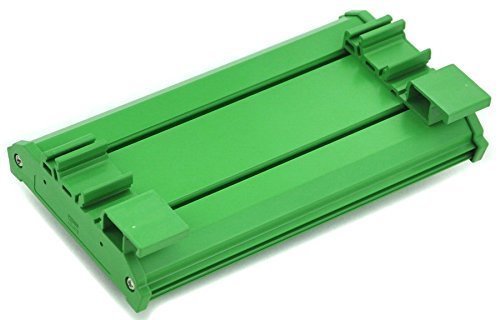

DIN mount case can be taken apart for panel mount use.

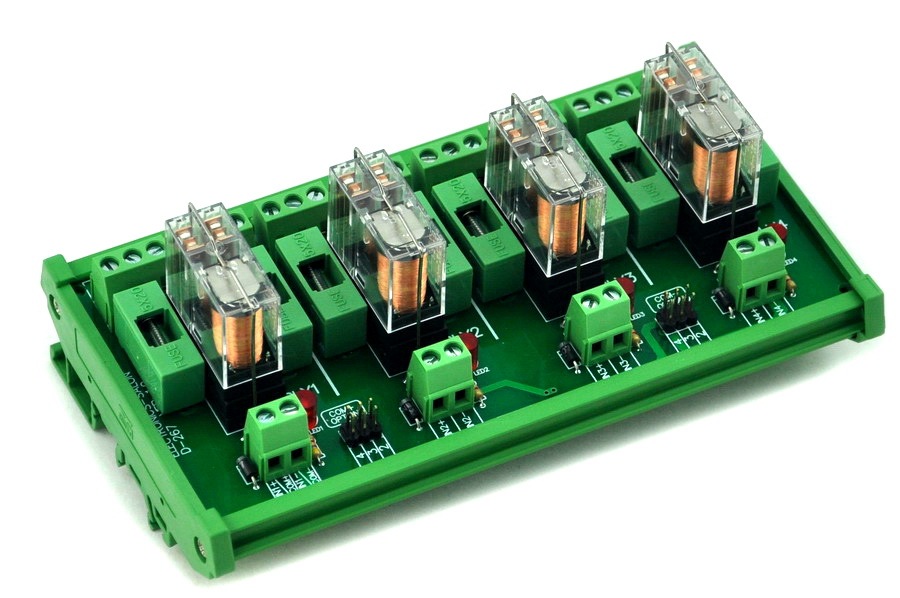

FR-4 fiber glass PCB, dual copper layers.
External dimensions: 153 x 87 x 63mm (L x W x H).

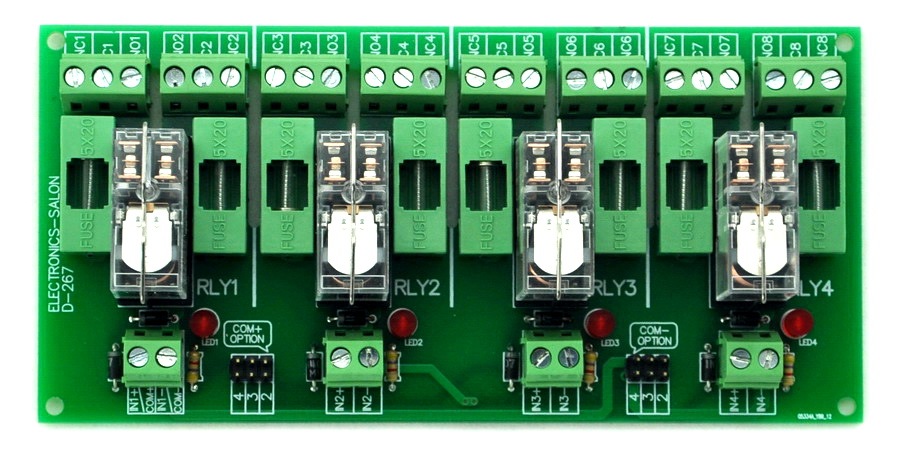

PCB dimensions: 150 x 72.5mm (L x W).
100% new, never used.
Relay action:
Voltage: 9 ~ 20VDC (recommended 12VDC).
Current: 46mA (one relay, at 12VDC).
Relay switch contact:
Rated resistive load: 5A/250VAC or 5A/30VDC.
Rated inductive load: 2A/250VAC or 3A/30VDC.
Relay datasheet: Click here.
Terminal block specifications:
Wire range: 24 ~ 12 AWG.
Strip length: 7mm.
Screws - M2.5, steel, Cr3+ Zn plated.
Pin header and Cage - Brass.

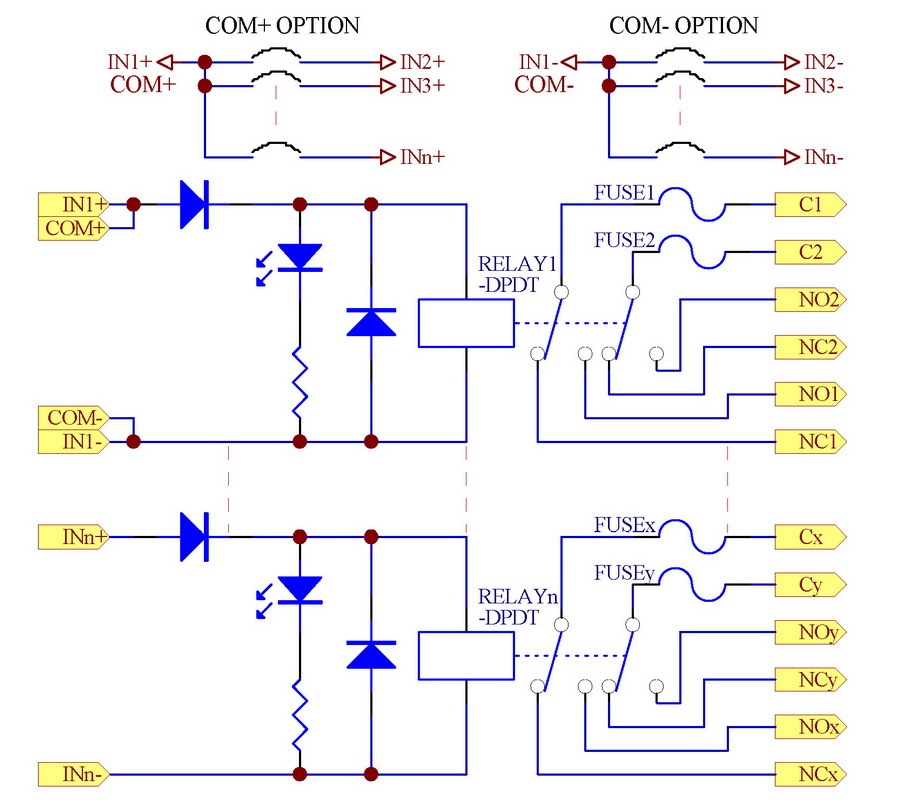

Wire connection:
INx+: Relay operating voltage positive.
INx-: Relay operating voltage negative.
COM / NO / NC:
When relay not-action, COM - NO disconnected, COM - NC connected.
When relay action, COM - NO connected, COM - NC disconnected.
