ELECTRONICS-SALON DIN Rail Mount DC5V 8 Channels DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.

Name: ELECTRONICS-SALON DIN Rail Mount DC5V 8 Channels DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.
Brand: Xiken Tech
SKU: D-253T
Price: 34.99 USD
Availability: InStock

SKU: D-253T

$34.99 ~~$34.99~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

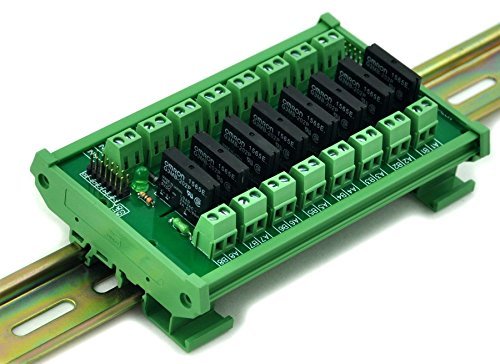

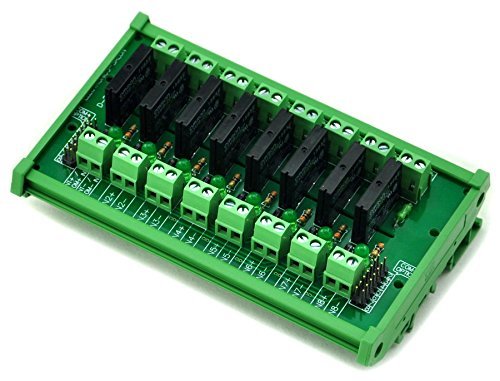

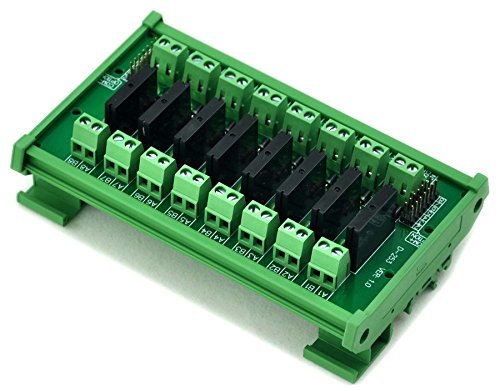

Electronics-Salon DC5V 8 Channels DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.

Input control voltage DC 5V, Current 20mA for each channel. LED indicator for SSR each channel action.

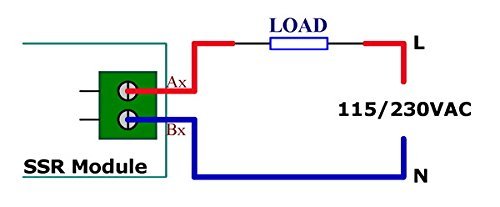

Rated output voltage: AC 100 ~ 240V(50/60Hz). Applicable load current: 0.1 ~ 2Amp(each channel).

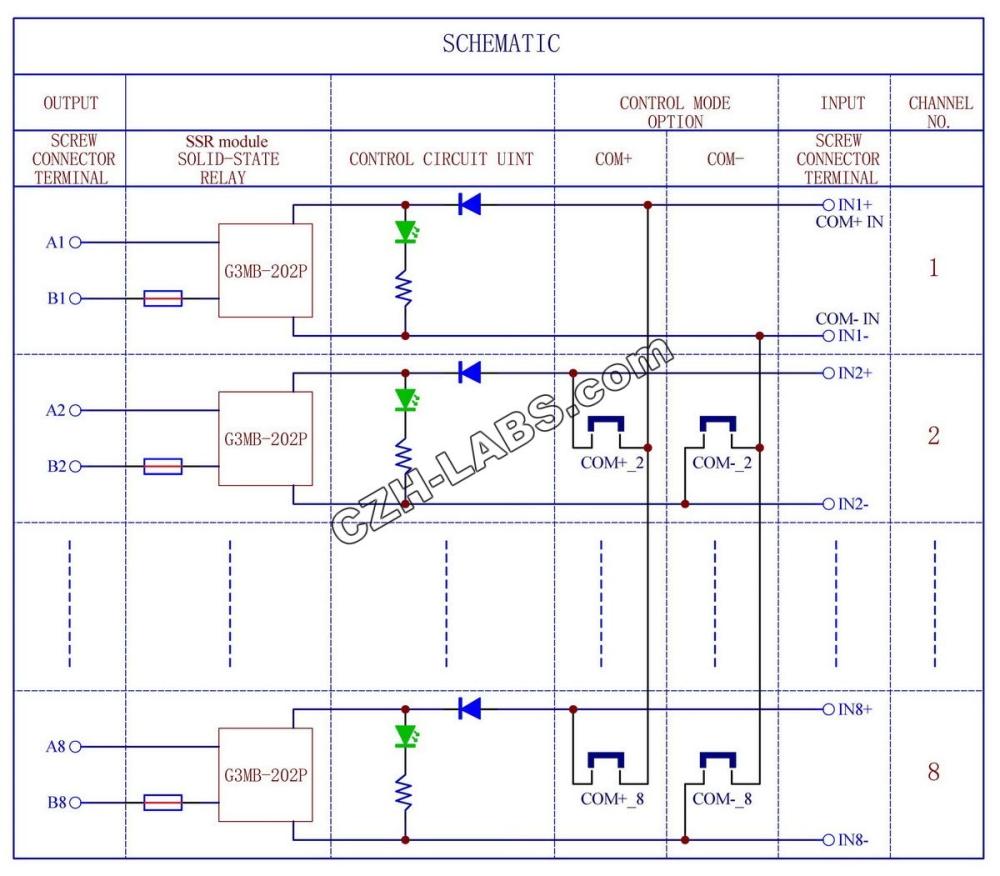

Pin Jumper option for control mode configurations in common positive or common negative.
SSR output series 3Amp fuse to protect your equipment.
G3MB-202P 5VDC SSR, Isolation: Phototriac. Zero cross: Yes. Rated output load: 2A at 100 to 240VAC (50/60Hz). Load type: General purpose.

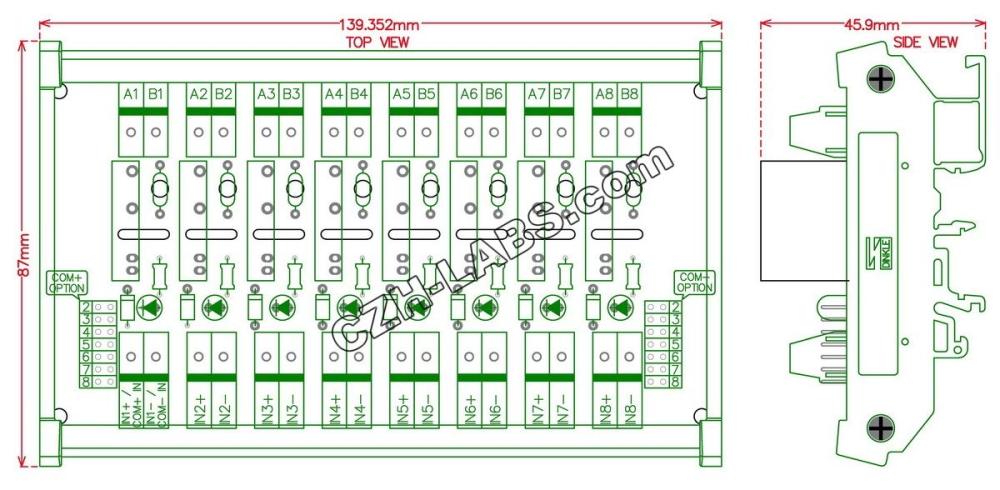

DINKLE Fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
High quality terminal blocks. Wire range: 24 ~ 12 AWG. Strip length: 7mm. Screws - M2.5 steel, Cr3+ Zn plated. Pin header and Cage - Brass.
High quality FR-4 fiber glass PCB.
