ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.

SKU: D-230T/12V
$19.99 $19.99
ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $19.99 = $19.99
save $0.00
Add to Favorites
  • ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.
  • ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.
  • ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.
  • ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.
  • ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.
  • ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.
  • ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.
  • ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.
  • ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.
  • ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.
  • ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.
  • ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.
  • ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.
  • ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.
1/1
  • ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.
  • ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.
  • ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.
  • ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.
  • ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.
  • ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.
  • ELECTRONICS-SALON DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 12V Version.
  • Description

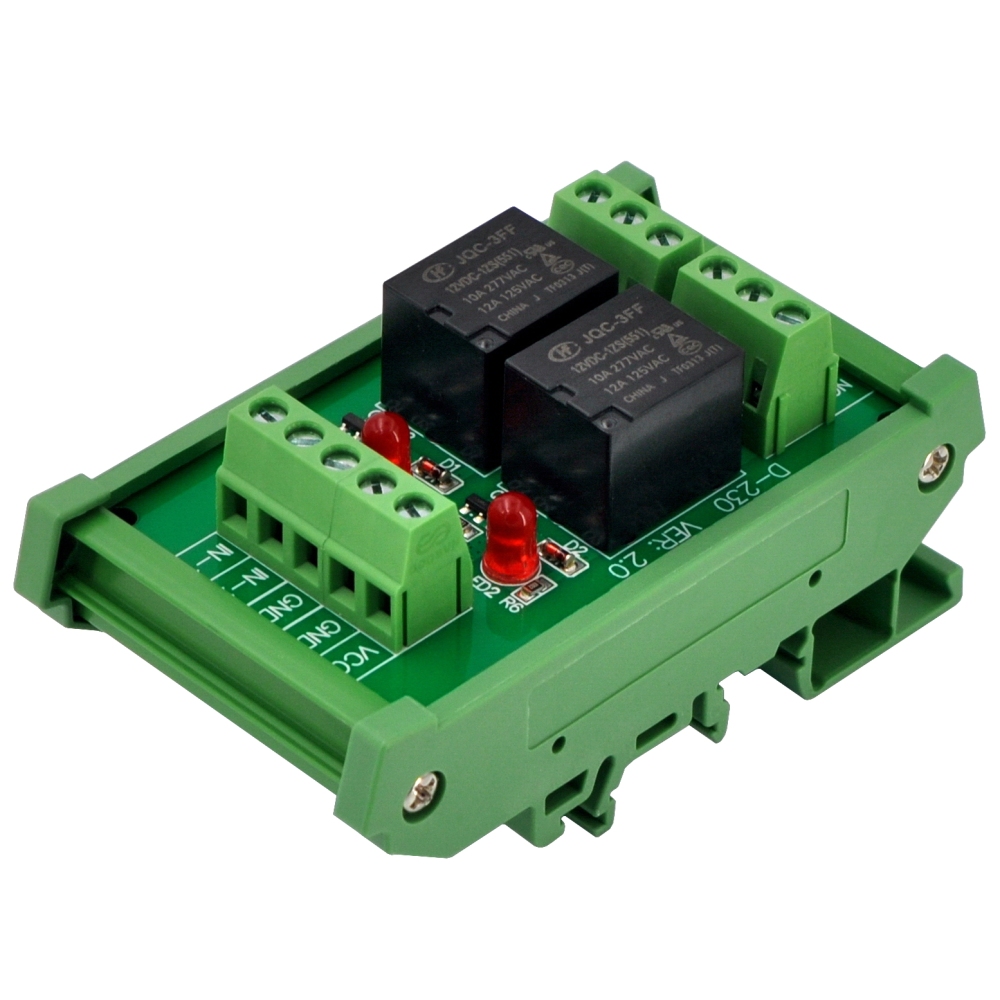

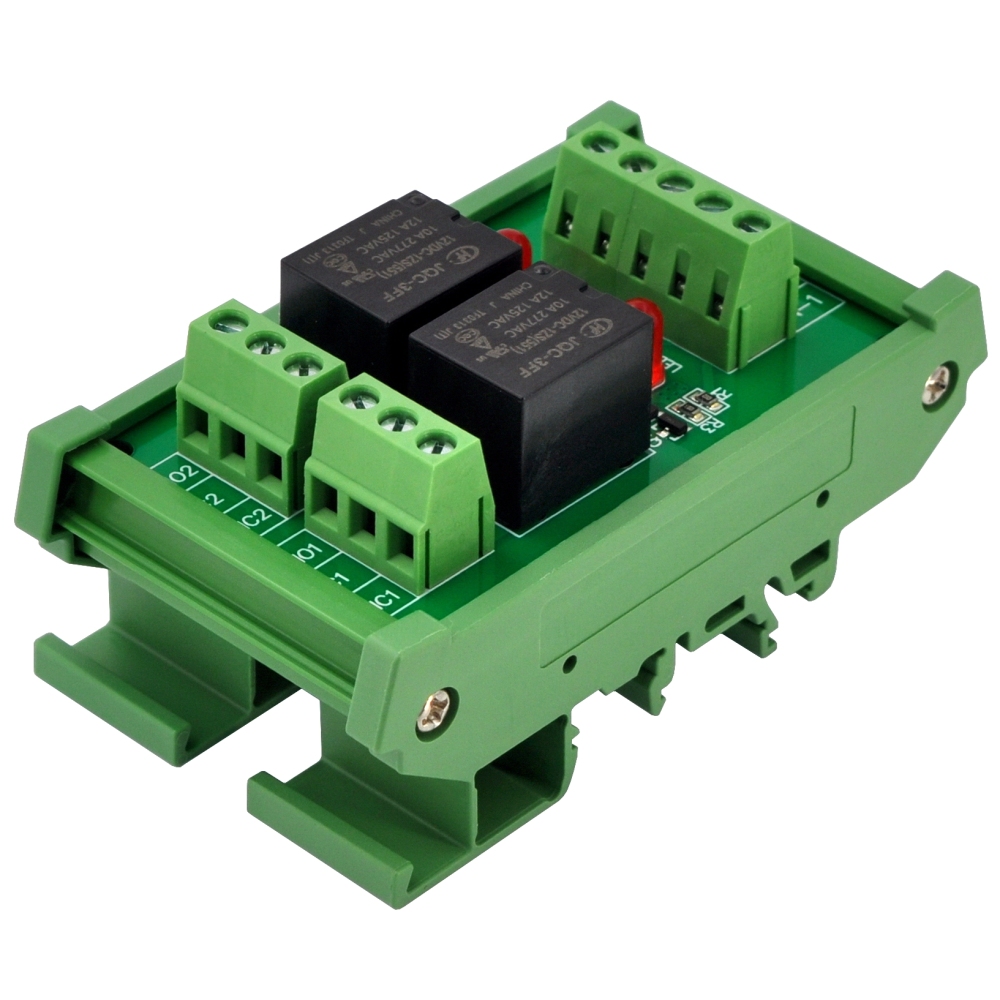

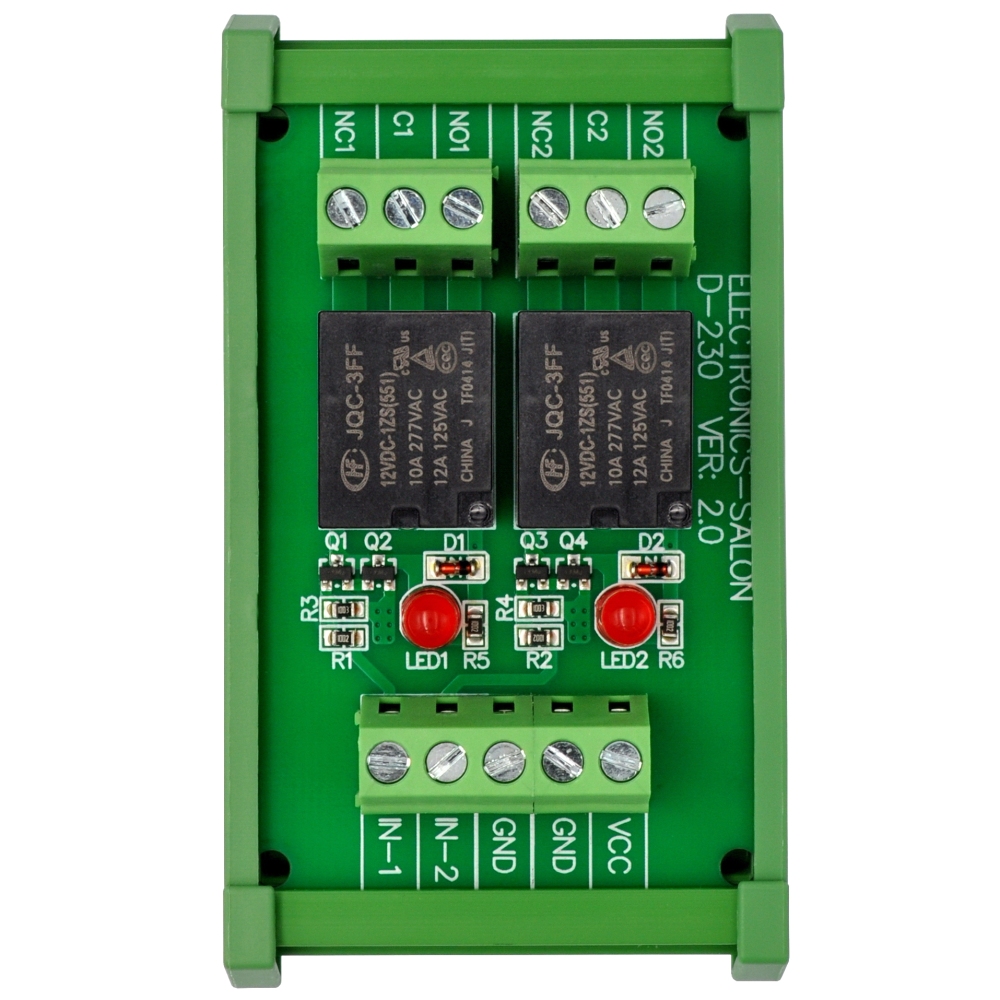

2 Channel SPDT power relay interface module, high quality JQC-3FF 10Amp relays.

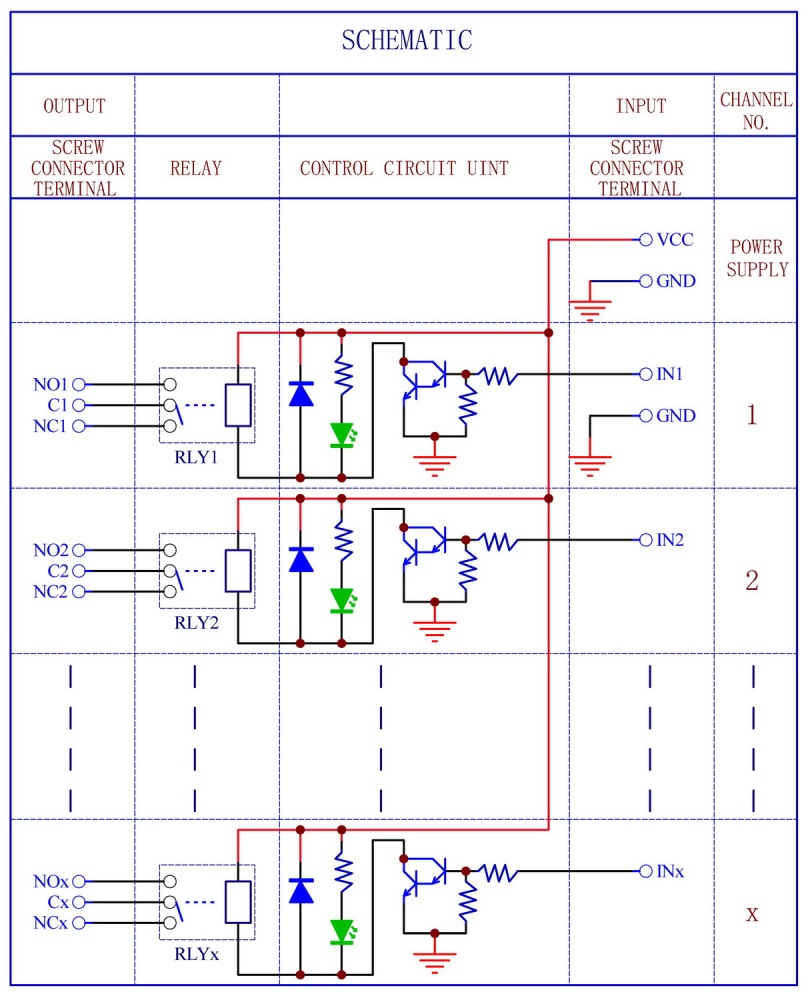

Darlington transistor circuits drive relay coil, LED indicator for each relay channel.
High quality screw terminal block.
FR-4 fiber glass PCB, dual copper layers.

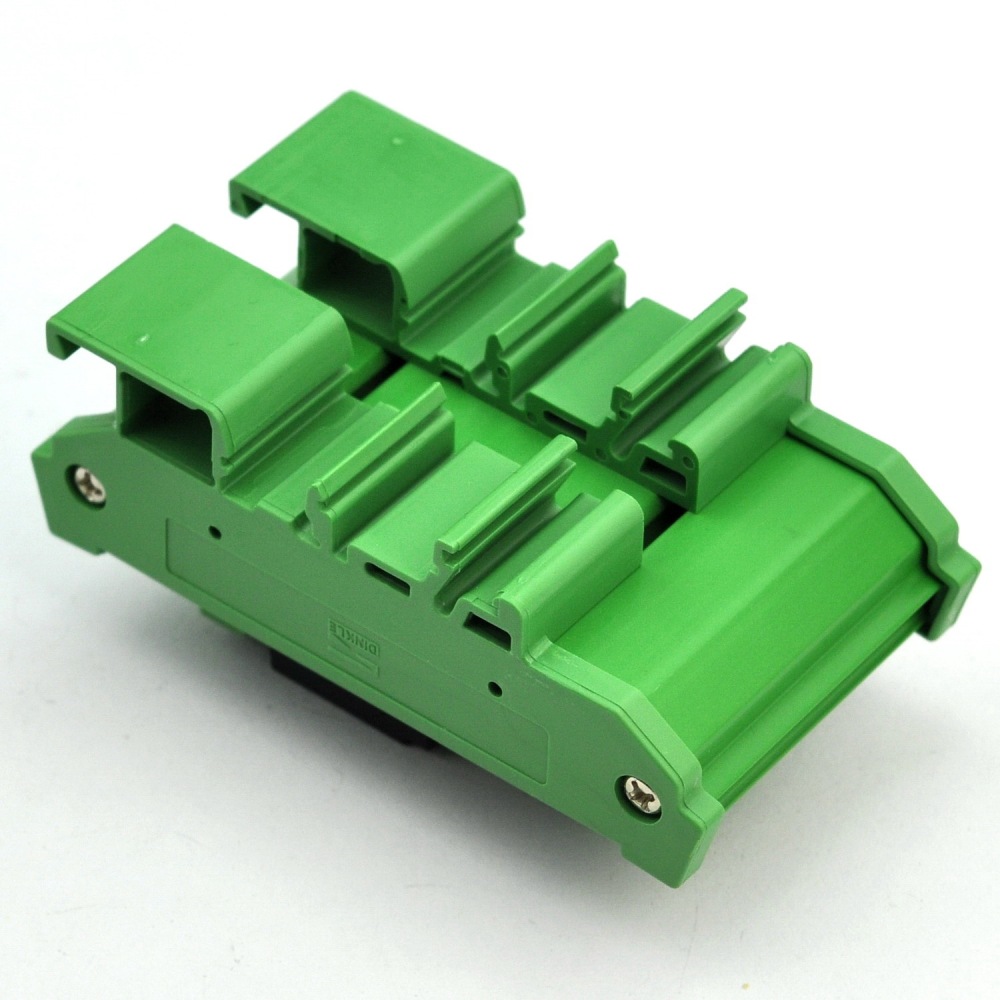

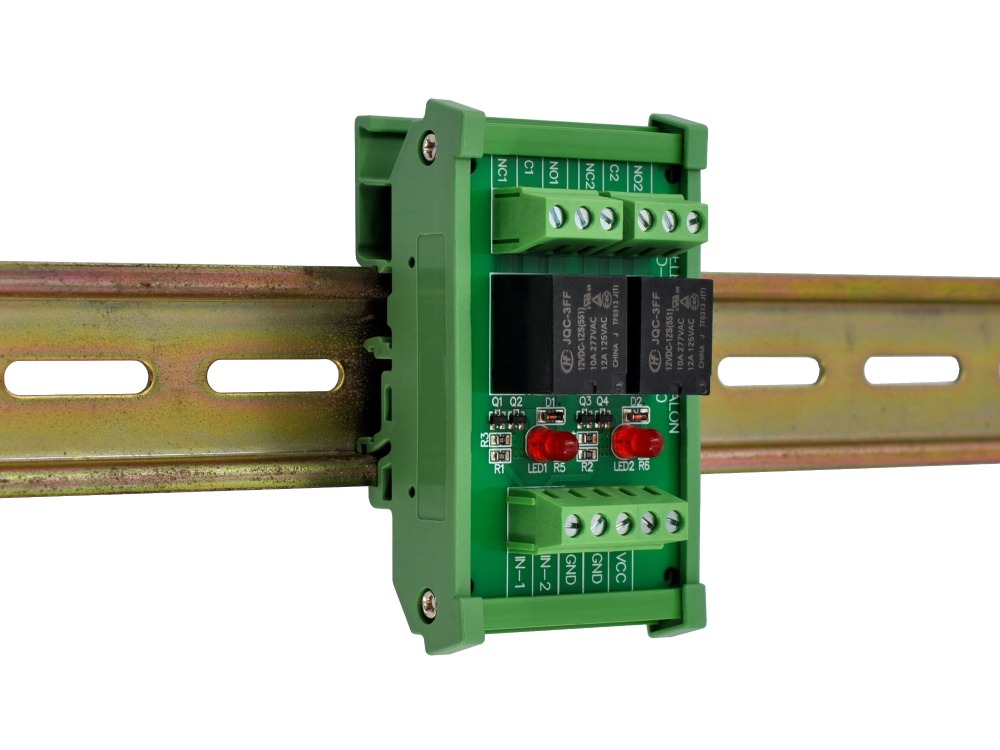

Fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.

Operating Voltage / Current (VCC): 9 to 18VDC / 100mA(at 12VDC).
Control signal voltage (IN-X):
0V - 0.5Vdc (low level), relay not action.
2.5V - 24Vdc (high level), relay action.

Output (relay switch) contact rating for each channel:
For AC, 125 / 277 VAC, 10 Amp
For DC, 28 VDC, 10 Amp

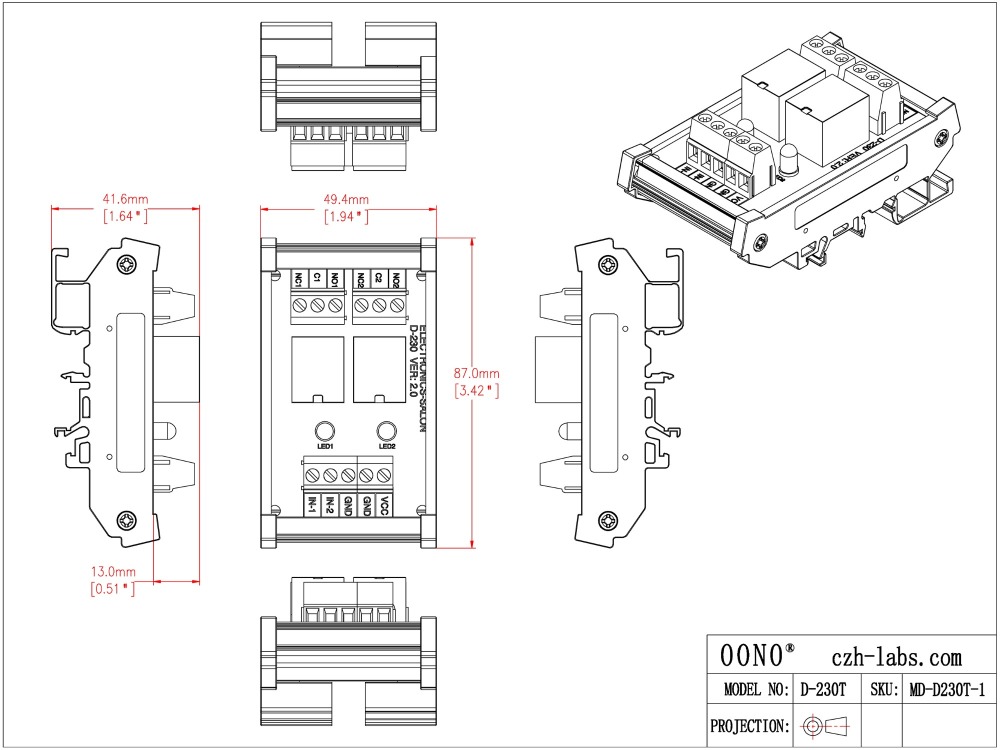

External dimensions: L49.5mm x W87mm x H43mm.
PCB dimensions: L47.35mm x W72mm x H15.5mm
