Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.

SKU: D-234AT
$25.99 $25.99
Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $25.99 = $25.99
save $0.00
Add to Favorites
  • Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.
  • Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.
  • Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.
  • Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.
  • Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.
  • Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.
  • Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.
  • Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.
  • Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.
  • Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.
  • Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.
  • Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.
  • Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.
  • Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.
1/1
  • Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.
  • Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.
  • Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.
  • Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.
  • Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.
  • Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.
  • Electronics-Salon DIN Rail Mount 100~250VAC 4 Channel Fuse Interface Module, with Fuse Fail Indication.
  • Description

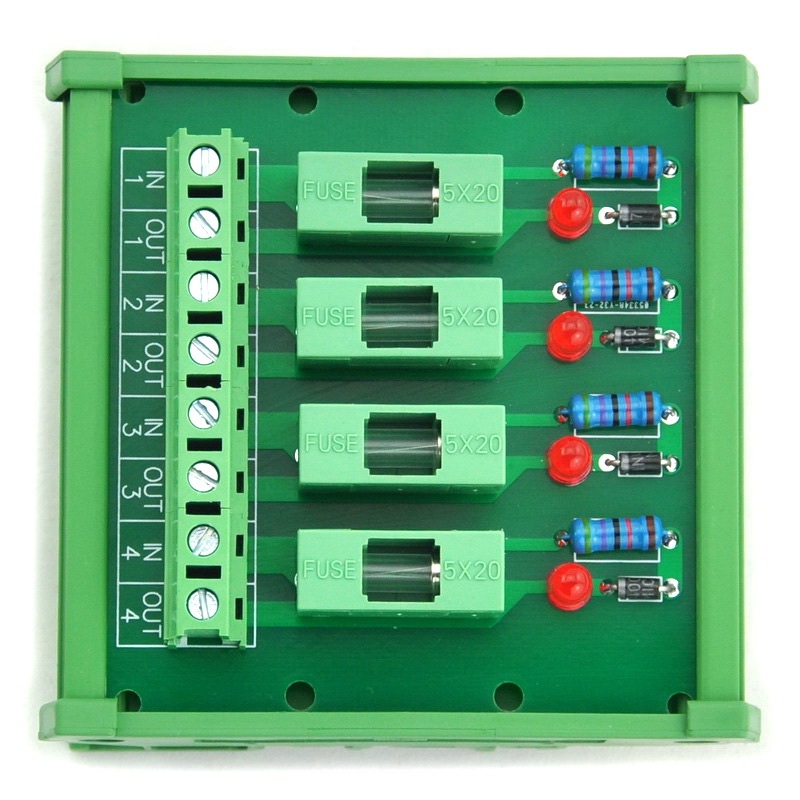

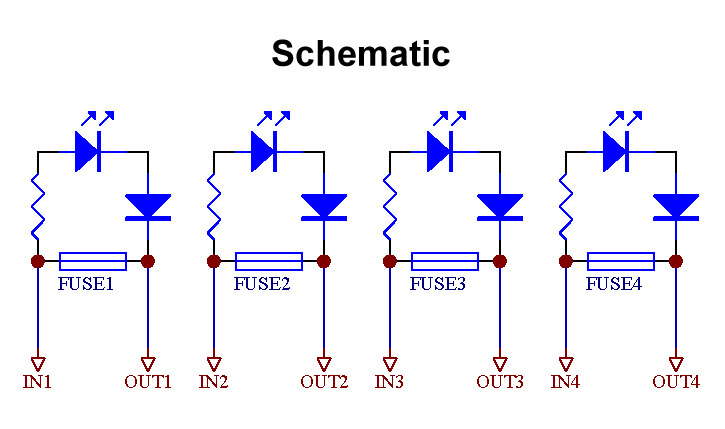

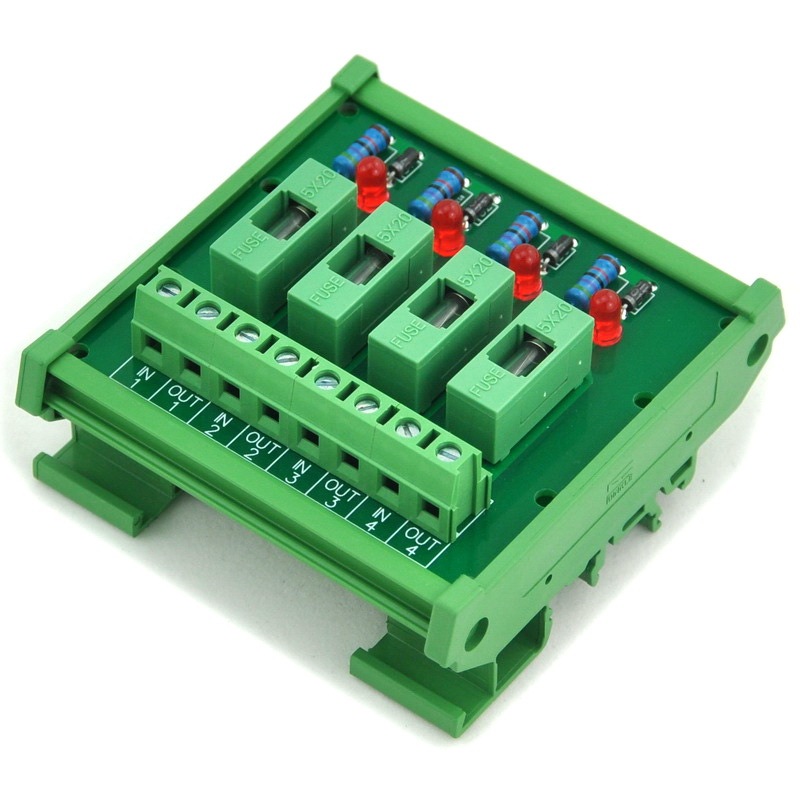

4 Channel Fuse Interface Module with Fuse Fail Indication.

Fuse holders for 5x20mm(DxL) tube fuse , factory-installed fuses Slow Blow 6.3Amp.
Pitch 7.5mm/0.3" screw terminal block.

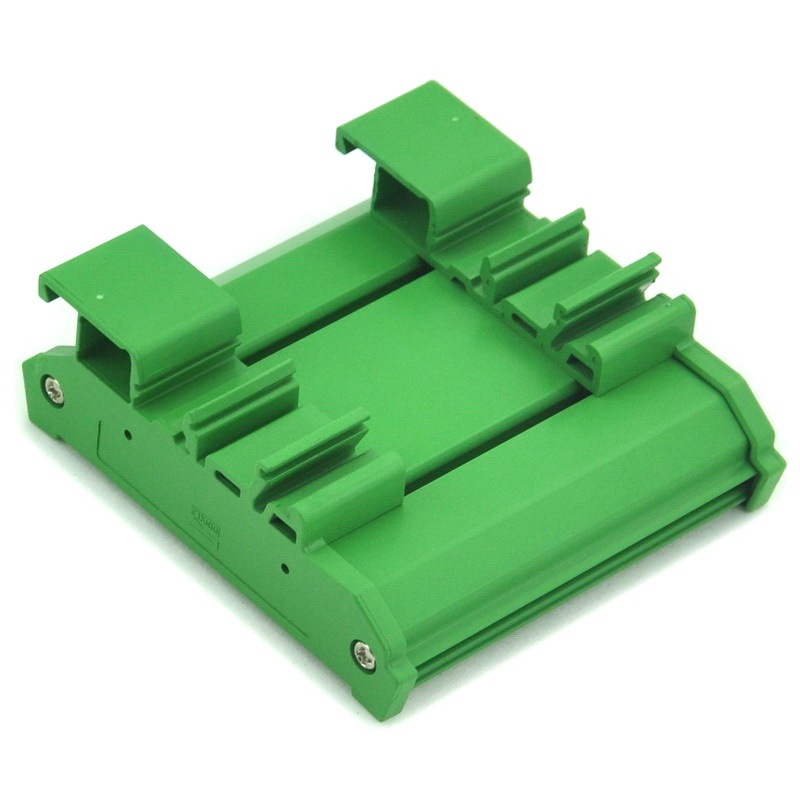

Din rail mountable - for width 35 / 32 / 15mm rails.
Din mount case can be taken apart for panel mount use.
High quality PCB housing/carrier.

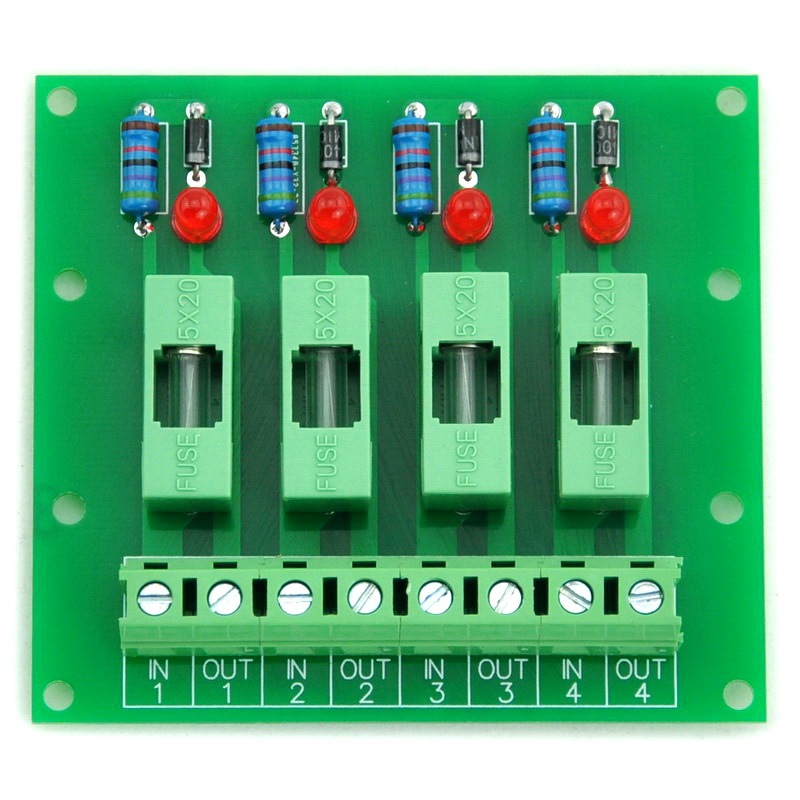

FR-4 fiber glass PCB, dual copper layers.

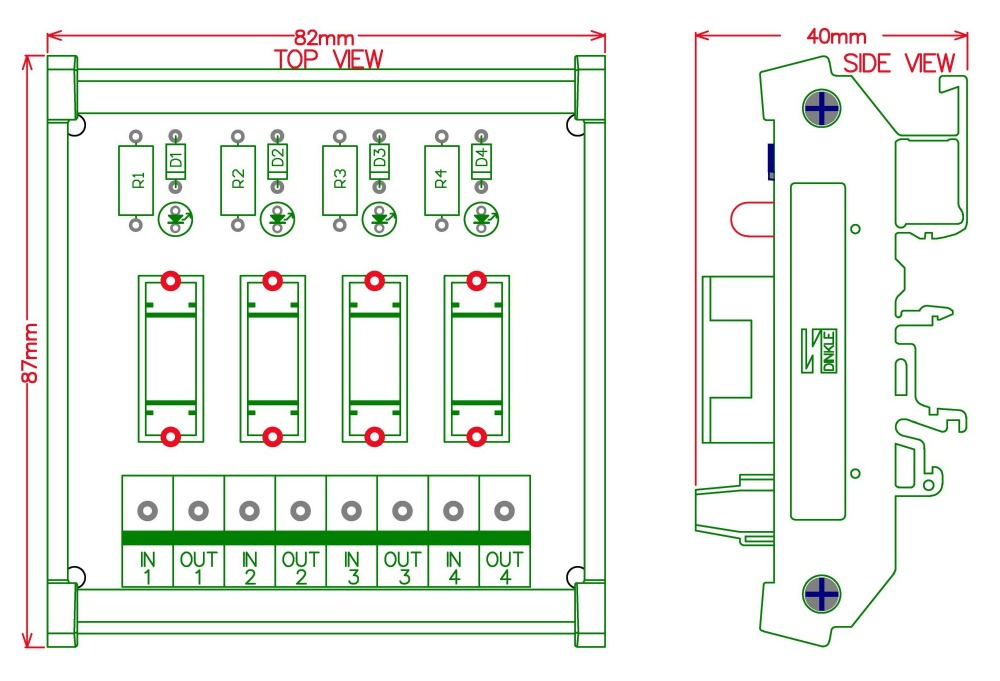

External dimensions: 87 x 83 x 40mm(W x L x H).

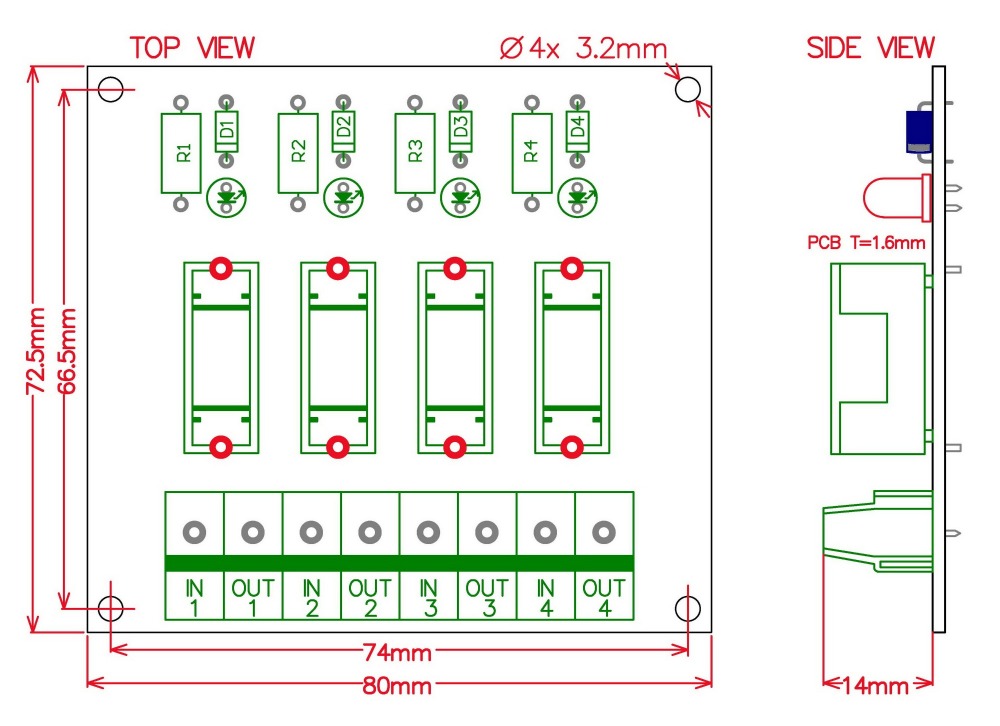

PCB dimensions: 72 x 80 x 18mm(W x L x H).

Work voltage: 100 ~ 250V AC
Max. work current: 6.3 Amp
Operating Temperature: -20ºC to 50ºC

Terminal block specifications:
Wire range: 24 ~ 12 AWG.
Strip length: 7mm.
Screws - M2.5, steel,Cr3+ Zn plated.
Pin header and Cage - Brass.
