ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05

SKU: D-151/5V
$17.99 $17.99
ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $17.99 = $17.99
save $0.00
Add to Favorites
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
1/1
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC5V Coil, RT424F05
  • Description

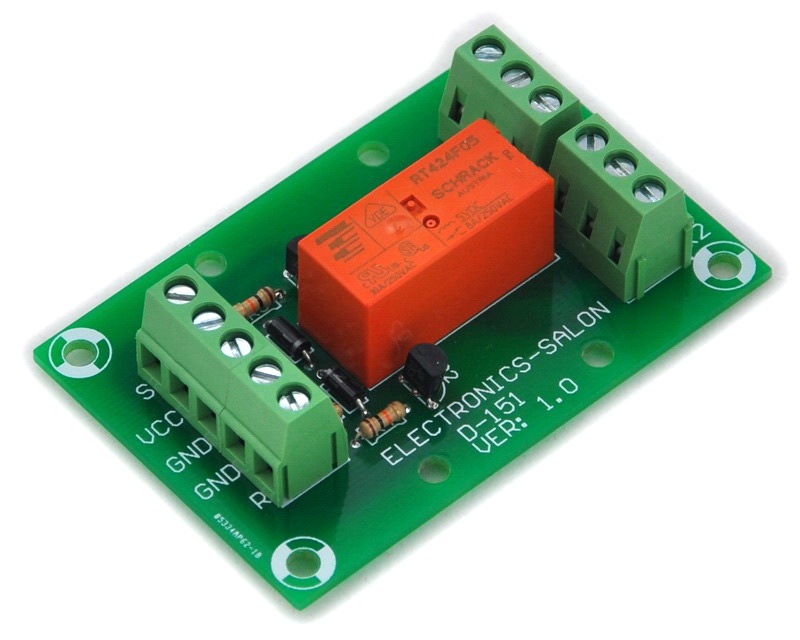

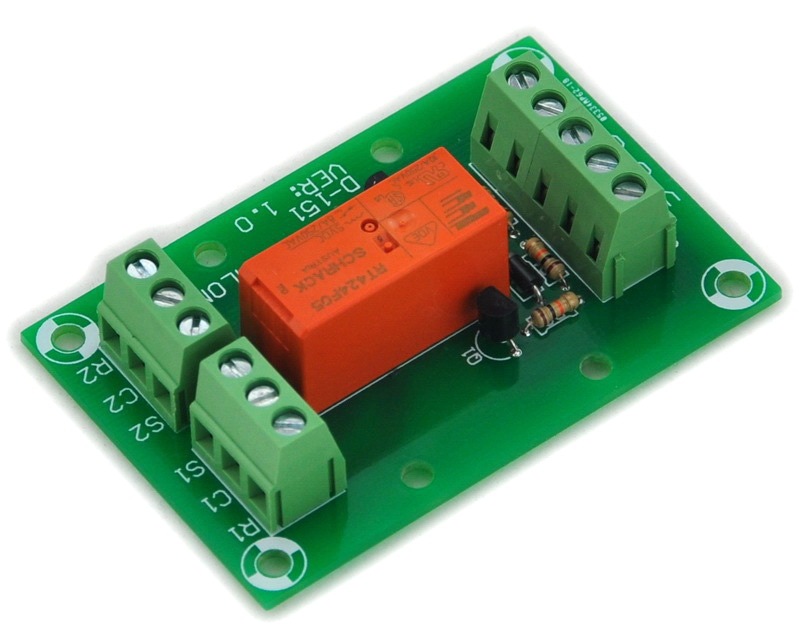

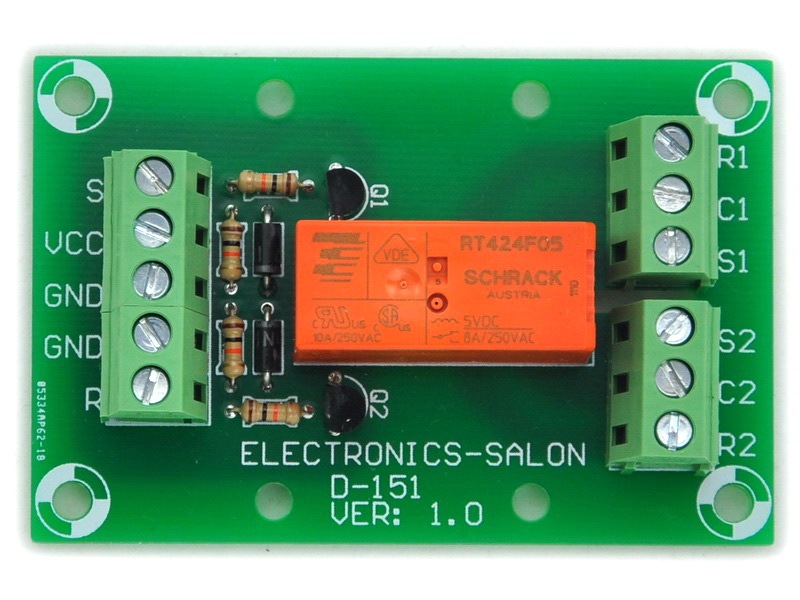

Bistable/Latching DPDT 8 Amp Power Relay Module.
This item has been assembled, and electrical test passed.
RT424F05 high quality bistable relay.

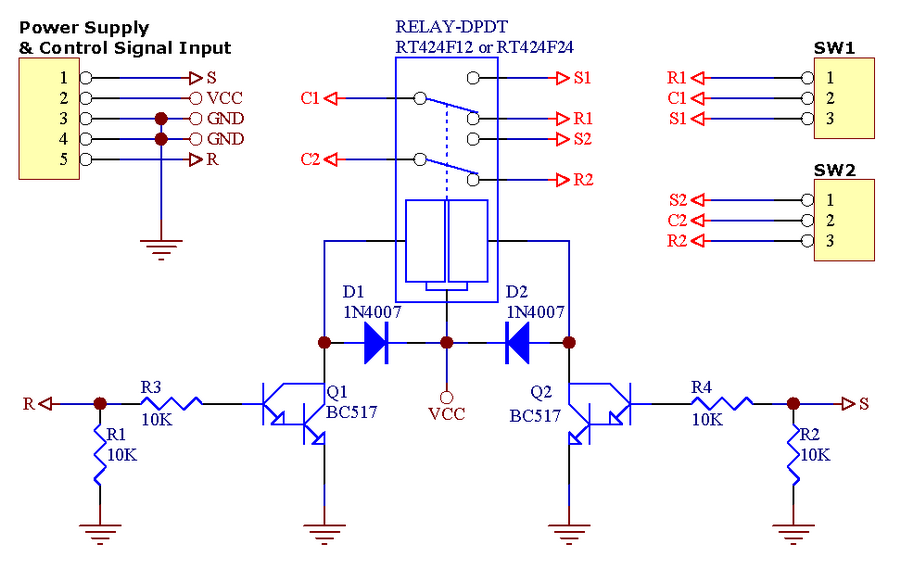

BC517 Darlington transistor driving relay, Improve the reliability of action.

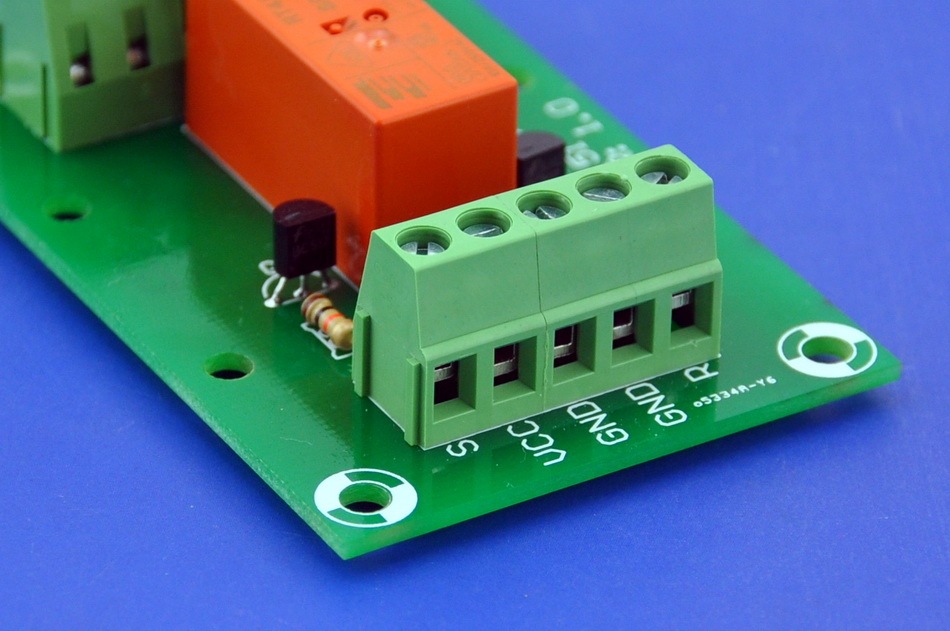

High quantity terminal blocks, easy connection wires.

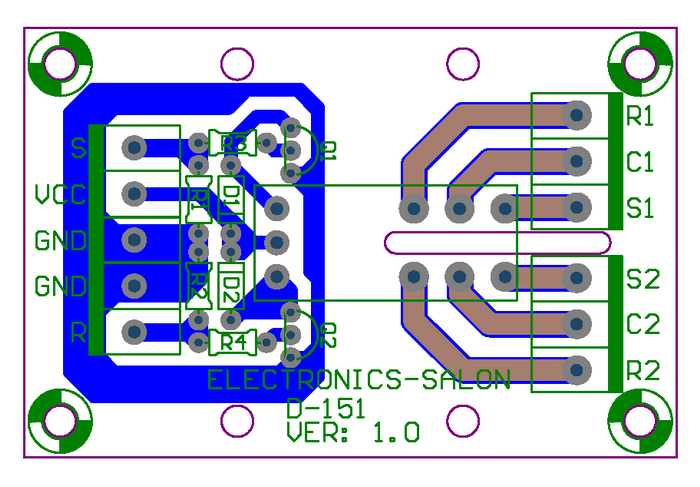

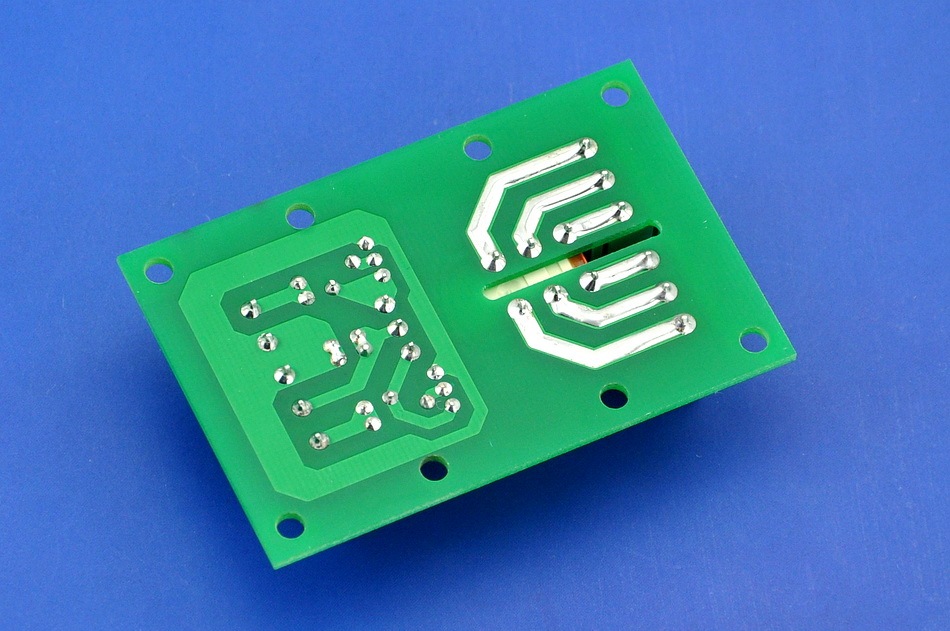

FR-4 Fiber glass PCB.
Typical applications: Battery powered equipment or applications with "memory function".
Operating voltage: DC 5V.
Input control signal voltage:
Low level: 0 to 0.5V
High level: 2.5 to 24V
Relay contact rating:
Contact arrangement: DPDT (2 form C)
Rated voltage: 250VAC
Rated current: 8A, UL 10A
Breaking capacity max.: 2000VA
