Home > Relay Module > Latching Relay Module > ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
1/1
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
Share:

ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil

SKU: D-151/12V
$17.99 $17.99
ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $17.99 = $17.99
save $0.00
Add to Favorites
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
1/1
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • ELECTRONICS-SALON Bistable/Latching DPDT 8 Amp Power Relay Module, DC12V Coil
  • Description

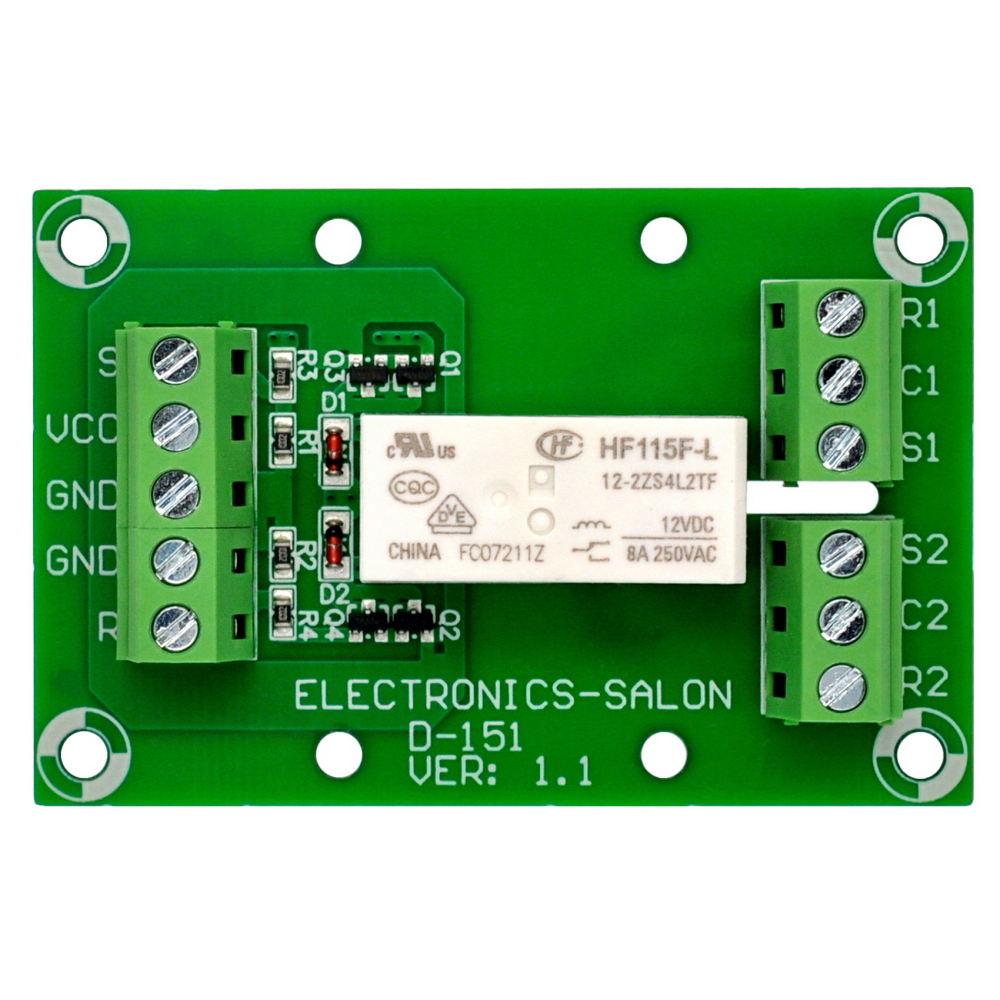

Bistable/Latching DPDT 8 Amp Power Relay Module.
This item has been assembled, and electrical test passed.
HF115F-L high quality bistable relay.

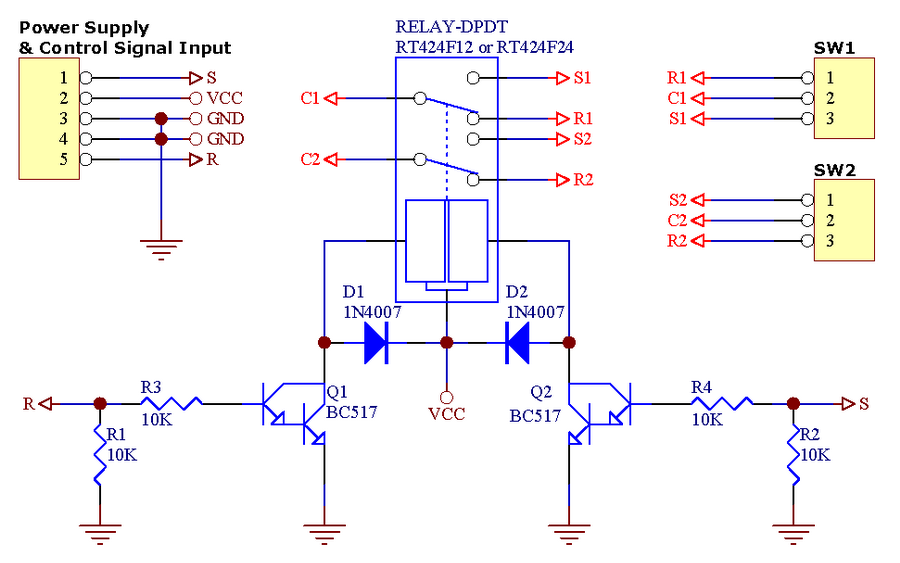

Darlington transistor driving relay, Improve the reliability of action.
High quantity terminal blocks, easy connection wires.
FR-4 Fiber glass PCB.
Typical applications: Battery powered equipment or applications with "memory function".

Operating voltage: DC 12V.
Input control signal voltage:
Low level: 0 to 0.5V
High level: 2.5 to 24V
Relay contact rating:
Contact arrangement: DPDT (2 form C)
Rated voltage: 250VAC
Rated current: 8A, UL 10A
Breaking capacity max.: 2000VA

Download
