ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing

SKU: D-151T/12V
$22.00 $22.00
ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $22 = $22
save $0.00
Add to Favorites
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
1/1
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • ELECTRONICS-SALON Bistable DPDT 8 Amp Relay Module, DC12V Coil, with DIN Rail Carrier Housing
  • Description

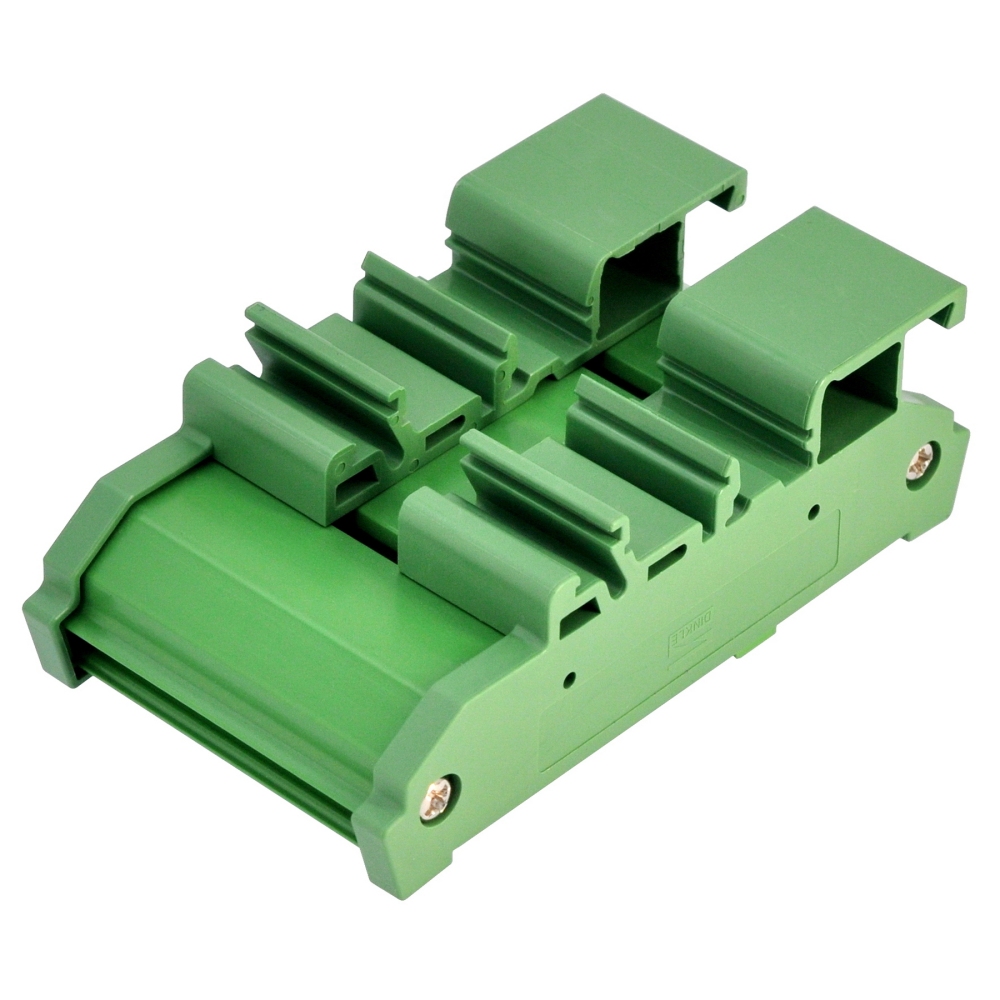

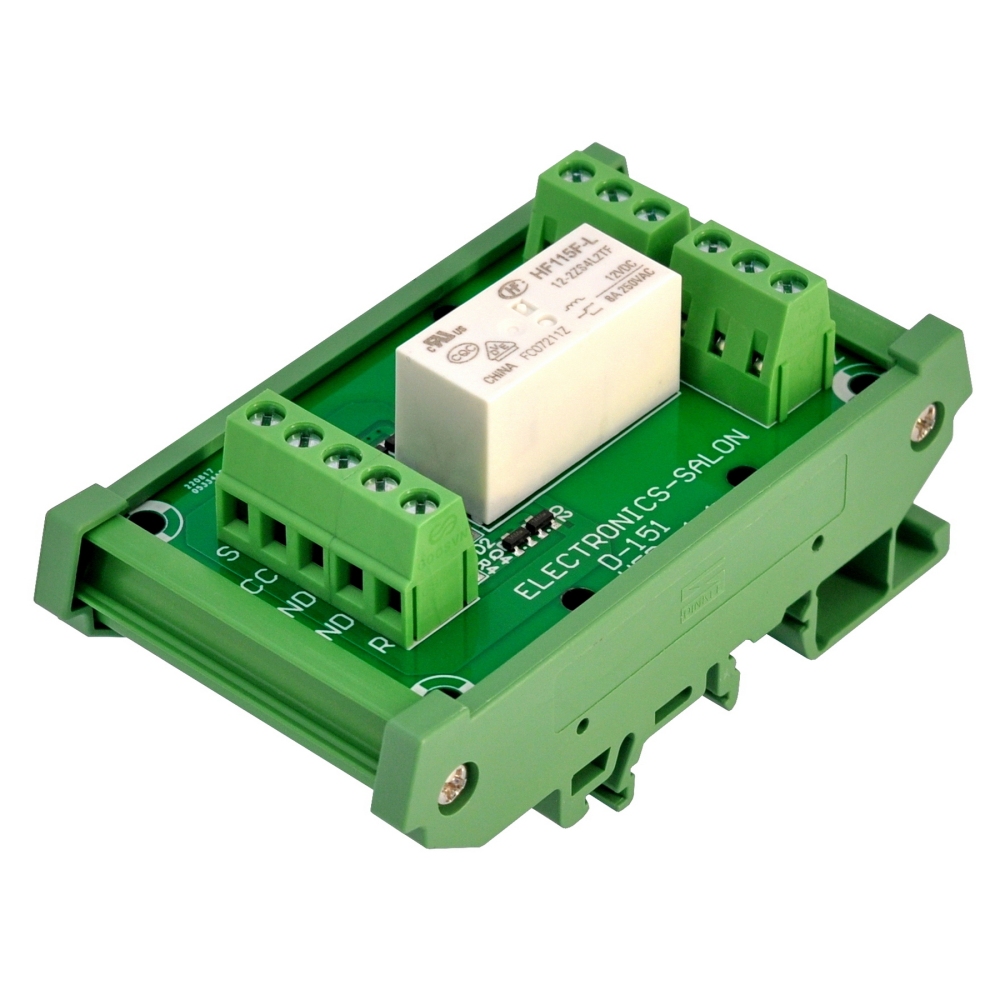

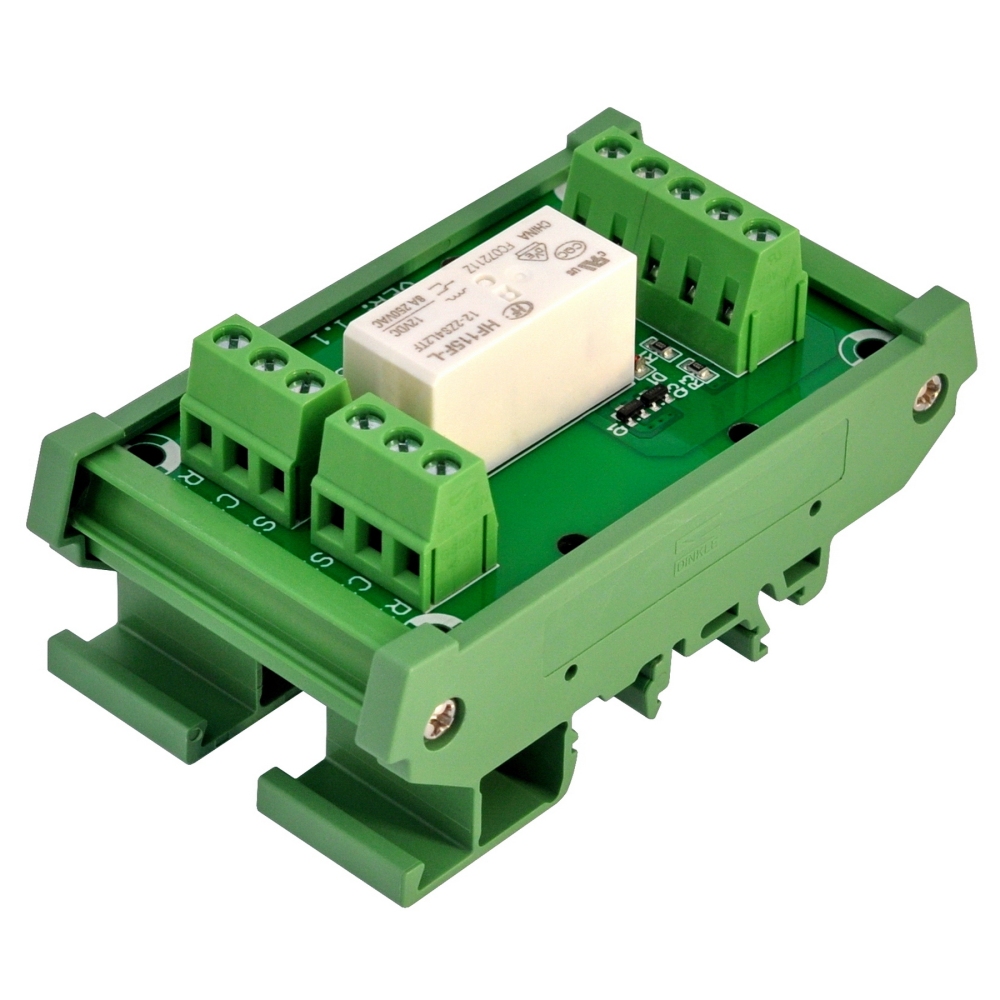

Bistable/Latching DPDT 8 Amp Power Relay Module, with High Quality Carrier Housing for DIN rail mounting.
This item has been assembled, and electrical test passed.

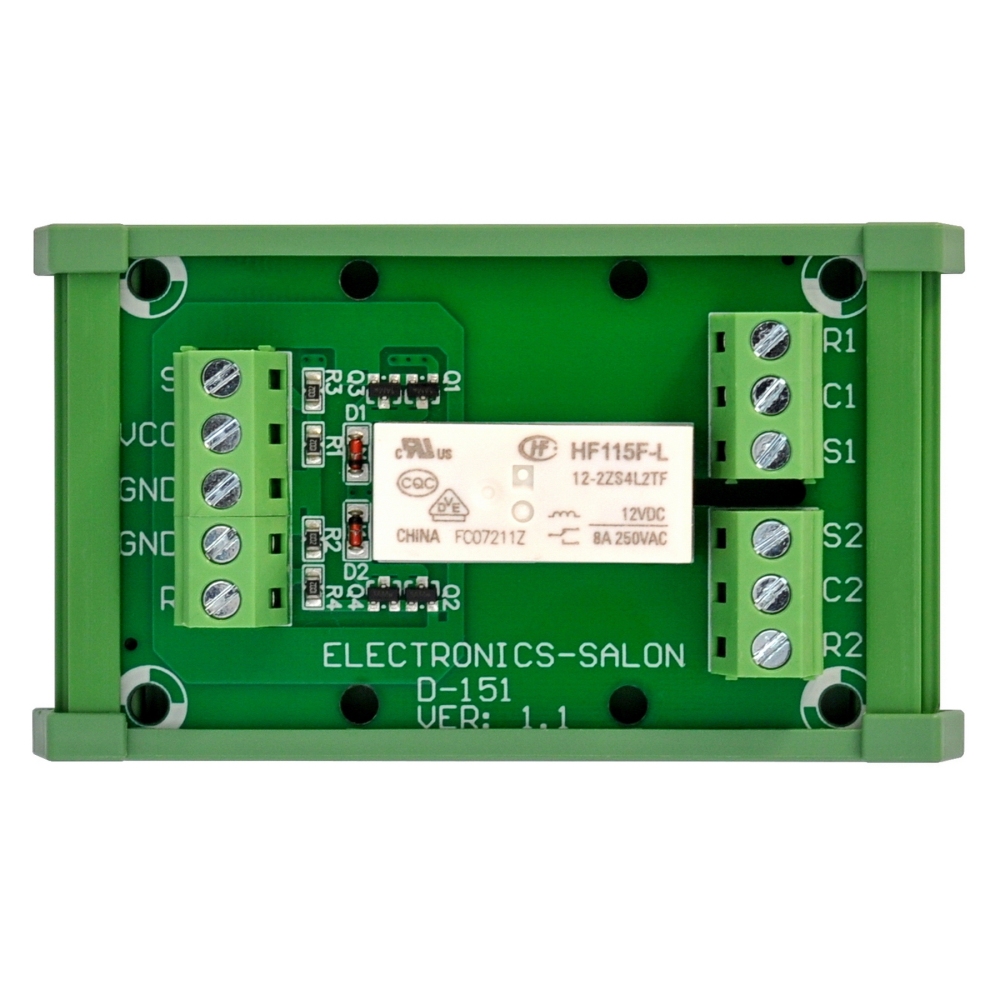

HF115F-L high quality bistable relay.

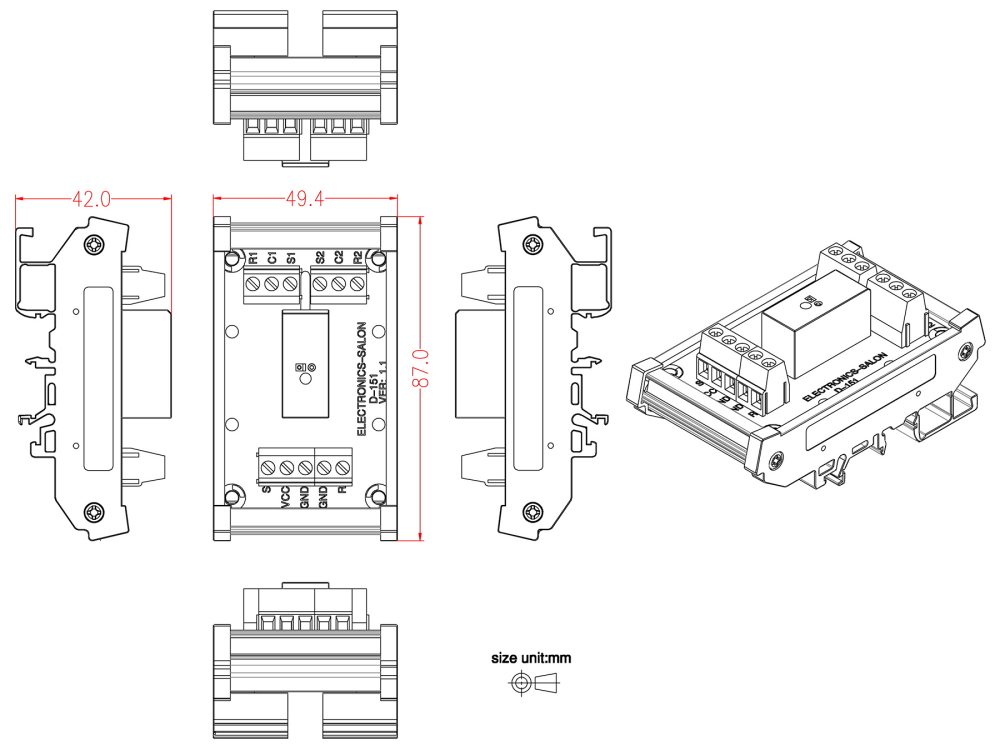

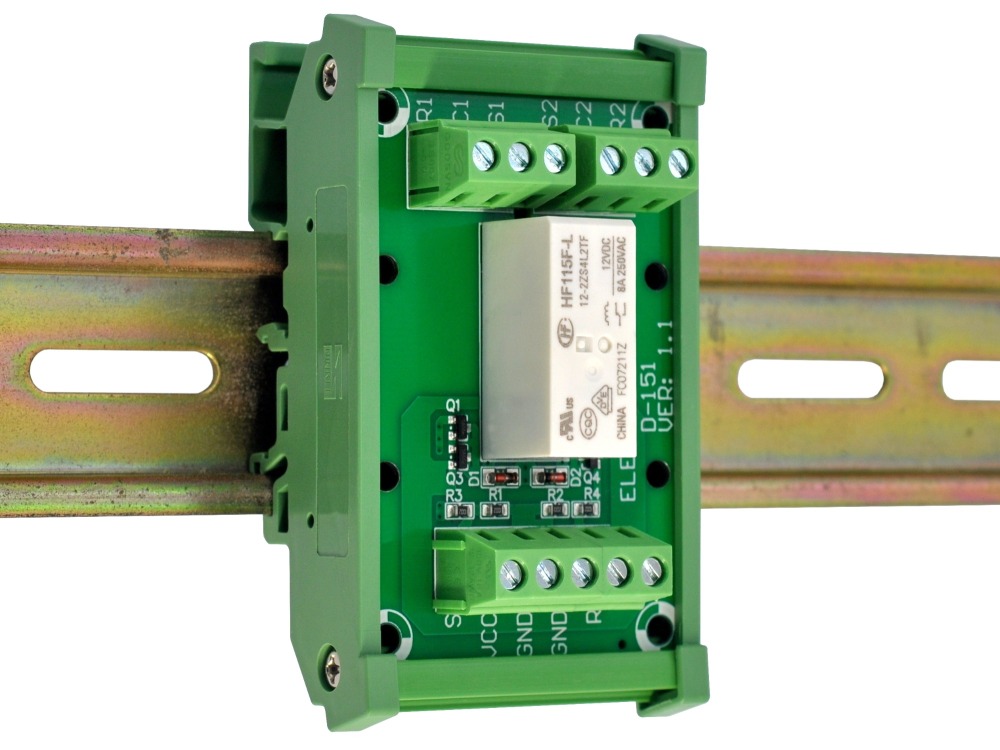

Din rail mountable - for width 35 / 32 / 15mm rails.

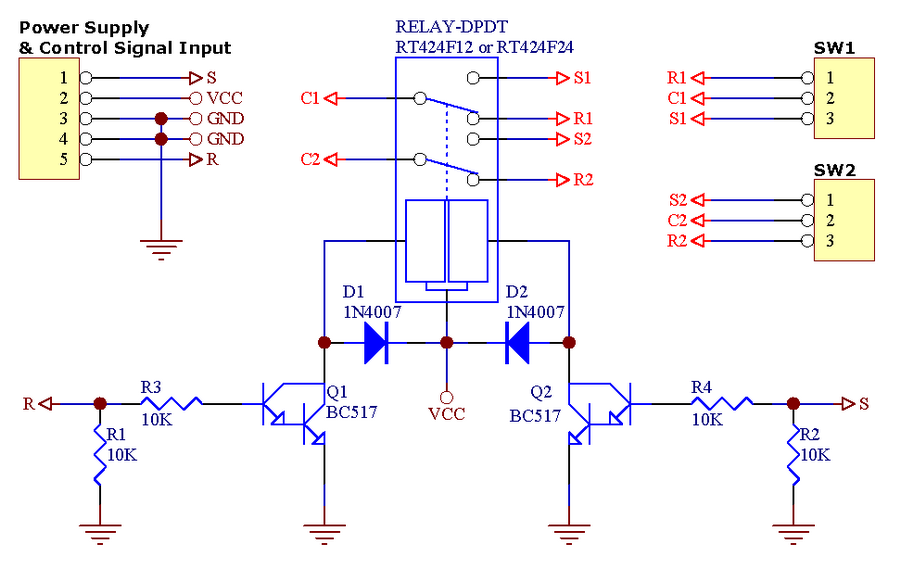

Darlington transistor driving relay, Improve the reliability of action.
High quantity terminal blocks, easy connection wires.

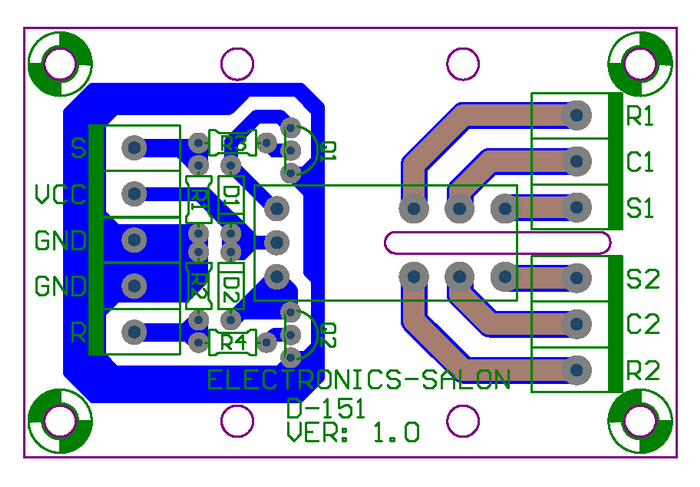

FR-4 Fiber glass PCB.
Typical applications: Battery powered equipment or applications with "memory function".

Operating voltage: DC 12V.
Input control signal voltage:
Low level: 0 to 0.5V
High level: 2.5 to 24V
Relay contact rating:
Contact arrangement: DPDT (2 form C)
Rated voltage: 250VAC
Rated current: 8A, UL 10A
Breaking capacity max.: 2000VA
