Home > Relay Module > Power Relay Module > ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
1/1
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
Share:

ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.

SKU: D-1238T/24V
$17.00 $17.00
ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $17 = $17
save $0.00
Add to Favorites
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
1/1
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • ELECTRONICS-SALON AC/DC 24V Slim DIN Rail Mount 5Amp DPDT Power Relay Interface Module, G2R-2 24V.
  • Description

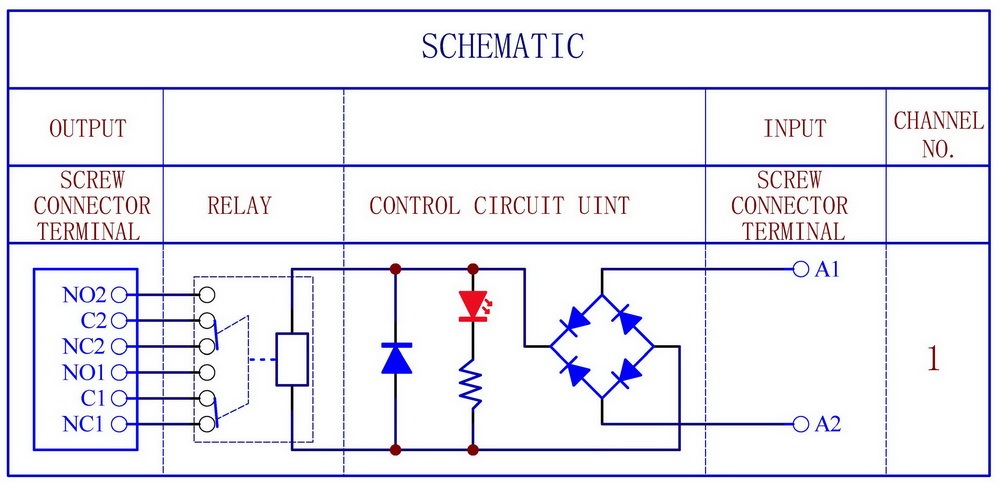

Support AC and DC control signal, Relay action LED indicator, relay coil protection by means of a freewheeling diode.
Omron G2R-2 Dual 5Amp DPDT power relay. Pluggable socket for support replacement relay.
Dinkle high quality fireproof nylon material DIN rail mount housing, can support width 35mm, 32mm and 15mm rail.
High quality screw terminal blocks and clear marking label for terminal block position. Pitch 5.08mm/0.2" screw terminal block. Wire range 26 to 12AWG / 2.5mm square. Screws - M2.5, steel, Cr3+ Zn plated. Pin header and Cage - Brass.
High quality glass fiber FR-4 PCB, top and bottom dual copper layers.
