ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.

SKU: A-130
$19.99 $19.99
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $19.99 = $19.99
save $0.00
Add to Favorites
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
1/1
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • ELECTRONICS-SALON 6 Channel Unbalanced Stereo or Balanced Mono Audio Input Selector Relay Module.
  • Description

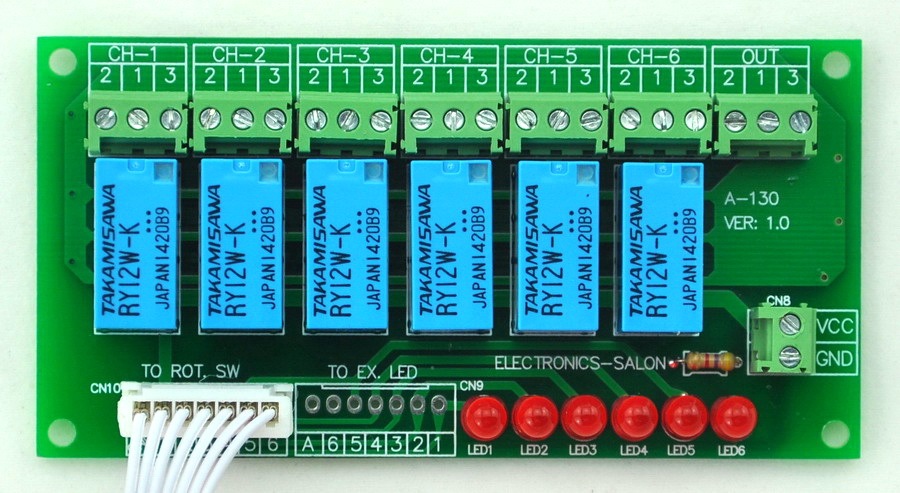

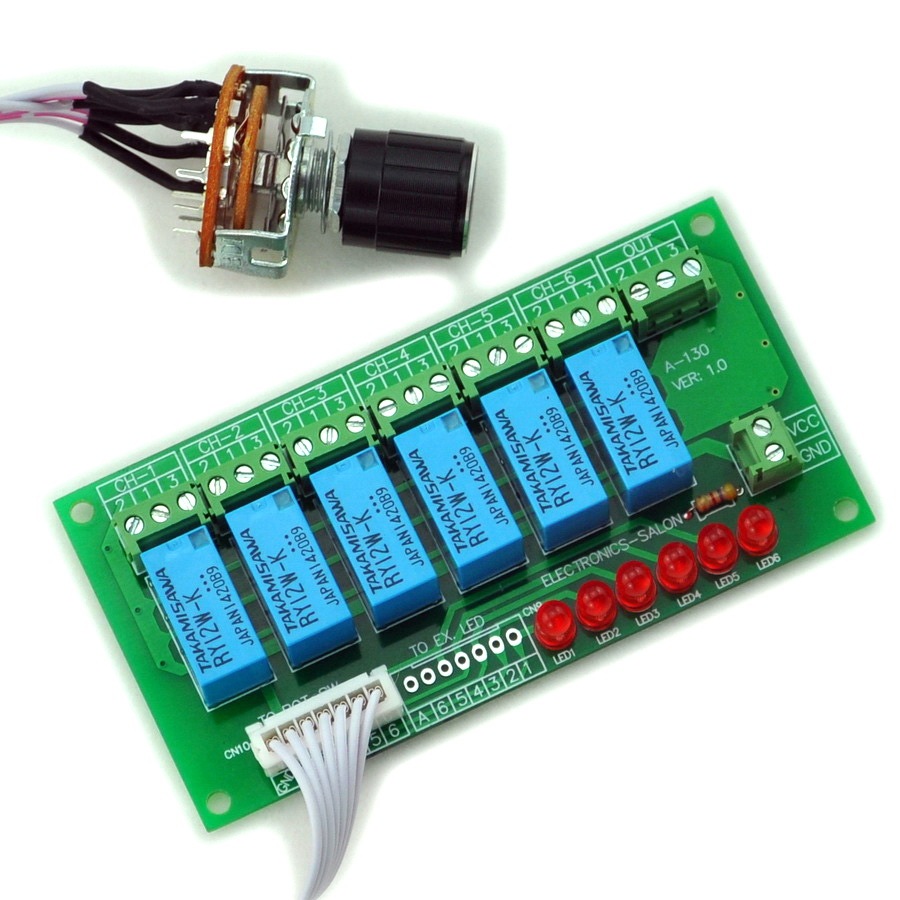

6 Channel Unbalanced Stereo or 6 Channel Balanced Mono Audio Input Selector Relay Module.

This item has been assembled, and electrical test passed.

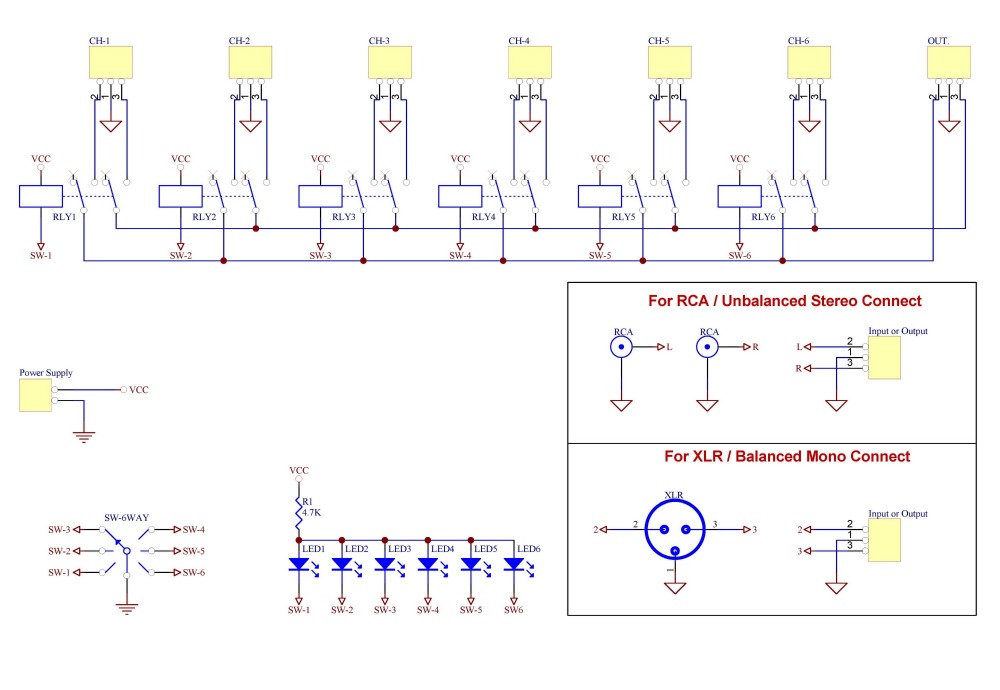

You can connect 6 unbalanced stereo signal input / a unbalanced stereo output, or 6 balanced mono signal input / a balanced mono output.

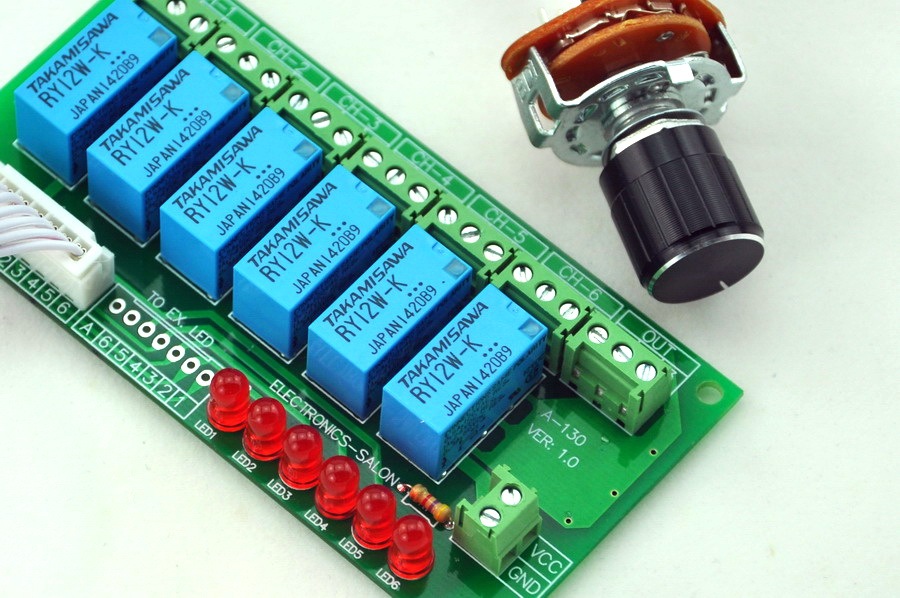

RY12W-K signal relays(Contact material: Gold Overlay Silver-Palladium).
Led indicator for each relay channel.

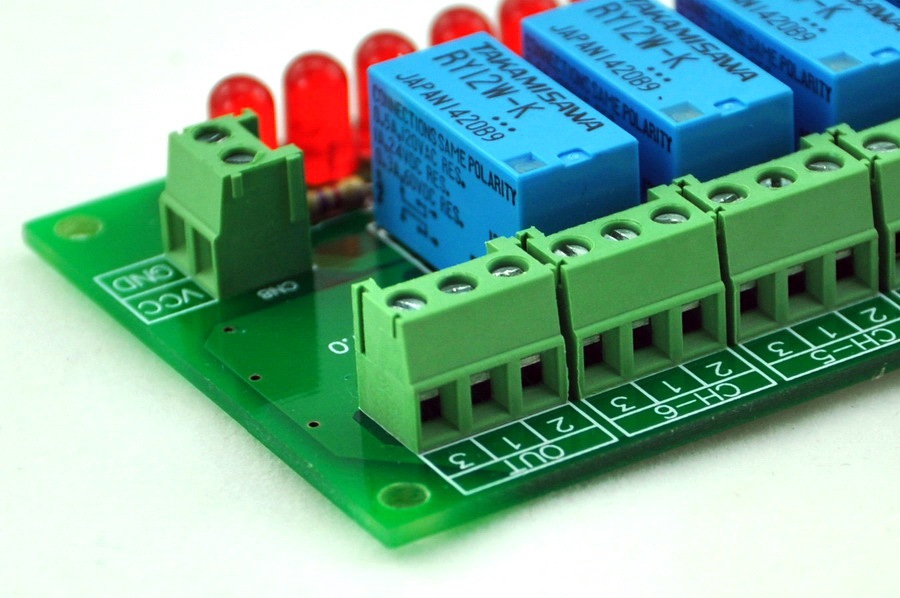

High quantity terminal block, easy connection wire.
FR-4 Fiber glass PCB.

Operating voltage: 8.5 ~ 15.5VDC, recommend 12VDC .
Operating current: 15mA (at 12VDC).

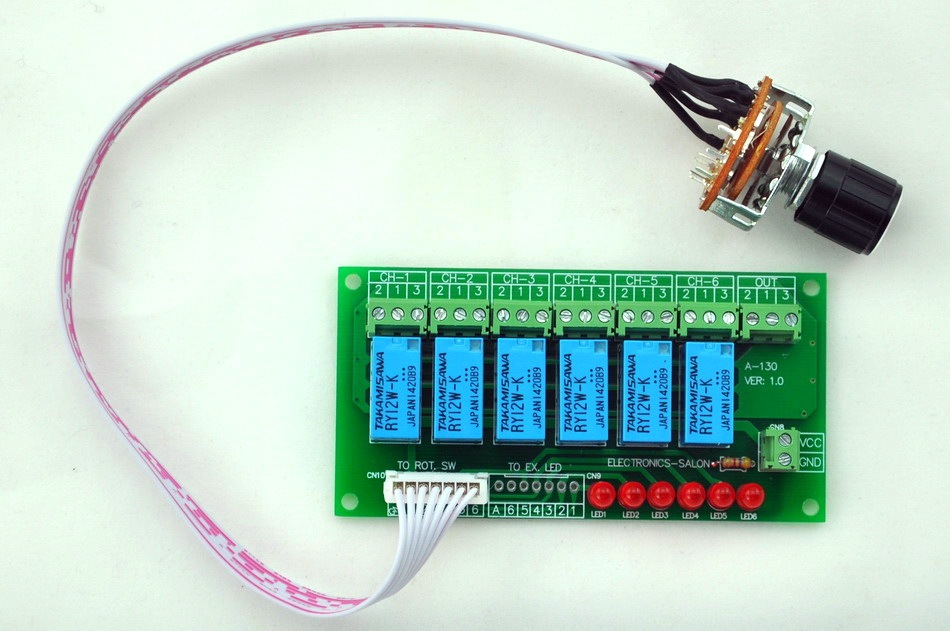

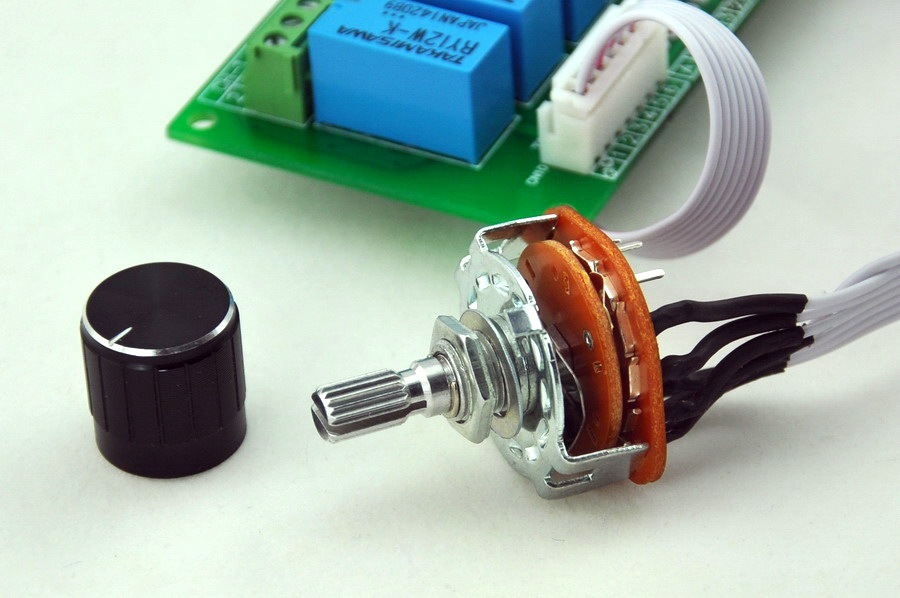

Rotary switch wire length 300 mm (11.8 inch).

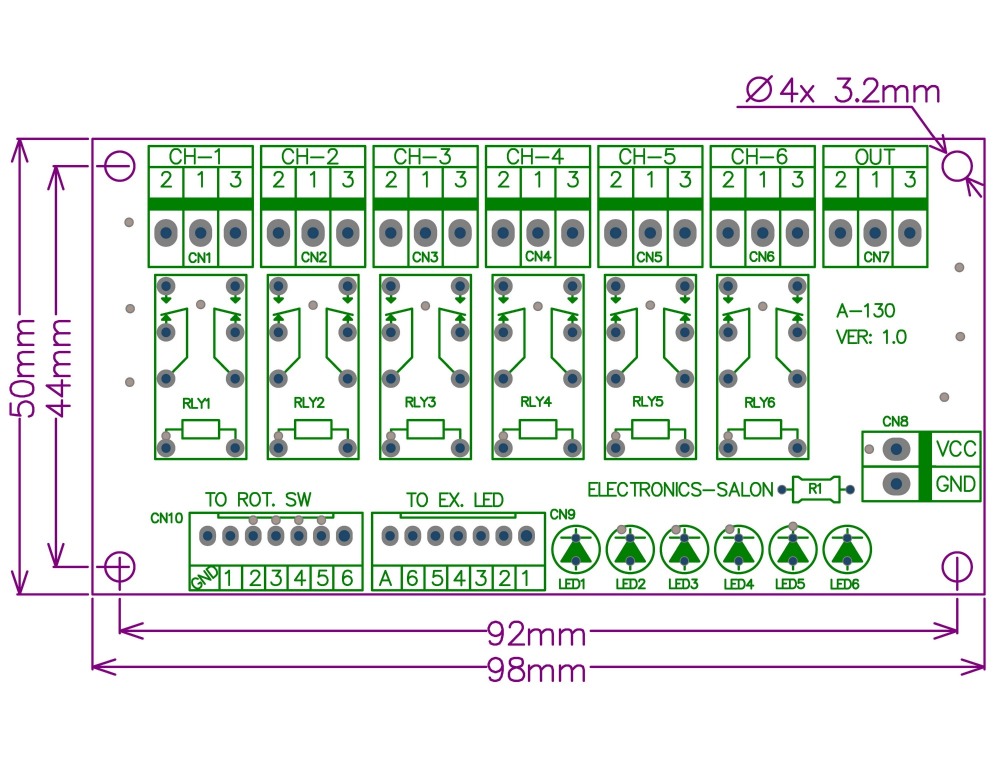

Size: 98mm(L) x 50mm(W) x 16mm(H), (3.86 x 1.97 x 0.63 inch).
