ELECTRONICS-SALON 230VAC Control DPDT 8Amp Power Relay Fused Interface Module Board, RTE24730 AC230V.

SKU: D-257/230V
$16.99 $16.99
ELECTRONICS-SALON 230VAC Control DPDT 8Amp Power Relay Fused Interface Module Board, RTE24730 AC230V.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $16.99 = $16.99
save $0.00
Add to Favorites
  • ELECTRONICS-SALON 230VAC Control DPDT 8Amp Power Relay Fused Interface Module Board, RTE24730 AC230V.
  • ELECTRONICS-SALON 230VAC Control DPDT 8Amp Power Relay Fused Interface Module Board, RTE24730 AC230V.
  • ELECTRONICS-SALON 230VAC Control DPDT 8Amp Power Relay Fused Interface Module Board, RTE24730 AC230V.
  • ELECTRONICS-SALON 230VAC Control DPDT 8Amp Power Relay Fused Interface Module Board, RTE24730 AC230V.
  • ELECTRONICS-SALON 230VAC Control DPDT 8Amp Power Relay Fused Interface Module Board, RTE24730 AC230V.
  • ELECTRONICS-SALON 230VAC Control DPDT 8Amp Power Relay Fused Interface Module Board, RTE24730 AC230V.
  • ELECTRONICS-SALON 230VAC Control DPDT 8Amp Power Relay Fused Interface Module Board, RTE24730 AC230V.
  • ELECTRONICS-SALON 230VAC Control DPDT 8Amp Power Relay Fused Interface Module Board, RTE24730 AC230V.
  • ELECTRONICS-SALON 230VAC Control DPDT 8Amp Power Relay Fused Interface Module Board, RTE24730 AC230V.
  • ELECTRONICS-SALON 230VAC Control DPDT 8Amp Power Relay Fused Interface Module Board, RTE24730 AC230V.
1/1
  • ELECTRONICS-SALON 230VAC Control DPDT 8Amp Power Relay Fused Interface Module Board, RTE24730 AC230V.
  • ELECTRONICS-SALON 230VAC Control DPDT 8Amp Power Relay Fused Interface Module Board, RTE24730 AC230V.
  • ELECTRONICS-SALON 230VAC Control DPDT 8Amp Power Relay Fused Interface Module Board, RTE24730 AC230V.
  • ELECTRONICS-SALON 230VAC Control DPDT 8Amp Power Relay Fused Interface Module Board, RTE24730 AC230V.
  • ELECTRONICS-SALON 230VAC Control DPDT 8Amp Power Relay Fused Interface Module Board, RTE24730 AC230V.
  • Description

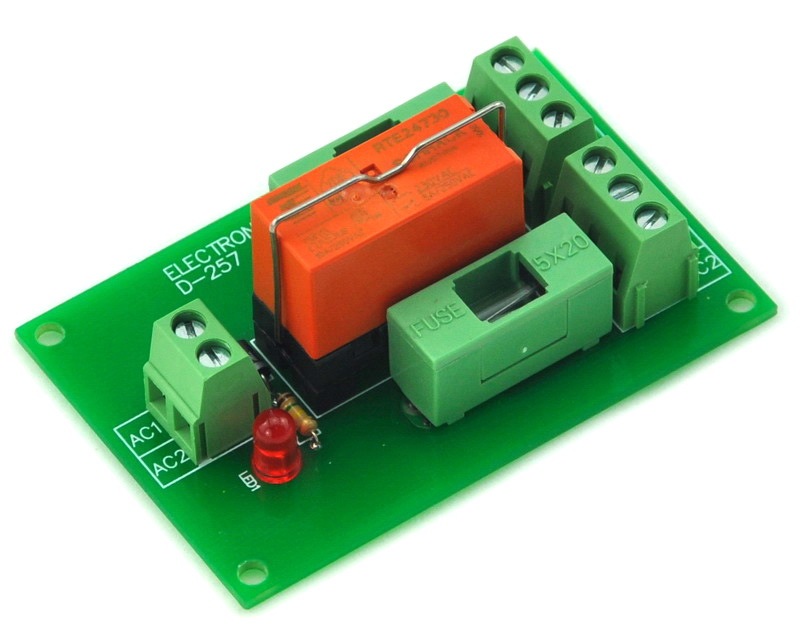

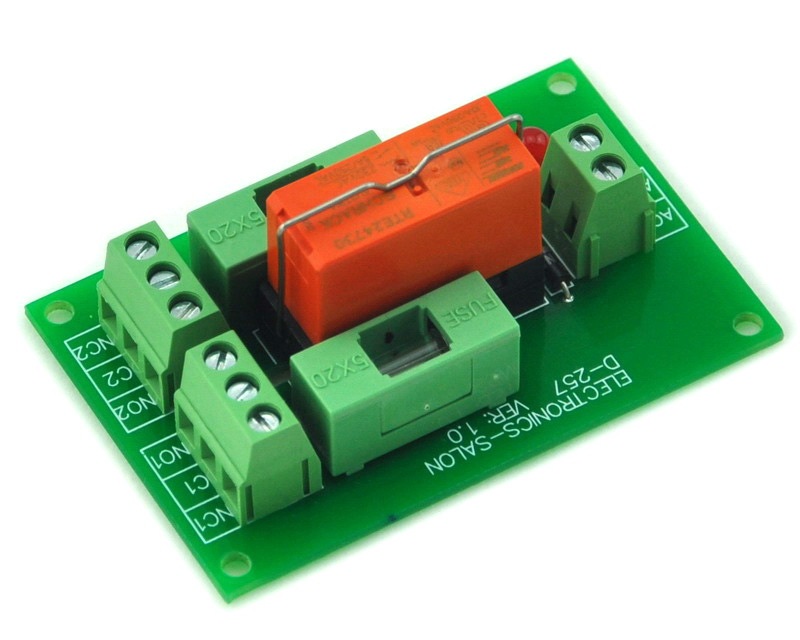

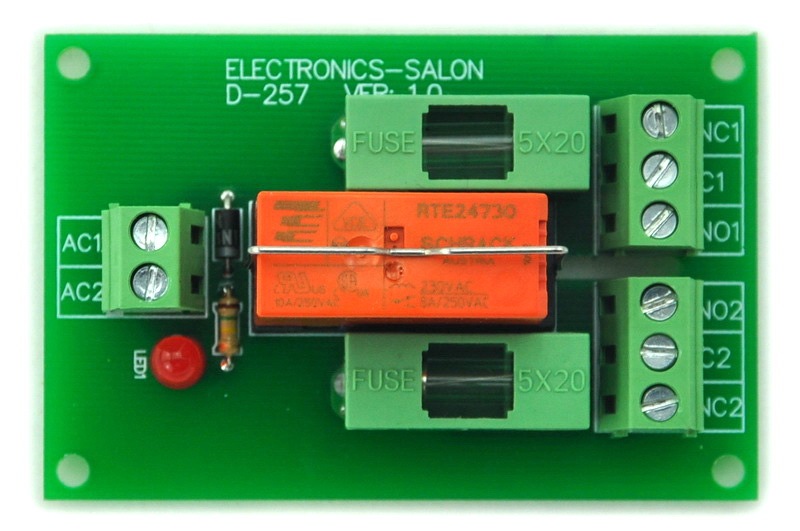

Electronics-Salon 230VAC Control DPDT 8Amp power relay fused interface module Board. For industrial electronic control applications.

Input control voltage: 173 ~ 287 VAC (recommended 230VAC).
Rated coil power 0.74VA.
LED indicator for relay action.
RTE24730 230VAC coil industrial power relay.
Pluggable relay base holder support to replace relay.
FR-4 fiber glass PCB, dual copper layers.

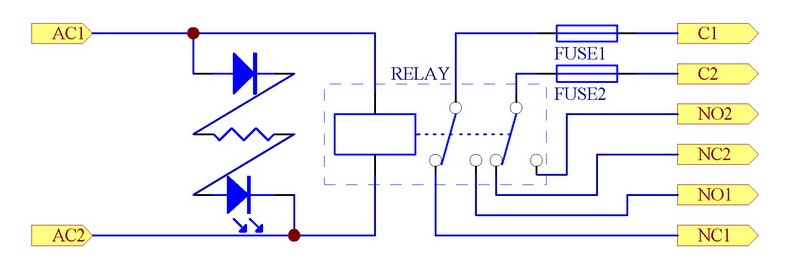

Output switch DPDT(Double Pole Double Throw).
Rated current 8Amp.
Rated voltage switching voltage 250/400 VAC.
Maximum breaking capacity AC 2000 VA.
With fuse for each switch common terminal, fuse holder easy to replace fuse, factory pre-installed fuses quick blow type 250V/10A.

Screw terminal block.
Wire range 24 ~ 12 AWG.
Strip length 7mm.
Screws - M2.5, steel, Cr3+ Zn plated.
Pin header and Cage - Brass.
