Home > Relay Module > Power Relay Module > ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
1/1
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
Share:

ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.

SKU: D-230/24V
$10.99 $10.99
ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $10.99 = $10.99
save $0.00
Add to Favorites
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
1/1
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • ELECTRONICS-SALON 2 SPDT 10Amp Power Relay Module, DC 24V Version.
  • Description

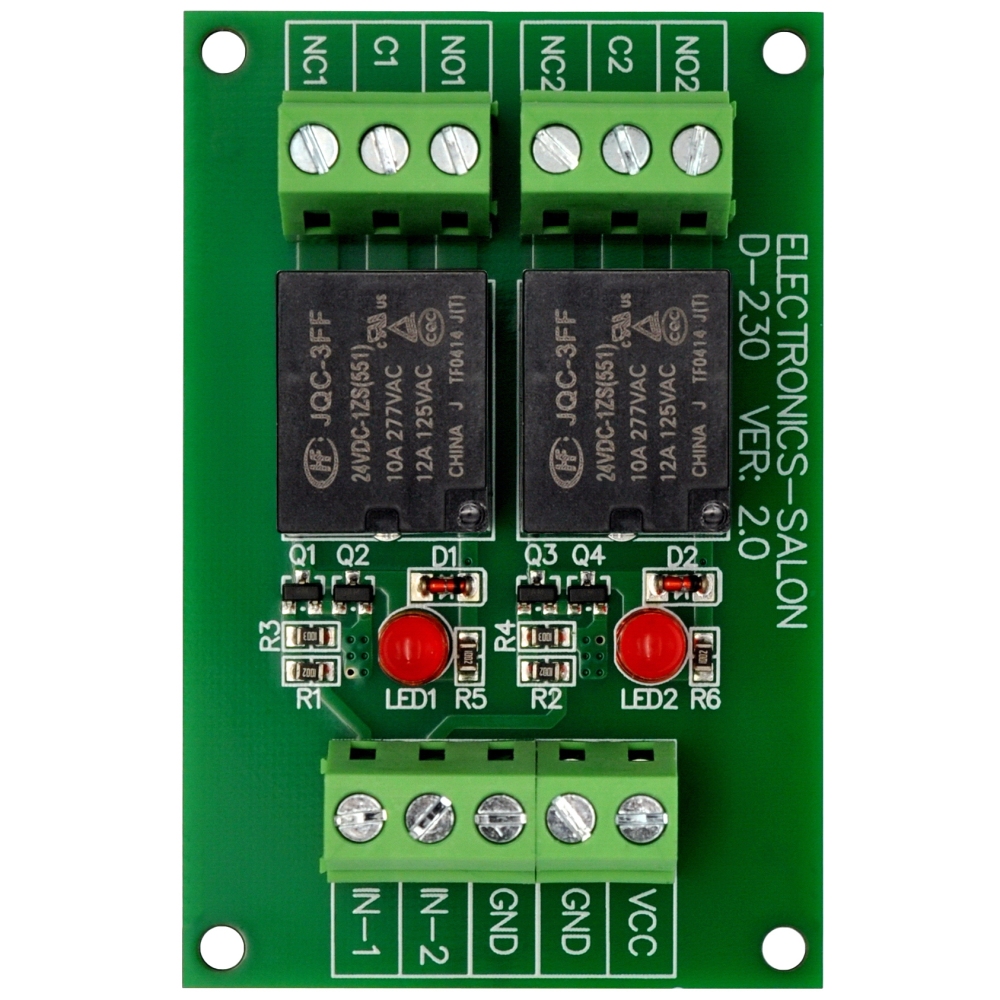

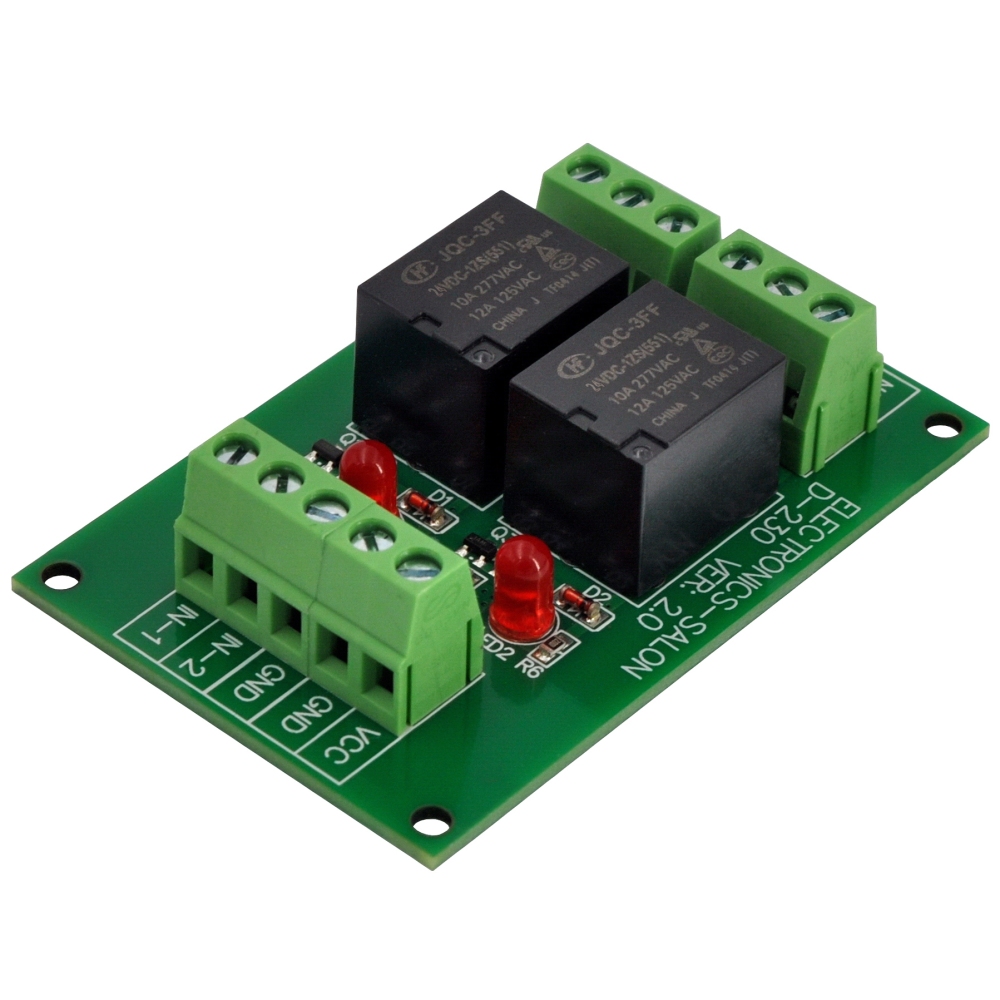

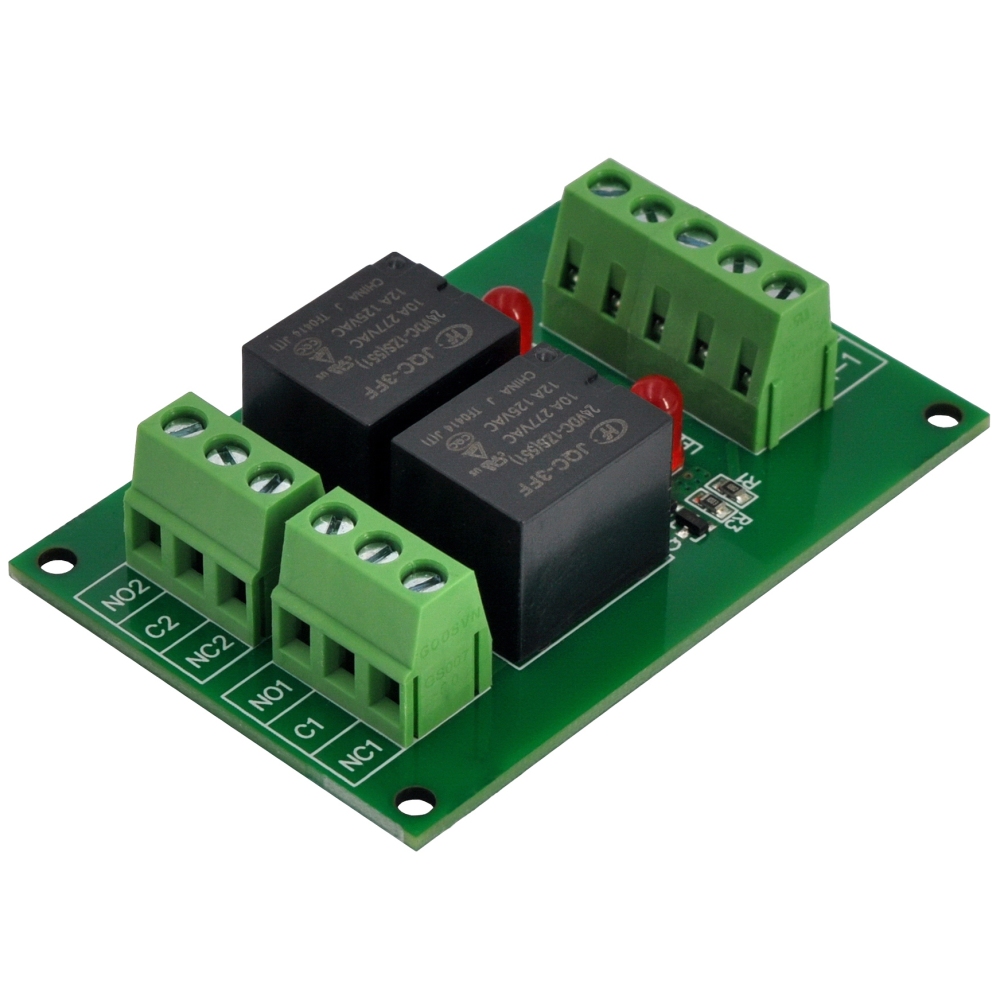

2 Channel SPDT power relay module, high quality JQC-3FF 10Amp relays.

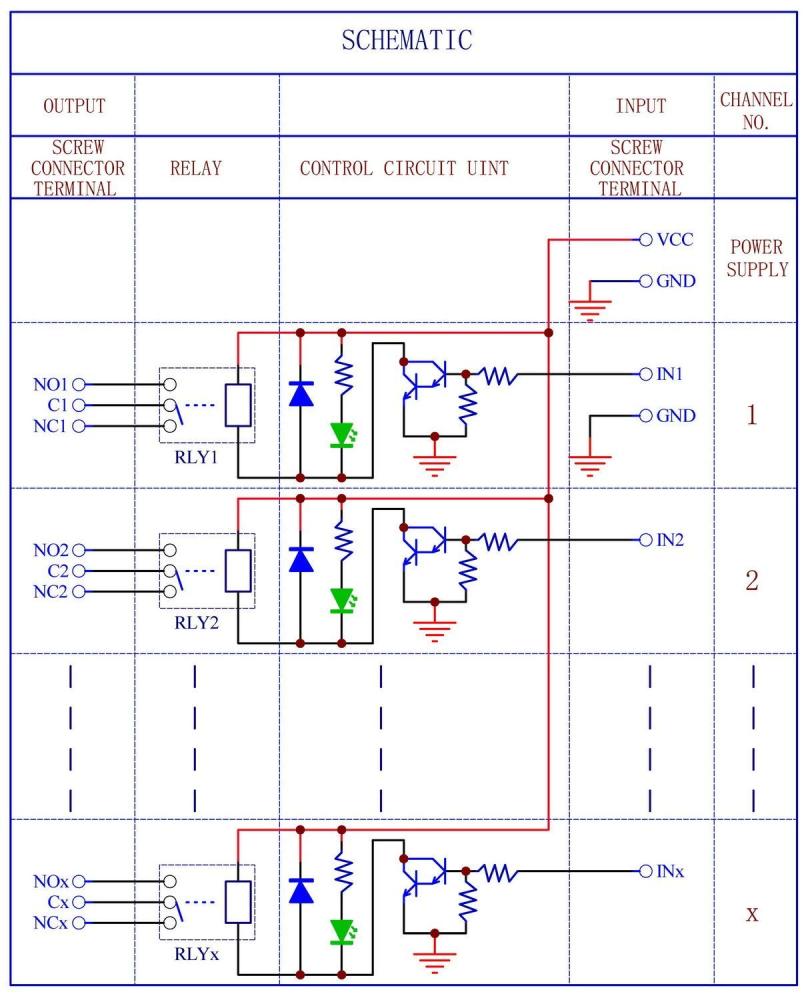

Darlington transistor circuits drive relay coil, LED indicator for each relay channel.
High quality screw terminal block.
FR-4 fiber glass PCB, dual copper layers.

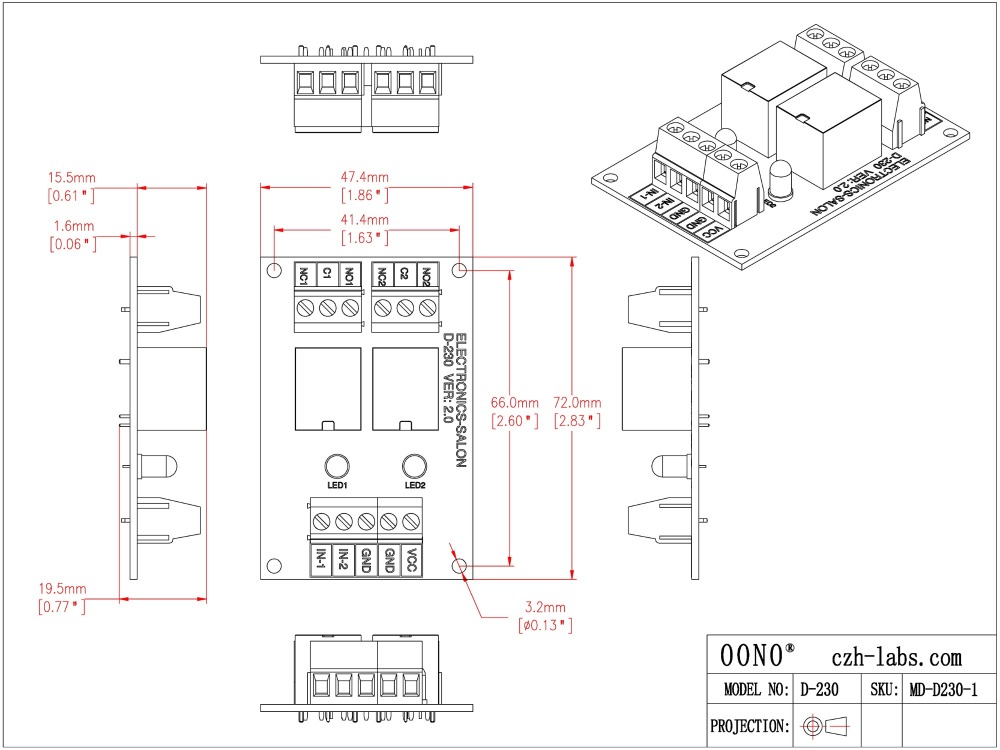

Dimensions: L72mm x W47.35mm x H15.5mm

Operating Voltage / Current (VCC): 18 to 36VDC / 60mA(at 24VDC).
Control signal voltage (IN-X):
0V - 0.5Vdc (low level), relay not action.
2.5V - 24Vdc (high level), relay action.

Output (relay switch) contact rating for each channel:
For AC, 125 / 277 VAC, 10 Amp
For DC, 28 VDC, 10 Amp
