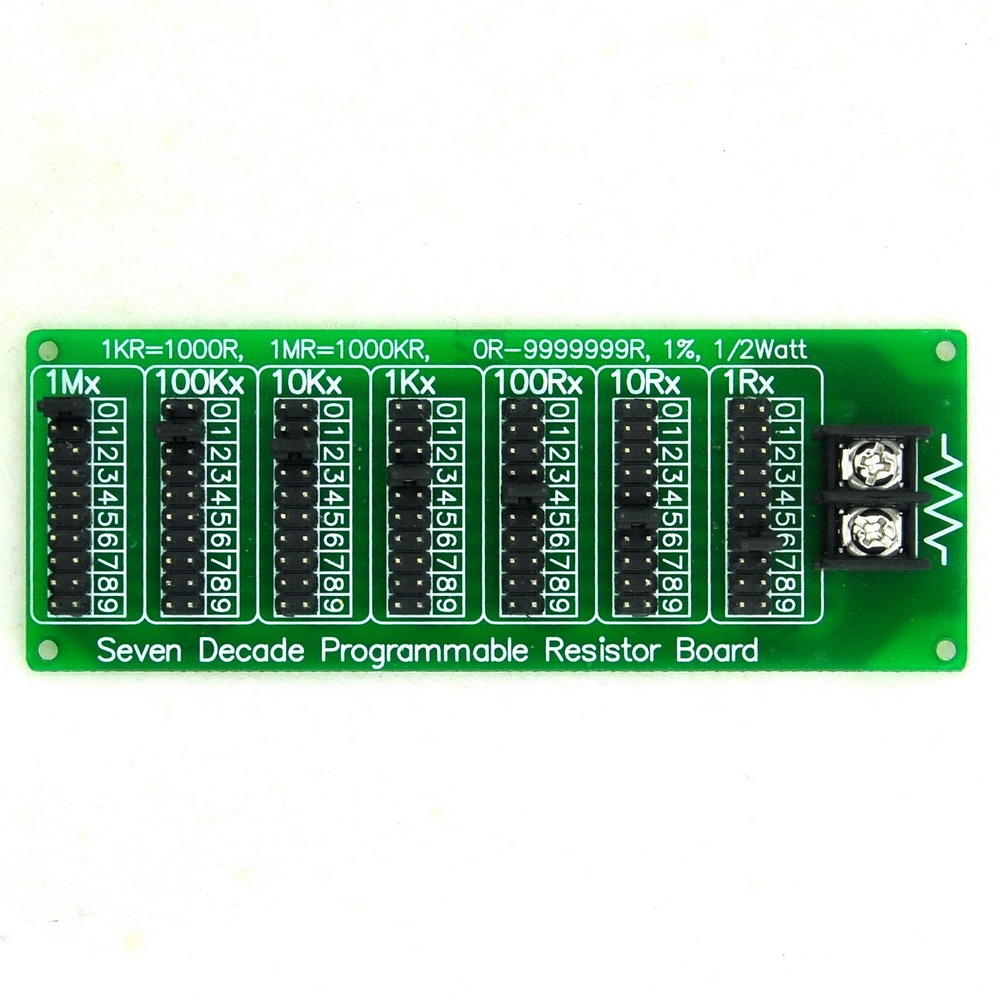

This is "resistance substitution box" good low-cost alternative solution, can flexible and quick setting resistance range from 1R to 9999999R, step accuracy 1R. for educational experiments, electronic engineering design or test trimming are excellent applications.
Design based on "resistors series" theorem. 1/2 watt tolerance +/-1% SMD resistors. Screw terminal block easy to connect wires. High quality FR4 glass fiber PCB. With spare parts 10 pieces jumper caps (on board 7 pieces, total 17 pieces).
Programmable Resistance: 0 to 9,999,999 ohm, 1 ohm per step. Resistance Tolerance: +/-1%. Rated Power: 1/2 Watt. Max. Working Voltage: 200V.
PCB Size: 110mm x 40mm / 4.4" x 1.6"
Features:

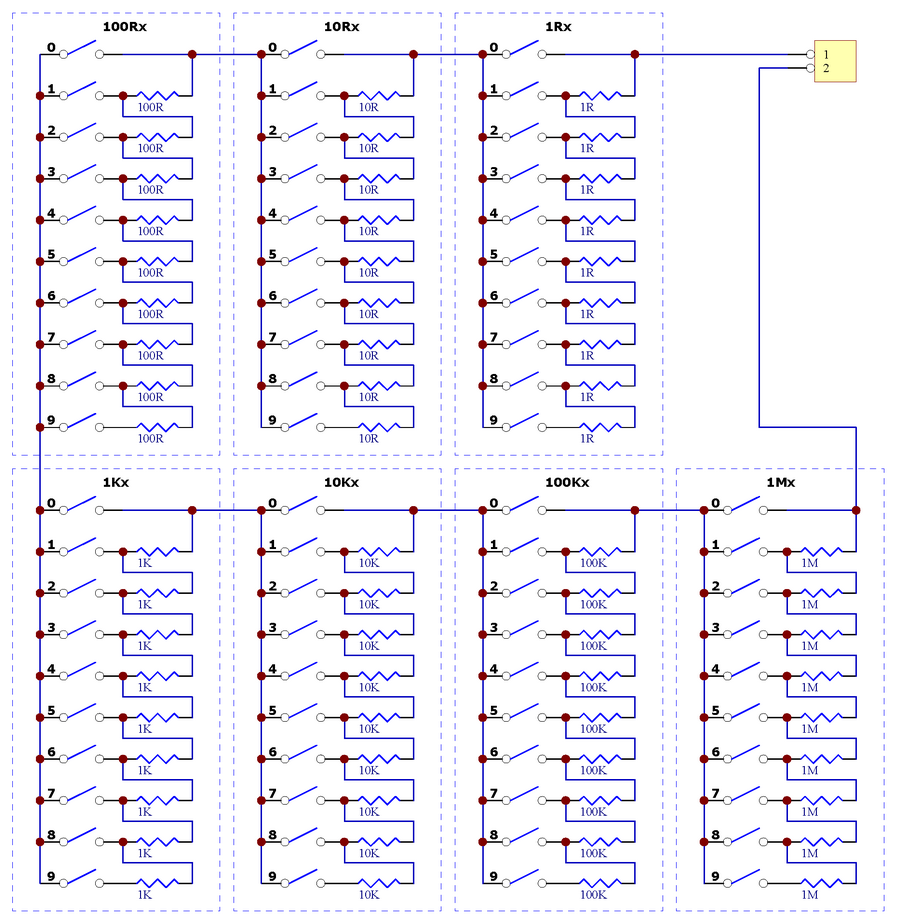

Design based on “resistors series” theorem.

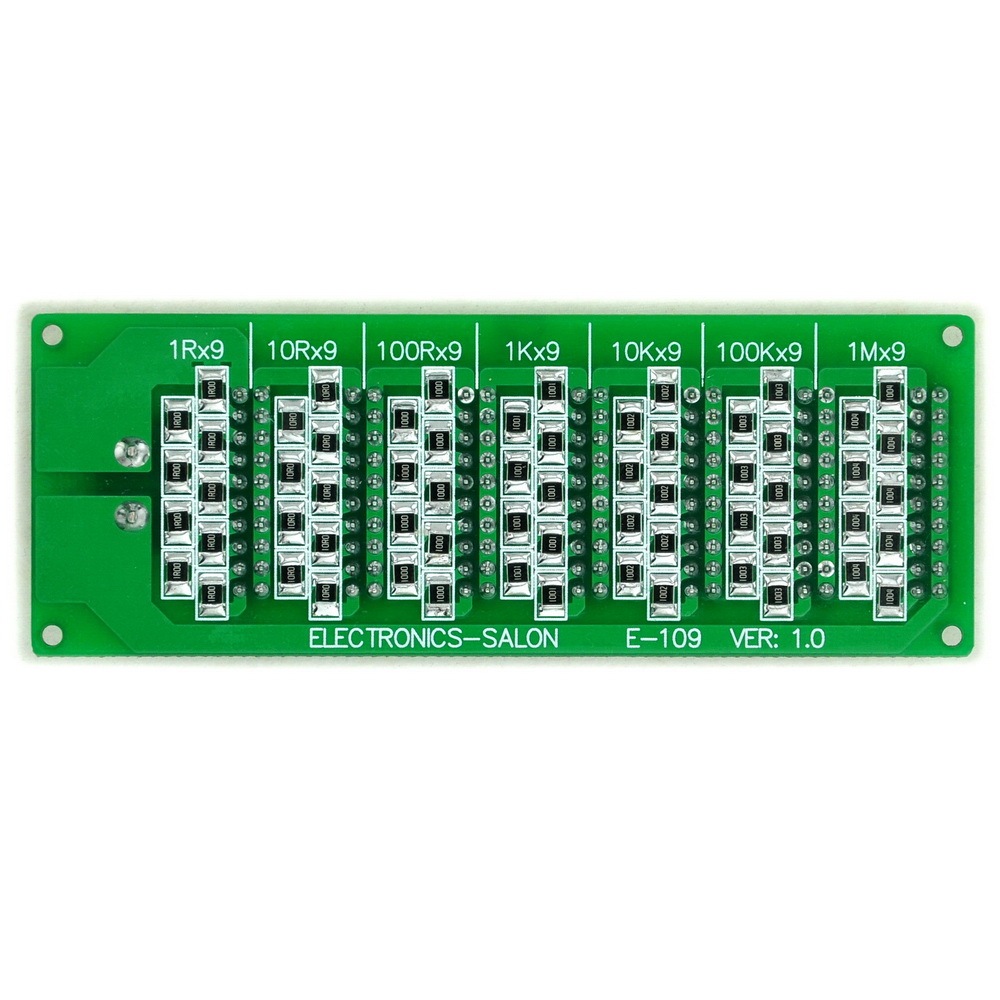

1/2 watt tolerance +/-1% SMD resistors.

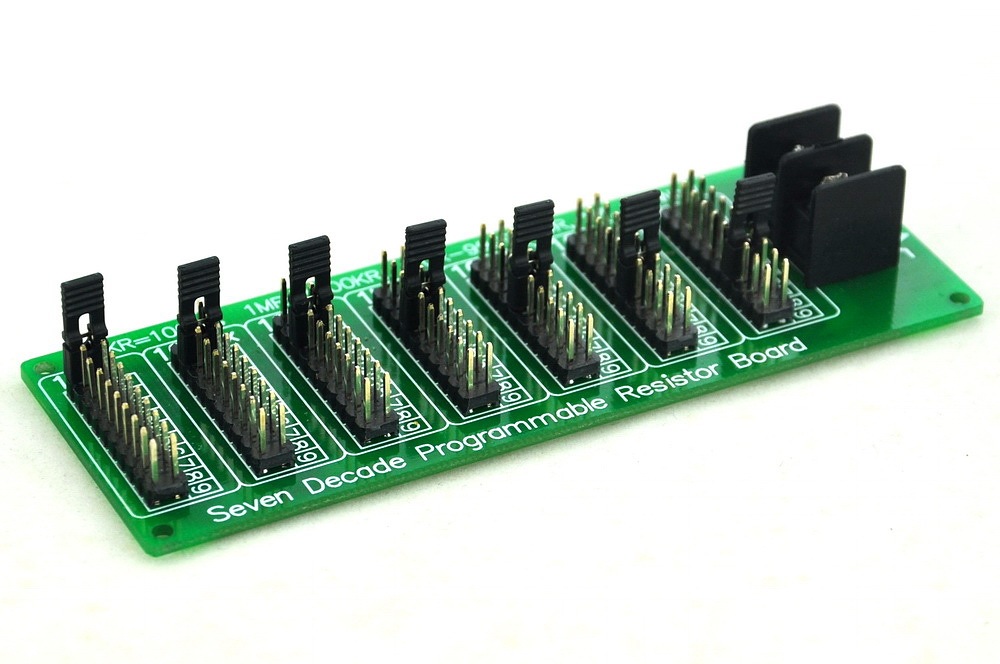

Screw terminal block easy to connect wires.
High quality FR4 glass fiber PCB.

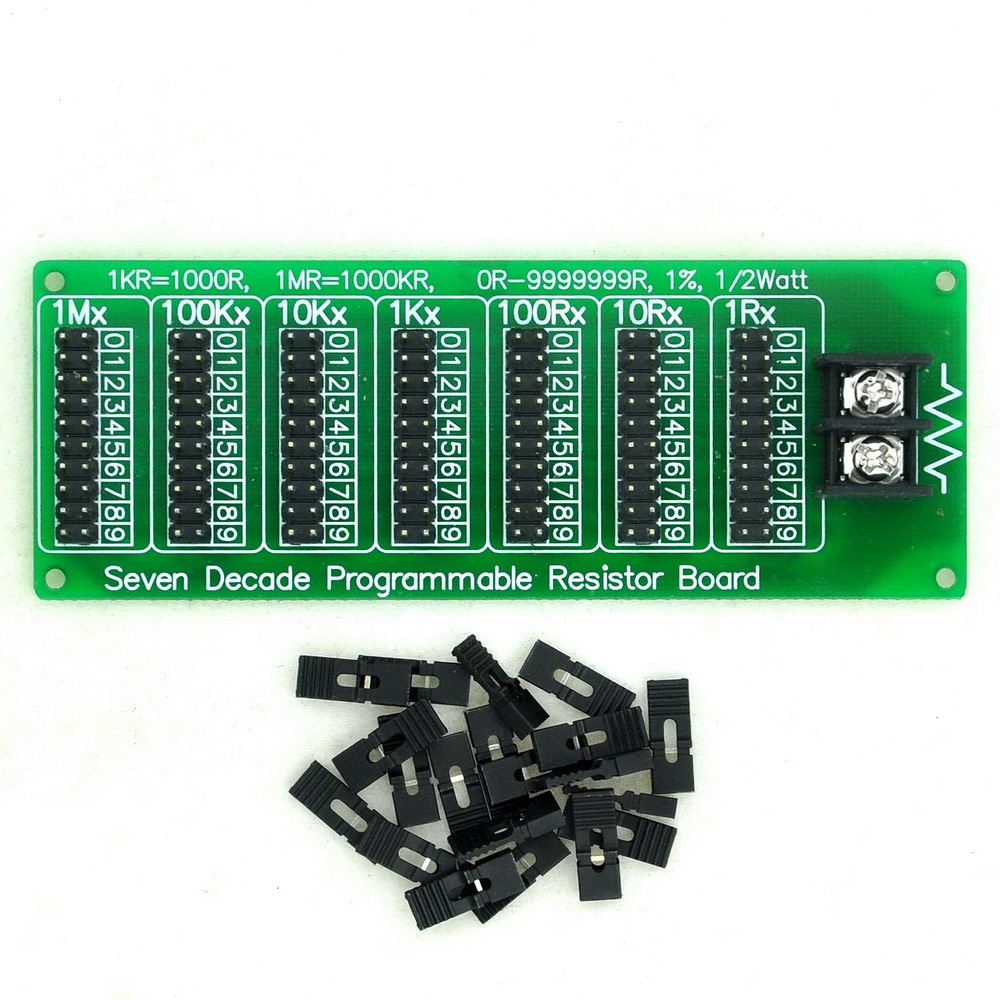

With spare parts 10 pieces jumper caps (on board 7 pieces, total 17 pieces).
Programmable Resistance: 0 to 9,999,999 ohm, 1 ohm per step.
Resistance Tolerance: +/-1%
Rated Power: 1/2 Watt.
Max. Working Voltage: 200V.

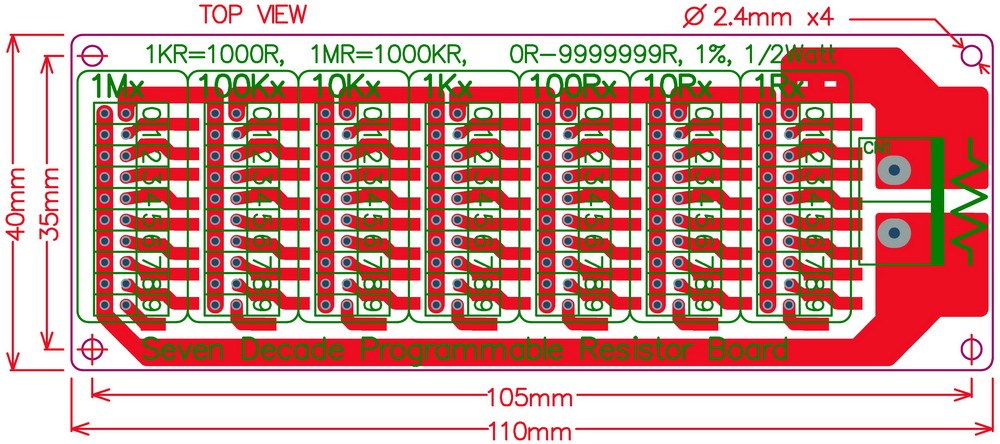

PCB Size: 110mm x 40mm / 4.4" x 1.6"
