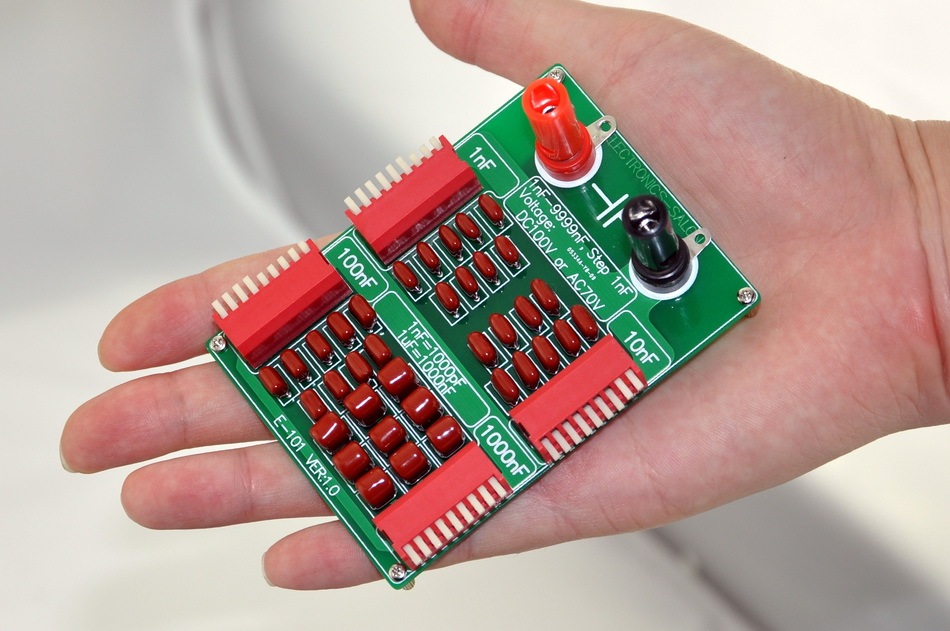

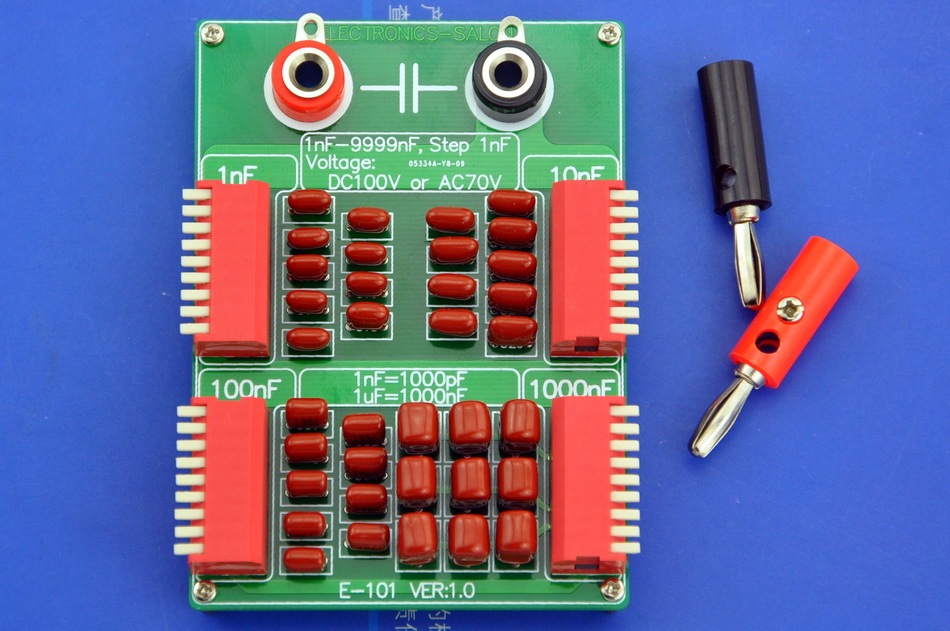

ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.

SKU: E-101
$19.99 $19.99
ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $19.99 = $19.99
save $0.00
Add to Favorites
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
1/1
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • ELECTRONICS-SALON 1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board.
  • Description

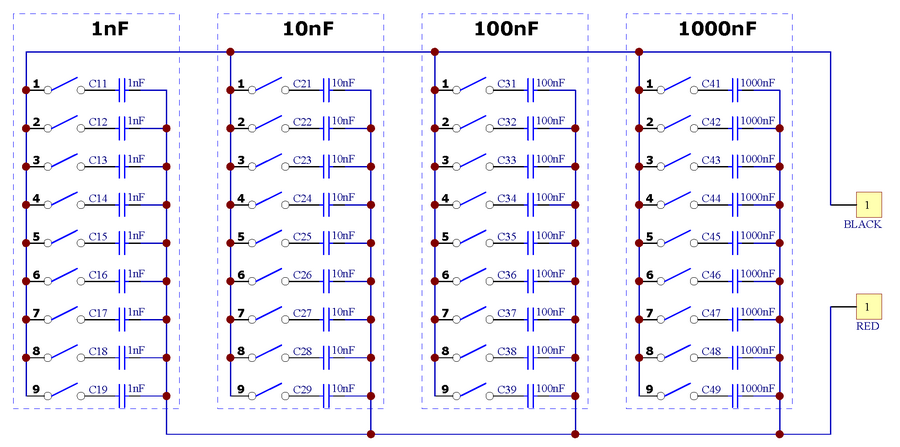

Design based on "capacitor parallel" theorem.
Tolerance +/-5% 100V metal film capacitors.
4mm banana sockets with plugs, easy to connect wires.
High quality FR4 glass fiber PCB.
Programmable Capacitance: 1nF to 9999nF, 1nF per step.

This is "capacitance substitution box" good low-cost alternative solution, can flexible and quick setting capacitance range from 1nF to 9999nF, step accuracy 1nF. for educational experiments, electronic engineering design or test trimming are excellent applications.

Features:
Design based on “capacitor parallel” theorem.
Tolerance +/-5% 100V metal film capacitors.
4mm banana sockets with plugs, easy to connect wires.
High quality FR4 glass fiber PCB.

Programmable Capacitance: 1nF to 9999nF, 1nF per step.
Capacitance Tolerance: +/-5%
Max. Working Voltage: 100DC / 70VAC.

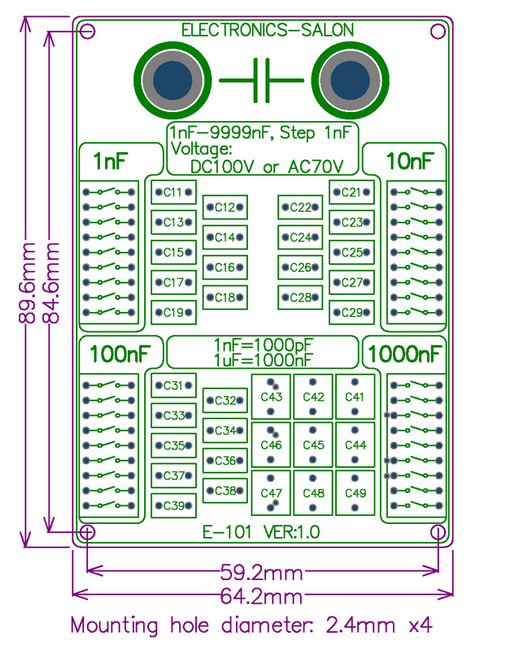

PCB Size: 89.6 x 64.2mm / 3.53" x 2.53"



Datasheet:




Download
