ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.

SKU: E-106AU
$9.99 $9.99
ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $9.99 = $9.99
save $0.00
Add to Favorites
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
1/1
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • ELECTRONICS-SALON 12 Position LED Electronic Lucky Rotary Board Kit, Based on PIC12F508 MCU.
  • Description

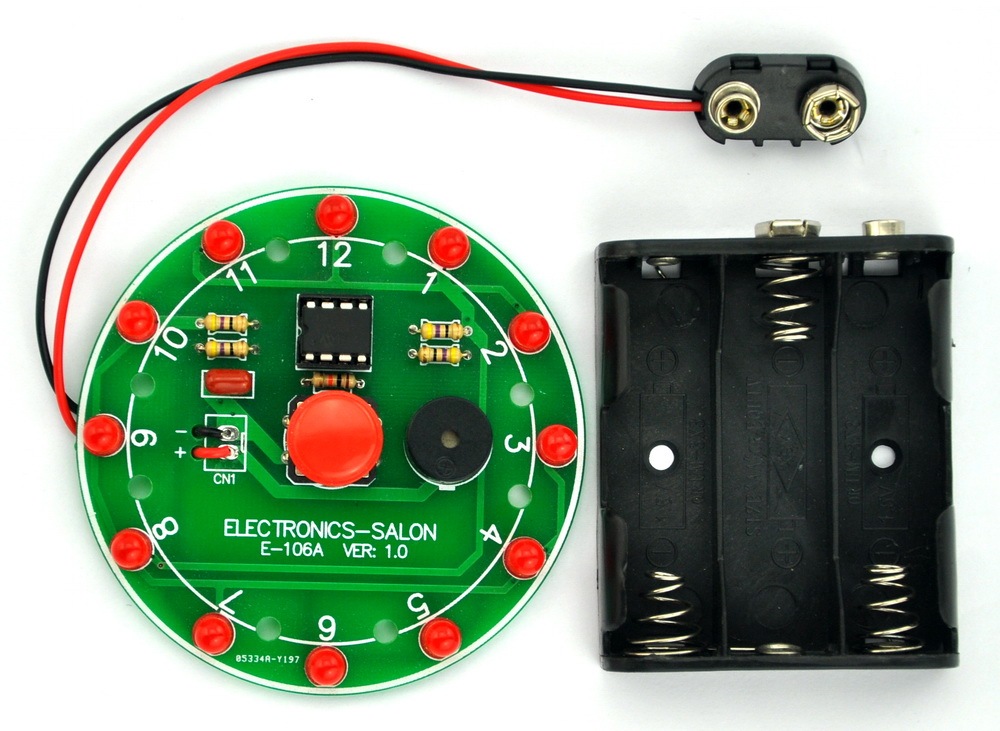

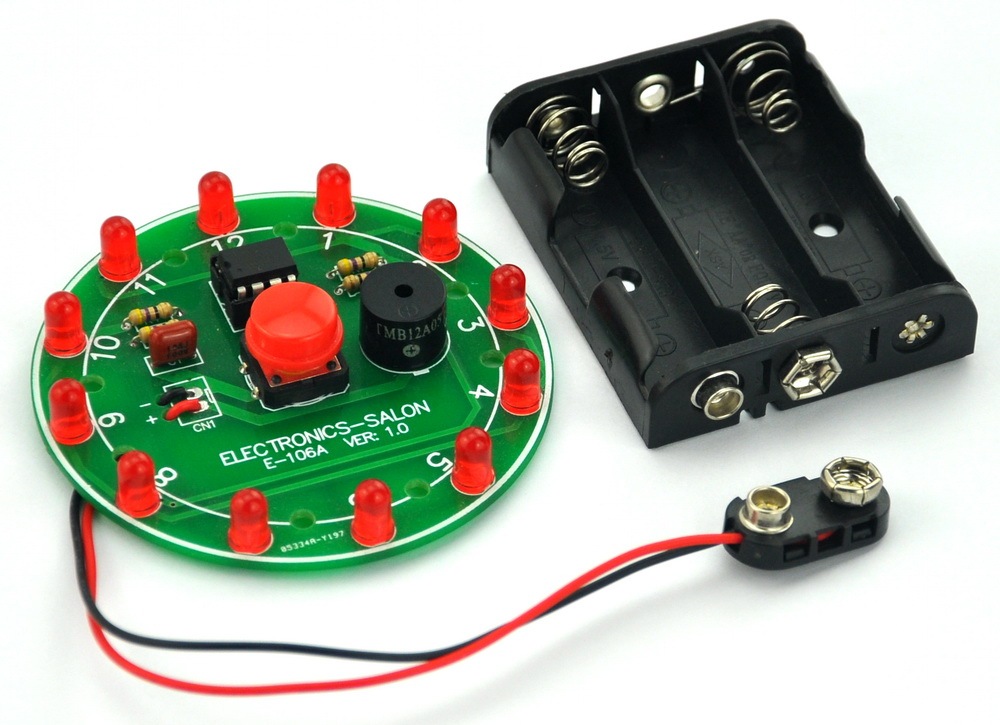

12 Position LED Electronic Lucky Rotary Board Kit.
This is an intuitive, simple and inexpensive circuit kit，both exercise your soldering skills, also profound learning PIC MCU program, will attract and enhance students' interest in learning.

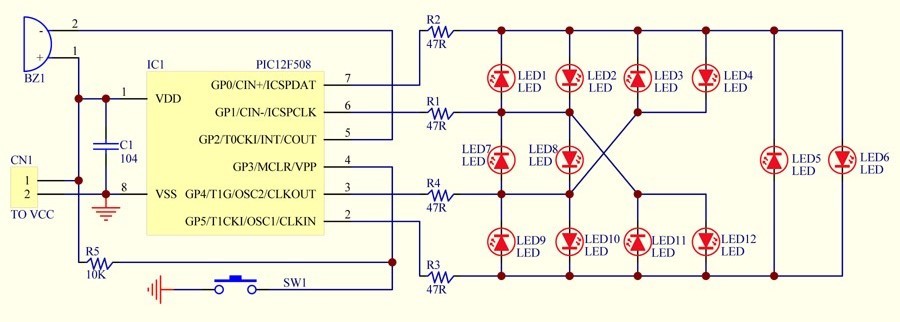

Based on the PIC12F508 MCU design, before shipping we have poured into program "LED Electronic Lucky Rotary". this is a flash microcontroller, if you are familiar with PIC firmware, you can modify or redesign the program.

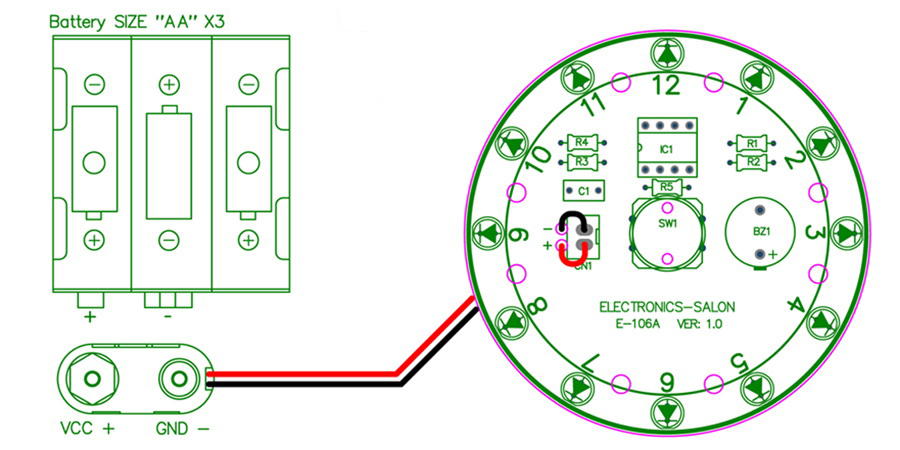

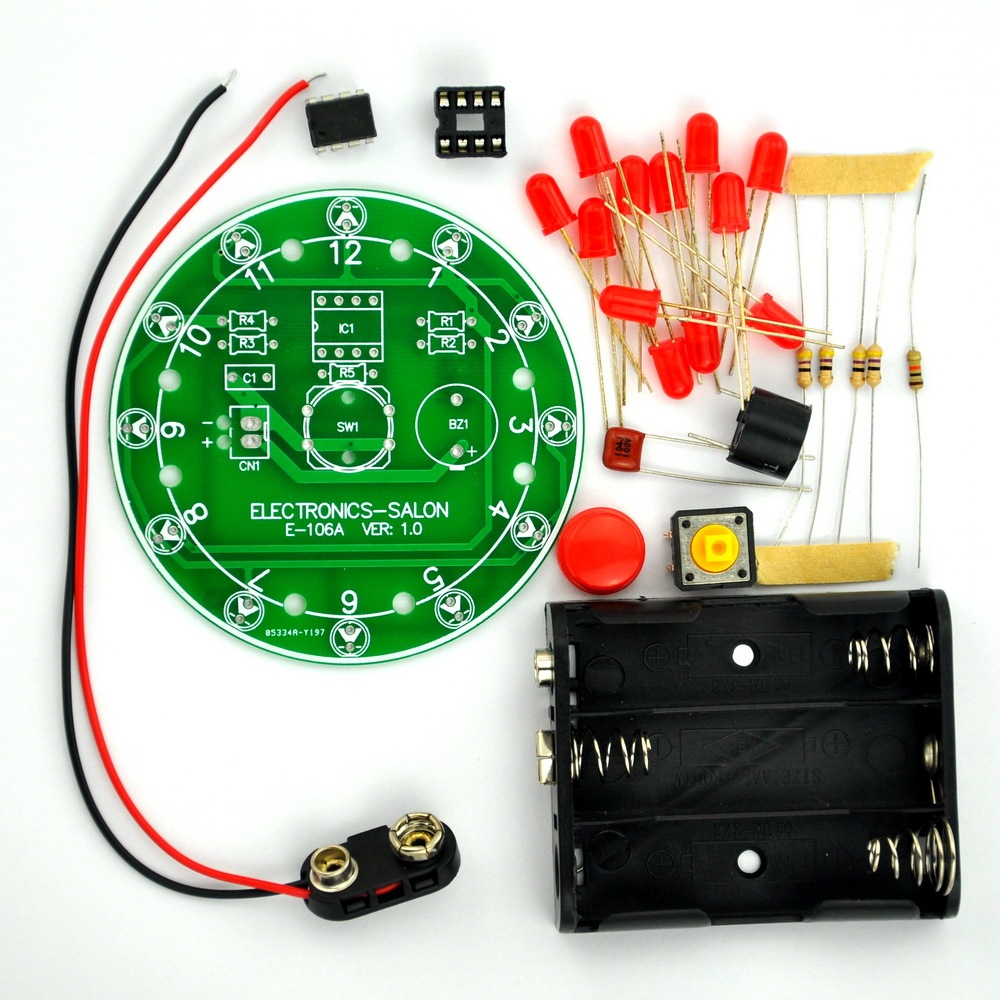

The item unassembled, you must soldering and assembly. included battery holder and snap wire, but not include battery.

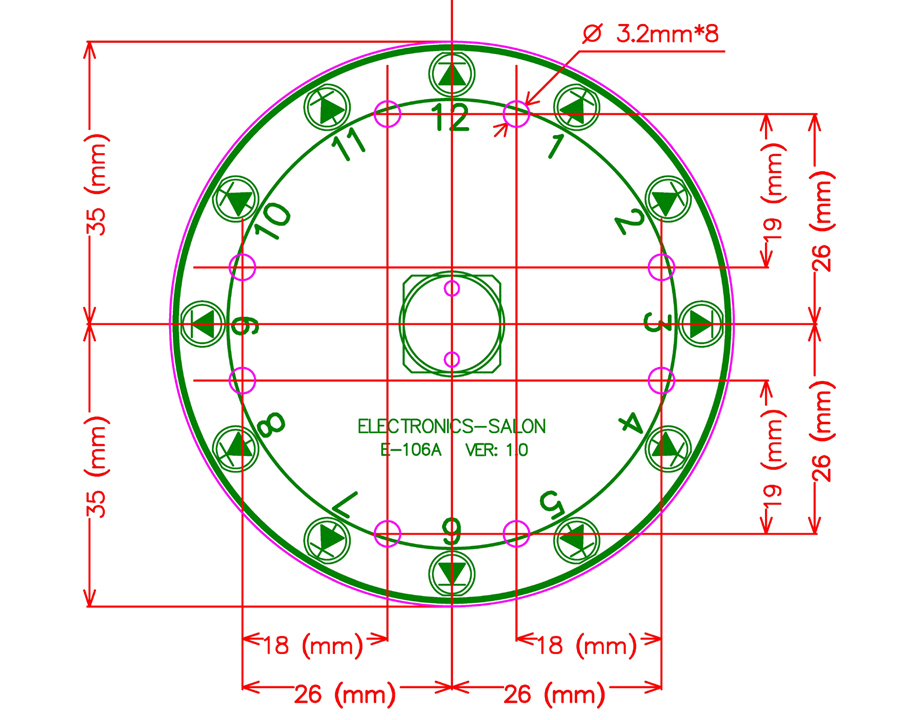

PCB diameter: 75mm / 2.95 inch . Operating voltage: DC4.5V, 3x AA batteries.


Datasheet:




Download
