Description

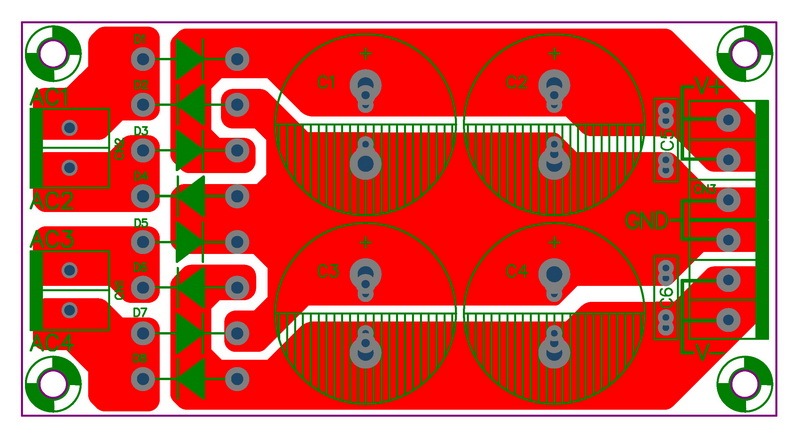

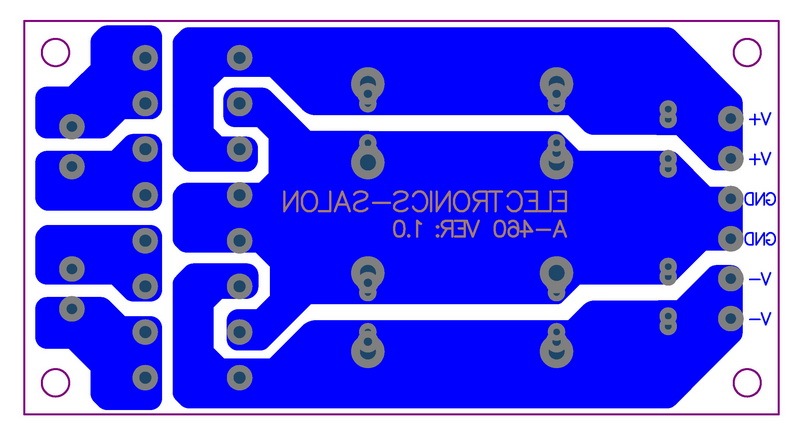

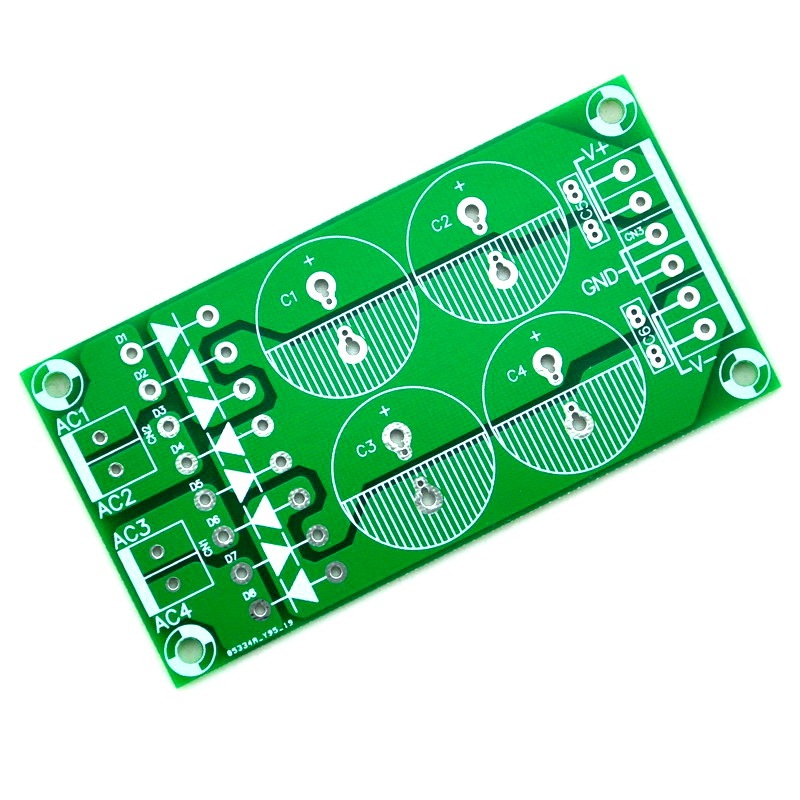

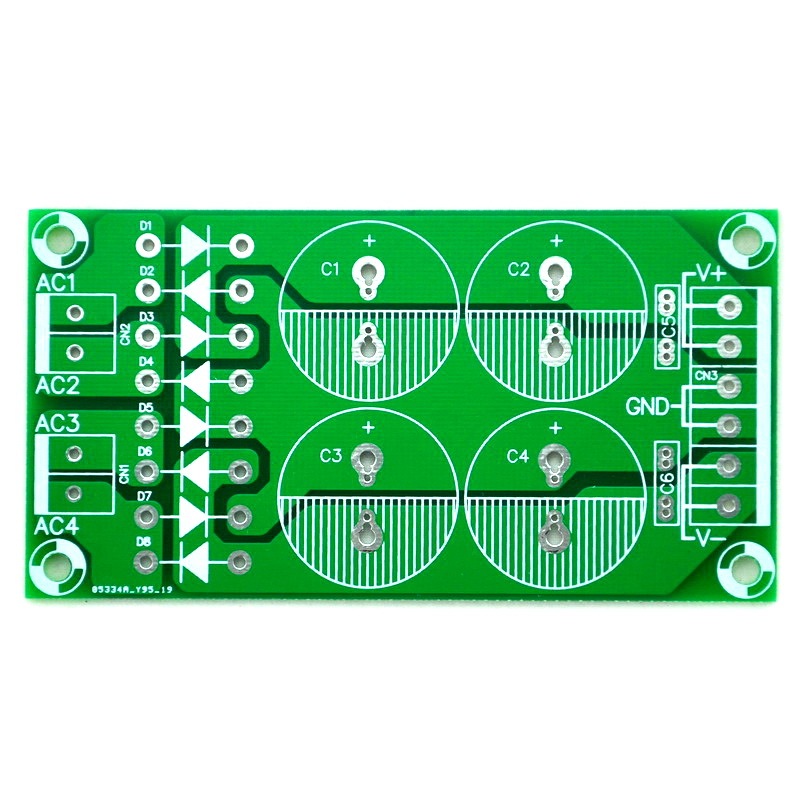

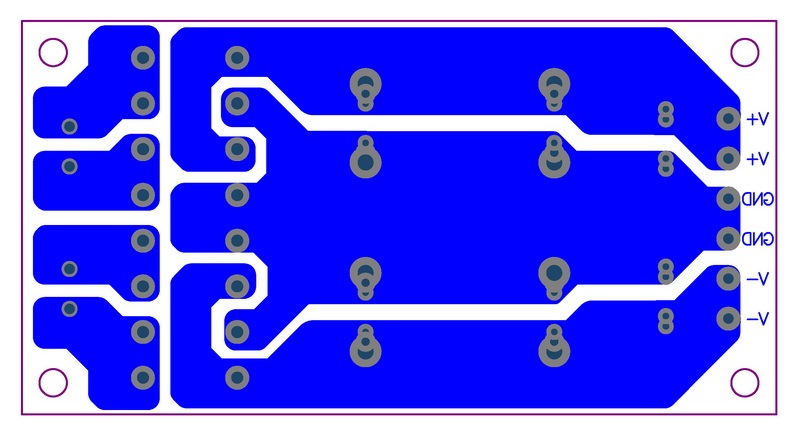

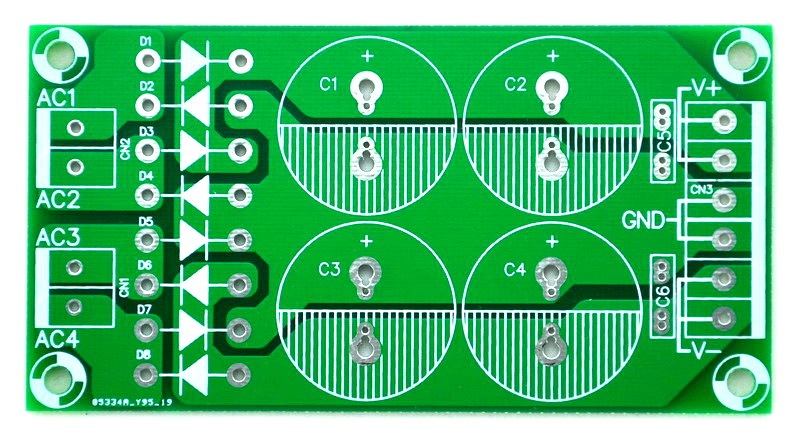

Dual Bridge Dual Polarity Unregulated Power Supply PCB.
Quantity: a lot of 1 piece.
Thickness 1.6mm FR-4 Fiber Glass PCB.
Size: 96 x 50mm ( 3.78 x 2 inch ).
CN1, CN2 and CN3 terminal blocks, pitch 5.0mm/0.197"

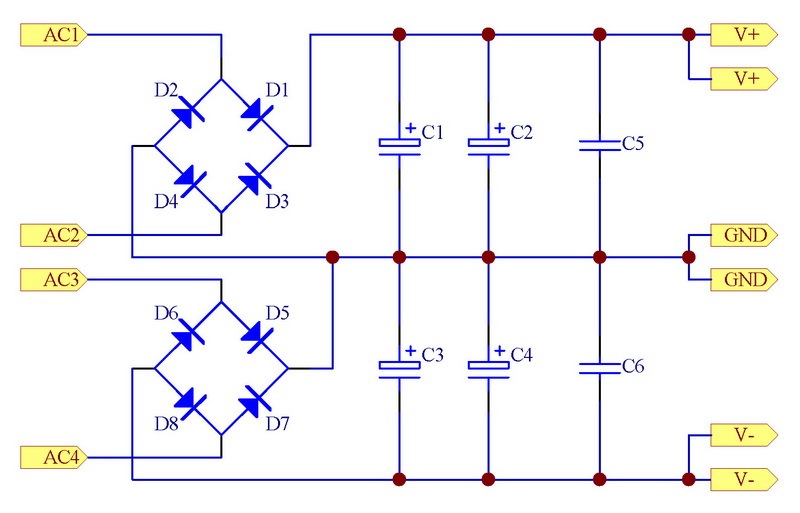

D1 ~ D8 diodes, you can use 1N5408 or HER303 etc 3 amp diodes.
C1 ~ C4, can mount diameter 12.5 ~ 22mm electrolytic capacitors, pin/foot pitch 5.0mm, 7.5mm or 10mm.
C5 ~ C6, can mount pin pitch 5.0mm or 7.5mm metal film capacitor.
This item just a bare PCB, does not include other components, if you want to buy the module or components, please visit my shop
