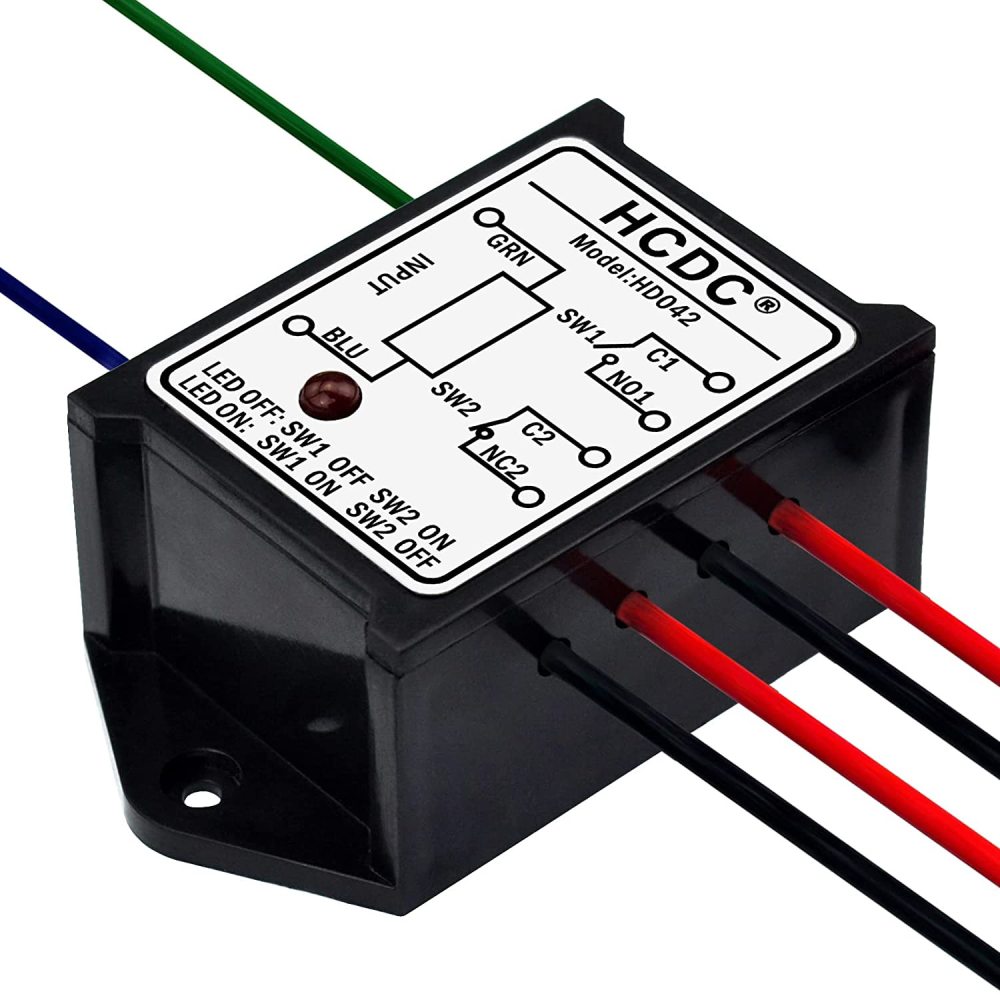

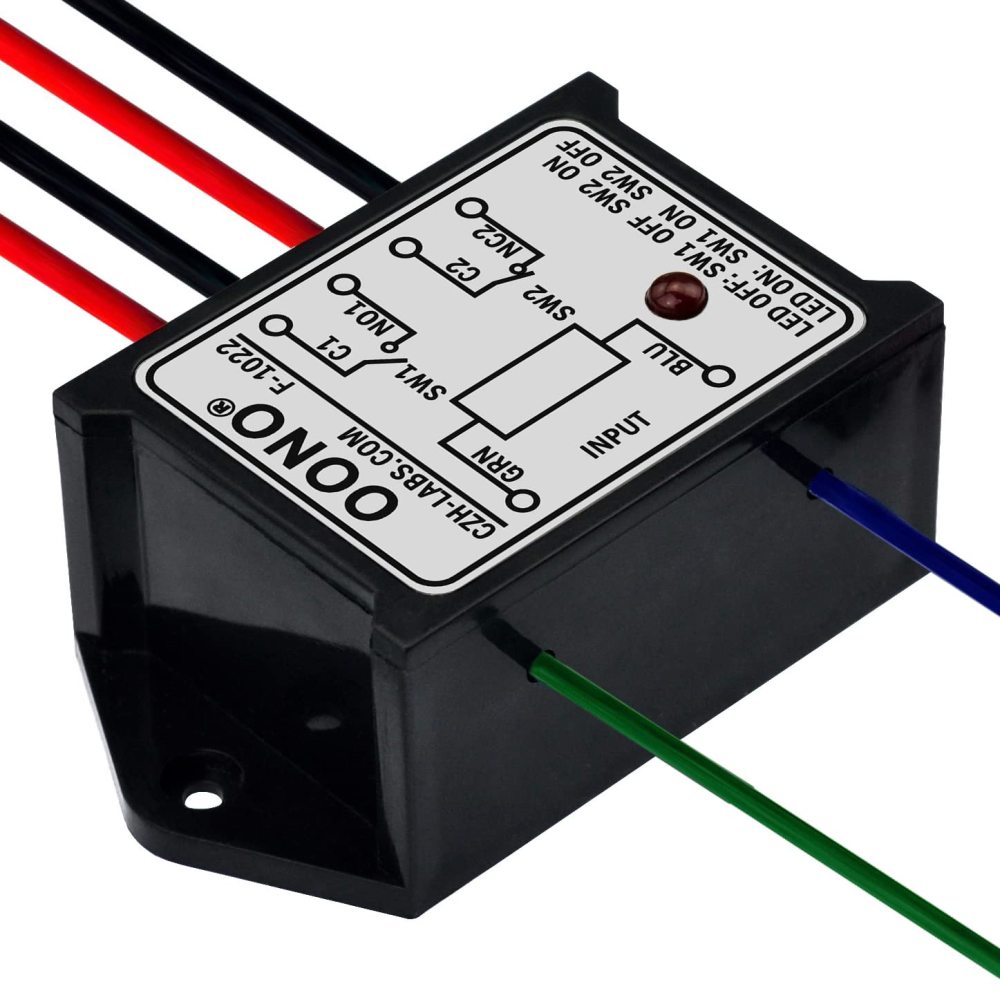

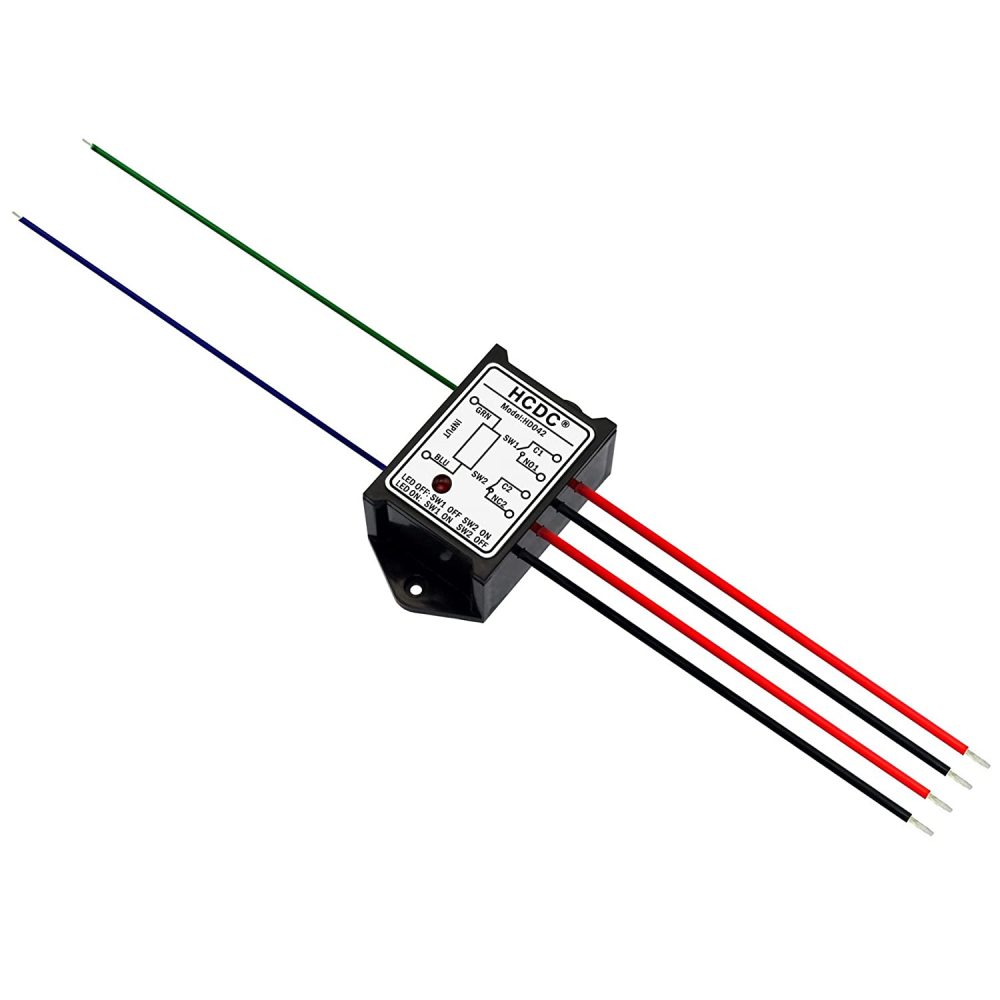

DPST 1NO 1NC 8 Amp Power Relay Module (AC/DC 24V)

SKU: HD042-24V
$15.00 $15.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $15 = $15
save $0.00
Add to Favorites
  • DPST 1NO 1NC 8 Amp Power Relay Module (AC/DC 24V)
  • DPST 1NO 1NC 8 Amp Power Relay Module (AC/DC 24V)
  • DPST 1NO 1NC 8 Amp Power Relay Module (AC/DC 24V)
  • DPST 1NO 1NC 8 Amp Power Relay Module (AC/DC 24V)
  • DPST 1NO 1NC 8 Amp Power Relay Module (AC/DC 24V)
  • DPST 1NO 1NC 8 Amp Power Relay Module (AC/DC 24V)
  • DPST 1NO 1NC 8 Amp Power Relay Module (AC/DC 24V)
  • DPST 1NO 1NC 8 Amp Power Relay Module (AC/DC 24V)
  • DPST 1NO 1NC 8 Amp Power Relay Module (AC/DC 24V)
  • DPST 1NO 1NC 8 Amp Power Relay Module (AC/DC 24V)
  • DPST 1NO 1NC 8 Amp Power Relay Module (AC/DC 24V)
  • DPST 1NO 1NC 8 Amp Power Relay Module (AC/DC 24V)
1/1
  • DPST 1NO 1NC 8 Amp Power Relay Module (AC/DC 24V)
  • DPST 1NO 1NC 8 Amp Power Relay Module (AC/DC 24V)
  • DPST 1NO 1NC 8 Amp Power Relay Module (AC/DC 24V)
  • DPST 1NO 1NC 8 Amp Power Relay Module (AC/DC 24V)
  • DPST 1NO 1NC 8 Amp Power Relay Module (AC/DC 24V)
  • DPST 1NO 1NC 8 Amp Power Relay Module (AC/DC 24V)
  • Description

1, This is a simple and practical passive relay module, which is very convenient to use. It can support both Normally Open and Normally Close.

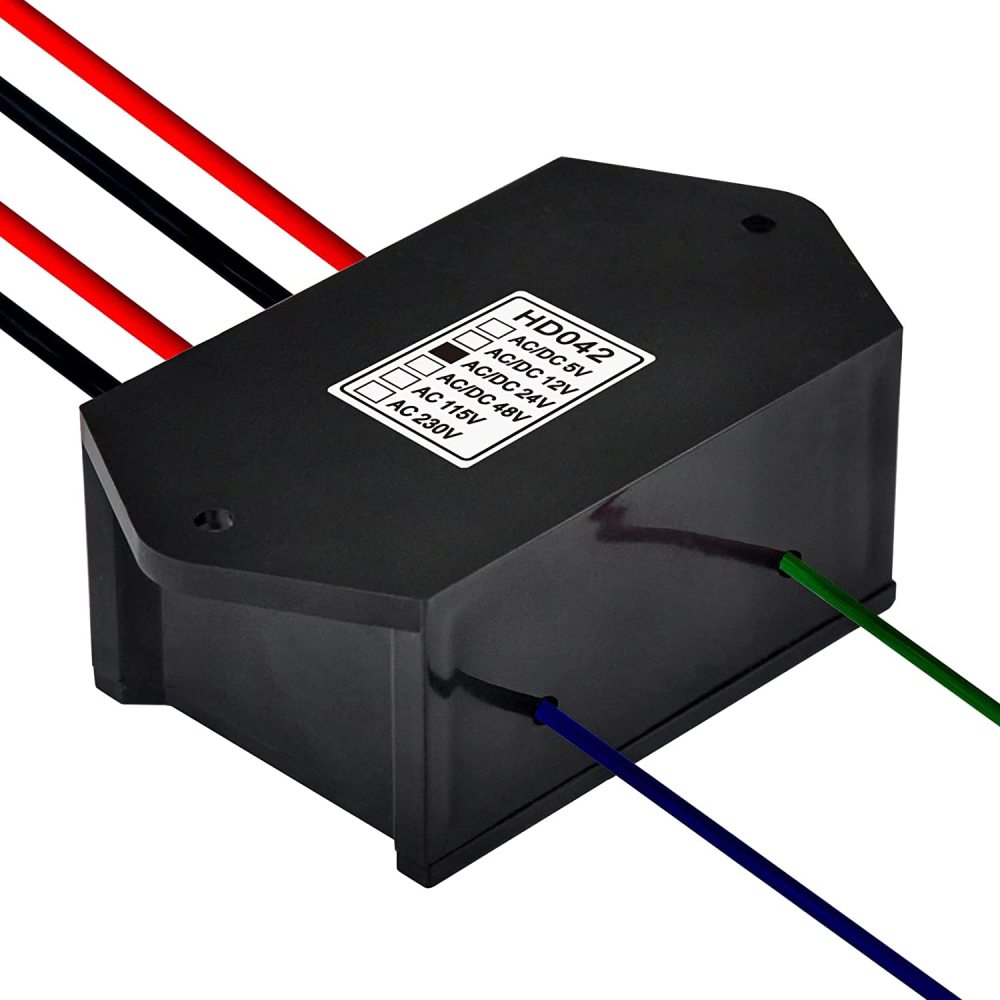

2, Input control signal: AC/DC 5V, AC/DC 12V, AC/DC24V, AC/DC48V, AC 115V, AC 230V Selectable.

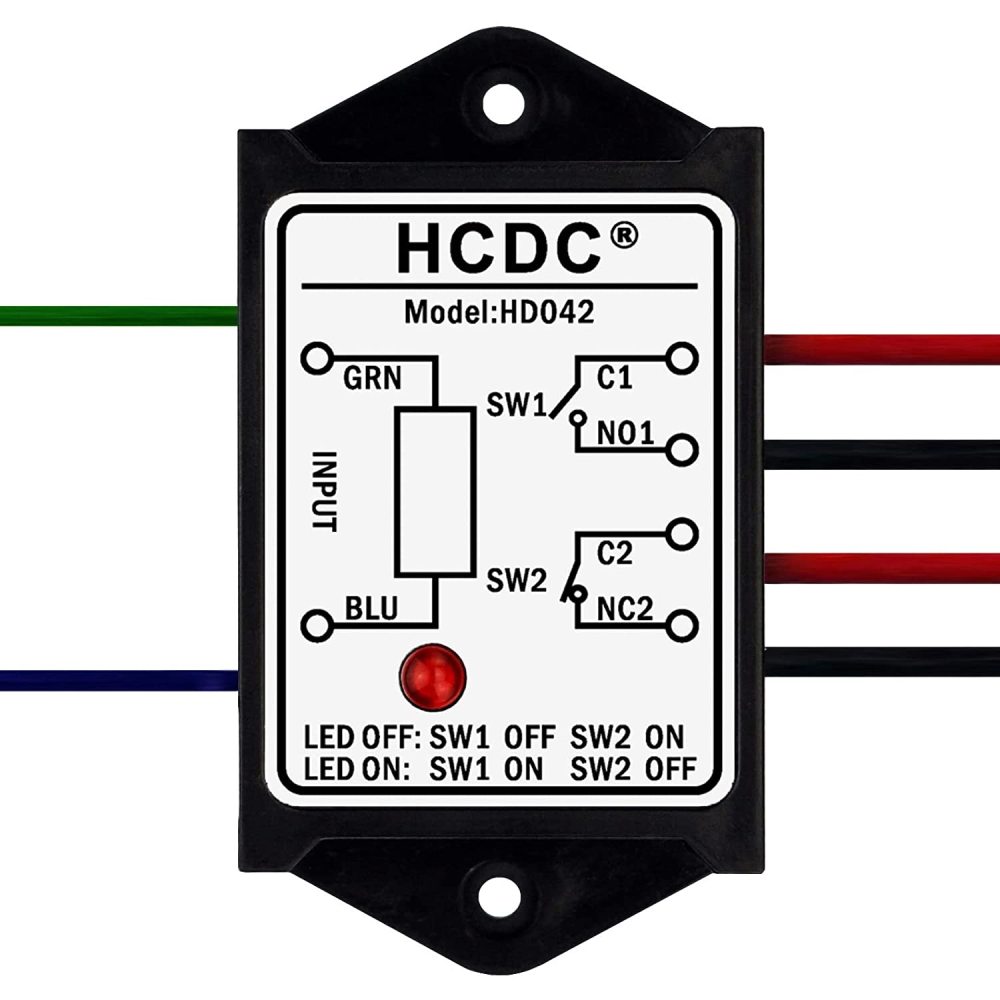

3, Output switch DPST 1NO 1NC(Double Pole Single Throw, 1x Normally Open and 1x Normally Close ), rated current 8A/250VAC or 8A/30VDC (one switch).
4, LED indication for relay action.
5, Compact ABS plastic case and wires connect for easy mount. Two screw mounting holes are convenient for you to fix it on the wall or wooden board. Of course, you can also choose not to lock the screw.
