Description

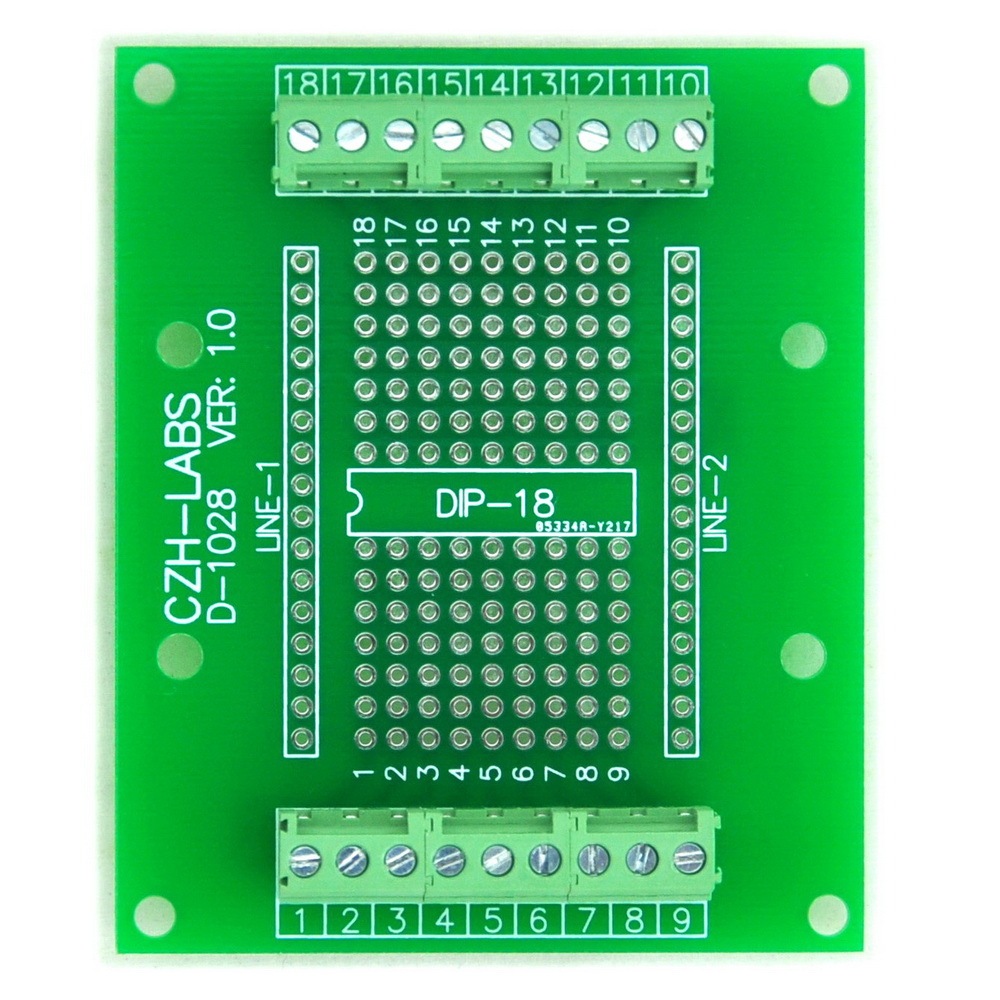

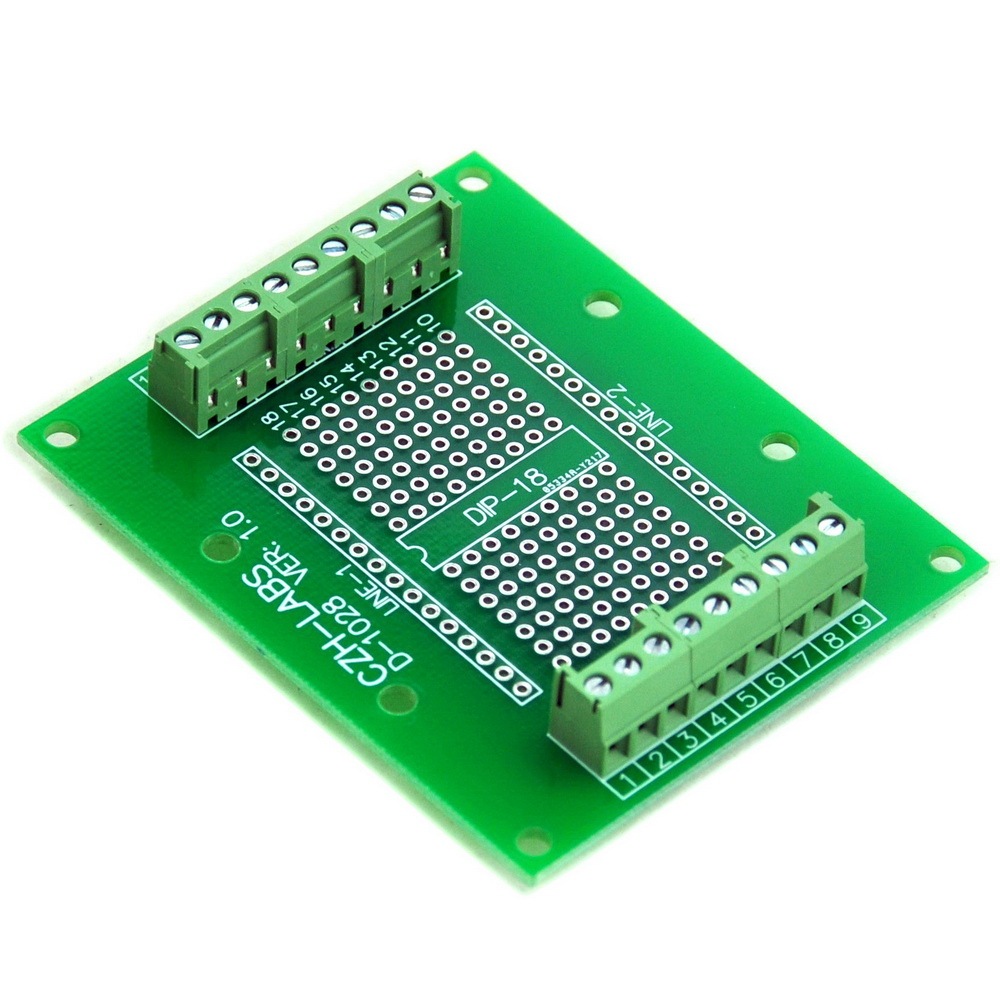

DIP-18 Component to Screw Terminal Adapter Board.

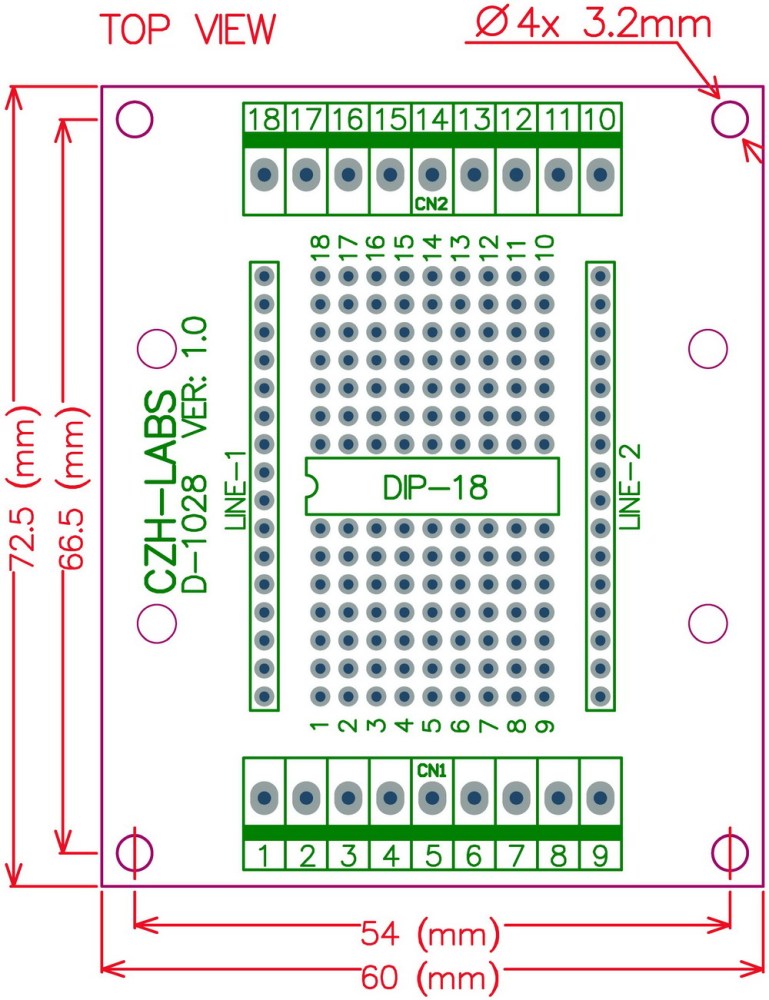

PCB Dimension: 60mm x 72.5mm, thickness : 1.6mm.
Material : FR-4 (glass fiber).
Solder pads grid (pitch) 2.54mm / 0.1", hole diameter 0.9mm, all holes are plated through.

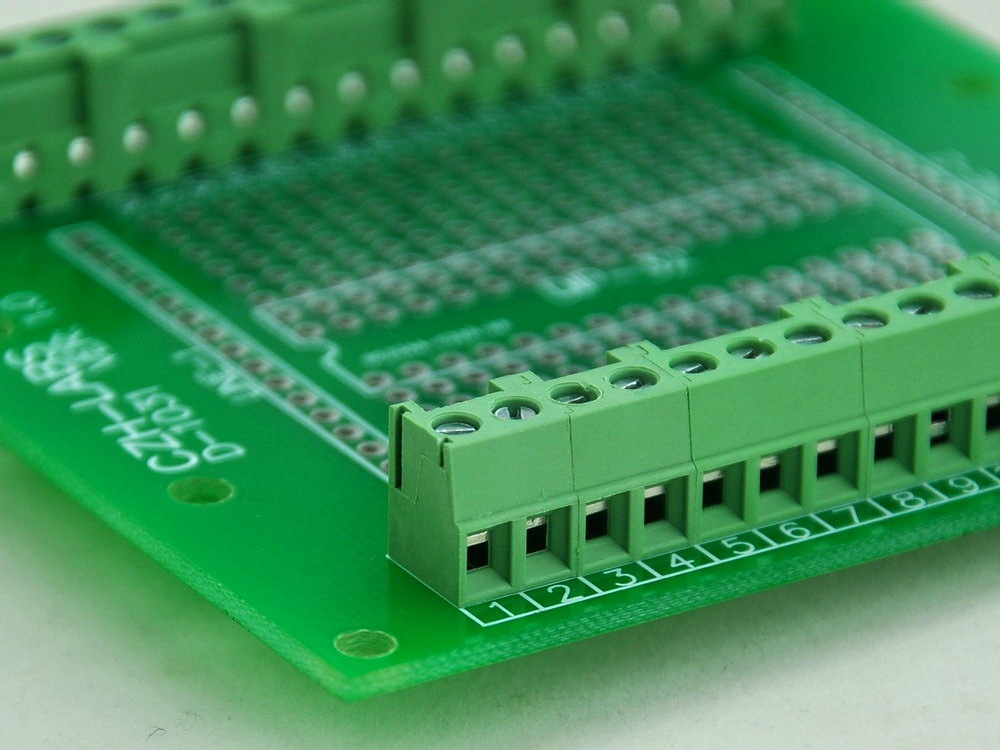

Terminal block pitch 3.81mm/0.15", wire range 26~16AWG/1mm2.
Note: these terminal blocks unsoldered (unassembled).

Other version DIP-8, 14, 16, 18, 20, 28, 32, 40 please visit our store.
