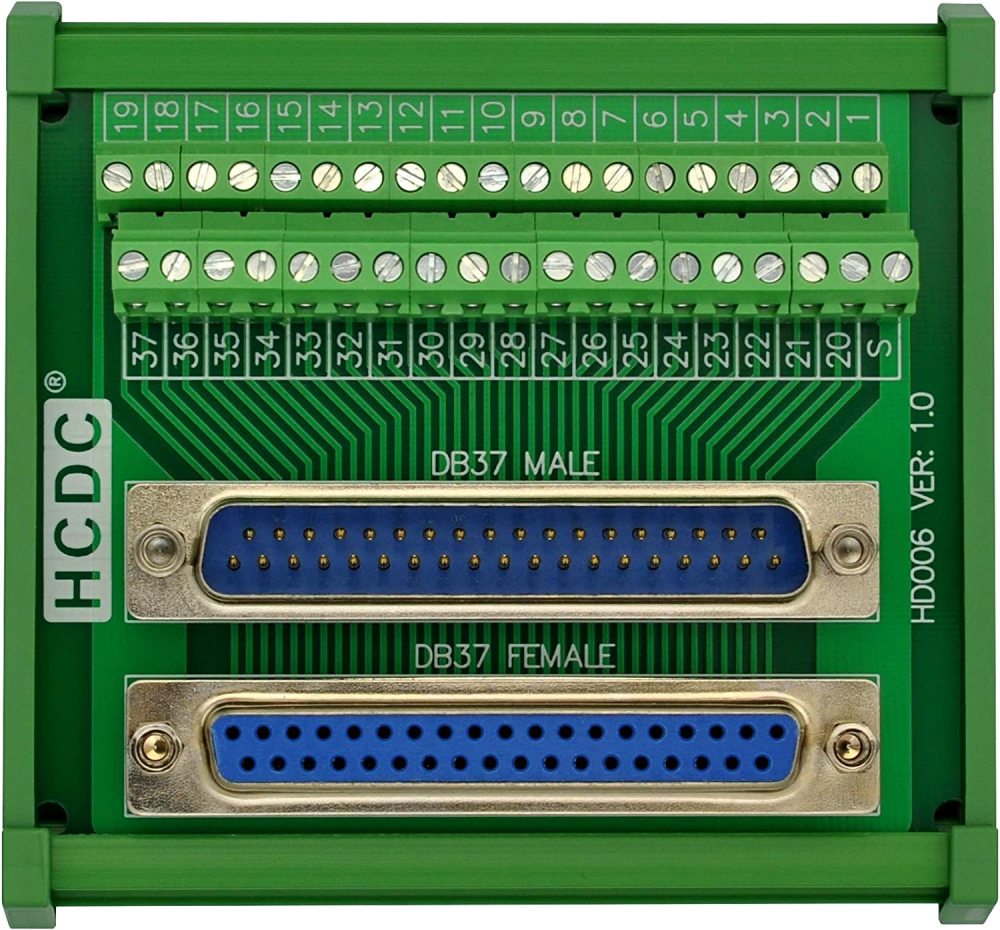

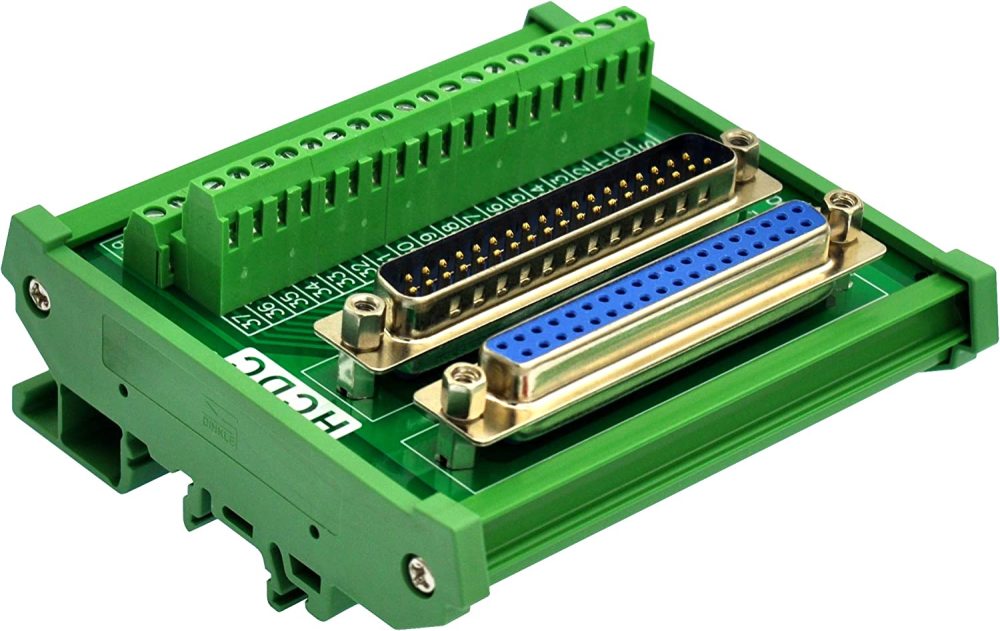

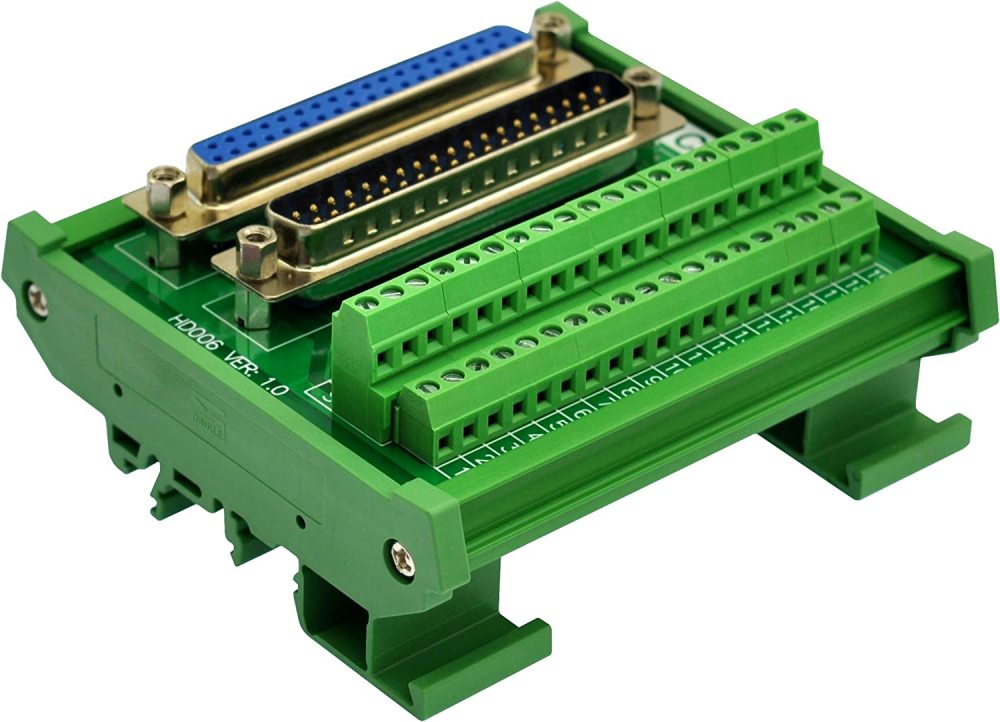

DIN Rail Mount D-SUB Male-Female Interface Module Terminal Block Breakout Board (DB37)

Name: DIN Rail Mount D-SUB Male-Female Interface Module Terminal Block Breakout Board (DB37)
Brand: Xiken Tech
SKU: HD006T
Price: 25 USD
Availability: InStock

SKU: HD006T

$25.00 ~~$25.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

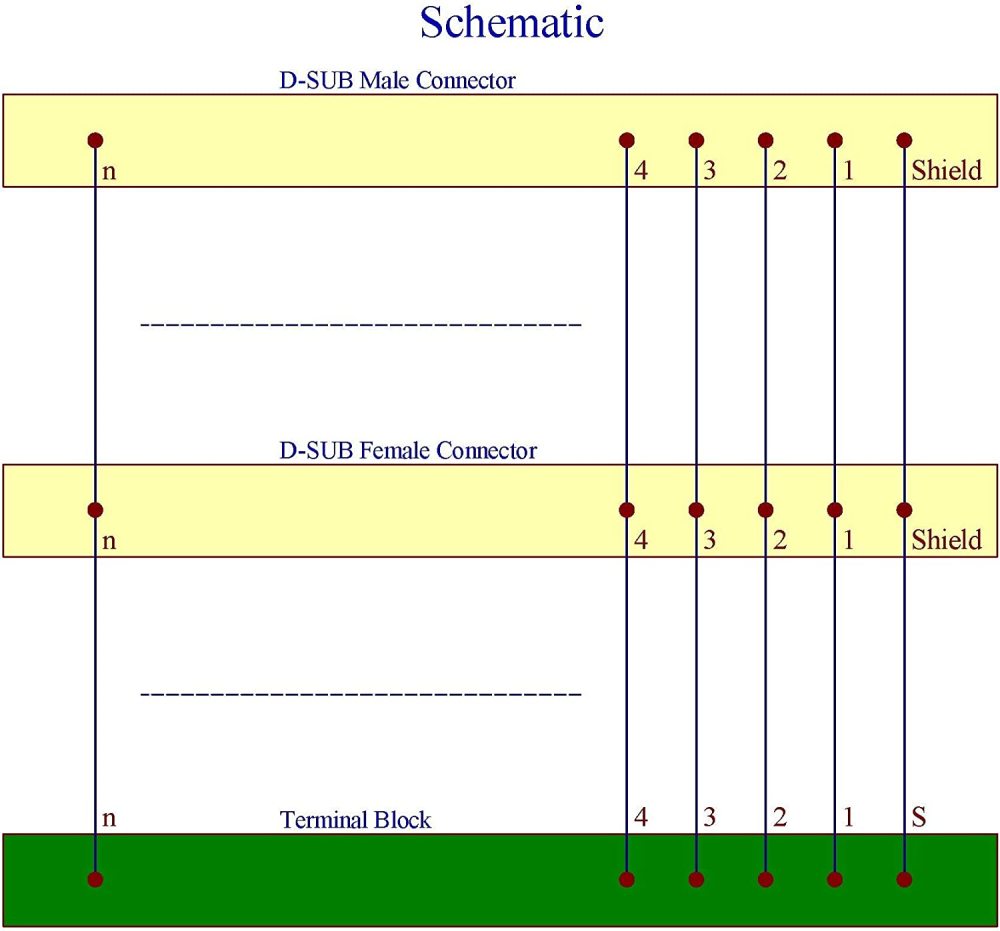

1, Standard D-SUB Male/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line.
2, Rated voltage: 60V. Rated current: 1Amp / per pin. Operating Temperature: -20C to 50C
3, Terminal block: Pitch 3.81mm/0.15" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2, steel, Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
4, FR-4 fiber glass PCB, dual copper layers.

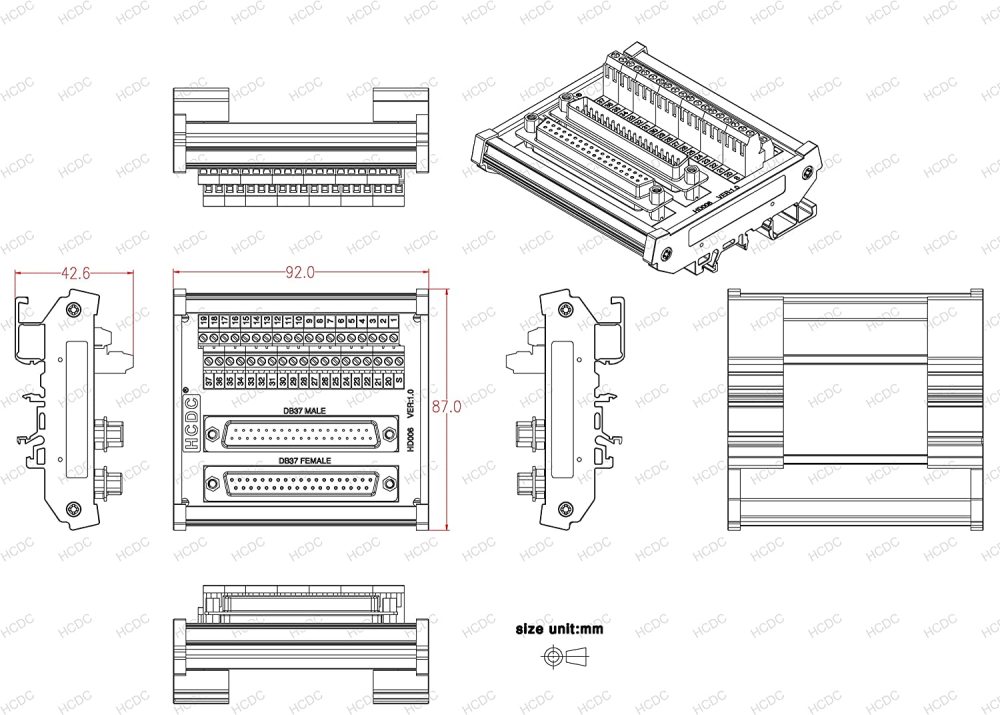

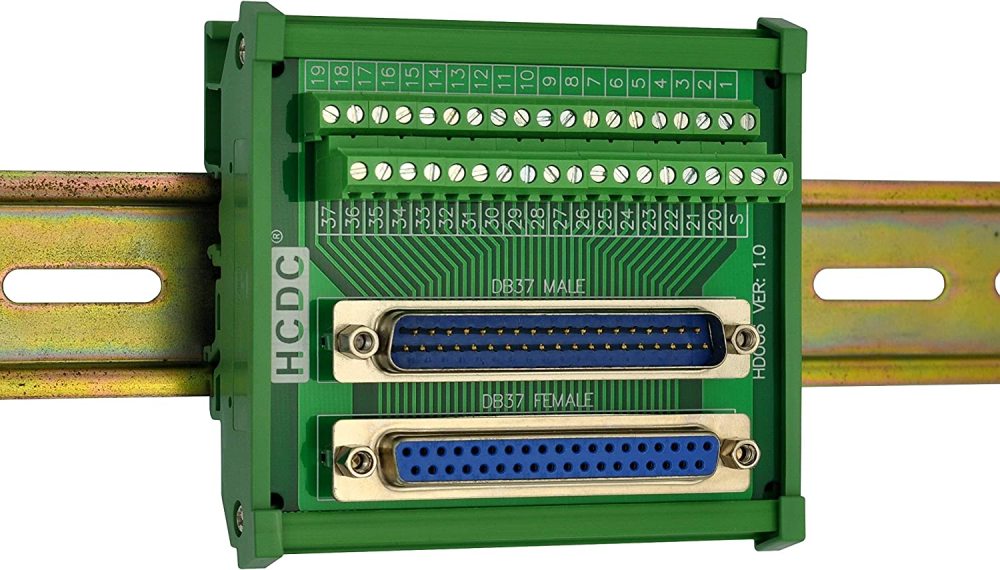

5, Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.

DIN Rail Mount D-SUB Male-Female Interface Module Terminal Block Breakout Board (DB37)
