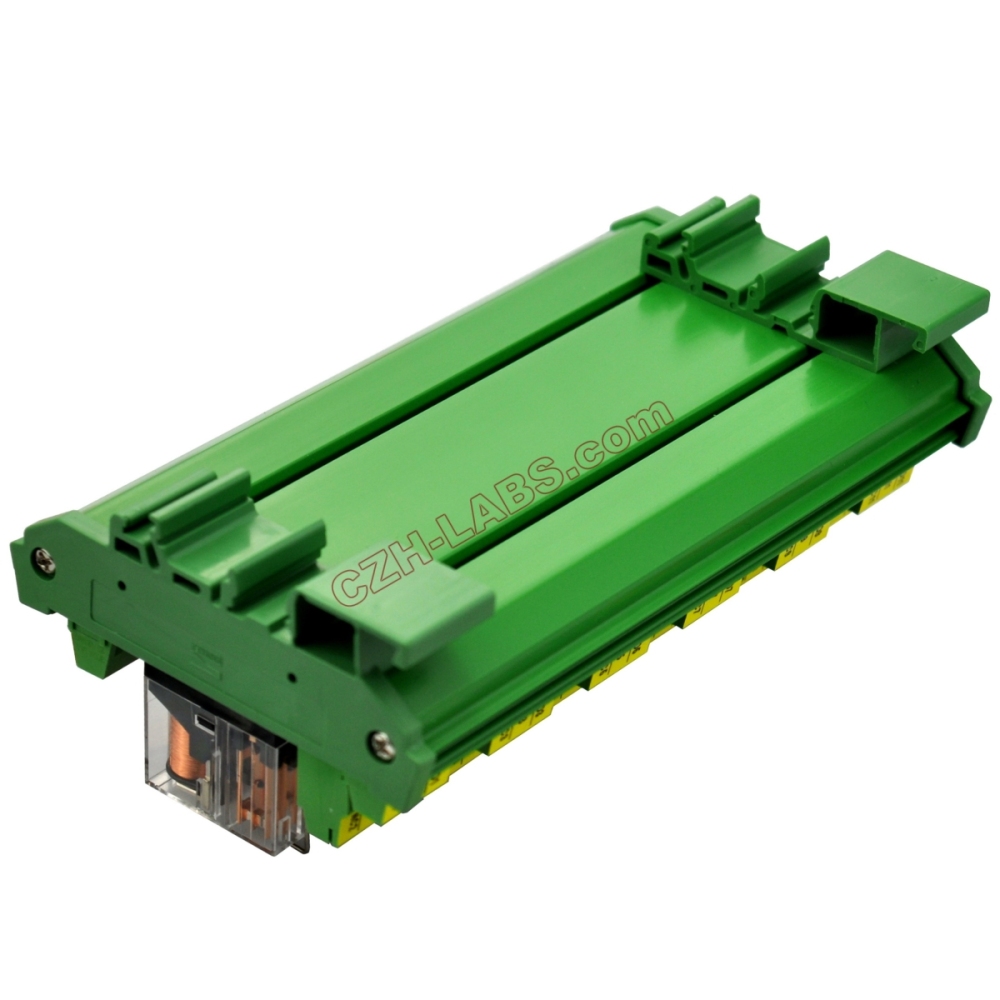

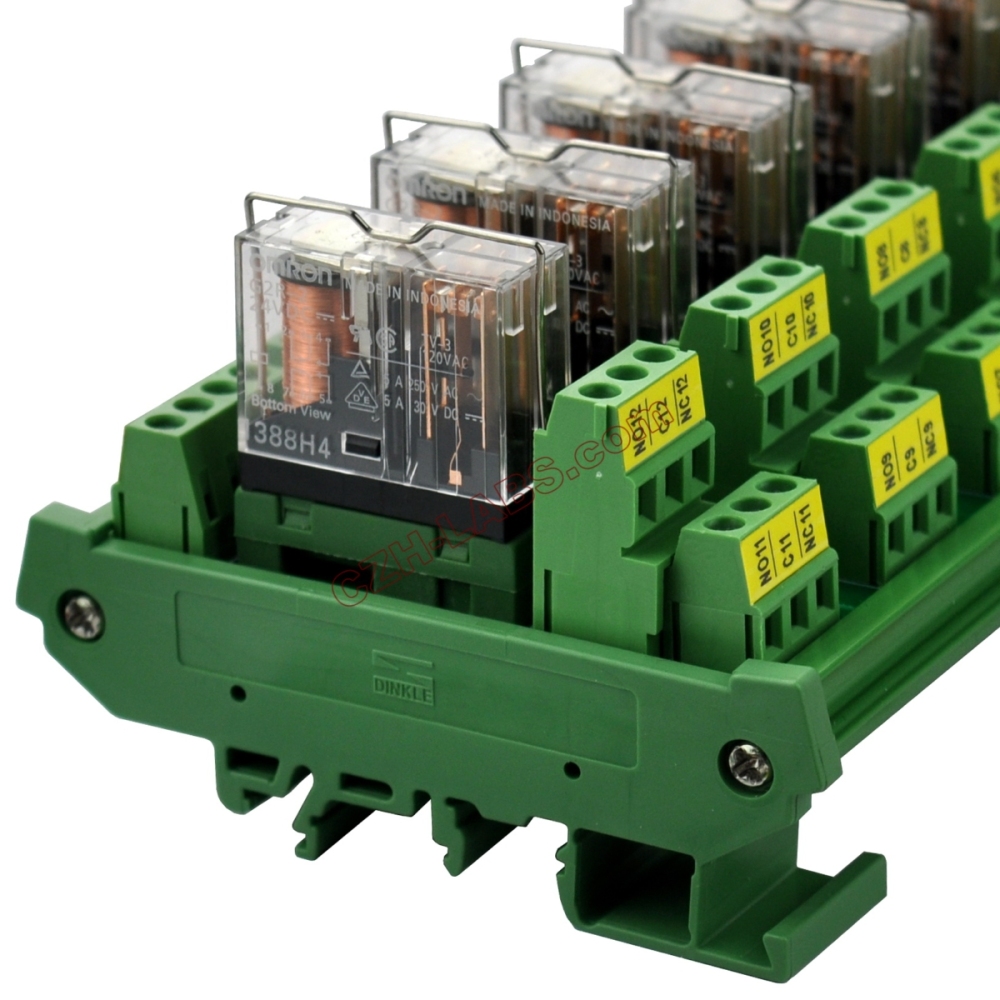

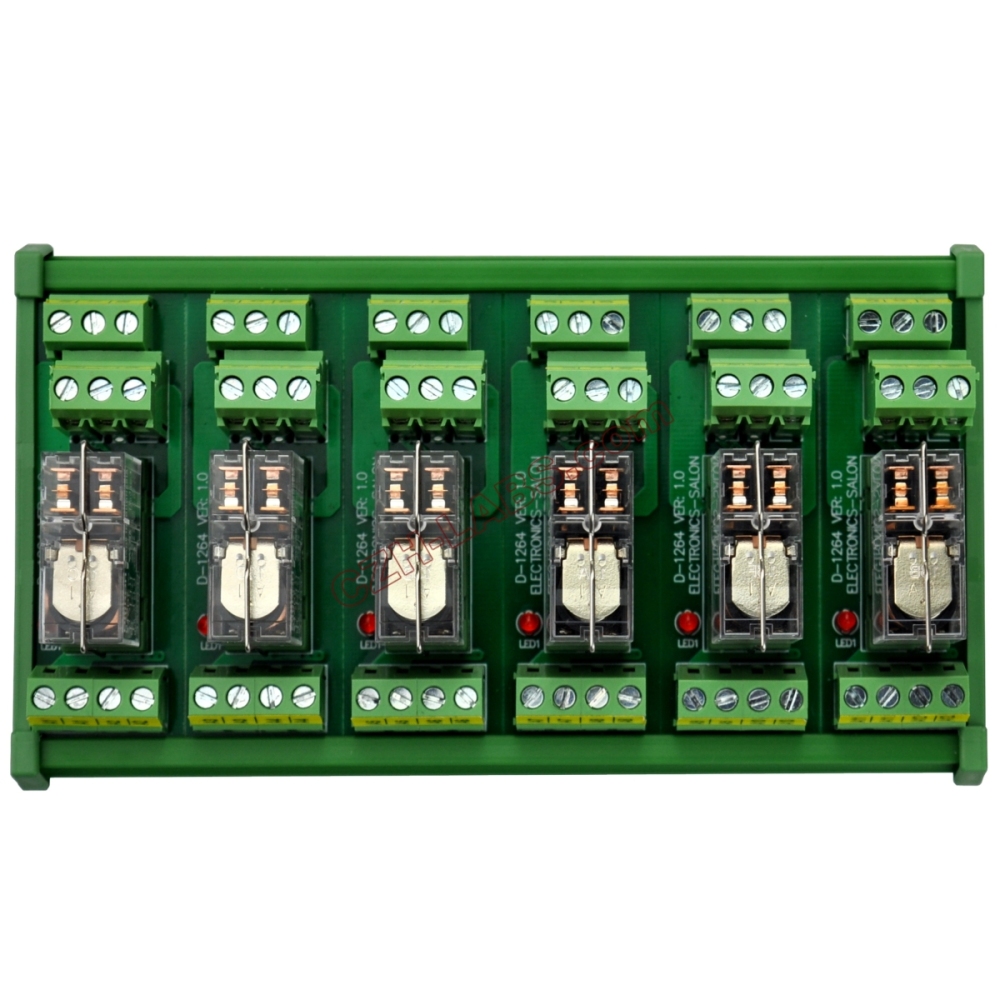

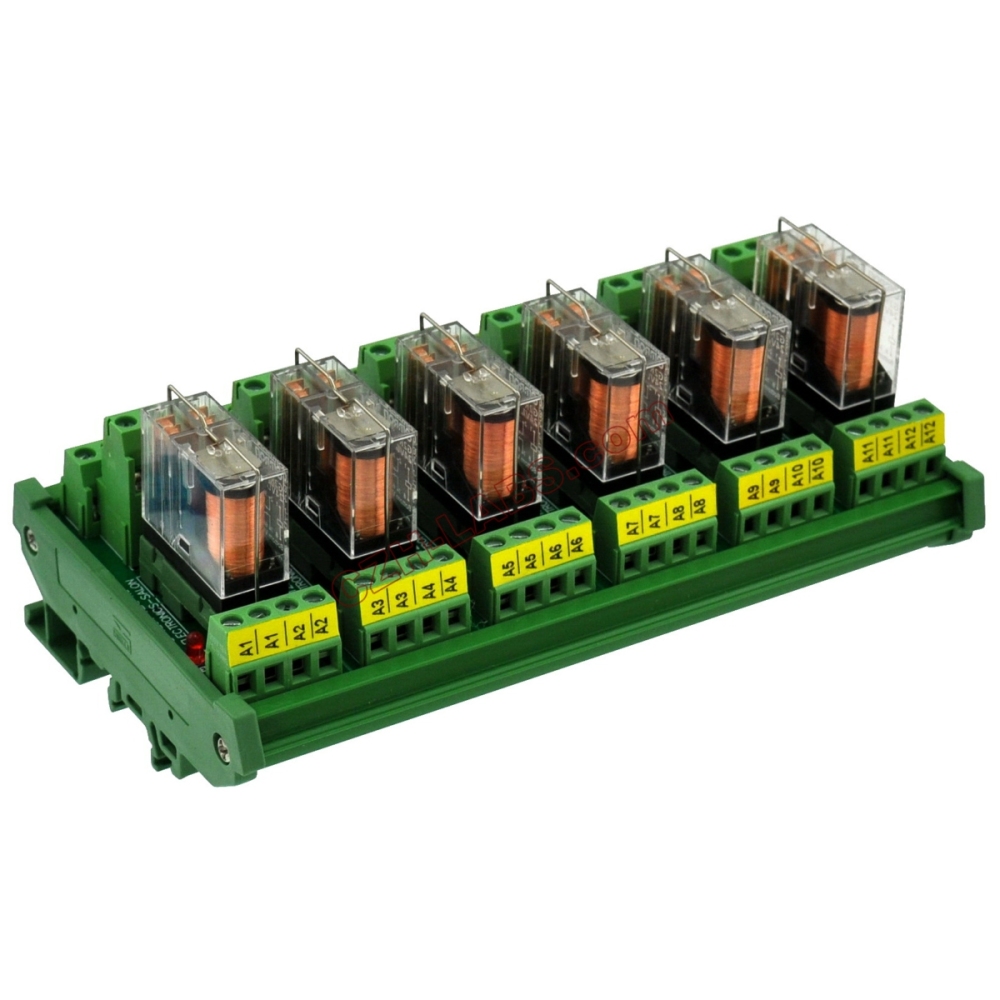

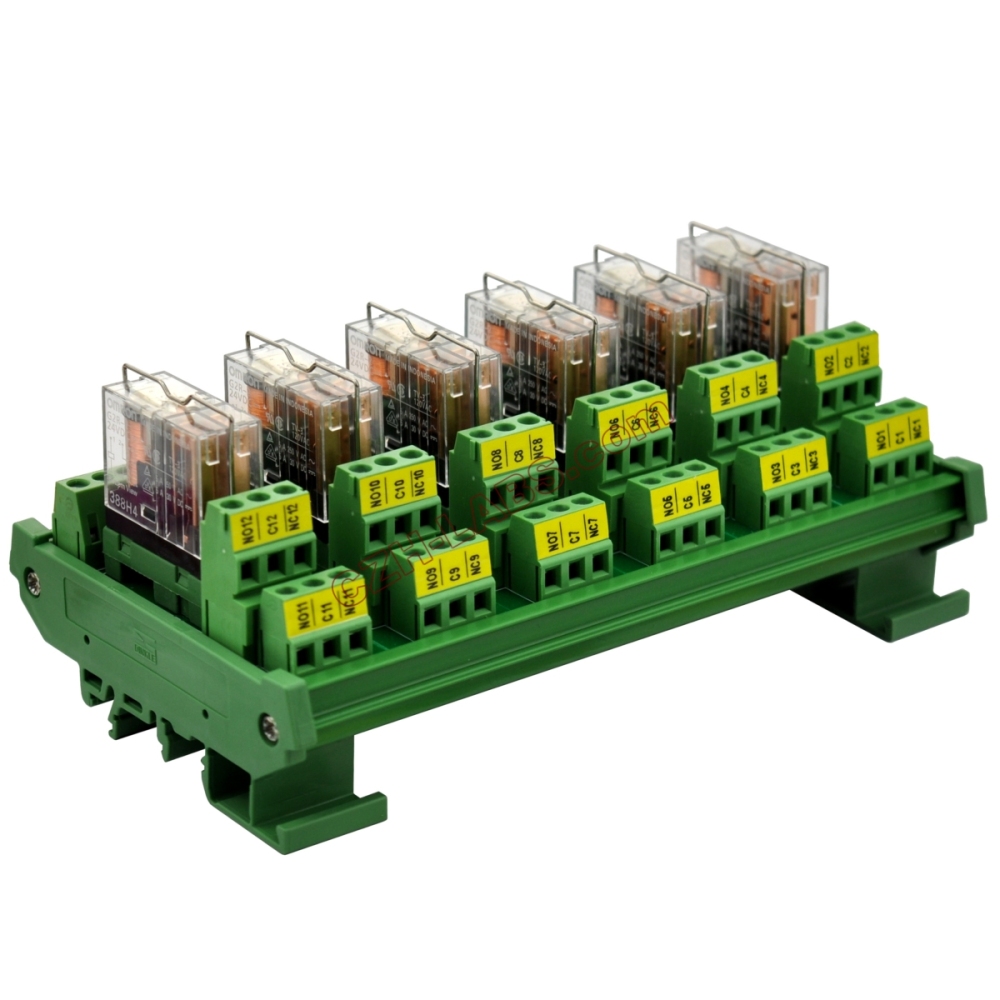

DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module.

SKU: D-1264T24V/6
$70.00 $70.00
ELECTRONICS-SALON DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module. G2R-2 24V
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $70 = $70
save $0.00
Add to Favorites
  • DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module.
  • DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module.
  • DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module.
  • DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module.
  • DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module.
  • DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module.
  • DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module.
  • DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module.
  • DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module.
  • DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module.
  • DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module.
  • DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module.
  • DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module.
  • DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module.
1/1
  • DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module.
  • DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module.
  • DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module.
  • DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module.
  • DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module.
  • DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module.
  • DIN Rail Mount AC/DC 24V Control 6 DPDT 5Amp Pluggable Power Relay Interface Module.
  • Description
Relay: OMRON G2R-2 24V
Relay Number: 6
Control Signal: Voltage AC 18V~30V, or DC 18V~40V. Current 23mA(per relay, at 24V)
Relay Switch Contact Rating: For AC, dual 5A/250VAC. For DC, dual 5A/30VDC.

Omron G2R-2 Dual 5Amp DPDT power relay. Pluggable socket for support replacement relay.

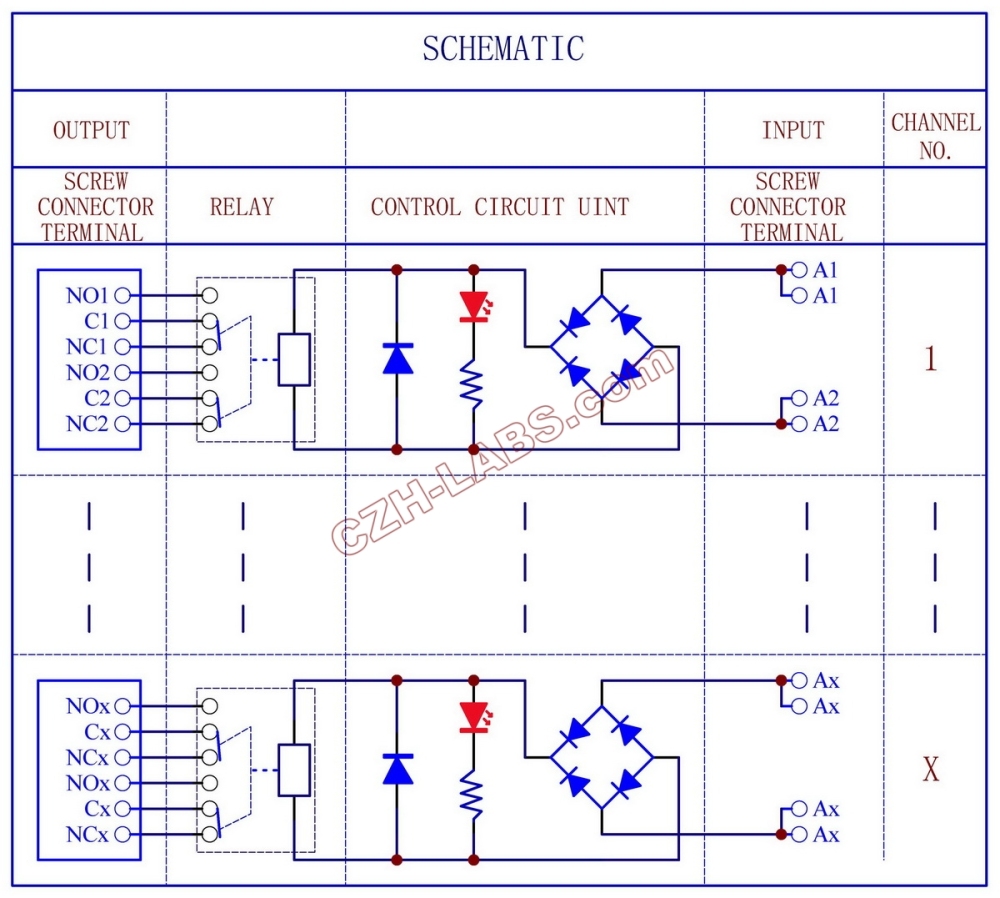

Support AC / DC control signals. Dual input terminal block, you can flexibility to configure the input mode: Individual / Common Positive / Common Negative. Relay action LED indicator, relay coil protection by means of a freewheeling diode.
High quality screw terminal blocks and clear marking label for terminal block position. Pitch 5.08mm/0.2" screw terminal block. Wire range 26 to 12AWG / 2.5mm square. Screws - M2.5, steel, Cr3+ Zn plated. Pin header and Cage - Brass.

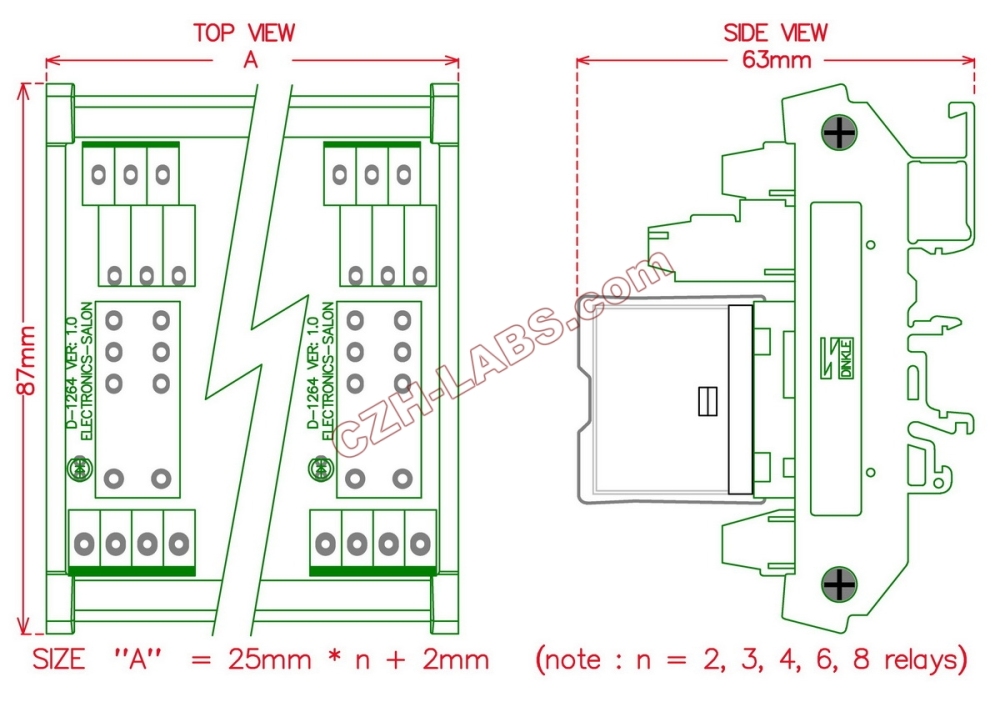

DINKLE high quality fireproof nylon material DIN rail mount housing, can support width 35mm, 32mm and 15mm rail. FR-4 fiber glass PCB, dual copper layers.
