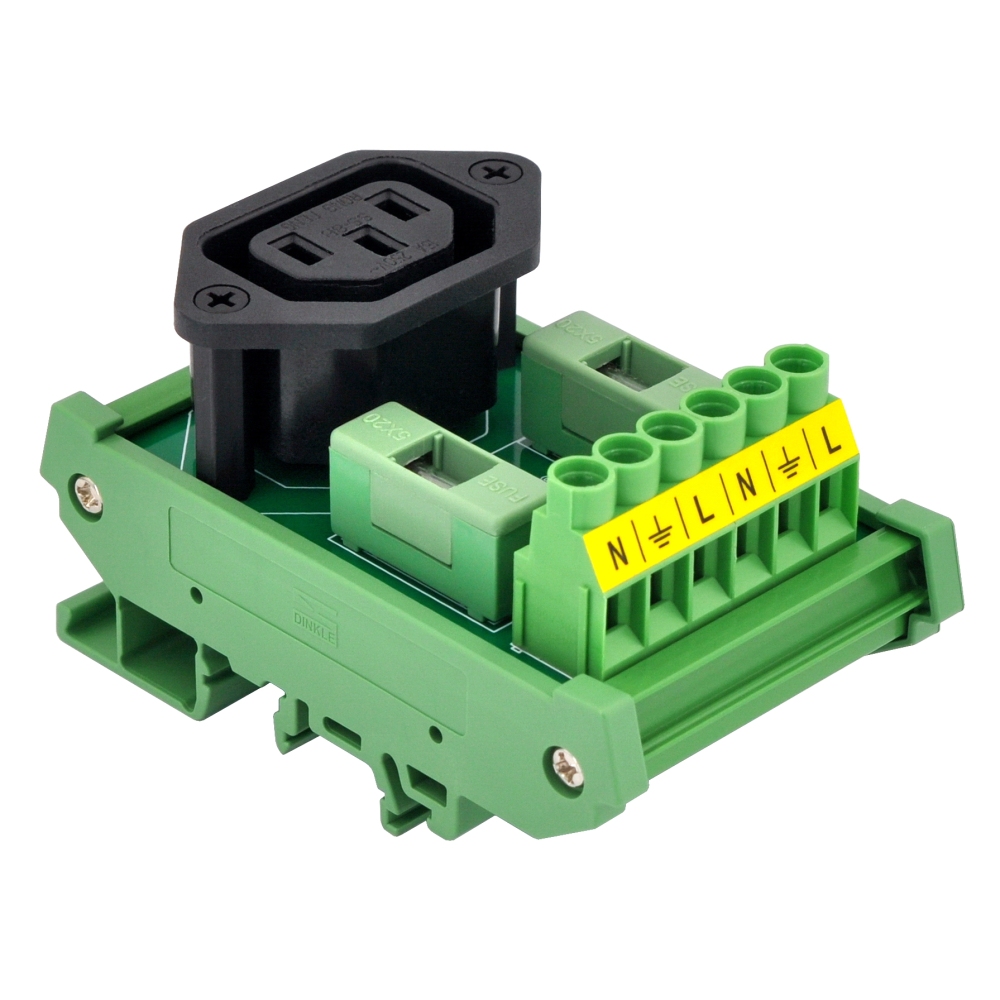

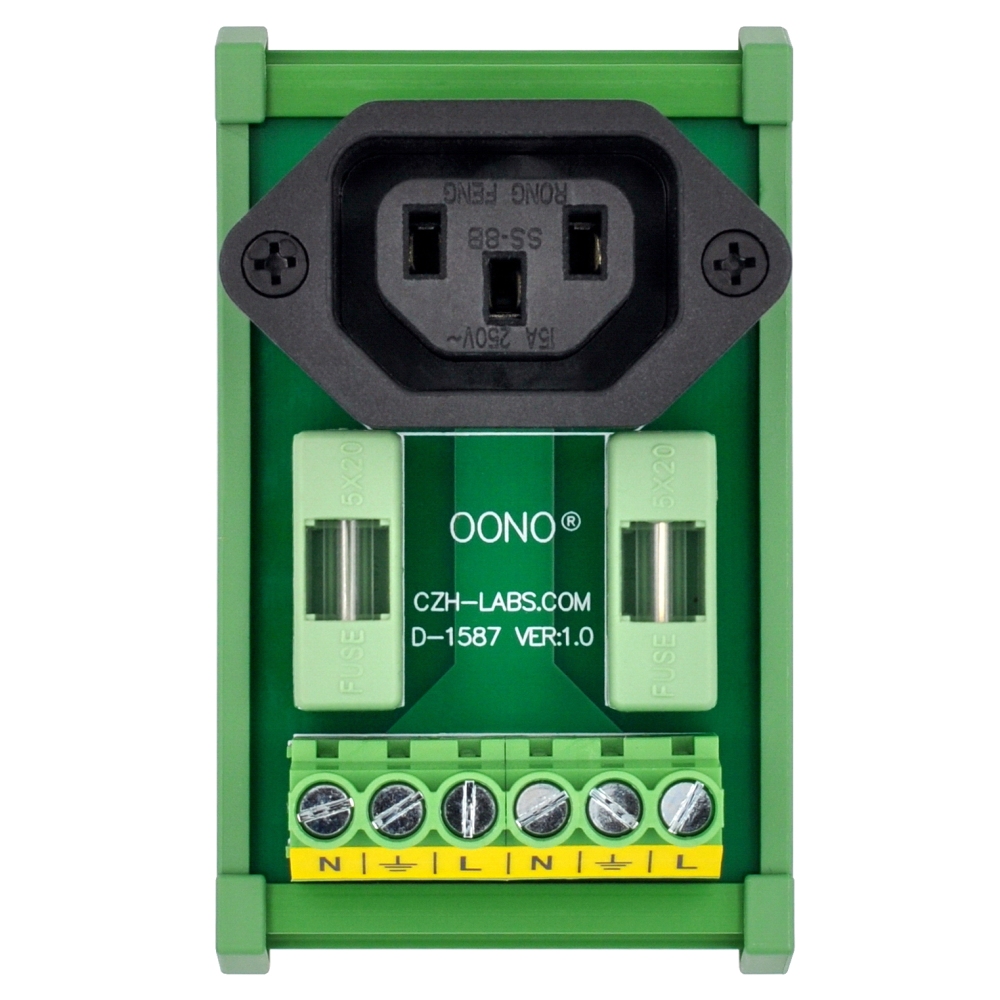

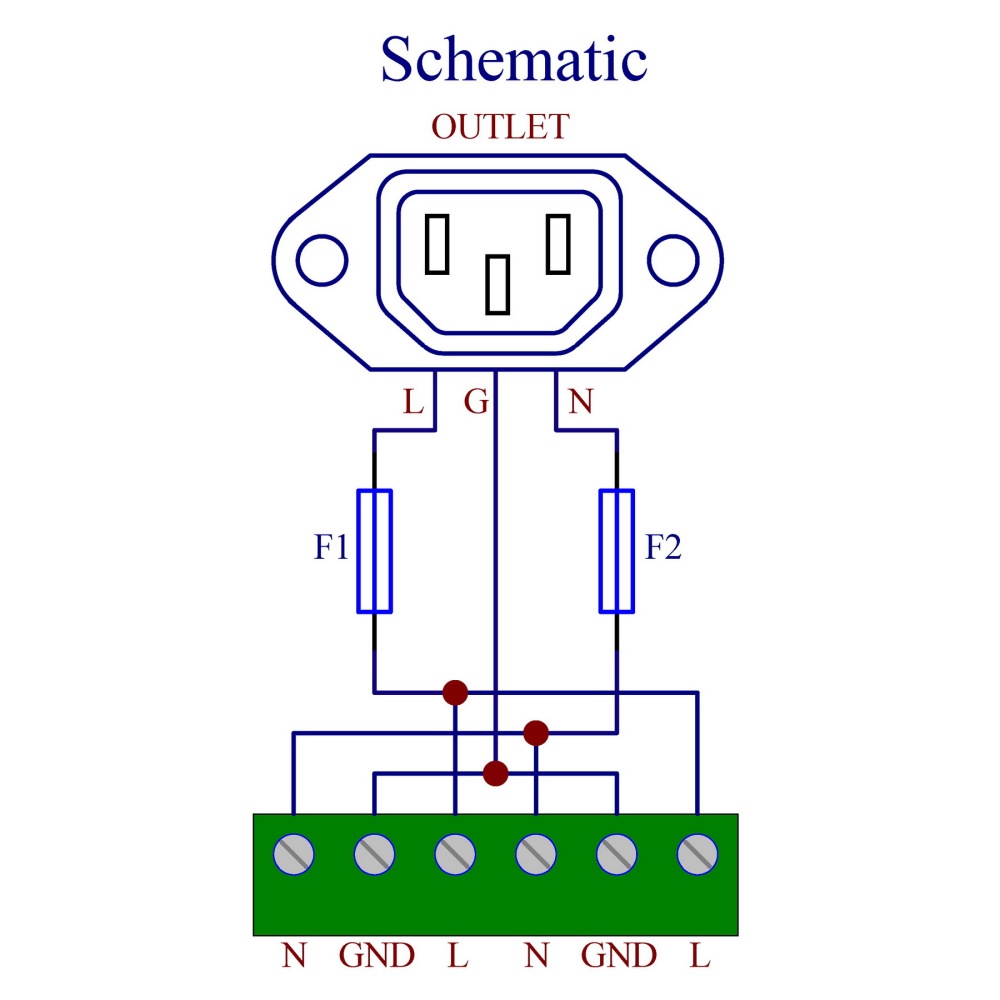

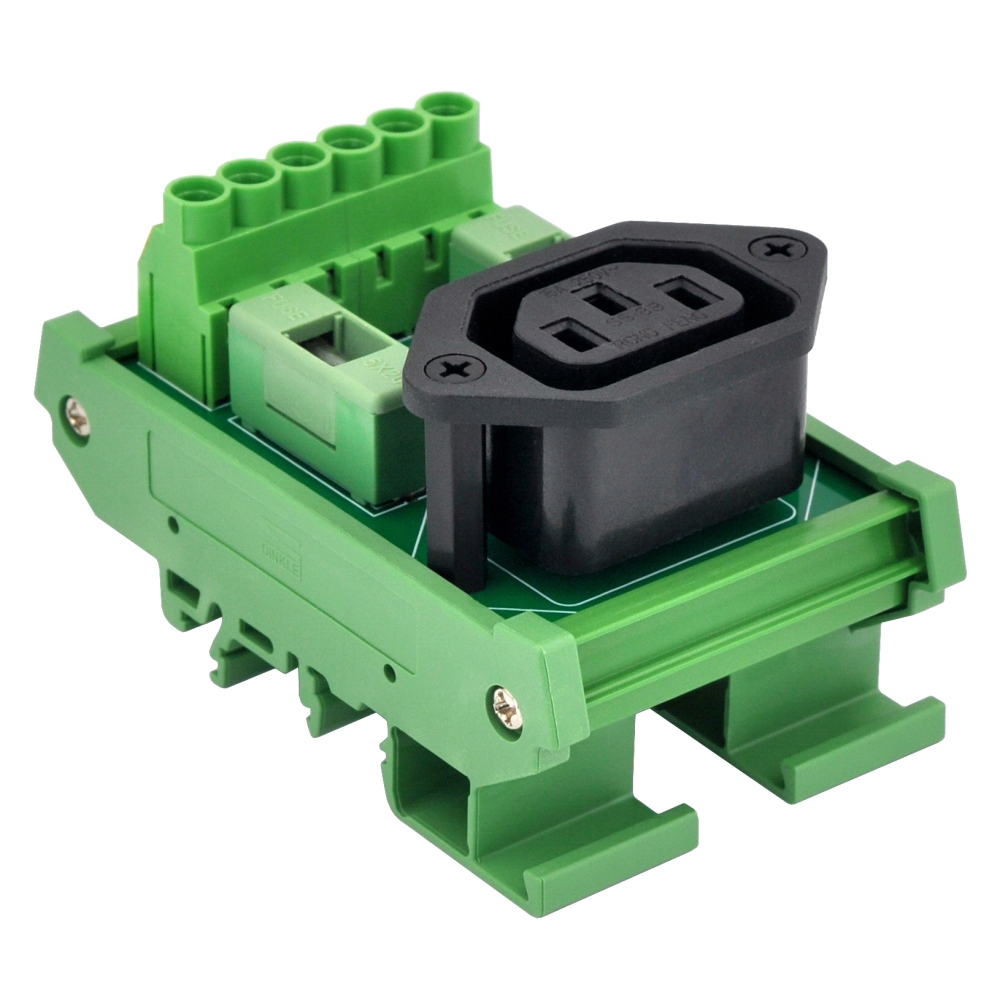

DIN rail mount AC 250V IEC320 C13 receptacle outlet power podule, with one 3-prong grounded IEC320 C13 AC receptacle, and with dual T6.3 Amp 5 x 20mm glass fuses to protection circuit.
1, Outlet: single 3-prong grounded IEC320 C13 AC receptacle.
2, Rated voltage AC 250V. Receptacle rated current 6.3 Amps(limited by fuse rated current).
3, Fuse holders for 5x20mm tube fuse, factory-installed fuses T6.3Amp.
4, Input terminals pitch 6.35mm/0.25", maximum current 20 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.

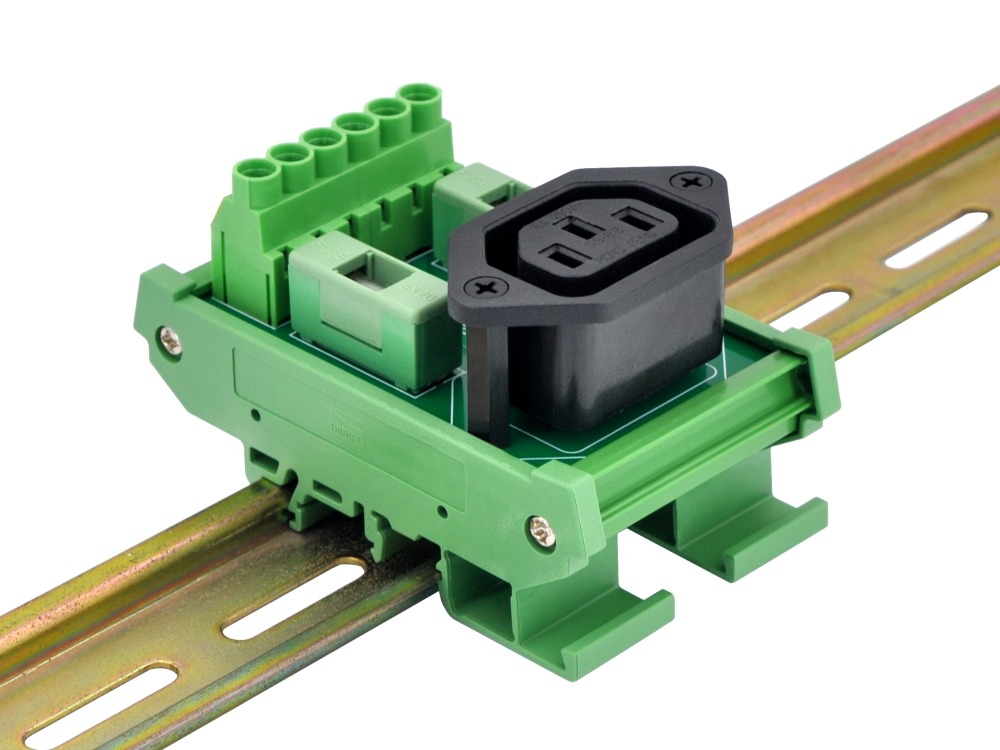

5, DIN rail mount carrier can support width 35mm 32mm 15mm rail. High quality fireproof nylon material.
6, UL CE certified DIN rail nylon material mount carrier. UL 94-V0 certified FR-4 fiberglass material PCB. UL CE CQC certified terminal blocks. UL CSA certified IEC320 C13 receptacle. UL VDE certified fuse holder.
