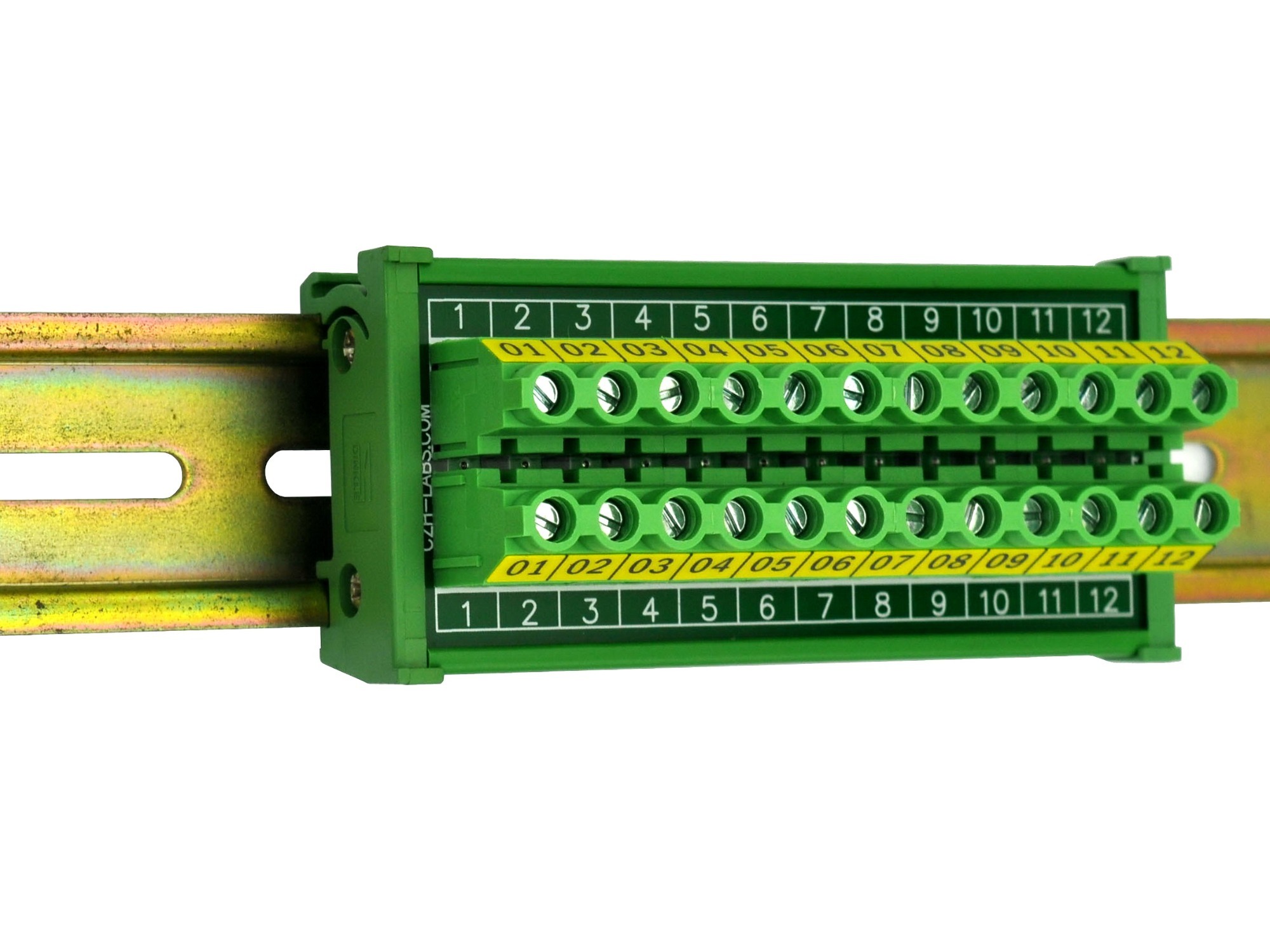

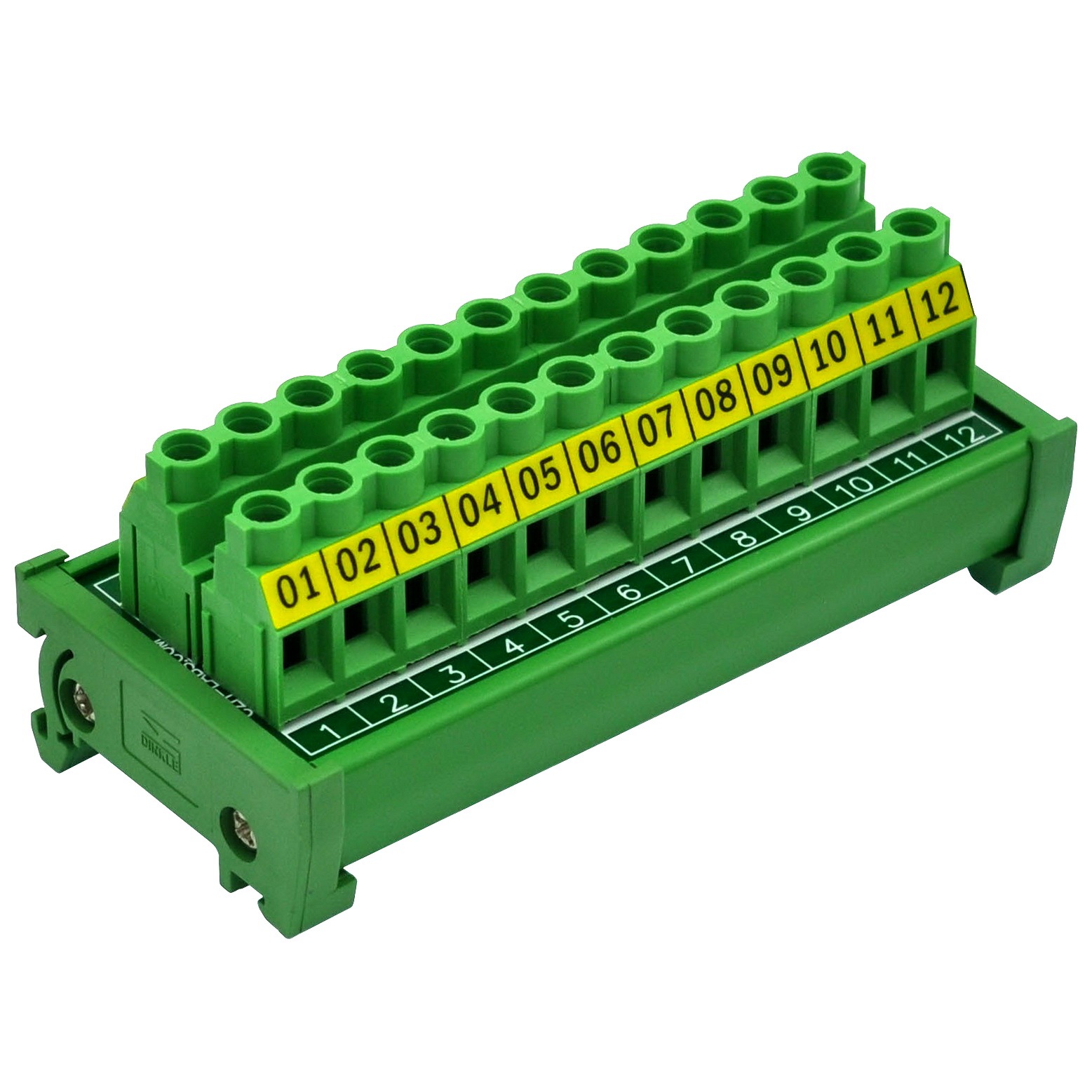

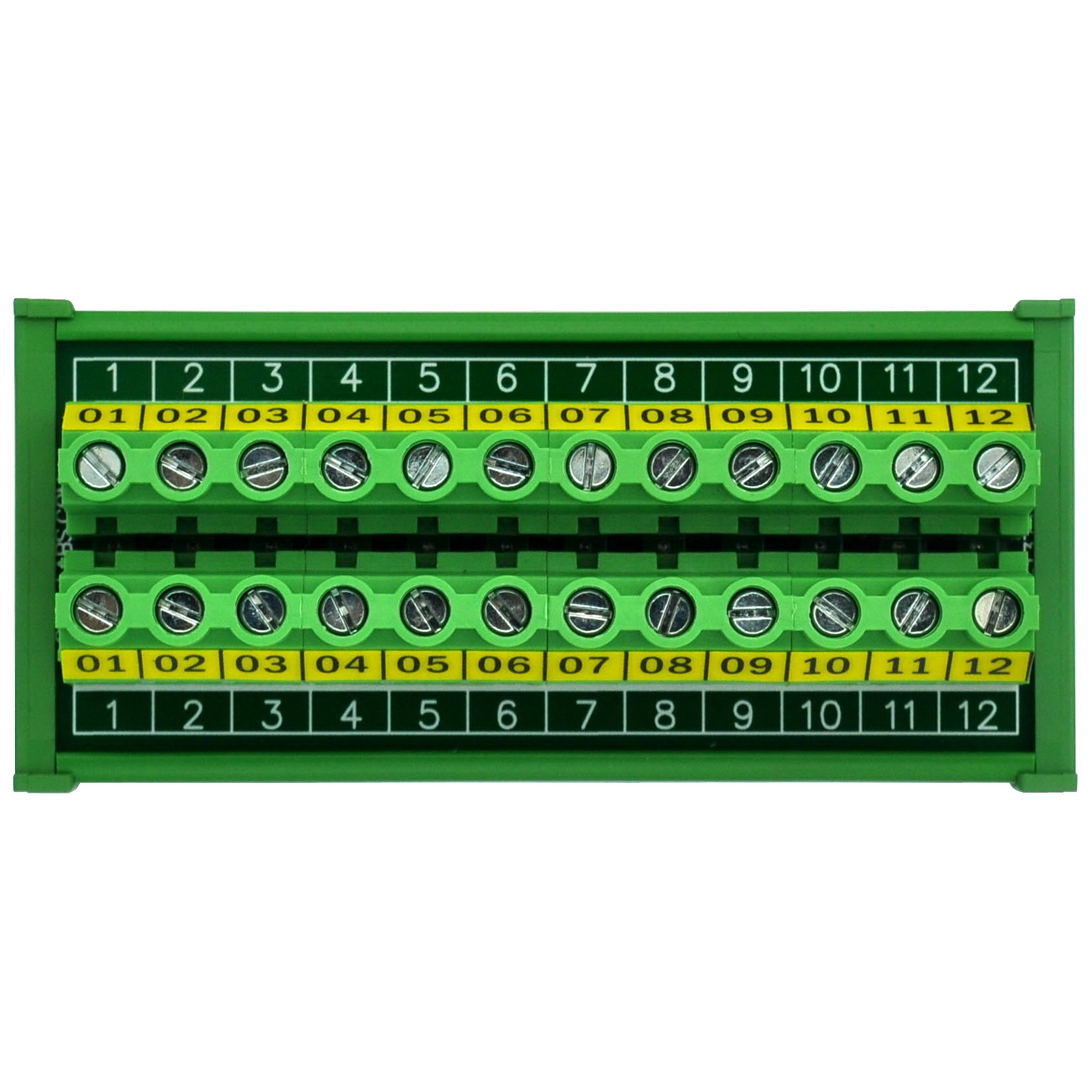

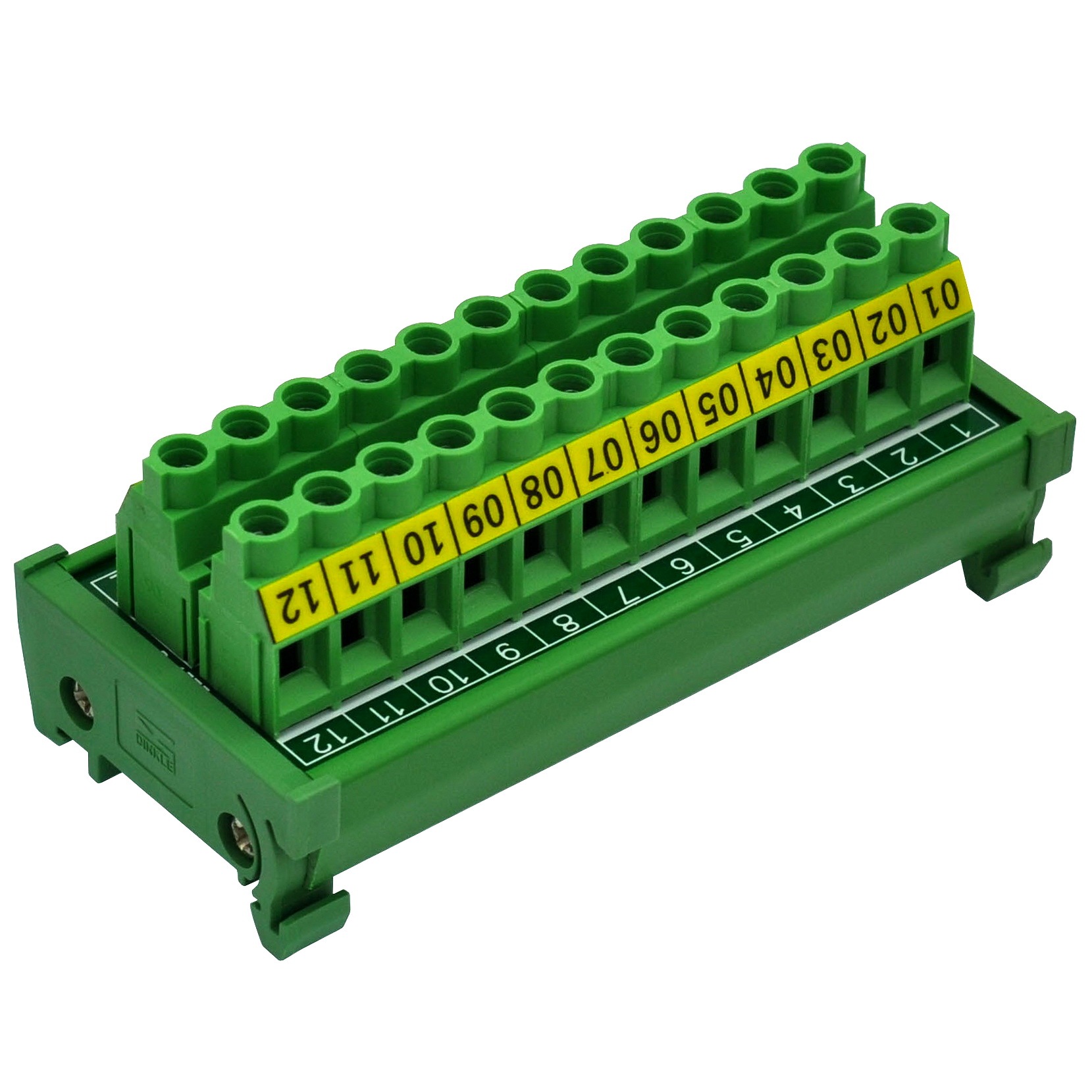

1, DIN Rail Mount 30A/300V 12 Position Screw Terminal Block Distribution Module.
2, Terminal Block: Pitch 7.62mm/0.3", Strip length 8mm. Screws - M3,steel,Cr3+ Zn plated. Pin header and Cage - Brass.
3, Wire range 26AWG ~ 10AWG / 4.0mm square. Rated voltage 300V, rated current 30Amp(per position).
4, High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.

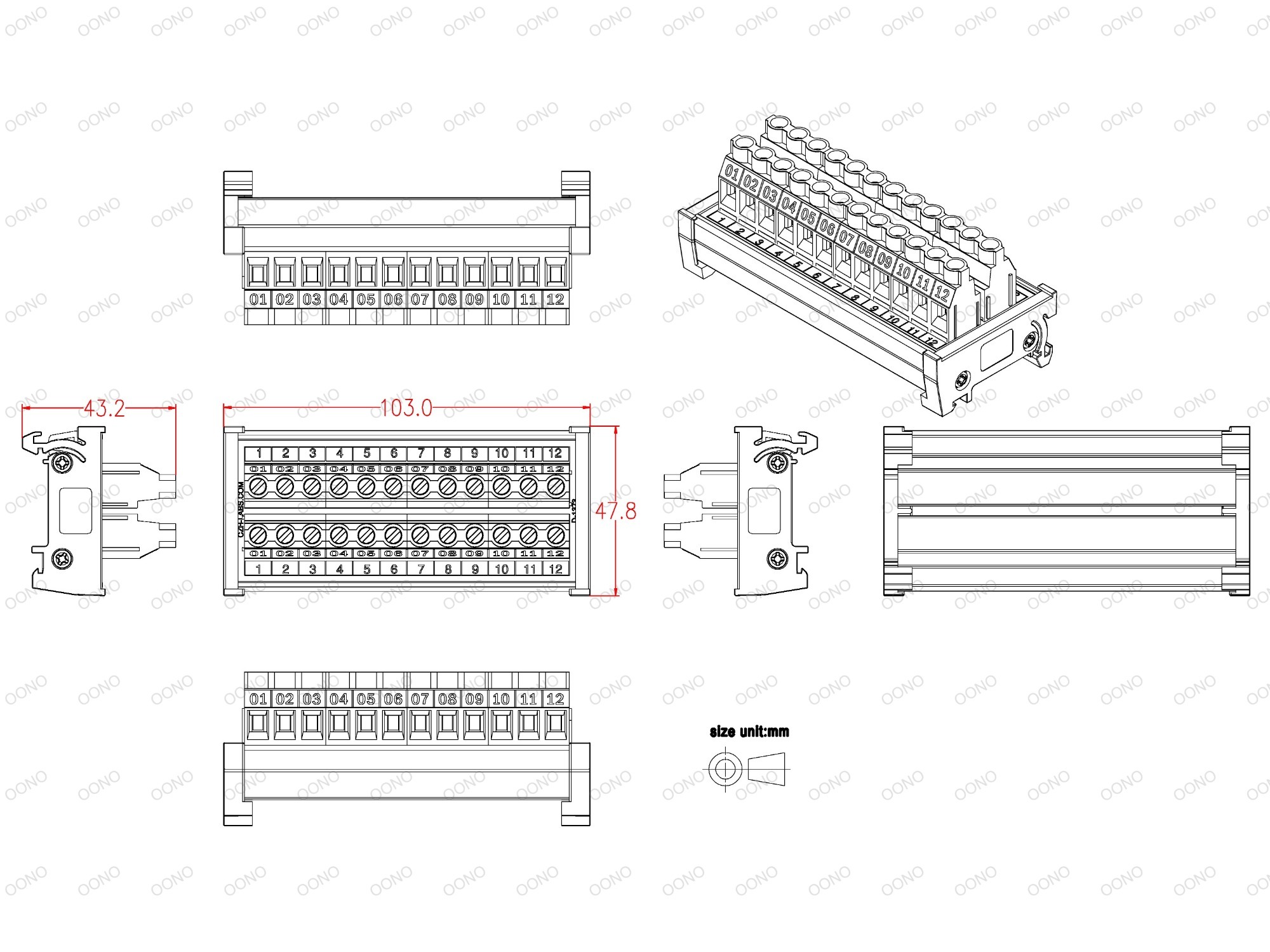

5, External dimensions: L103mm x W47.8mm x H37.3mm / 4.05" x 1.89" x 1.47"
