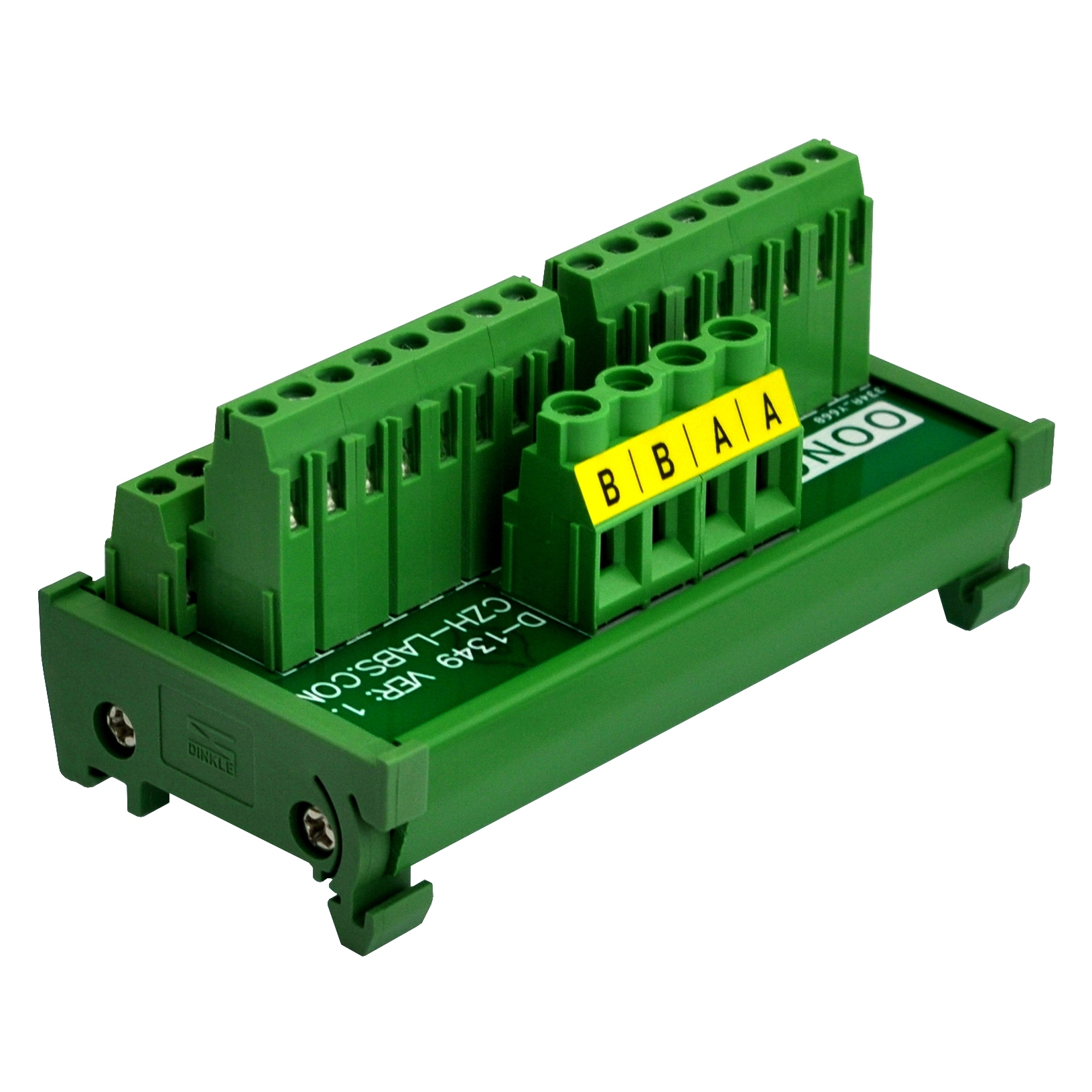

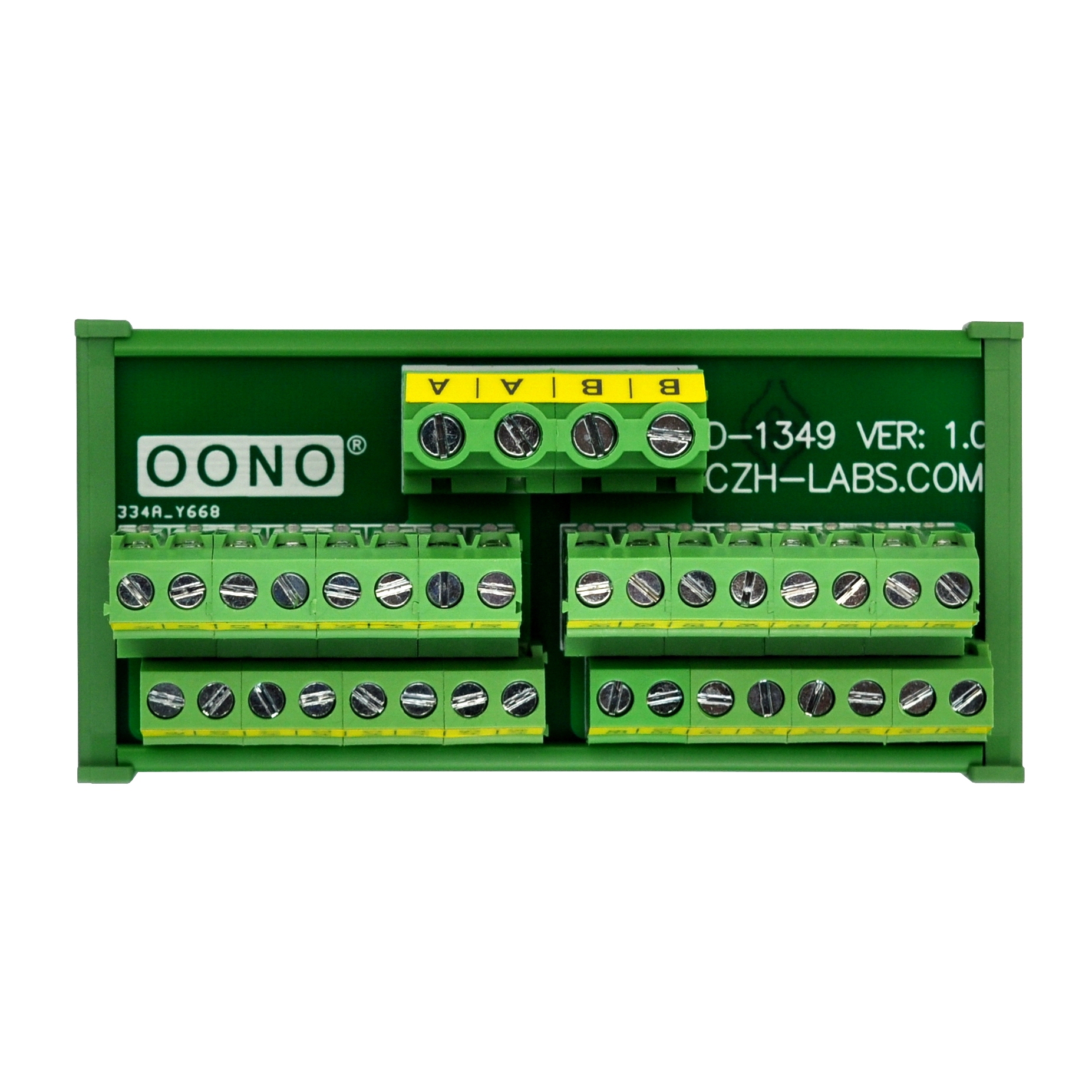

DIN Rail Mount 2x16 Position Screw Terminal Block Power Distribution Module

Name: DIN Rail Mount 2x16 Position Screw Terminal Block Power Distribution Module
Brand: Xiken Tech
SKU: D-1349T
Price: 20 USD
Availability: InStock

SKU: D-1349T

$20.00 ~~$20.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

1, Maximum Voltage: 250Vac/dc, Maximum Current Rating 40A(per channel).

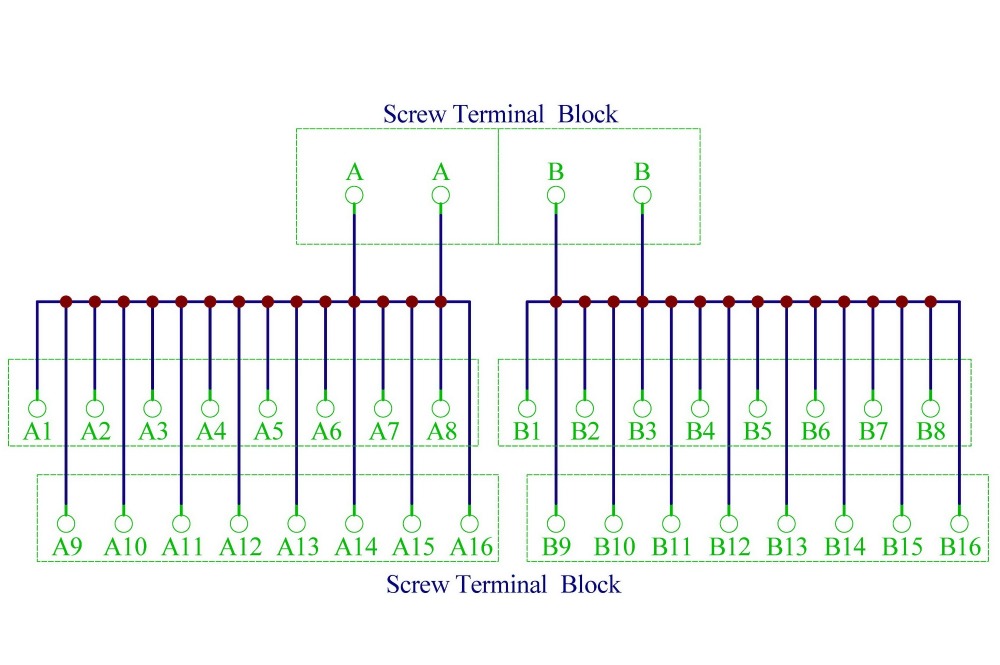

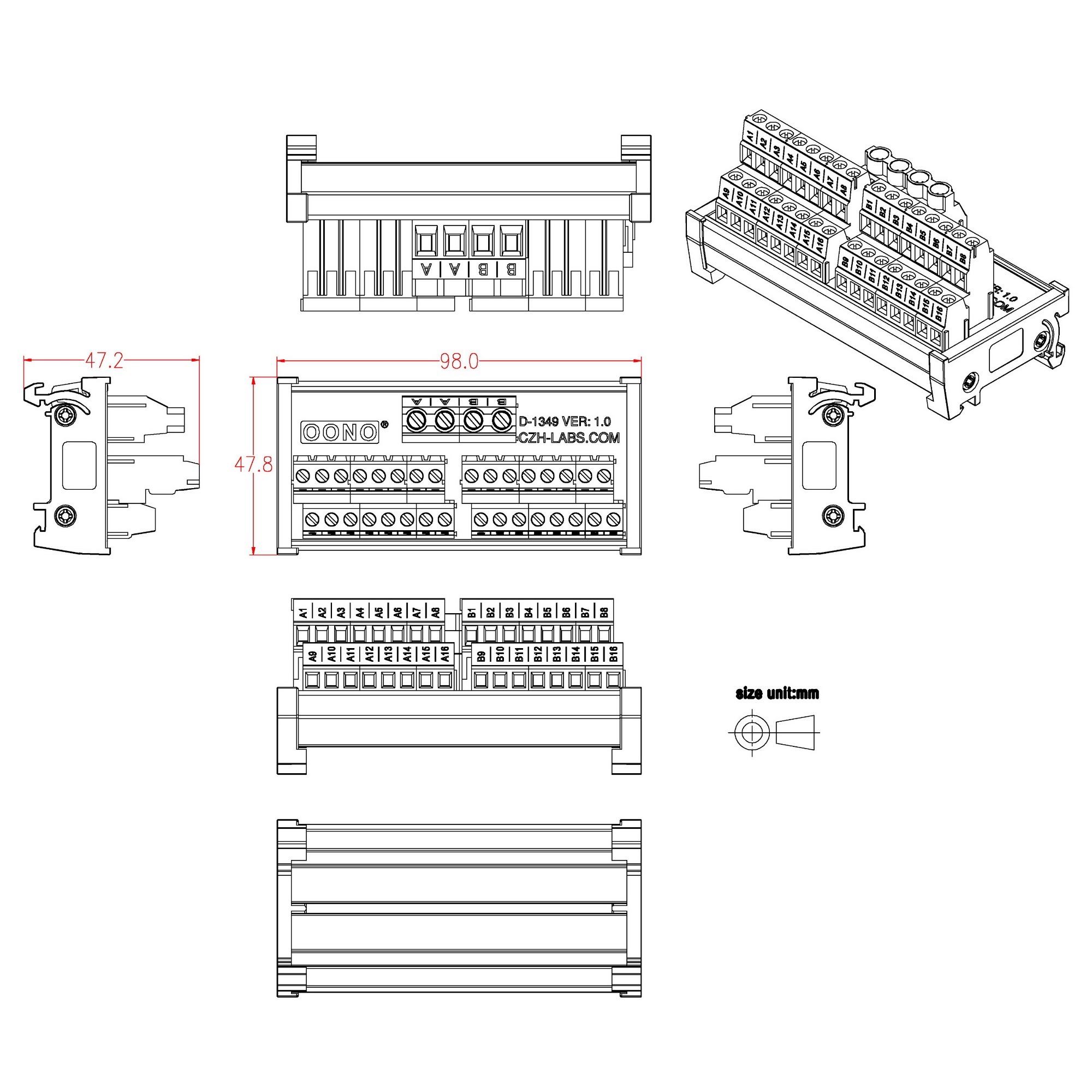

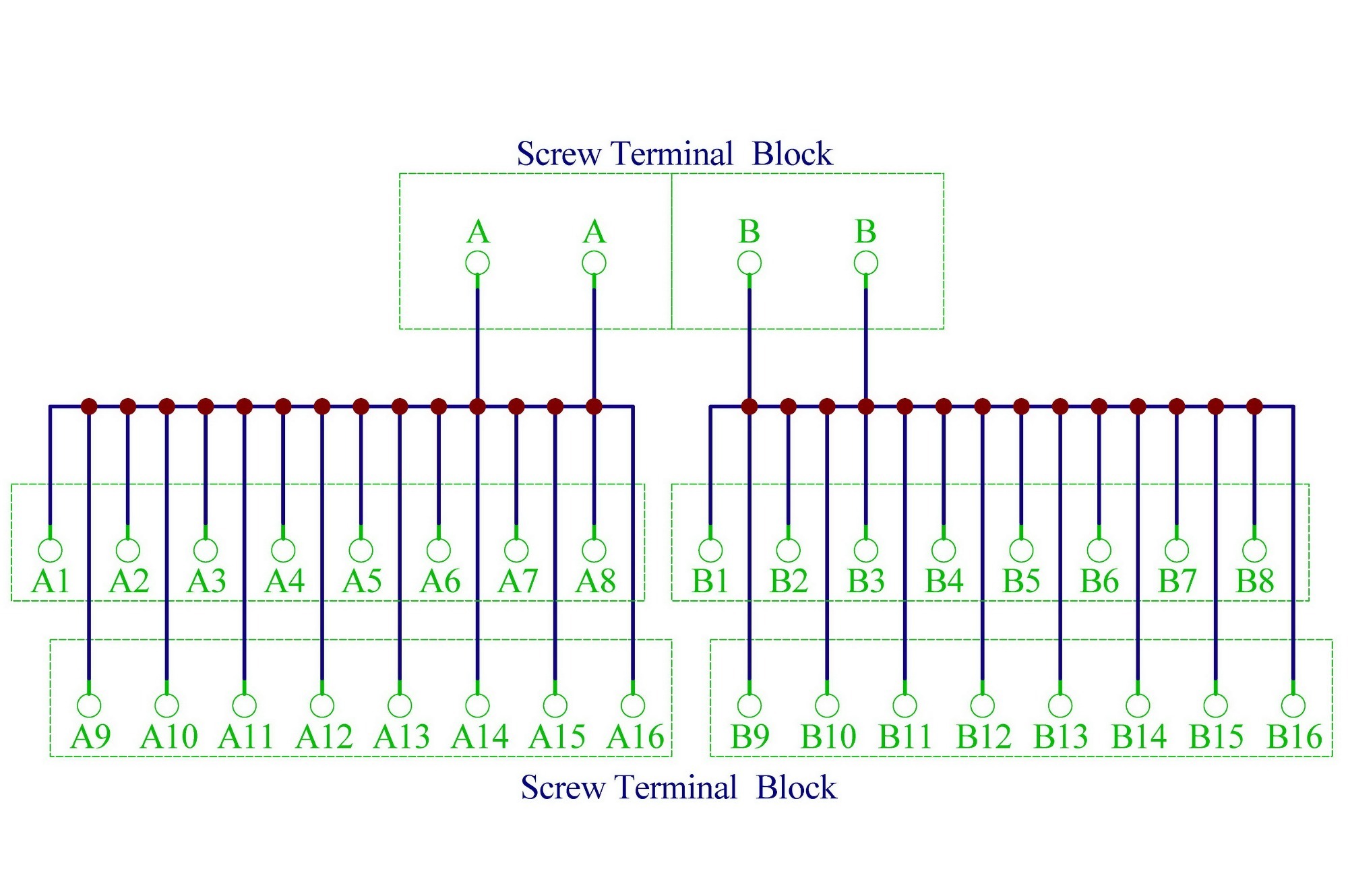

2, Input terminals(A, B): pitch - 7.62mm/0.3", current 30A for per position(total 40A for A or B channel), wire size 26~10 AWG / 4.0mm square, stripping length 8mm, Metric M3 slotted screw.

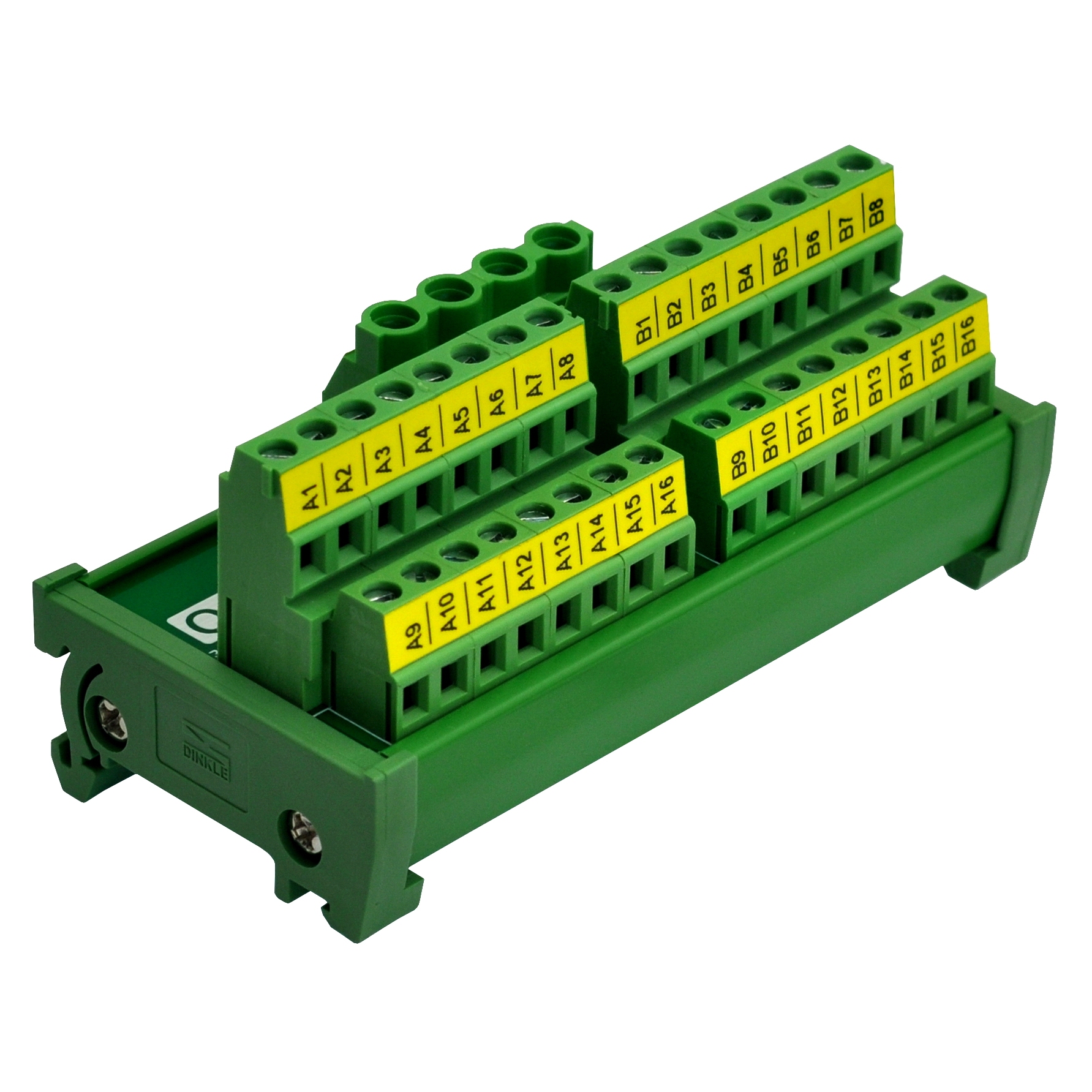

3, Output terminals(A1~A16, B1~B16): pitch - 5.08mm/0.2", current 16A for per position(total 40A for A or B channel), wire size 28~12 AWG / 2.5mm square, stripping length 7mm, Metric M2.5 slotted screw.
4, FR-4 fiber glass PCB, dual copper layers.

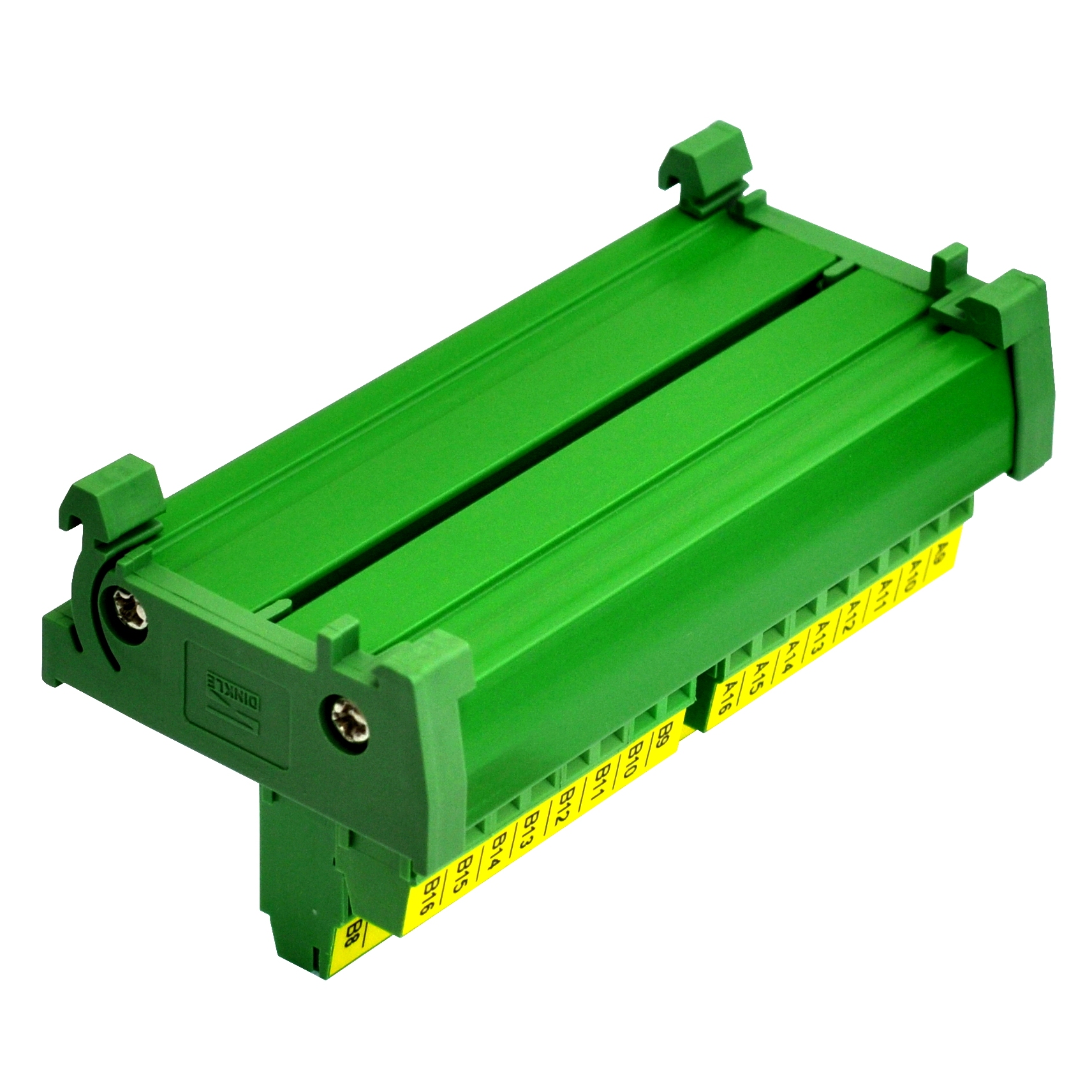

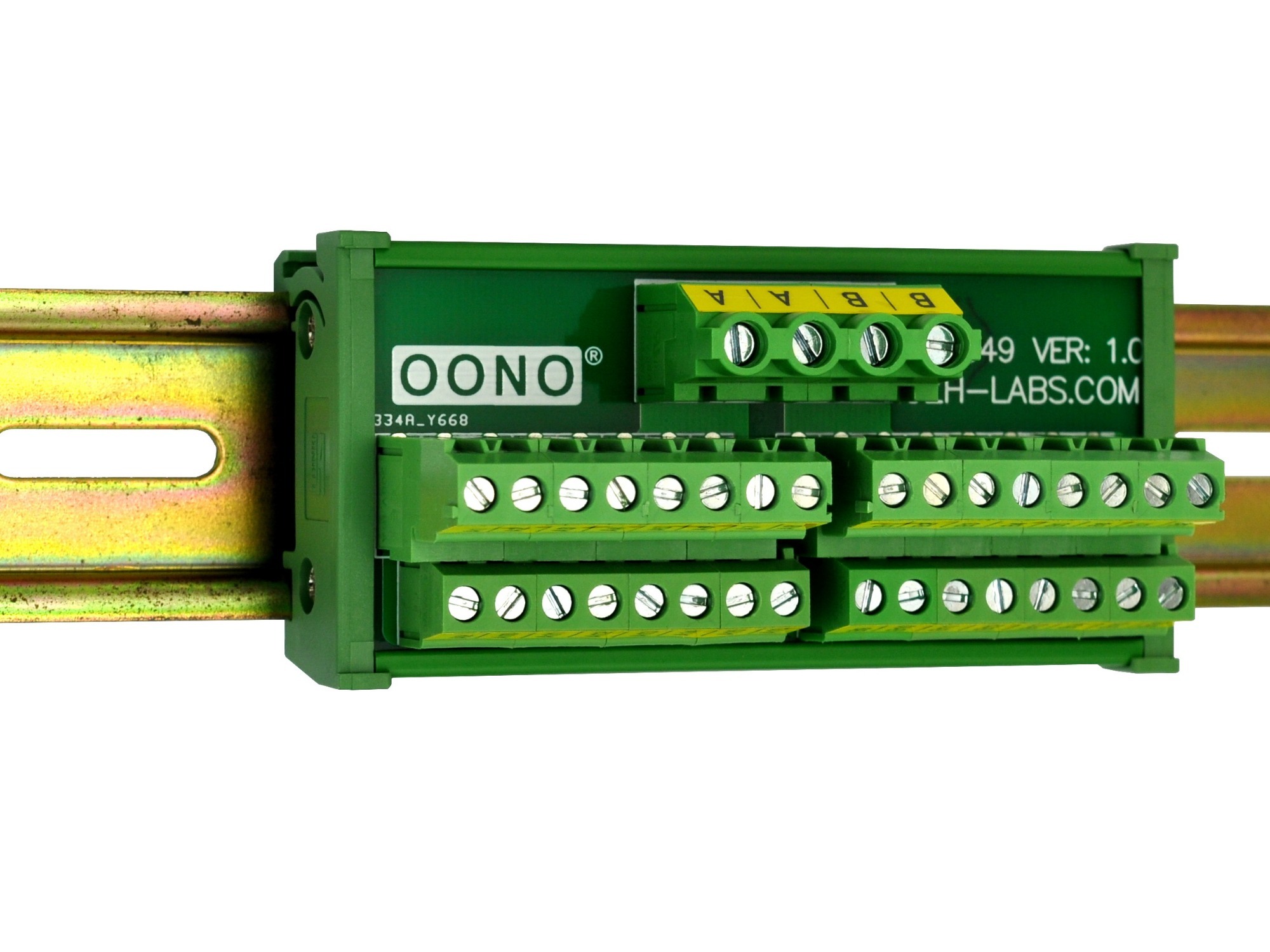

5, High quality Taiwan fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.
