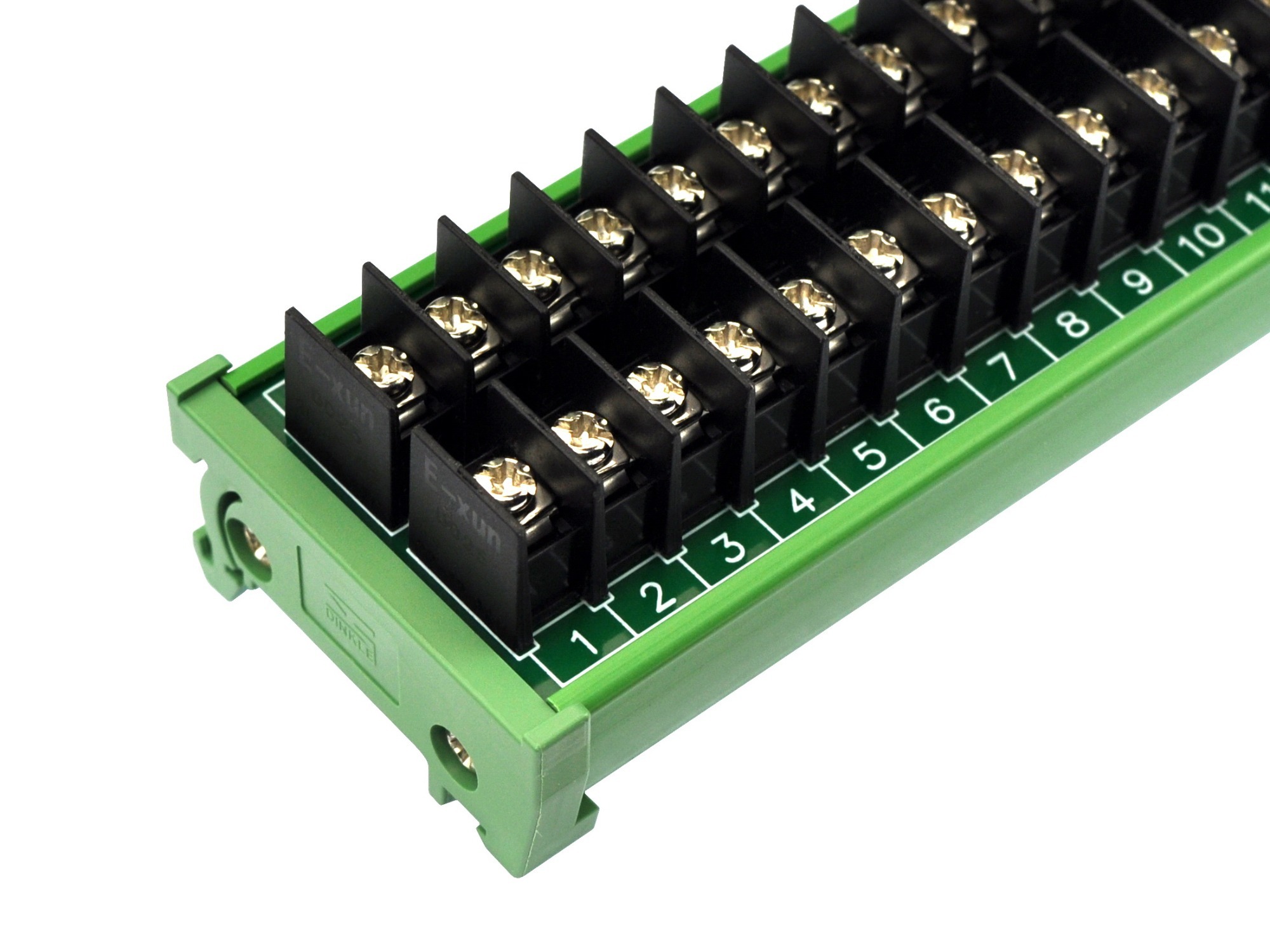

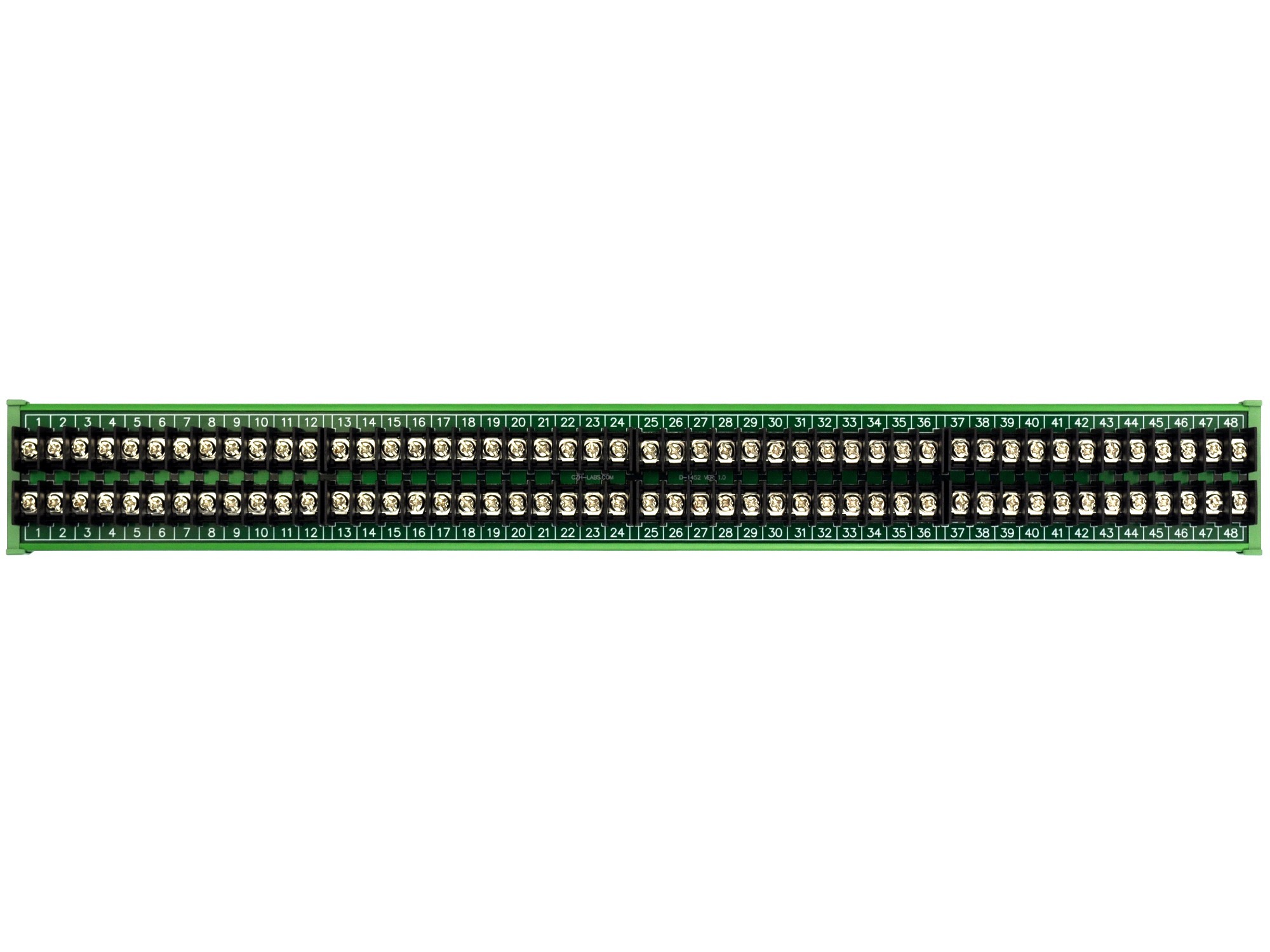

DIN Rail Mount 20Amp 2x48 Position Barrier Terminal Block Module

Name: DIN Rail Mount 20Amp 2x48 Position Barrier Terminal Block Module
Brand: Xiken Tech
SKU: D-1452T
Price: 52 USD
Availability: InStock

SKU: D-1452T

$52.00 ~~$52.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

1, 20Amp 2x48 position barrier terminal block module. DIN rail mount version.
2, Rated current 20A(per position). Rated voltage 300V.

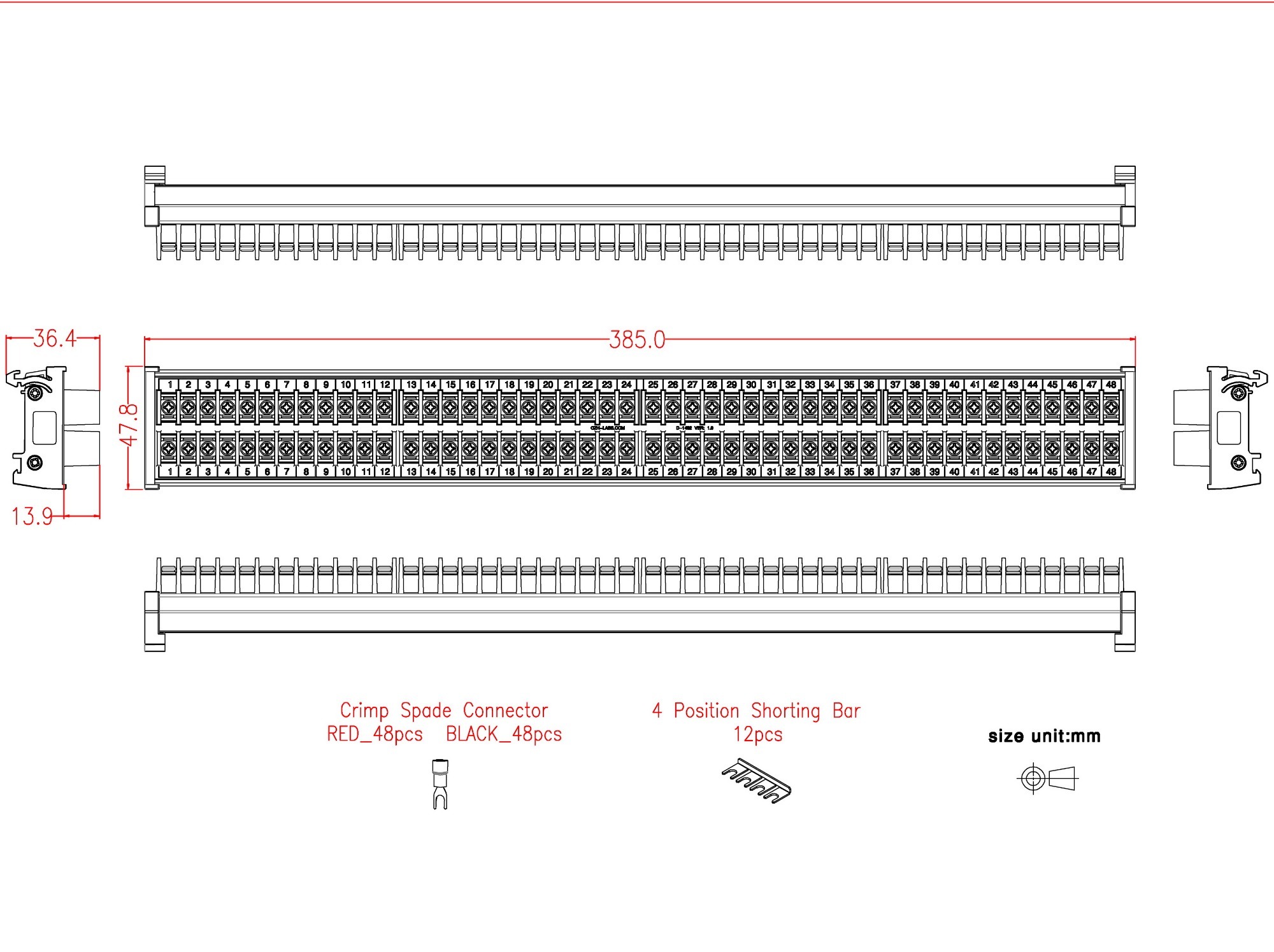

3, Barrier terminal blocks: pitch 7.62mm / 0.3 inch, screw Metric M3(thread diameter 3mm).

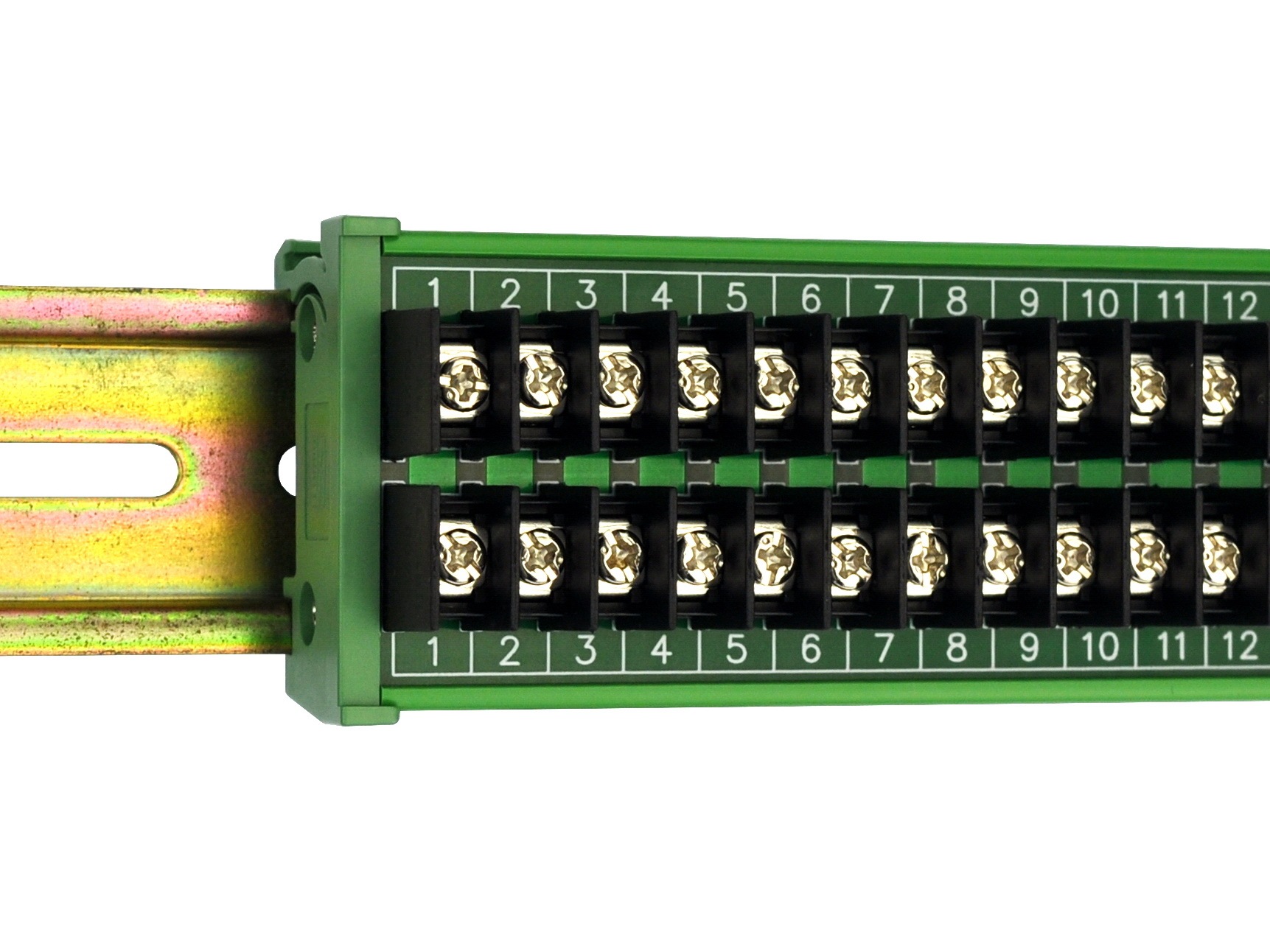

4, Taiwan high quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail. FR-4 glass fiber PCB.

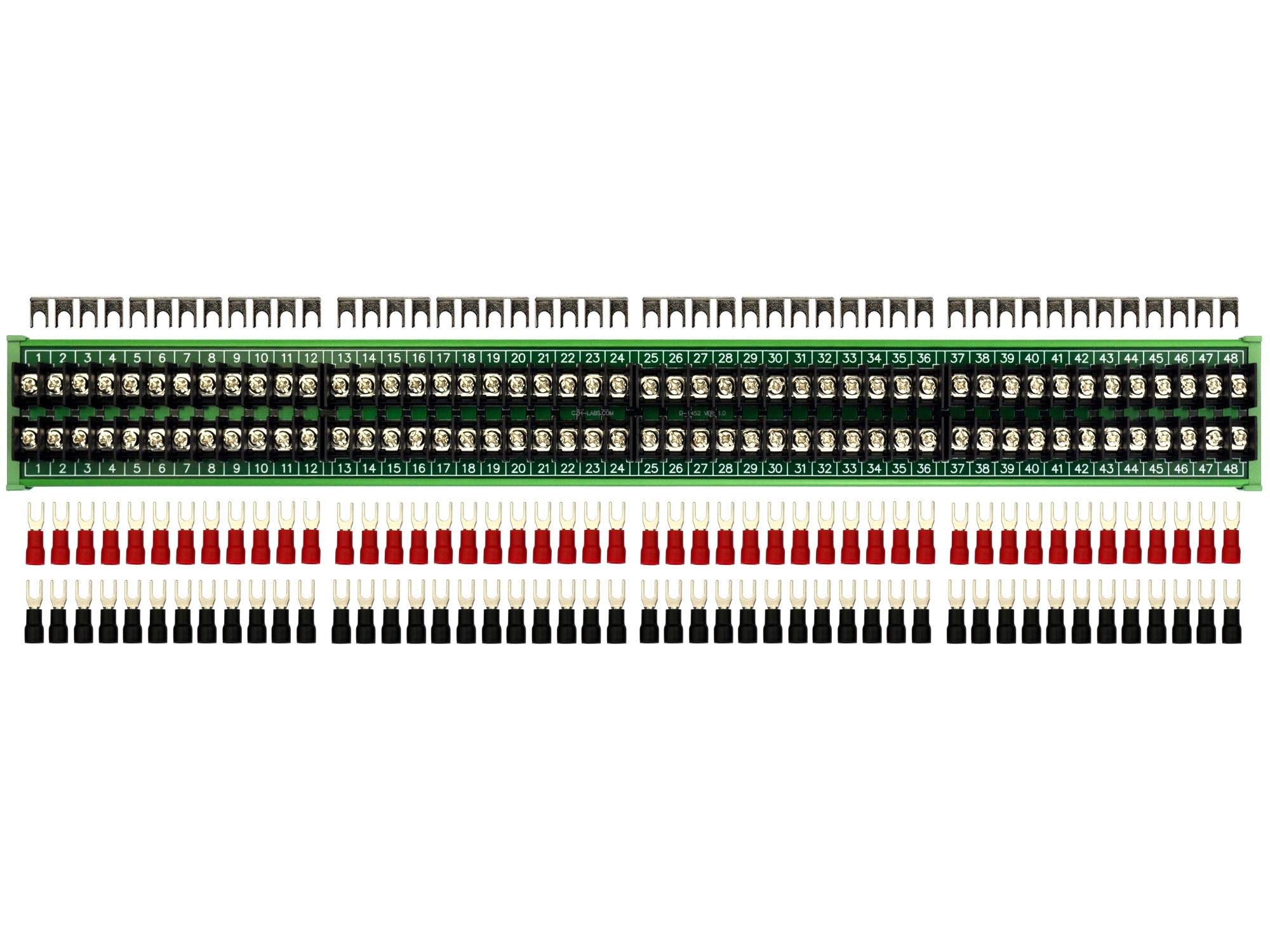

5, Packing list:
1x Barrier terminal block module.
48x Red crimp spade connectors(26AWG ~ 12AWG / 2.5mm square).
48x Black crimp spade connectors(26AWG ~ 12AWG / 2.5mm square).
12x 4-Position shorting bars(It is convenient for you to flexibly short-circuit the wiring).
