CZH-LABS RJ9 4P4C DIN Rail Mount Interface Module, Vertical Jack.

SKU: D-1038T
0.0 (0)
0 Sold
$14.99 $14.99
CZH-LABS RJ9 4P4C DIN Rail Mount Interface Module, Vertical Jack.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
Quantity:
0 in stock
1 * $14.99 = $14.99
save $0.00
Add to Favorites (0)
  • CZH-LABS RJ9 4P4C DIN Rail Mount Interface Module, Vertical Jack.
  • CZH-LABS RJ9 4P4C DIN Rail Mount Interface Module, Vertical Jack.
  • CZH-LABS RJ9 4P4C DIN Rail Mount Interface Module, Vertical Jack.
  • CZH-LABS RJ9 4P4C DIN Rail Mount Interface Module, Vertical Jack.
  • CZH-LABS RJ9 4P4C DIN Rail Mount Interface Module, Vertical Jack.
  • CZH-LABS RJ9 4P4C DIN Rail Mount Interface Module, Vertical Jack.
  • Description

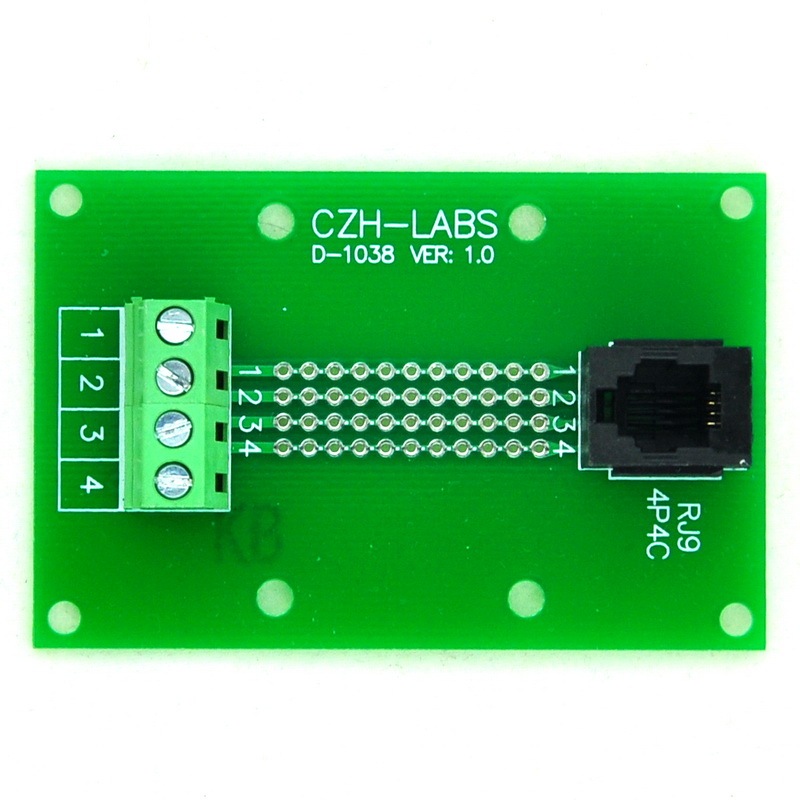

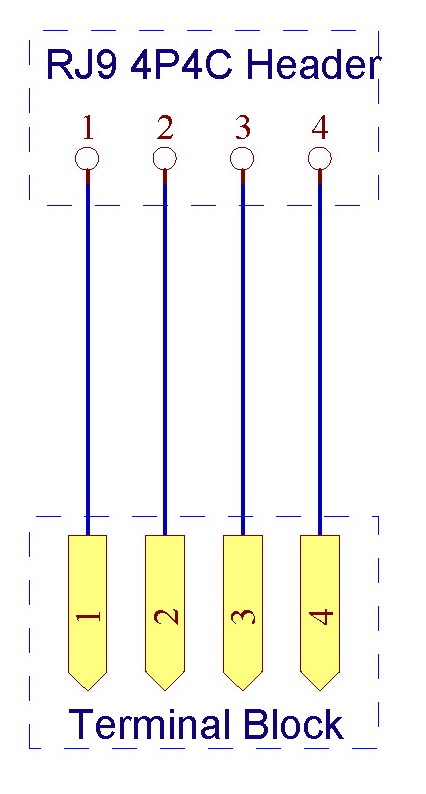

RJ9 4P4C DIN Rail Mount Interface Module.

RJ9 4P4C vertical jack.
Pitch 5mm/0.197" screw terminal block.

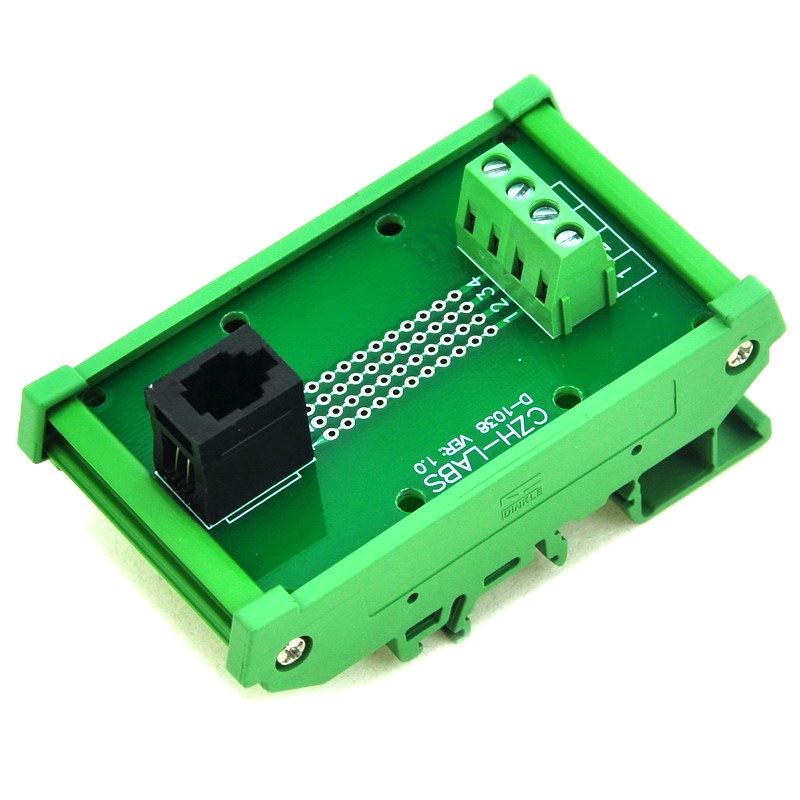

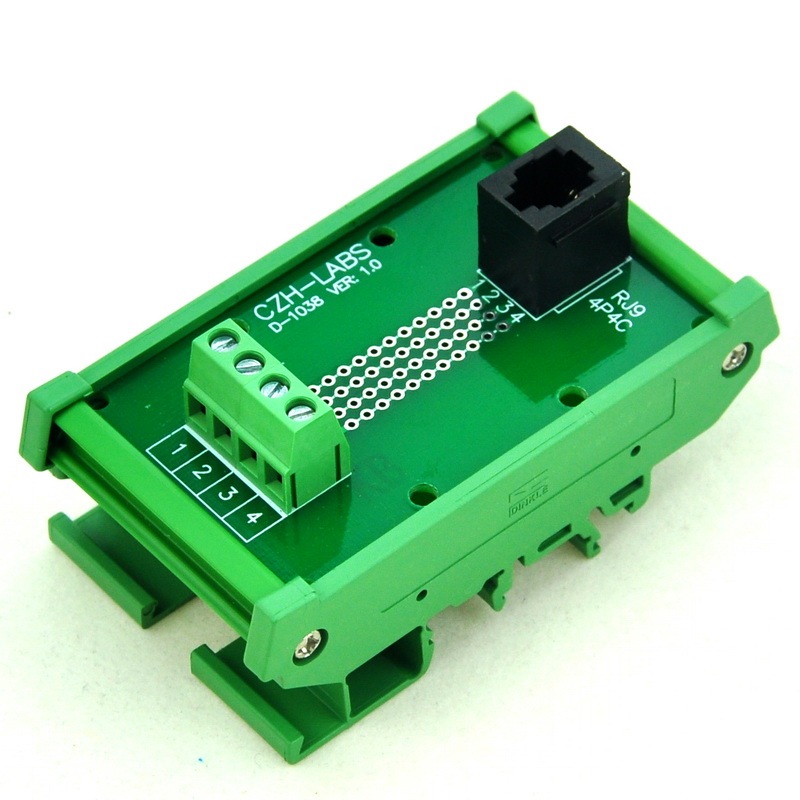

DIN rail mountable - for width 35 / 32 / 15mm rails.

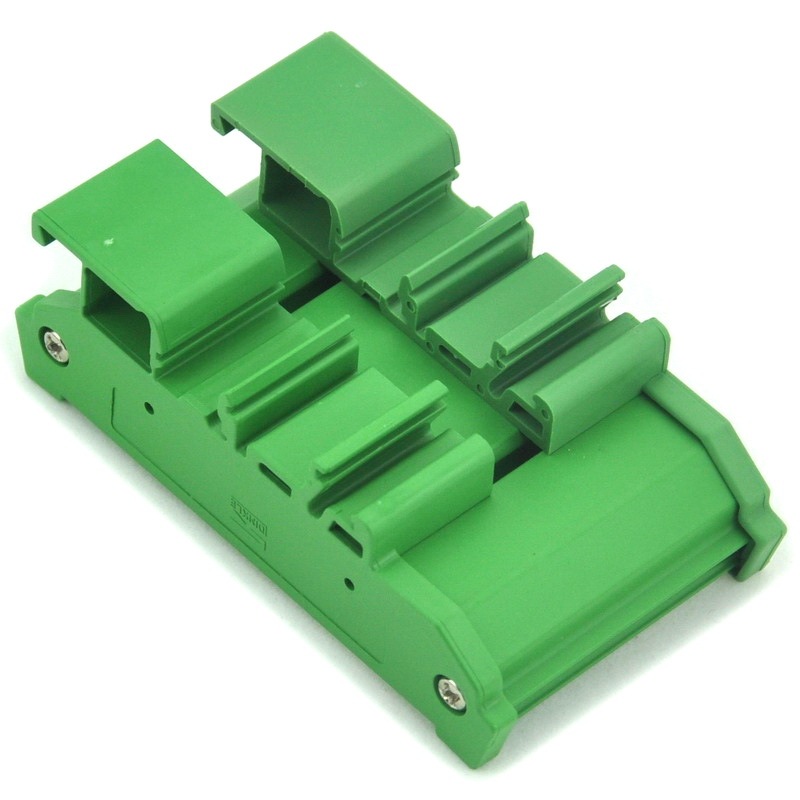

DIN mount case can be taken apart for panel mount use.
High quality PCB housing/carrier.
Solder connection holes 11 per line, supports addition of 0.1" pin headers.
FR-4 fiber glass PCB, dual copper layers.
External dimensions: 72 x 49.5 x 42mm(W x L x H).

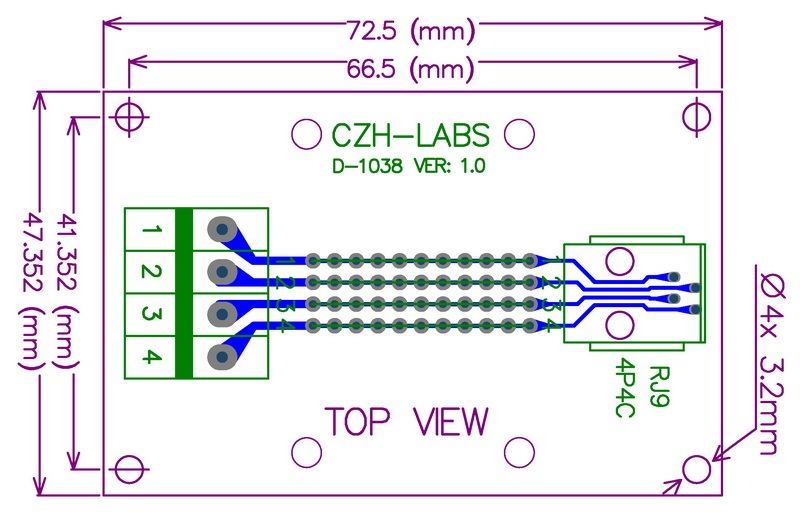

PCB dimensions: 72 x 47.35mm(W x L).
100% new, never used.

Rated voltage: 100V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC

Terminal block specifications:
Wire range: 24 ~ 12 AWG.
Strip length: 7mm.
Screws - M2.5, steel, Cr3+ Zn plated.
Pin header and Cage - Brass.
