CZH-LABS RJ45 8P8C Vertical Shielded Jack Breakout Board, Terminal Block, Connector.

SKU: D-1006V
$5.99 $5.99
CZH-LABS RJ45 8P8C Vertical Shielded Jack Breakout Board, Terminal Block, Connector.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $5.99 = $5.99
save $0.00
Add to Favorites
  • CZH-LABS RJ45 8P8C Vertical Shielded Jack Breakout Board, Terminal Block, Connector.
  • CZH-LABS RJ45 8P8C Vertical Shielded Jack Breakout Board, Terminal Block, Connector.
  • CZH-LABS RJ45 8P8C Vertical Shielded Jack Breakout Board, Terminal Block, Connector.
  • CZH-LABS RJ45 8P8C Vertical Shielded Jack Breakout Board, Terminal Block, Connector.
  • CZH-LABS RJ45 8P8C Vertical Shielded Jack Breakout Board, Terminal Block, Connector.
  • CZH-LABS RJ45 8P8C Vertical Shielded Jack Breakout Board, Terminal Block, Connector.
  • CZH-LABS RJ45 8P8C Vertical Shielded Jack Breakout Board, Terminal Block, Connector.
  • CZH-LABS RJ45 8P8C Vertical Shielded Jack Breakout Board, Terminal Block, Connector.
  • CZH-LABS RJ45 8P8C Vertical Shielded Jack Breakout Board, Terminal Block, Connector.
  • CZH-LABS RJ45 8P8C Vertical Shielded Jack Breakout Board, Terminal Block, Connector.
1/1
  • CZH-LABS RJ45 8P8C Vertical Shielded Jack Breakout Board, Terminal Block, Connector.
  • CZH-LABS RJ45 8P8C Vertical Shielded Jack Breakout Board, Terminal Block, Connector.
  • CZH-LABS RJ45 8P8C Vertical Shielded Jack Breakout Board, Terminal Block, Connector.
  • CZH-LABS RJ45 8P8C Vertical Shielded Jack Breakout Board, Terminal Block, Connector.
  • CZH-LABS RJ45 8P8C Vertical Shielded Jack Breakout Board, Terminal Block, Connector.
  • Description

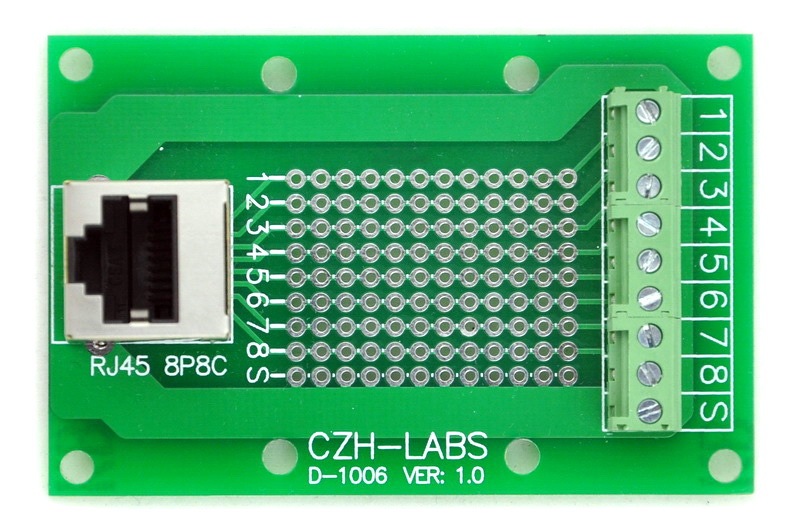

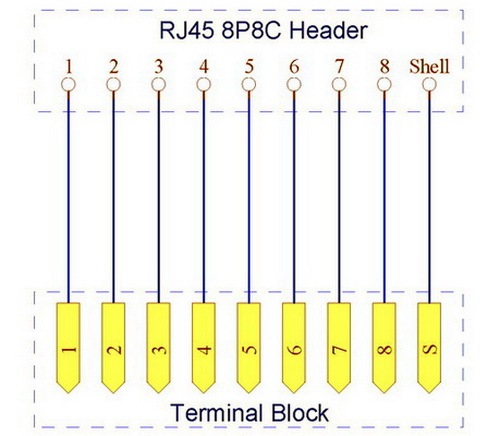

RJ45 8P8C Jack Breakout Board.

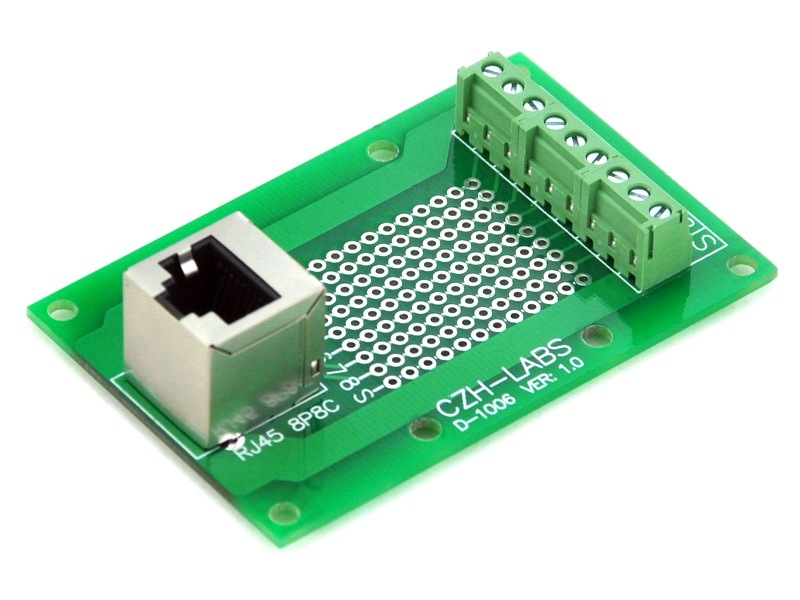

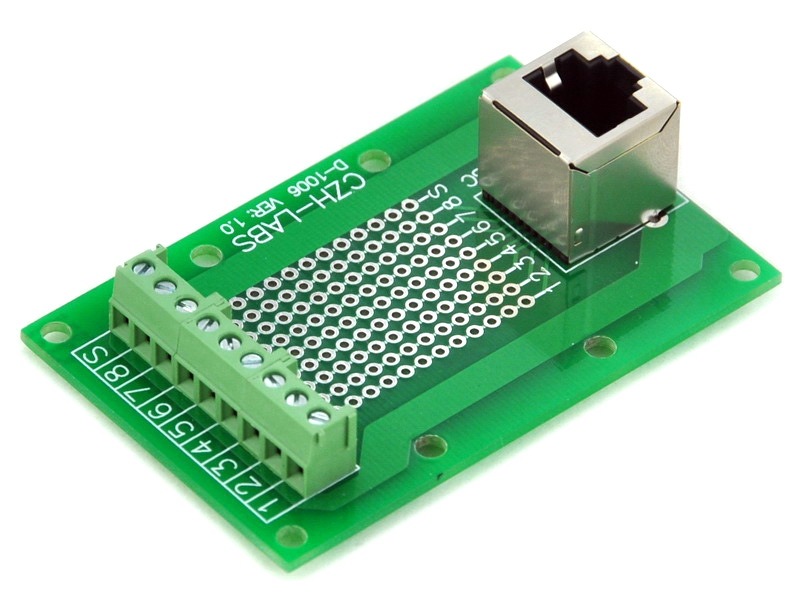

RJ45 vertical shielded 8P8C jack.
Pitch 3.81mm/0.15" screw terminal block.
Solder connection holes 12 per line, supports addition of 0.1" pin headers.
FR-4 fiber glass PCB, dual copper layers.

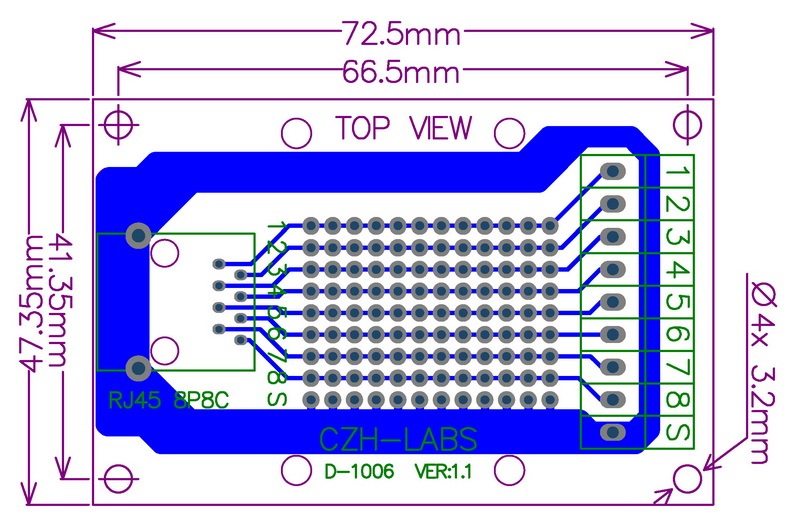

PCB dimensions: 72 x 47.35 x 20mm(W x L x H).
100% new, never used.

Rated voltage: 100V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC

Terminal block specifications:
Wire range: 26 ~ 16AWG.
Strip length: 5mm.
Screws: M2, steel, Cr3+ Zn plated.
Pin header and Cage: Brass.
