CZH-LABS RJ11/RJ12 6P6C 4-Way Buss Board Interface Module with Simple DIN Rail Bracket.

SKU: D-1084S
$11.99 $11.99
CZH-LABS RJ11/RJ12 6P6C 4-Way Buss Board Interface Module with Simple DIN Rail Bracket.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $11.99 = $11.99
save $0.00
Add to Favorites
  • CZH-LABS RJ11/RJ12 6P6C 4-Way Buss Board Interface Module with Simple DIN Rail Bracket.
  • CZH-LABS RJ11/RJ12 6P6C 4-Way Buss Board Interface Module with Simple DIN Rail Bracket.
  • CZH-LABS RJ11/RJ12 6P6C 4-Way Buss Board Interface Module with Simple DIN Rail Bracket.
  • CZH-LABS RJ11/RJ12 6P6C 4-Way Buss Board Interface Module with Simple DIN Rail Bracket.
  • CZH-LABS RJ11/RJ12 6P6C 4-Way Buss Board Interface Module with Simple DIN Rail Bracket.
  • CZH-LABS RJ11/RJ12 6P6C 4-Way Buss Board Interface Module with Simple DIN Rail Bracket.
  • CZH-LABS RJ11/RJ12 6P6C 4-Way Buss Board Interface Module with Simple DIN Rail Bracket.
  • CZH-LABS RJ11/RJ12 6P6C 4-Way Buss Board Interface Module with Simple DIN Rail Bracket.
  • CZH-LABS RJ11/RJ12 6P6C 4-Way Buss Board Interface Module with Simple DIN Rail Bracket.
  • CZH-LABS RJ11/RJ12 6P6C 4-Way Buss Board Interface Module with Simple DIN Rail Bracket.
  • CZH-LABS RJ11/RJ12 6P6C 4-Way Buss Board Interface Module with Simple DIN Rail Bracket.
  • CZH-LABS RJ11/RJ12 6P6C 4-Way Buss Board Interface Module with Simple DIN Rail Bracket.
1/1
  • CZH-LABS RJ11/RJ12 6P6C 4-Way Buss Board Interface Module with Simple DIN Rail Bracket.
  • CZH-LABS RJ11/RJ12 6P6C 4-Way Buss Board Interface Module with Simple DIN Rail Bracket.
  • CZH-LABS RJ11/RJ12 6P6C 4-Way Buss Board Interface Module with Simple DIN Rail Bracket.
  • CZH-LABS RJ11/RJ12 6P6C 4-Way Buss Board Interface Module with Simple DIN Rail Bracket.
  • CZH-LABS RJ11/RJ12 6P6C 4-Way Buss Board Interface Module with Simple DIN Rail Bracket.
  • CZH-LABS RJ11/RJ12 6P6C 4-Way Buss Board Interface Module with Simple DIN Rail Bracket.
  • Description

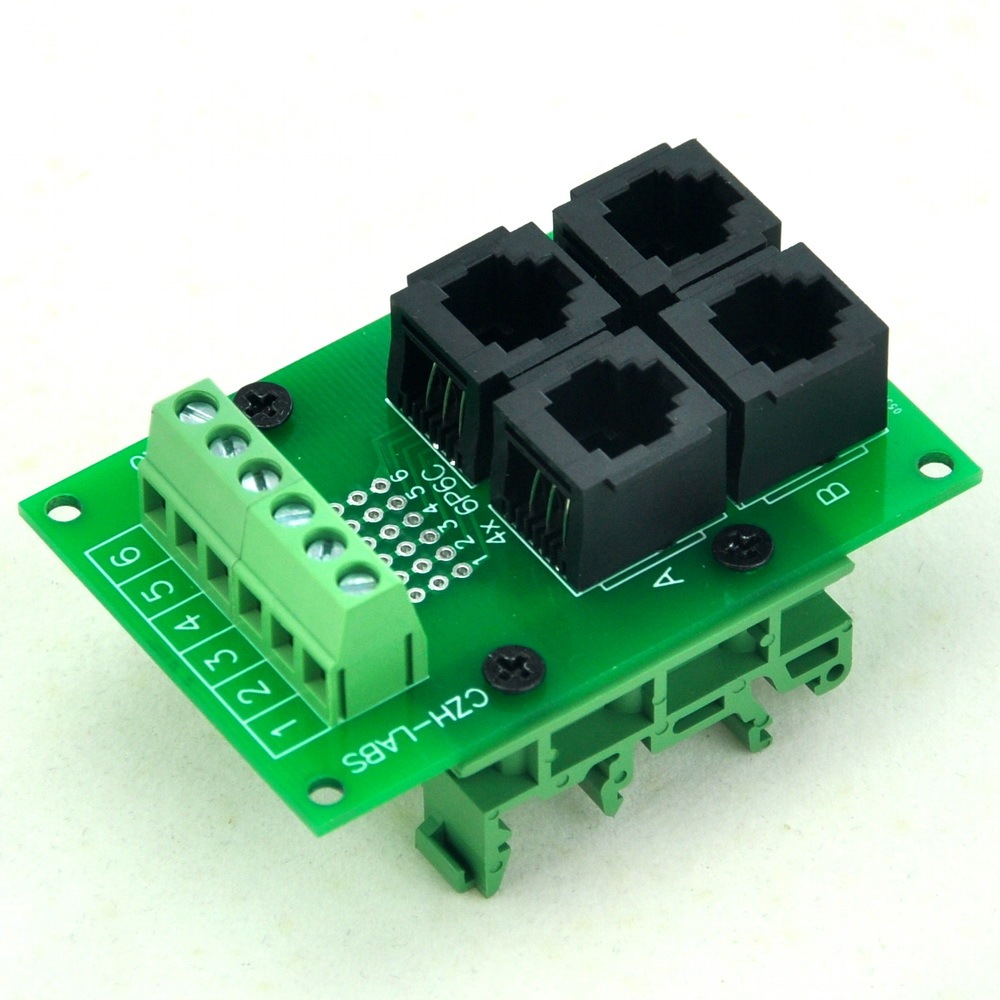

RJ11/RJ12 6P6C 4-Way Buss Board Interface Module with Simple DIN Rail Mount Bracket.

Vertical 6P6C jacks.
Pitch 5mm/0.197" screw terminal block.
Solder connection holes, four (4) per line, supports addition of 0.1" pin headers.
FR-4 fiber glass PCB, dual copper layers.
Simple DIN Adapter(Bracket), for width 35 / 32 / 15mm DIN rail.

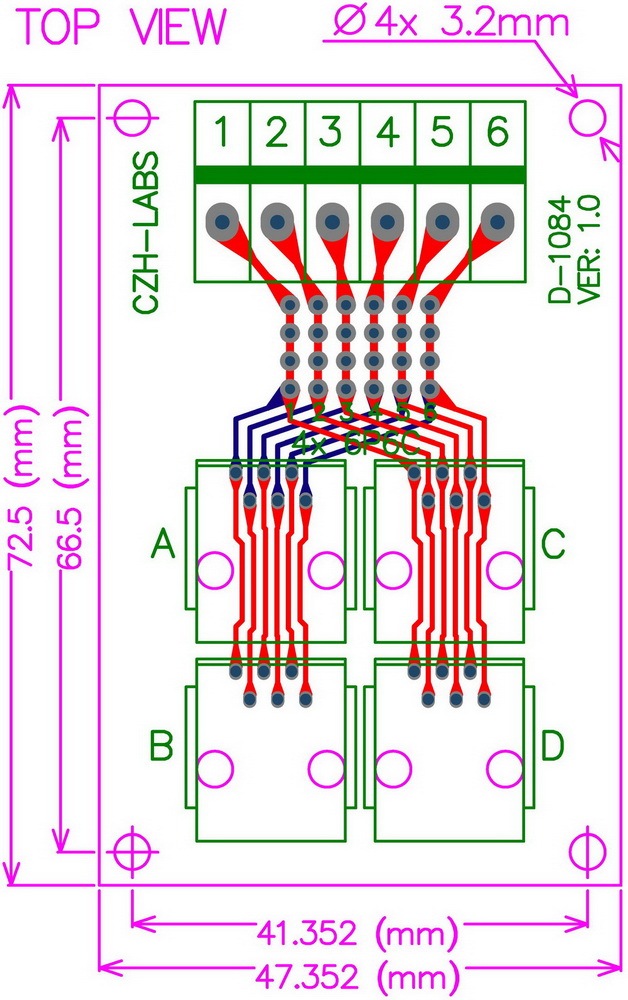

Dimensions: 72.5 x 47.35 x 35mm(W x L x H).
100% new, never used.

Rated voltage: 100V.
Rated current: 0.5A / per pin.
Operating Temperature: -20ºC to 50ºC

Terminal block specifications:
Wire range: 26 ~ 16AWG.
Strip length: 5mm.
Screws: M2, steel, Cr3+ Zn plated.
Pin header and Cage: Brass.
