Home > Relay Module > Power Relay Module > CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
1/1
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
Share:

CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.

SKU: F-1001/12V
$9.99 $9.99
CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $9.99 = $9.99
save $0.00
Add to Favorites
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
1/1
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • CZH-LABS Dual SPST-NO 10Amp Power Relay Module, AC/DC 12V Control Voltage.
  • Description

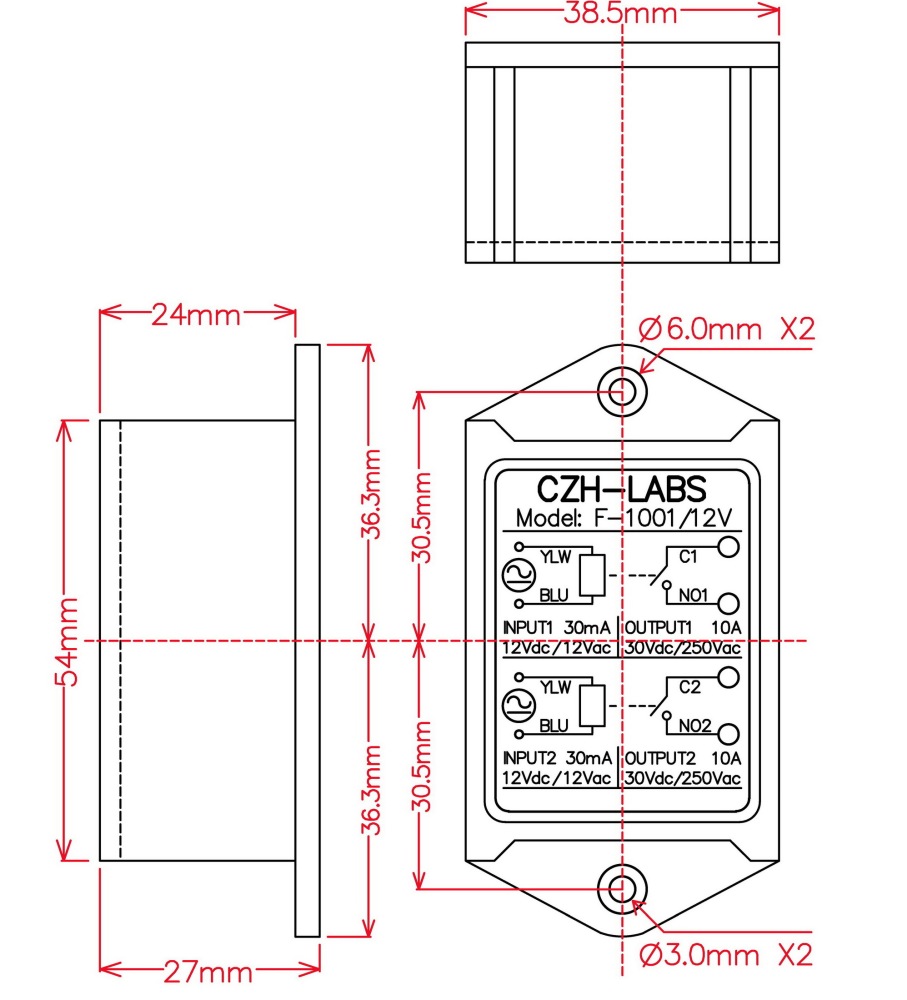

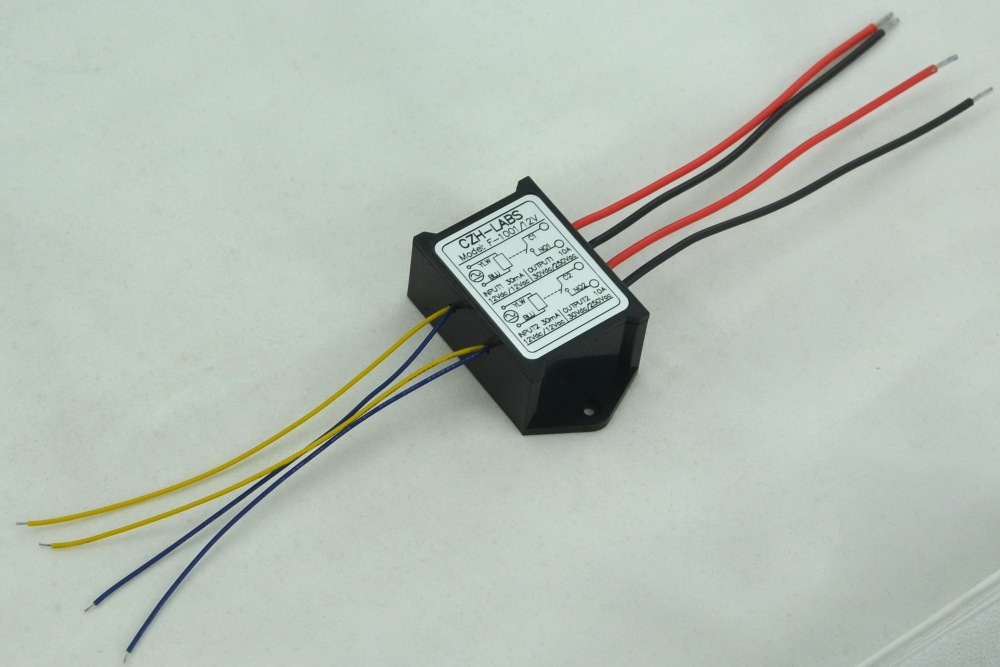

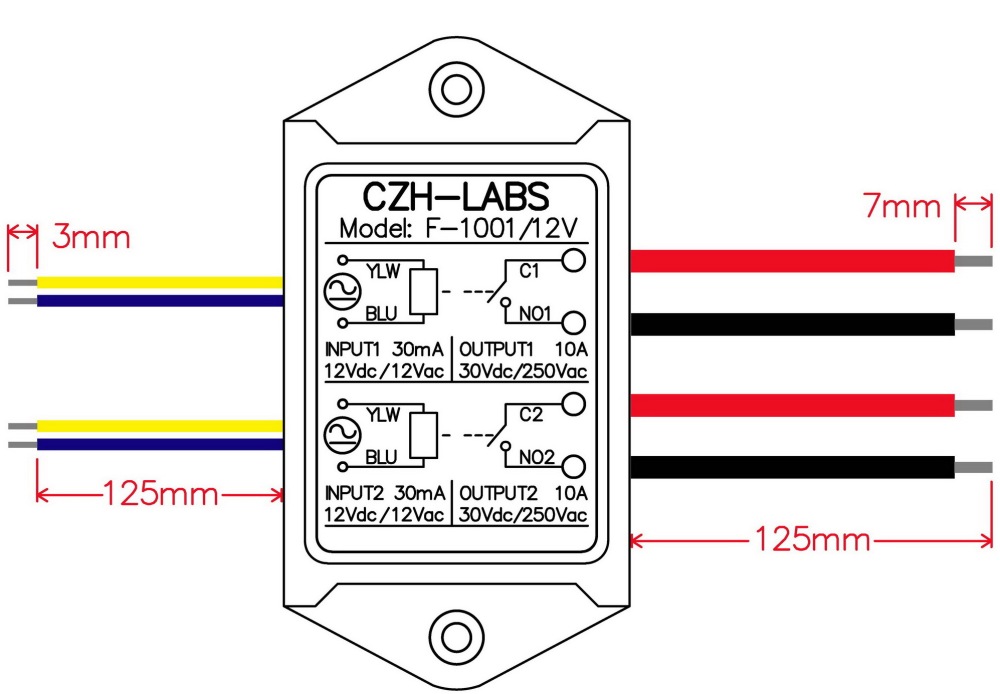

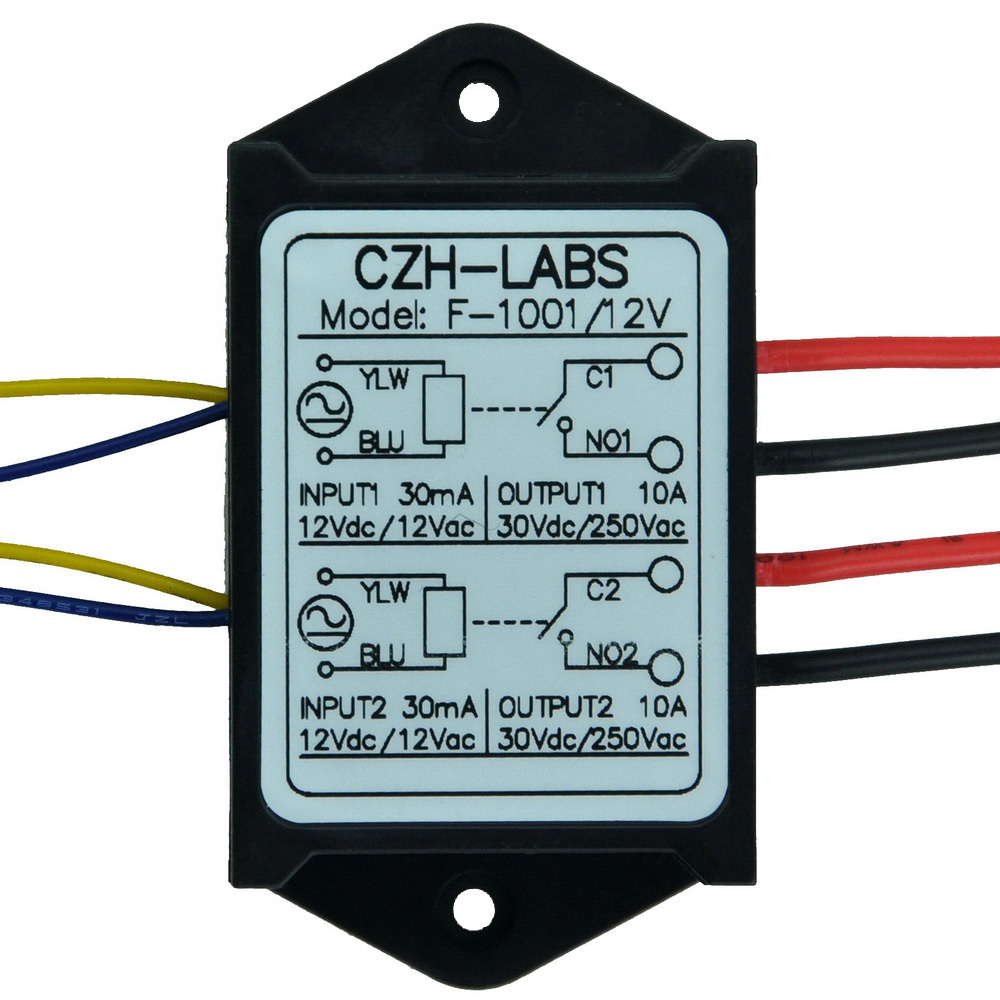

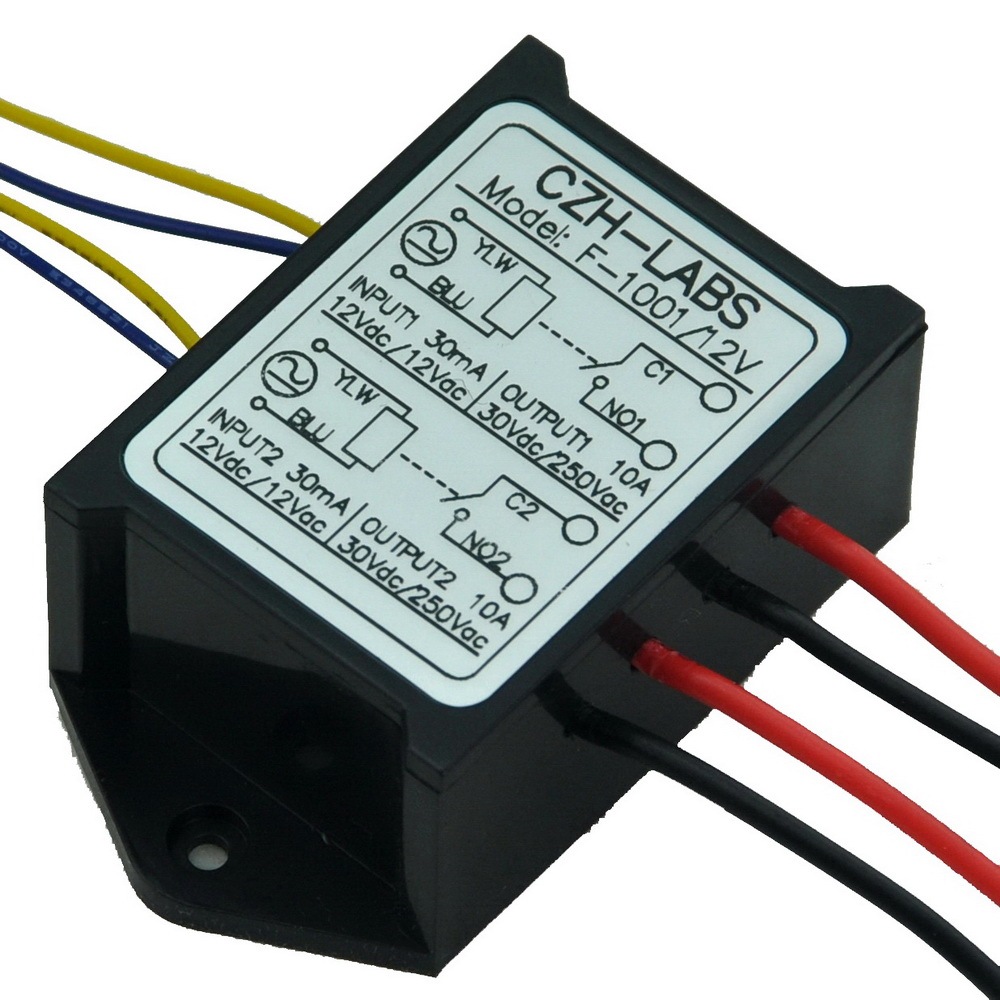

Dual SPST-NO 10Amp Power Relay Module.
Part number: F-1001/12V.
Quantity: a lot of 1 piece.
Control voltage / current: 10 ~ 15Vdc or 10 ~ 14Vac, 30mA(at 12V).
Relay switch contact capacity: 10A 250Vac or 10A 30Vdc.

Input control support AC and DC signal.
Compact plastic case and wires connect for easy mount.

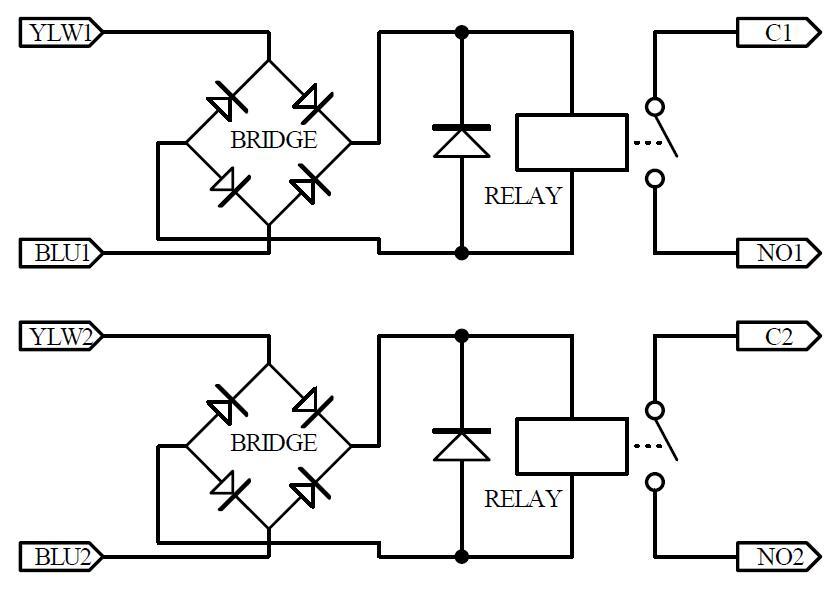

Two separate input and SPST-NO switch circuit, can flexible selection control signal, for separate AC, for separate DC, for source (PNP, common +) , for sink (NPN, common -).
