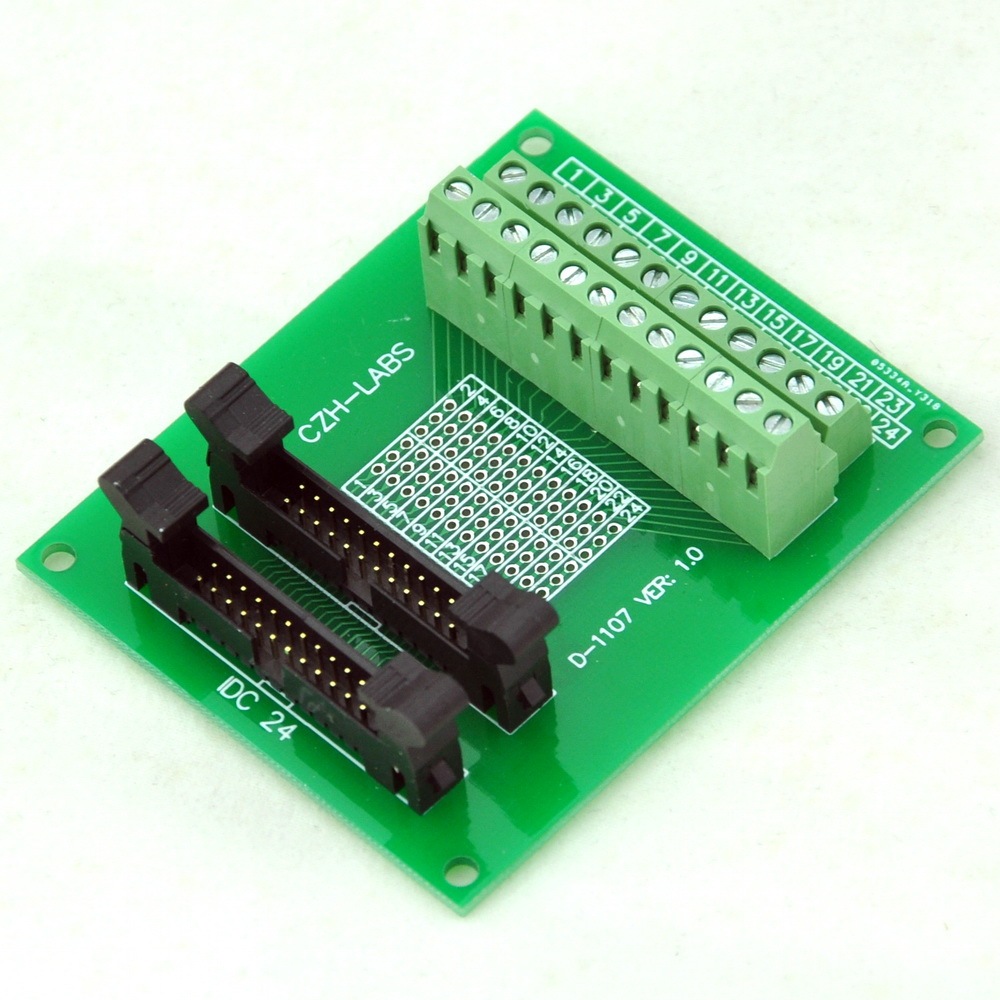

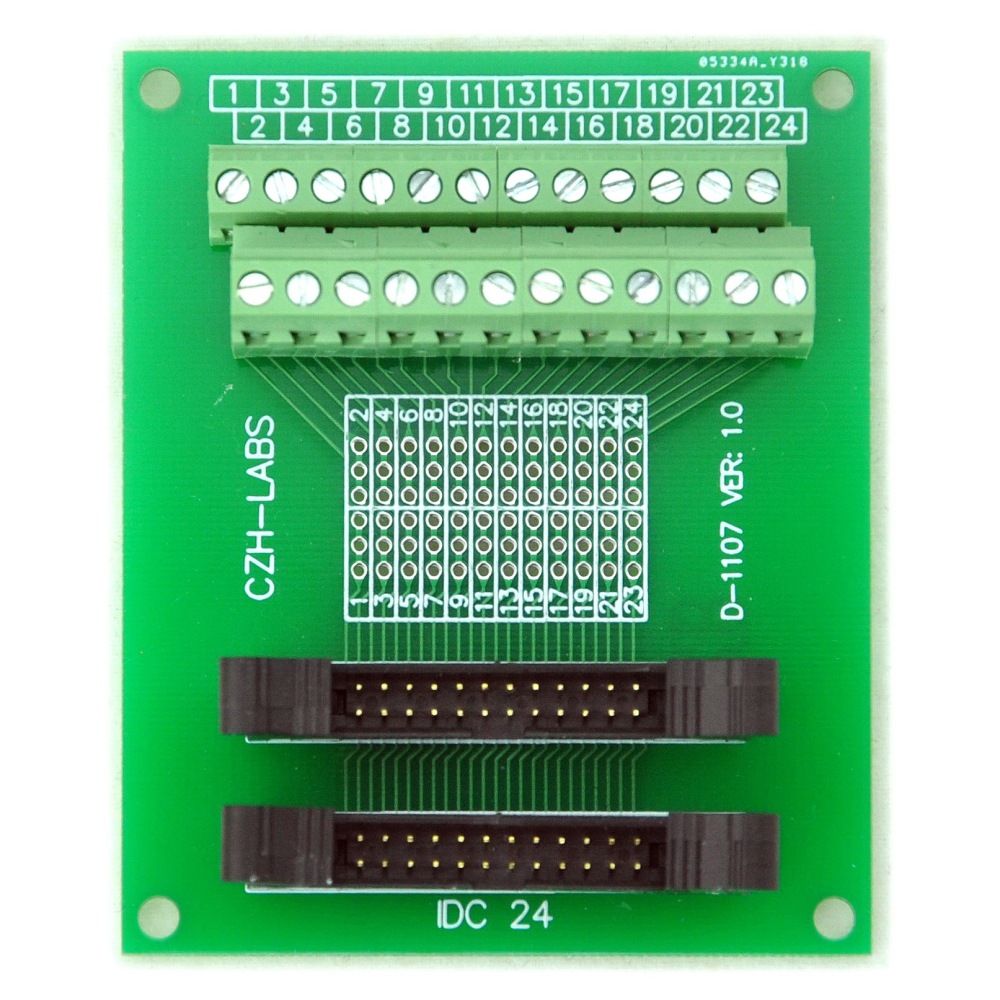

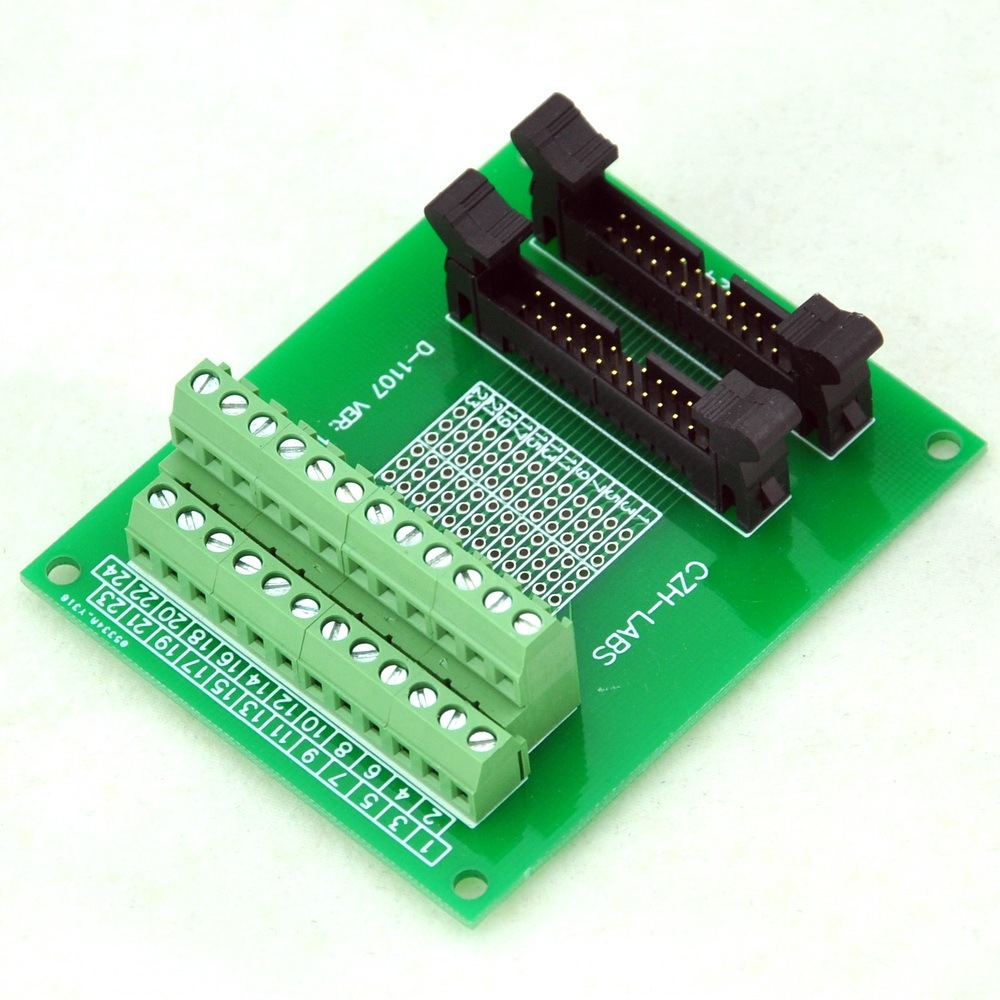

CZH-LABS Dual IDC-24 Pitch 2.0mm Male Header Terminal Block Breakout Board.

Name: CZH-LABS Dual IDC-24 Pitch 2.0mm Male Header Terminal Block Breakout Board.
Brand: Xiken Tech
SKU: D-1107
Price: 16 USD
Availability: InStock

SKU: D-1107

$16.00 ~~$16.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

Features:

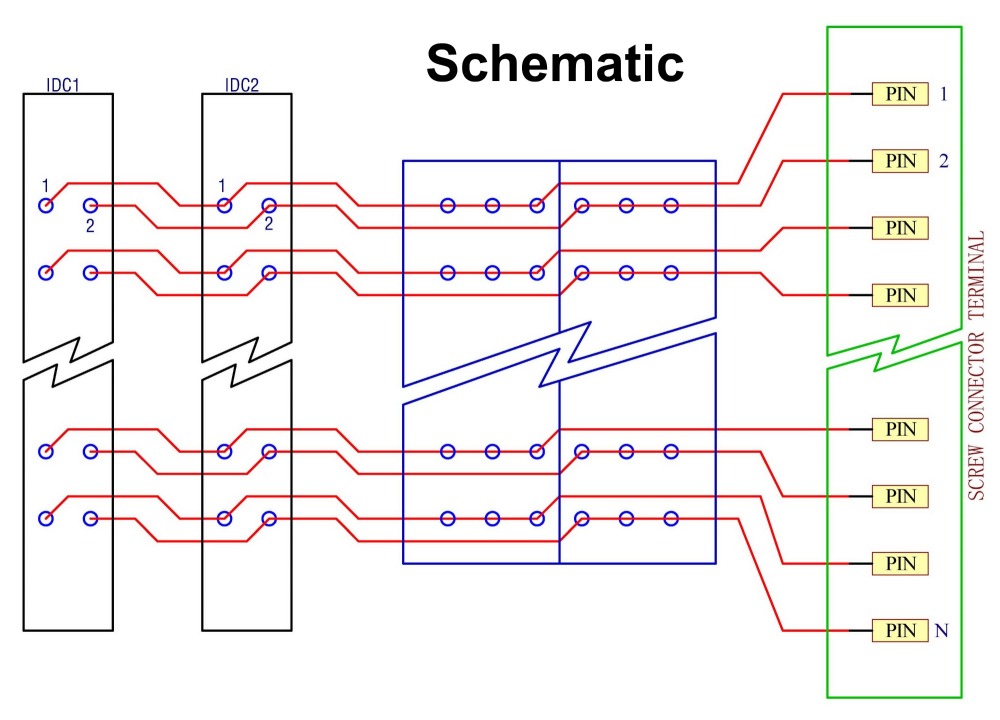

1, Dual pitch 2.0mm/0.079" IDC male header connectors. IDC1, IDC2 and screw terminal 1:1:1 connects for per line. Dual IDC connectors to convenient for multiple devices connections and controls.
2, Miniaturized high quality screw terminal block, position pitch 3.81mm / 0.15”
3, Solder connection holes 3 per line, supports addition of 2.0mm / 0.079" pin headers.

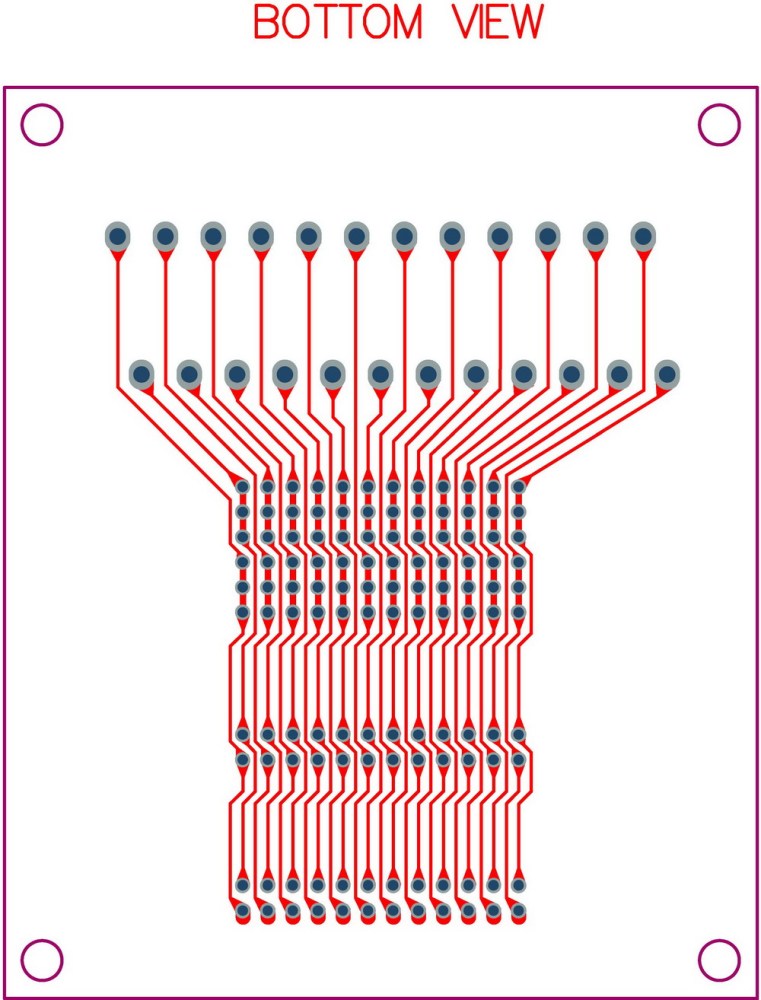

4, FR-4 fiber glass PCB, dual copper layers.

Terminal Block:
Position pitch 3.81mm / 0.15”
Wire range - 26-16AWG.
Strip length - 5mm.
Screws - M2,steel,Cr3+ Zn plated.
Torque - 0.2Nm (1.7Lb-In.).
Pin header and Cage - Brass.

Specification:
Rated voltage: 60V.
Rated current: 500 mA / per pin.
Operating temperature: -20ºC to 70ºC

Datasheet:
