CZH-LABS DIN Rail Mount USB Type A Female Vertical Jack Module Board.

SKU: D-1010VT
$14.99 $14.99
CZH-LABS DIN Rail Mount USB Type A Female Vertical Jack Module Board.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $14.99 = $14.99
save $0.00
Add to Favorites
  • CZH-LABS DIN Rail Mount USB Type A Female Vertical Jack Module Board.
  • CZH-LABS DIN Rail Mount USB Type A Female Vertical Jack Module Board.
  • CZH-LABS DIN Rail Mount USB Type A Female Vertical Jack Module Board.
  • CZH-LABS DIN Rail Mount USB Type A Female Vertical Jack Module Board.
  • CZH-LABS DIN Rail Mount USB Type A Female Vertical Jack Module Board.
  • CZH-LABS DIN Rail Mount USB Type A Female Vertical Jack Module Board.
  • CZH-LABS DIN Rail Mount USB Type A Female Vertical Jack Module Board.
  • CZH-LABS DIN Rail Mount USB Type A Female Vertical Jack Module Board.
  • CZH-LABS DIN Rail Mount USB Type A Female Vertical Jack Module Board.
  • CZH-LABS DIN Rail Mount USB Type A Female Vertical Jack Module Board.
  • CZH-LABS DIN Rail Mount USB Type A Female Vertical Jack Module Board.
  • CZH-LABS DIN Rail Mount USB Type A Female Vertical Jack Module Board.
1/1
  • CZH-LABS DIN Rail Mount USB Type A Female Vertical Jack Module Board.
  • CZH-LABS DIN Rail Mount USB Type A Female Vertical Jack Module Board.
  • CZH-LABS DIN Rail Mount USB Type A Female Vertical Jack Module Board.
  • CZH-LABS DIN Rail Mount USB Type A Female Vertical Jack Module Board.
  • CZH-LABS DIN Rail Mount USB Type A Female Vertical Jack Module Board.
  • CZH-LABS DIN Rail Mount USB Type A Female Vertical Jack Module Board.
  • Description

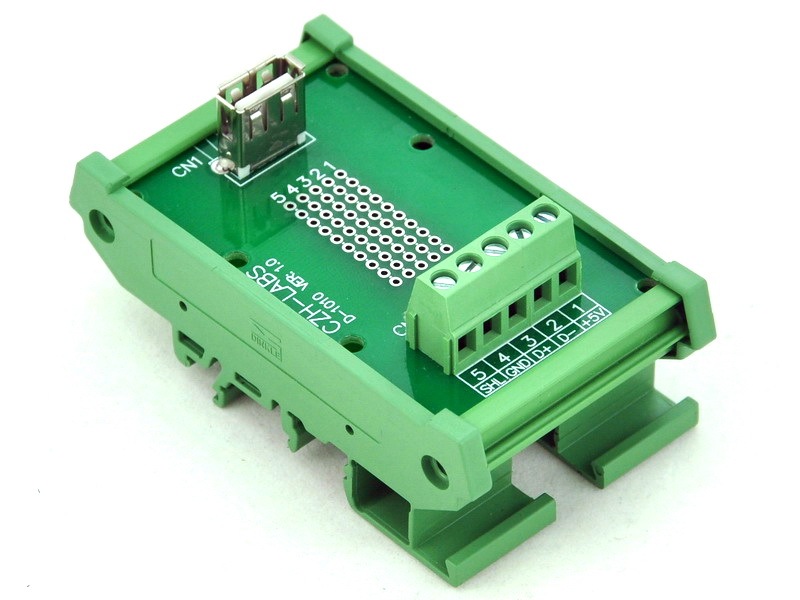

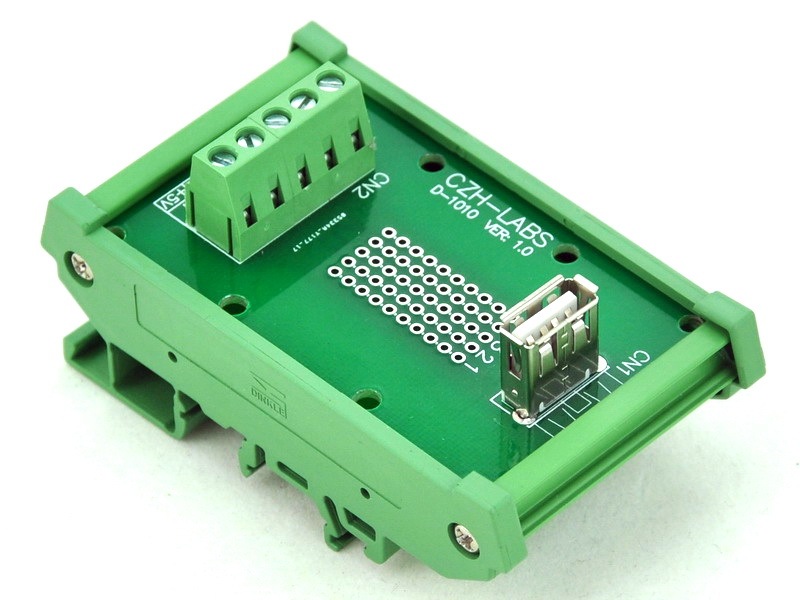

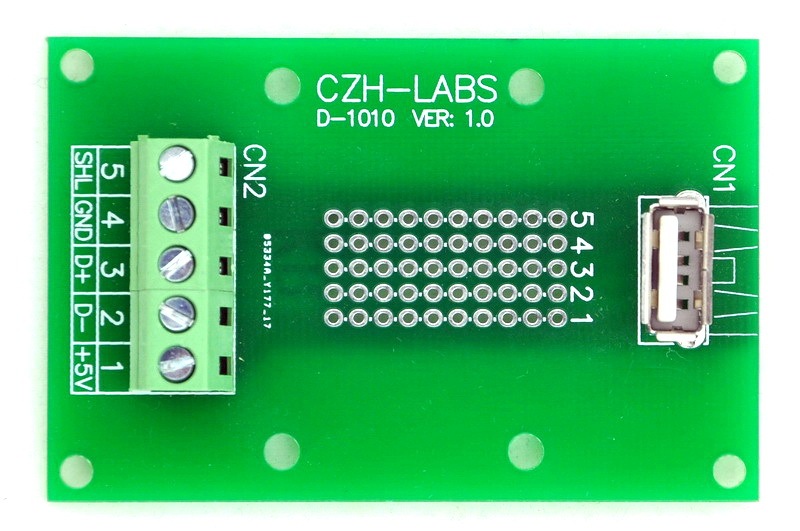

DIN Rail Mount USB Type A Female Vertical Jack Module Board.

USB type A female vertical jack.

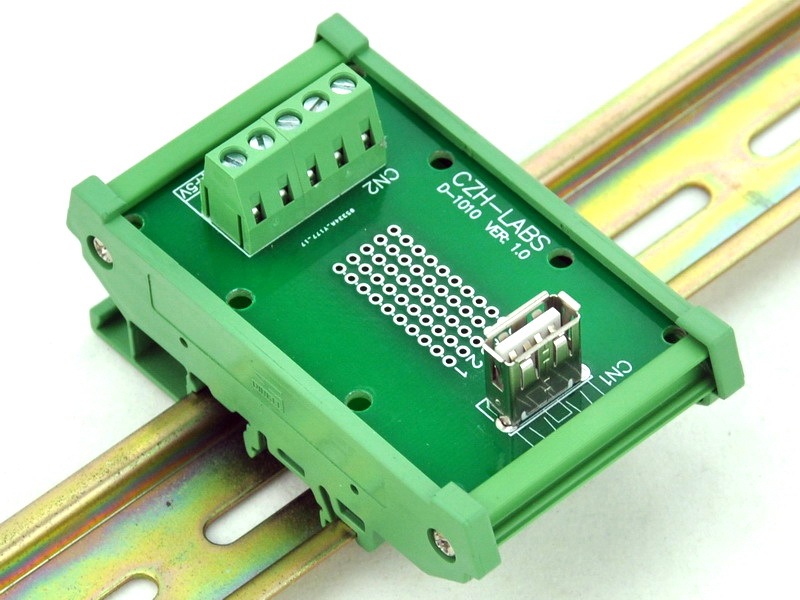

High quality PCB housing/carrier, DIN rail mountable - for width 35 / 32 / 15mm rails.
DIN mount case can be taken apart for panel mount use.
Pitch 5.0mm/0.197" screw terminal block.
Solder connection holes 10 per line, supports addition of 0.1" pin headers.
FR-4 fiber glass PCB.

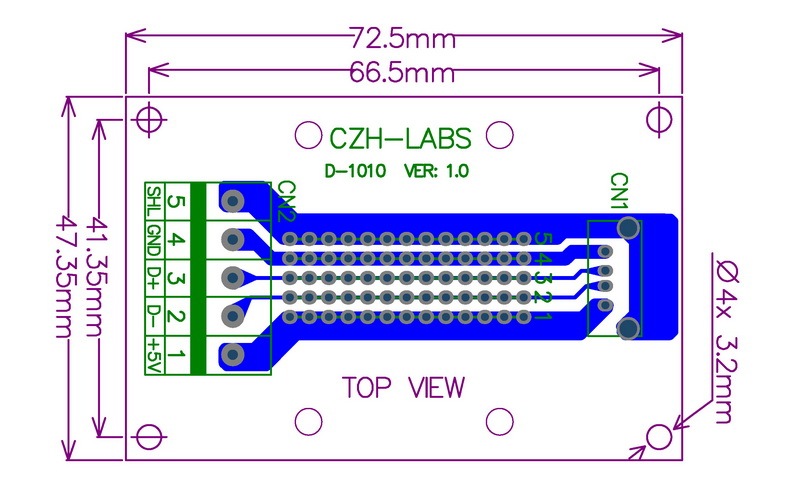

Size: 87 x 50 x 40mm (W x L x H).
Operating Temperature: -20ºC to 70ºC
100% new, never used.

Terminal block specifications:
Wire range: 24 ~ 12 AWG.
Strip length: 7mm.
Screws - M2.5, steel, Cr3+ Zn plated.
Pin header and Cage - Brass.

Note: the item included the DIN rail mount feet, but not include metal rail.
