CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.

SKU: D-1035T/115V
$36.00 $36.00
CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $36 = $36
save $0.00
Add to Favorites
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
1/1
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • CZH-LABS DIN Rail Mount Input AC115V Output DC1.25~15.8V Adjustable Voltage Regulator.
  • Description

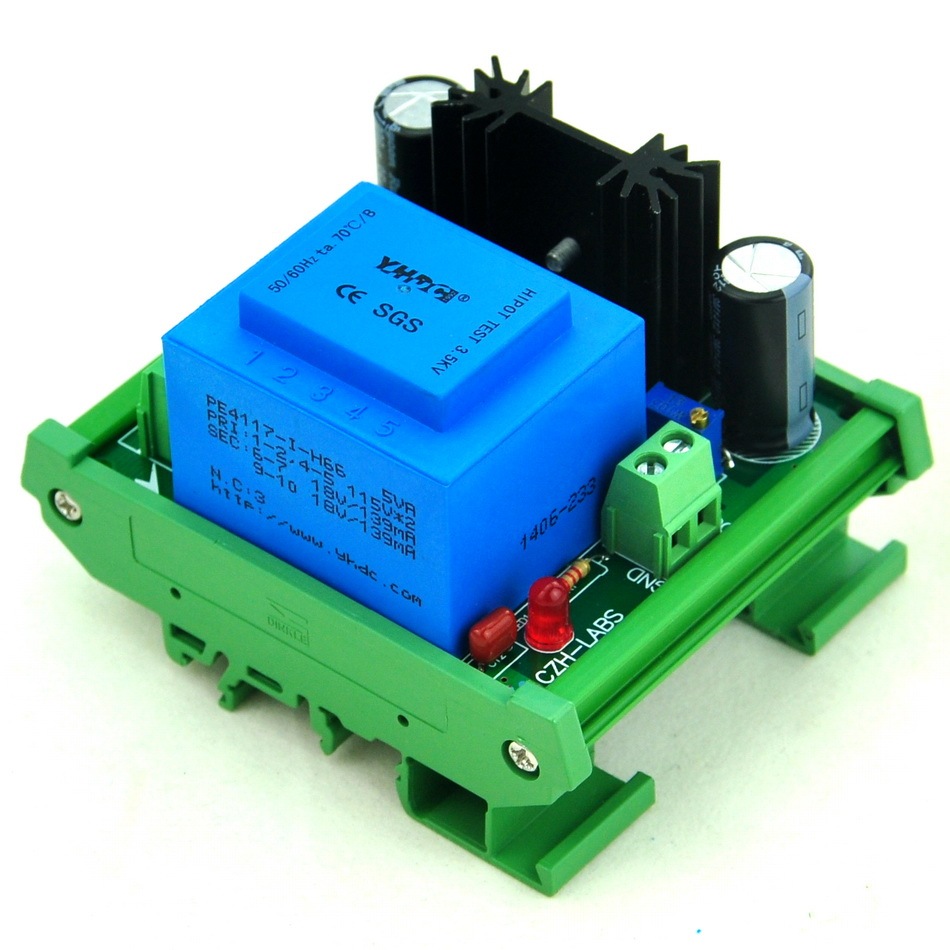

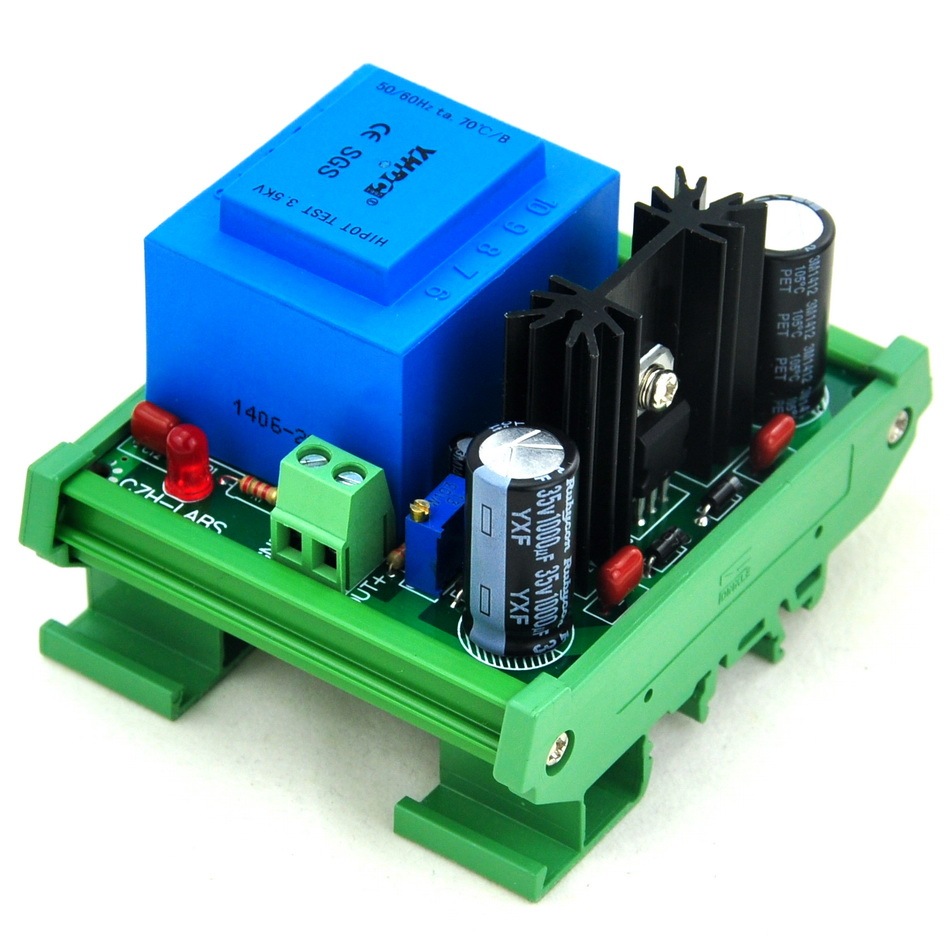

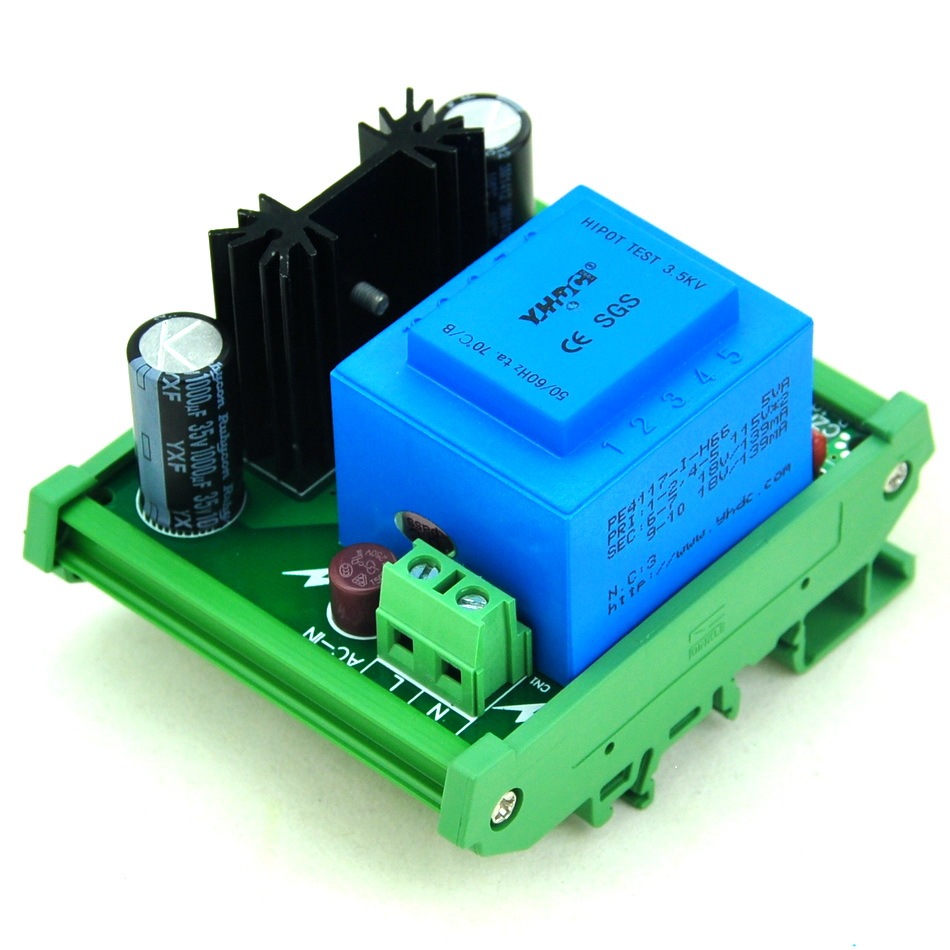

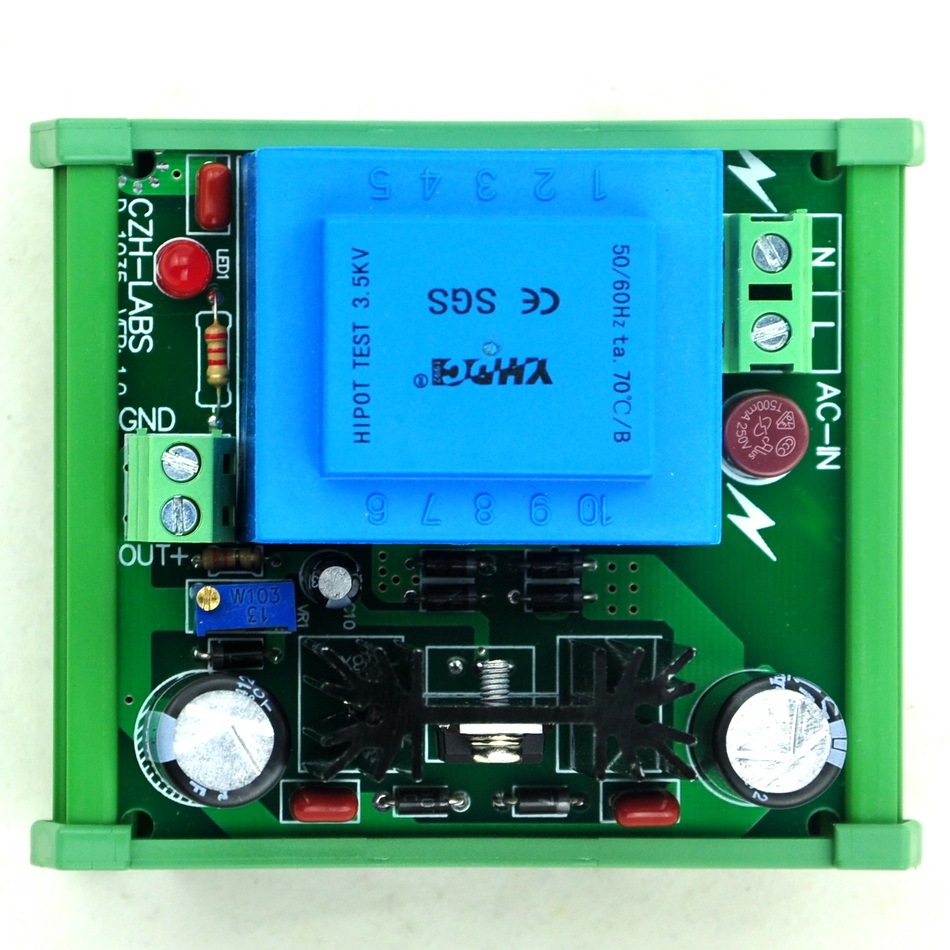

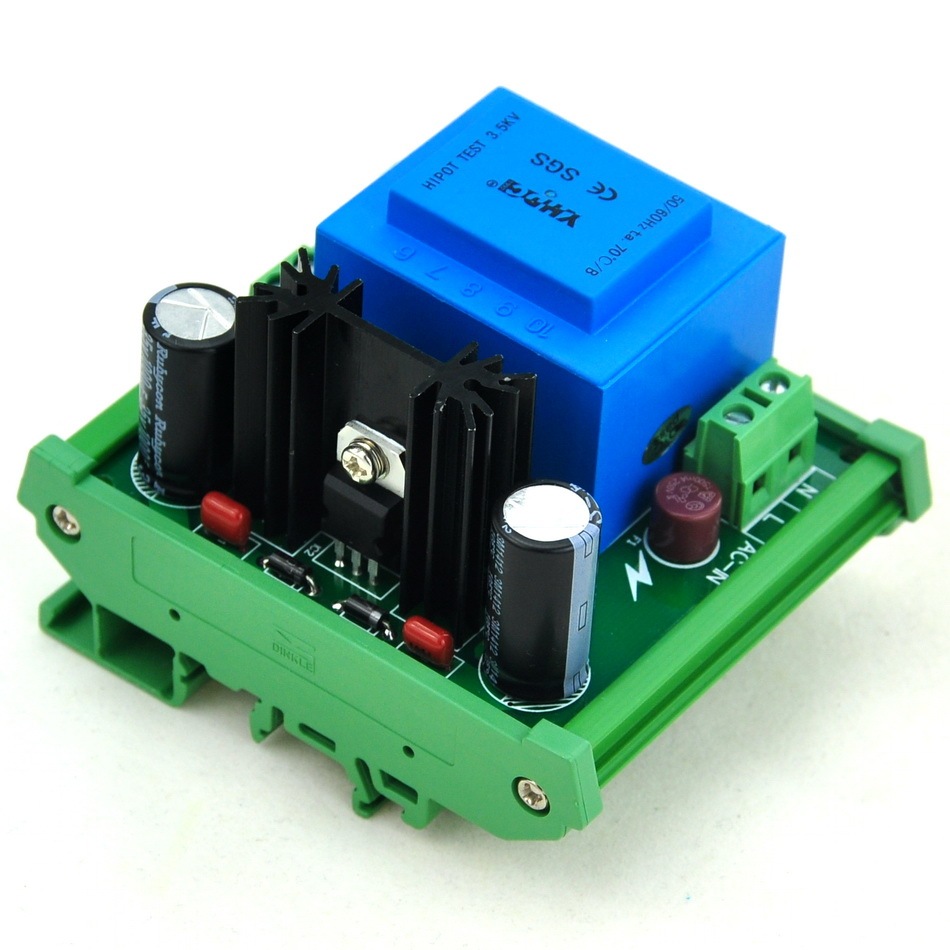

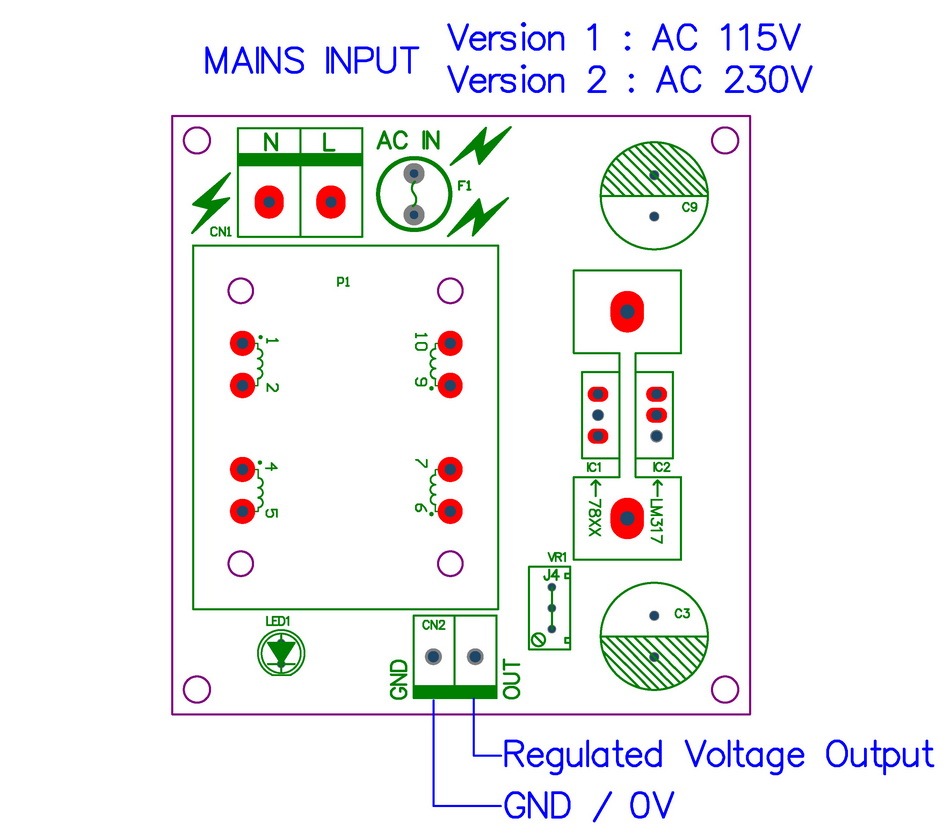

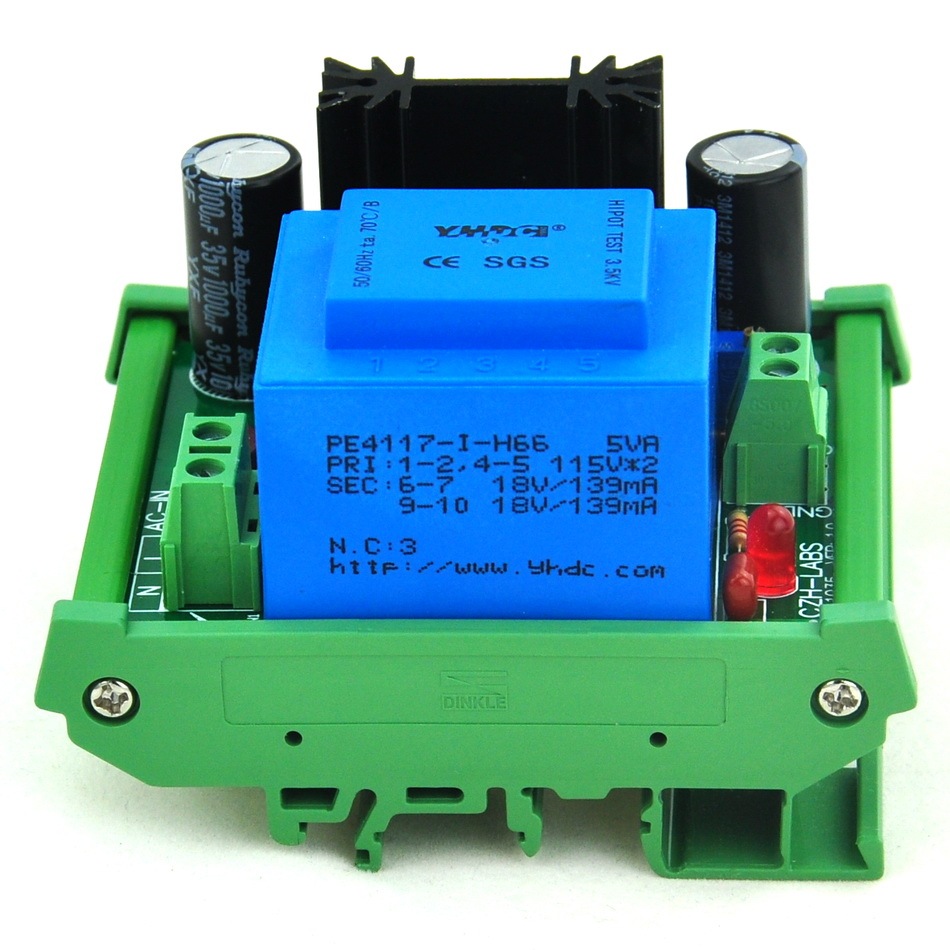

DIN Rail Mount Power Supply Module, with Mains Transformer and Voltage Regulator Circuit.

Part Number: MD-D1035T/115V.
Input Voltage: 115+/-10 VAC mains, 50/60Hz.
Output Voltage: 1.25 ~ 15.8 VDC, adjustable.
Maximum Output Current: 250mA.
Module Size: 72 x 87 x 62 mm (W x L x H).

This item has been assembled, and electrical test passed.

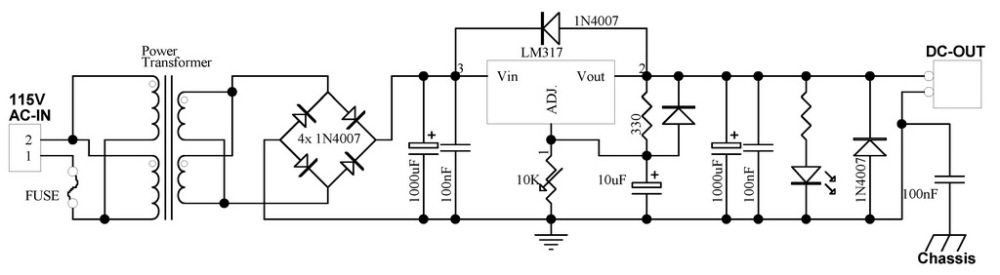

Fully encapsulated 5VA power transformer, FR-4 fiber glass PCB. HQ terminal blocks, easy connection wires. YXF 105C long life and low impedance electrolytic capacitors. output voltage LED indicator. regulator circuit based on LM317 IC design.

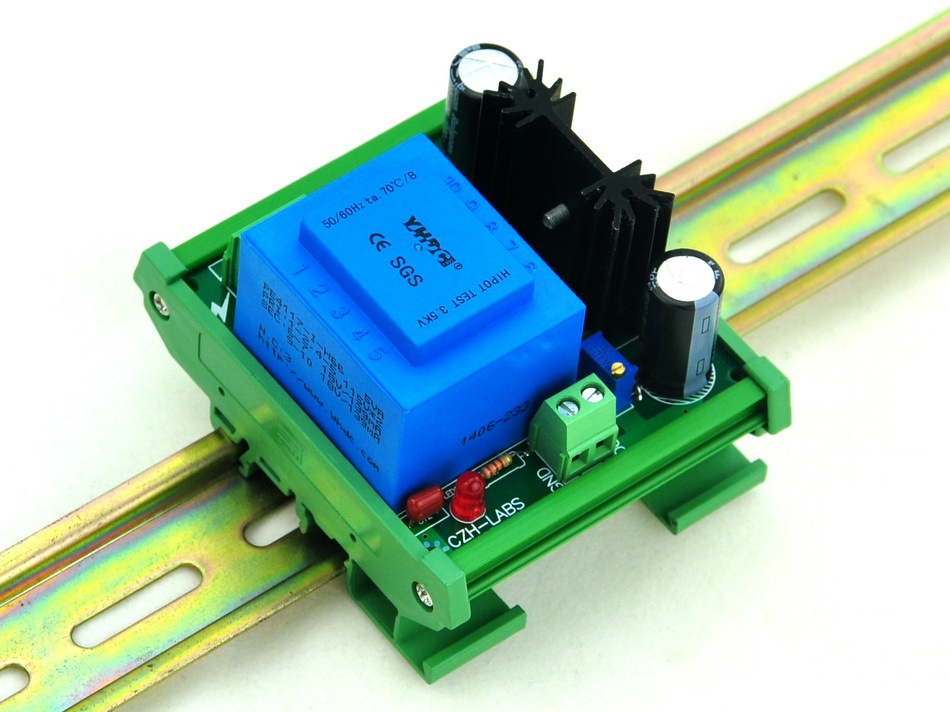

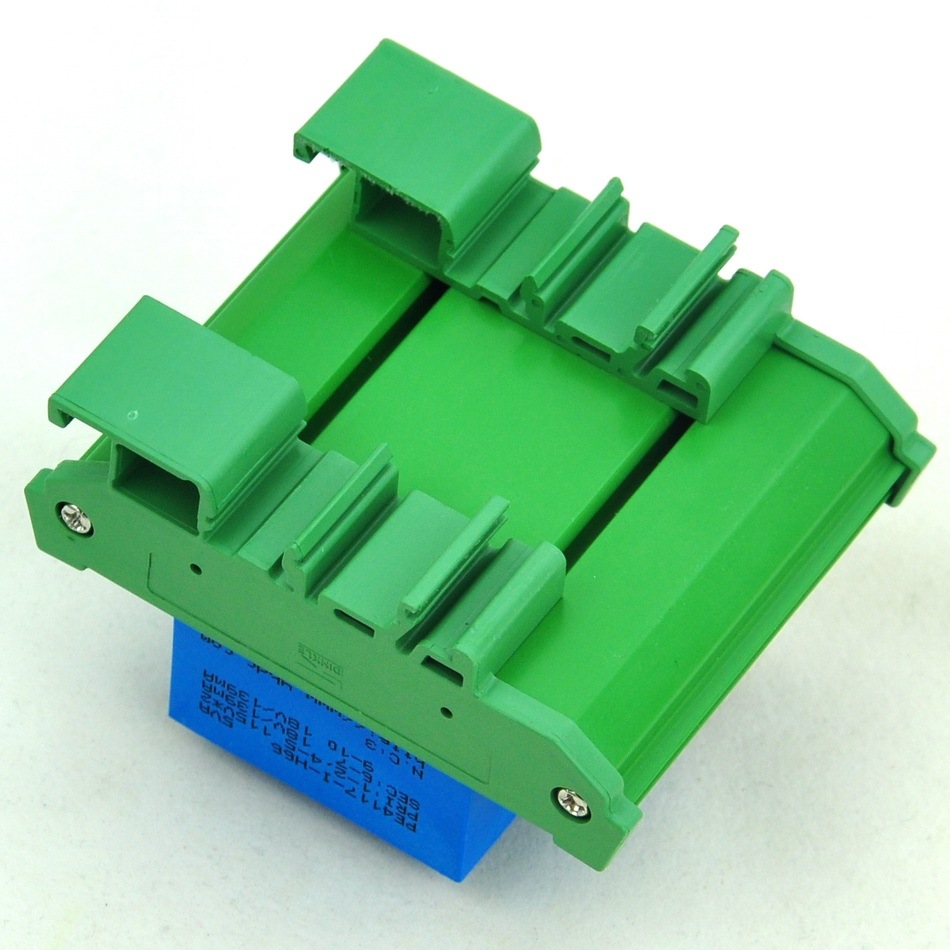

High quality PCB housing/carrier, DIN rail mountable - for width 35 / 32 / 15mm rails, the carrier can be taken apart for panel mount use.
