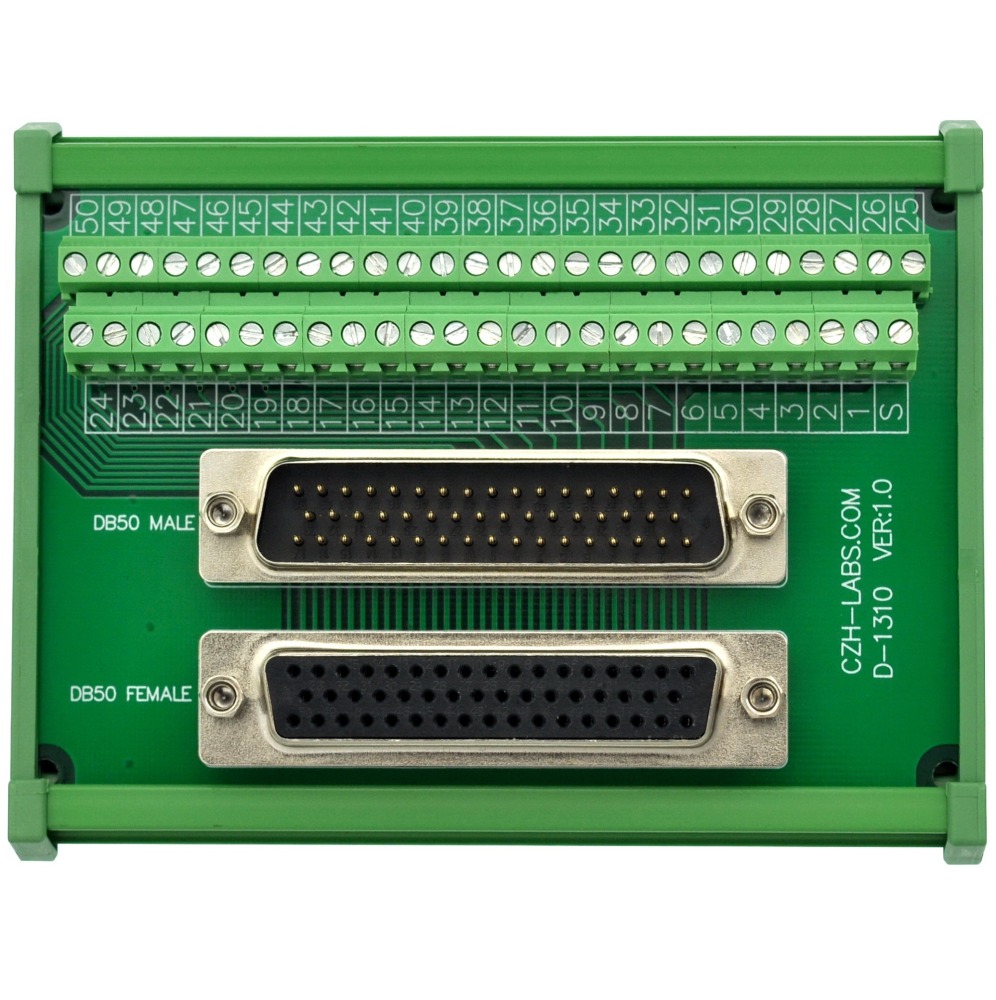

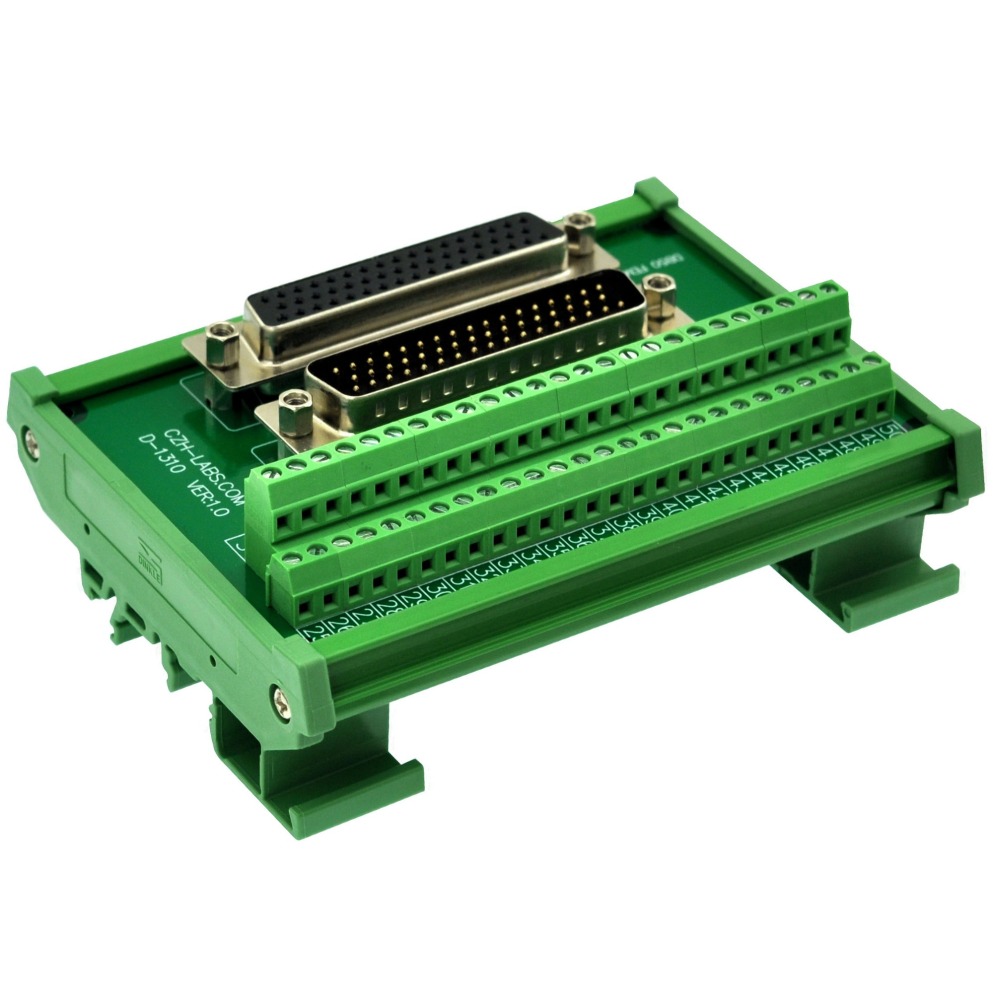

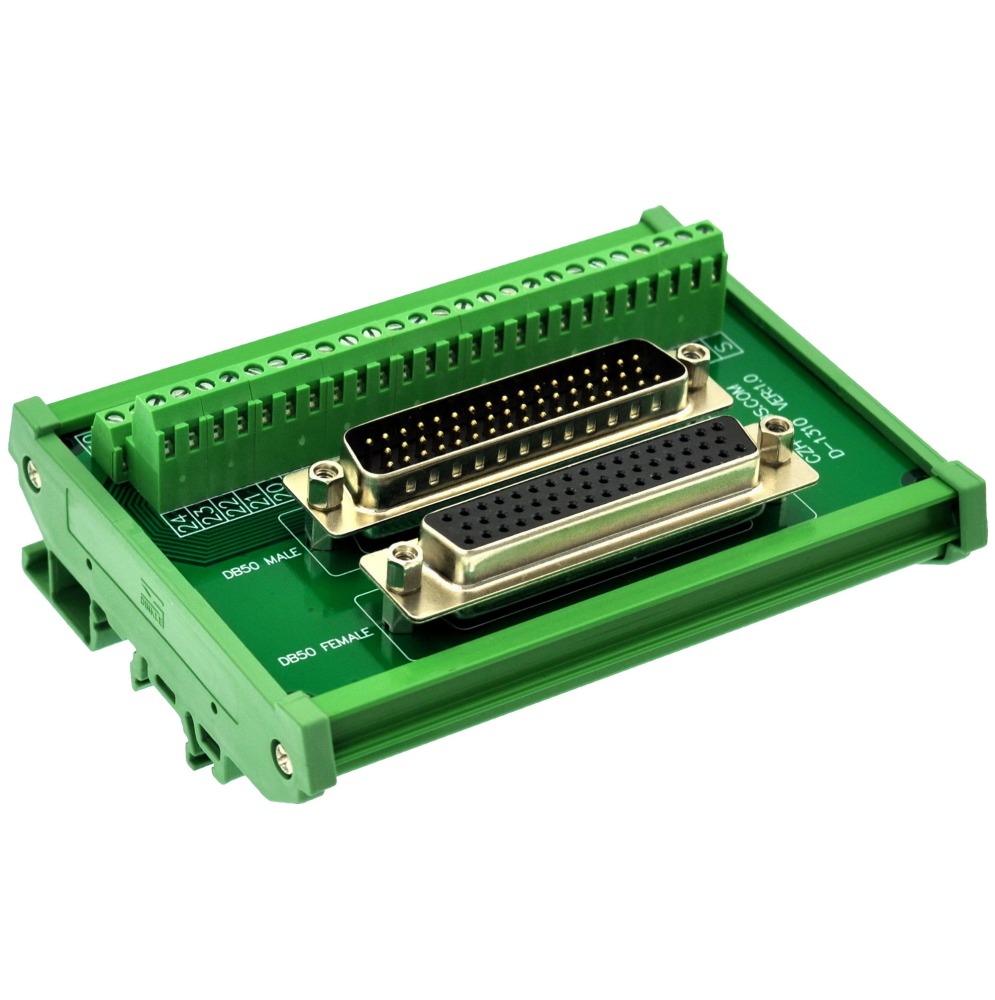

CZH-LABS DIN Rail Mount DSUB DB50 Male/Female Header Interface Module, D-SUB Breakout Board.

Name: CZH-LABS DIN Rail Mount DSUB DB50 Male/Female Header Interface Module, D-SUB Breakout Board.
Brand: Xiken Tech
SKU: D-1310T
Price: 32 USD
Availability: InStock

SKU: D-1310T

$32.00 ~~$32.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

Features:

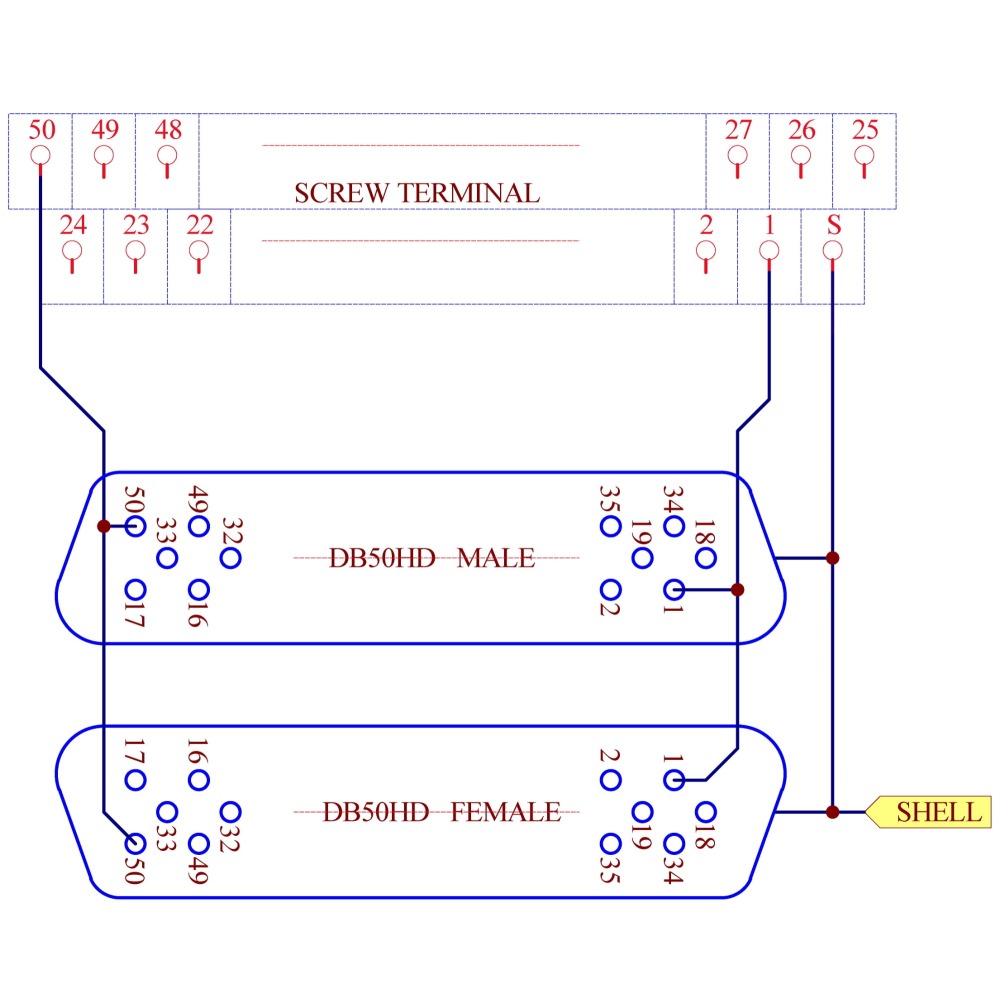

1, Standard DB50 Male/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line.
2, Rated voltage: 60V. Rated current: 1A / per pin. Operating Temperature: -20ºC to 50ºC
3, Terminal block: Pitch 3.81mm/0.15" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
4, FR-4 fiber glass PCB, dual copper layers.

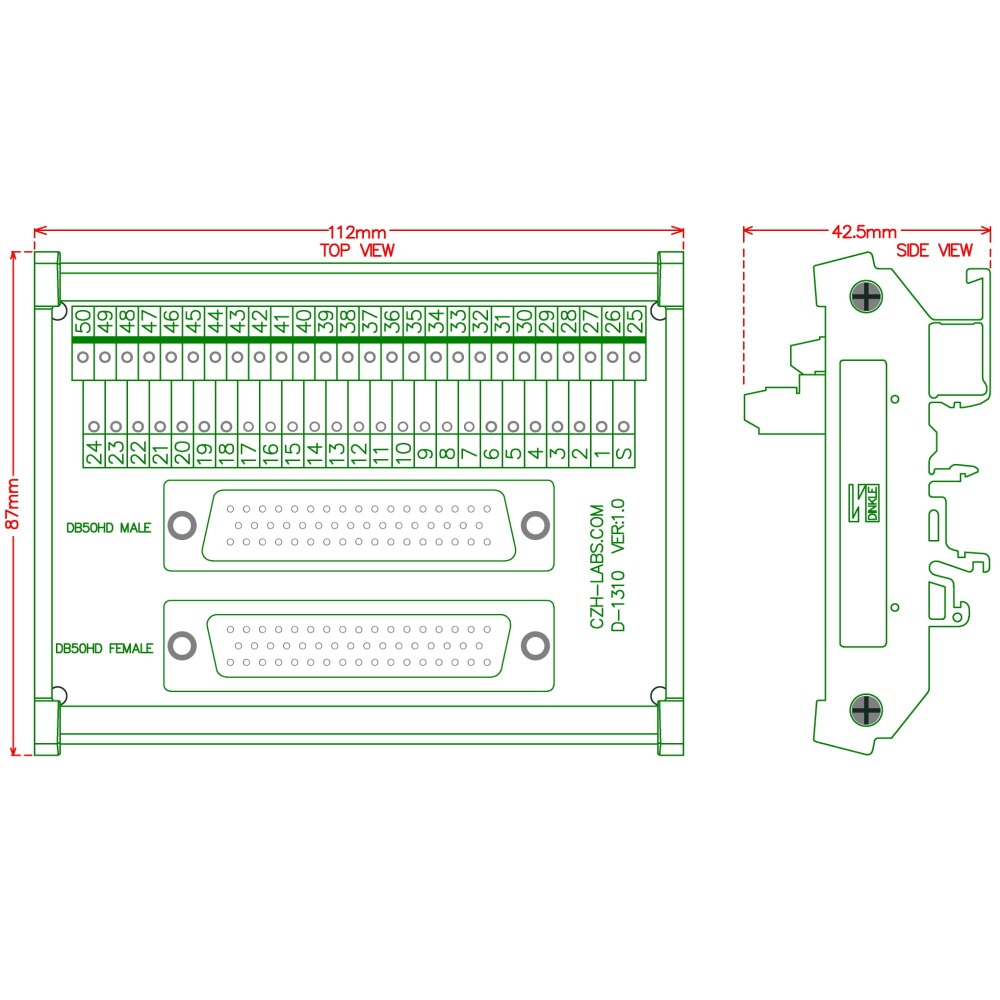

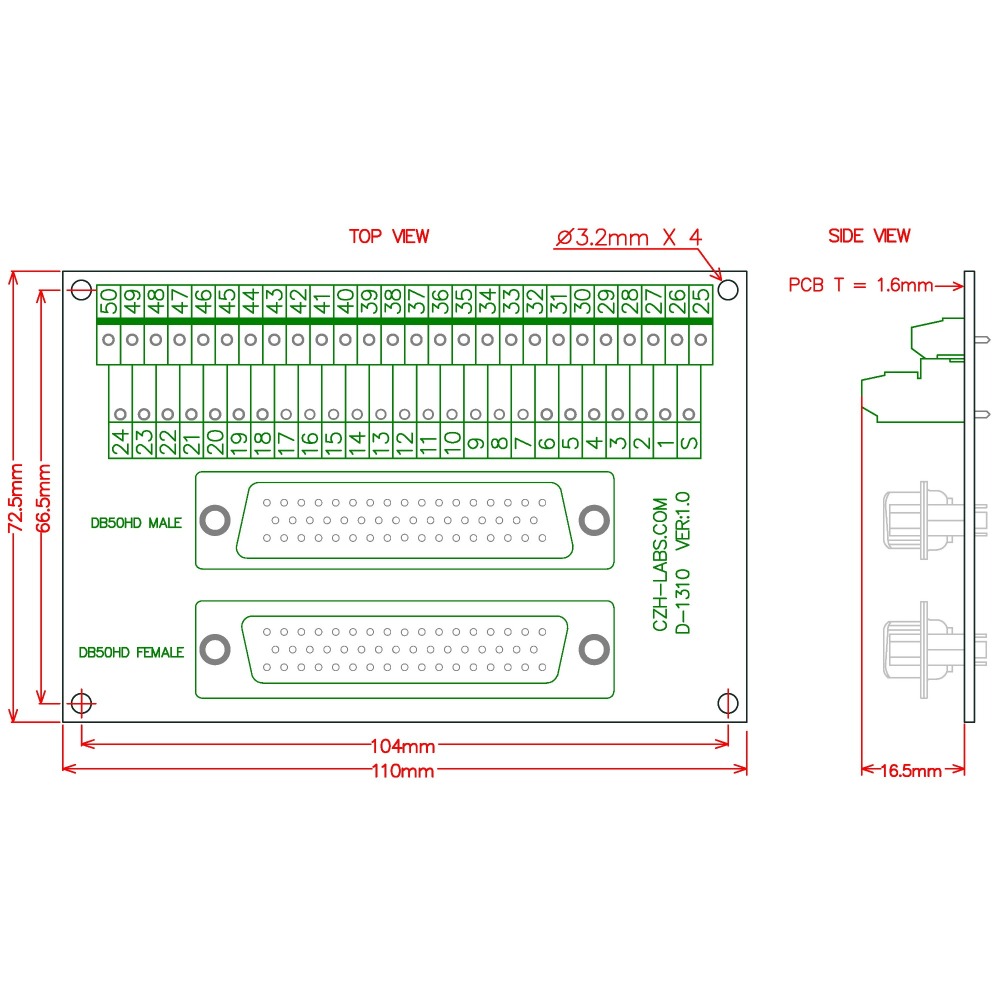

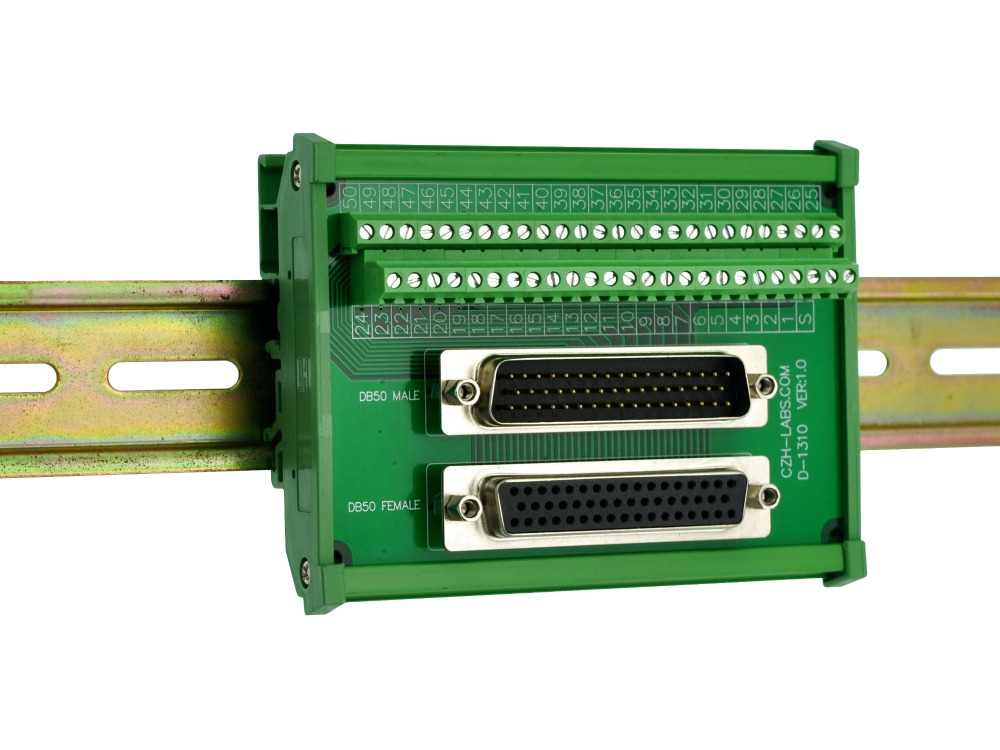

5, High quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for PCB screw mount use.
